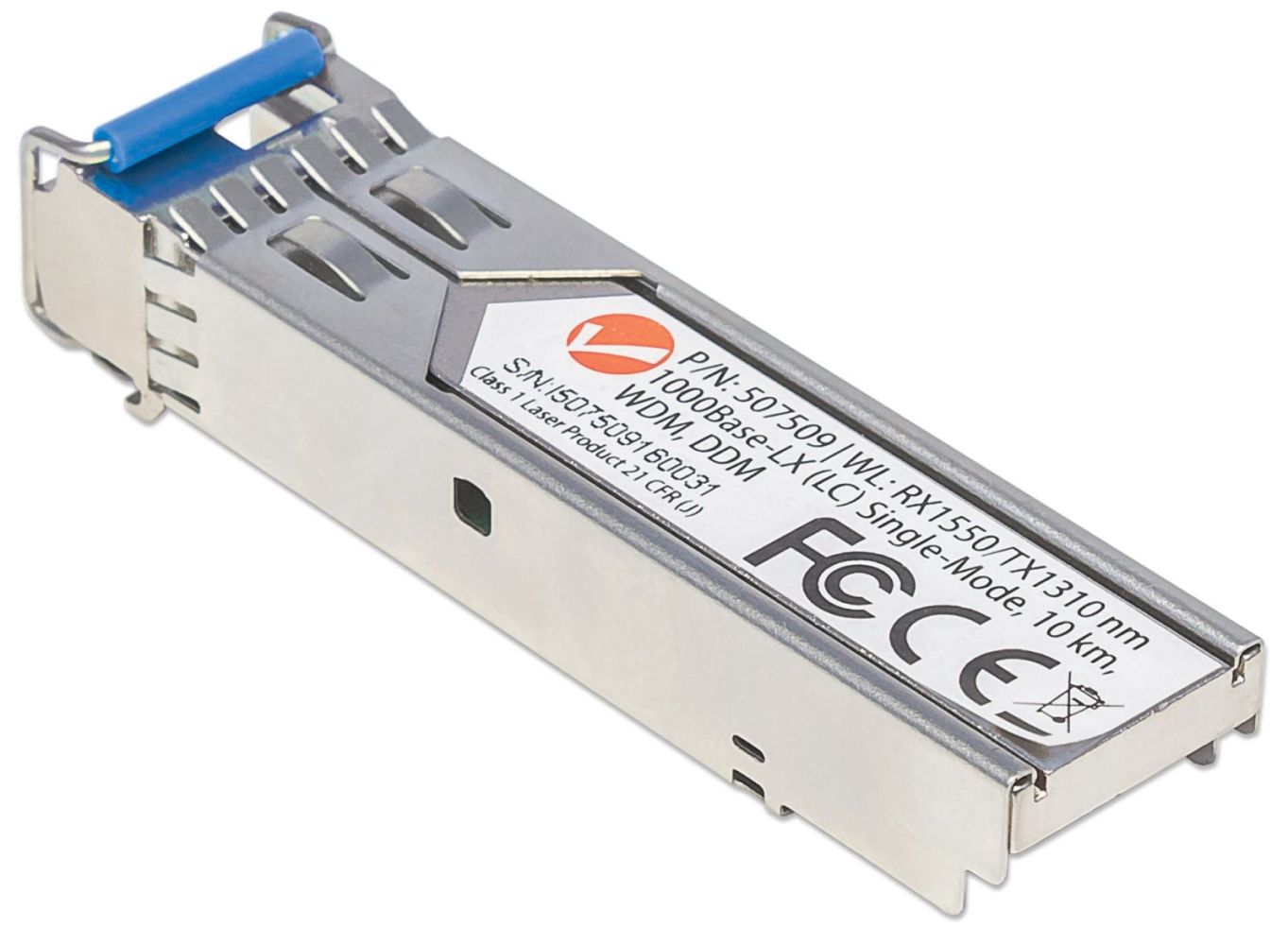

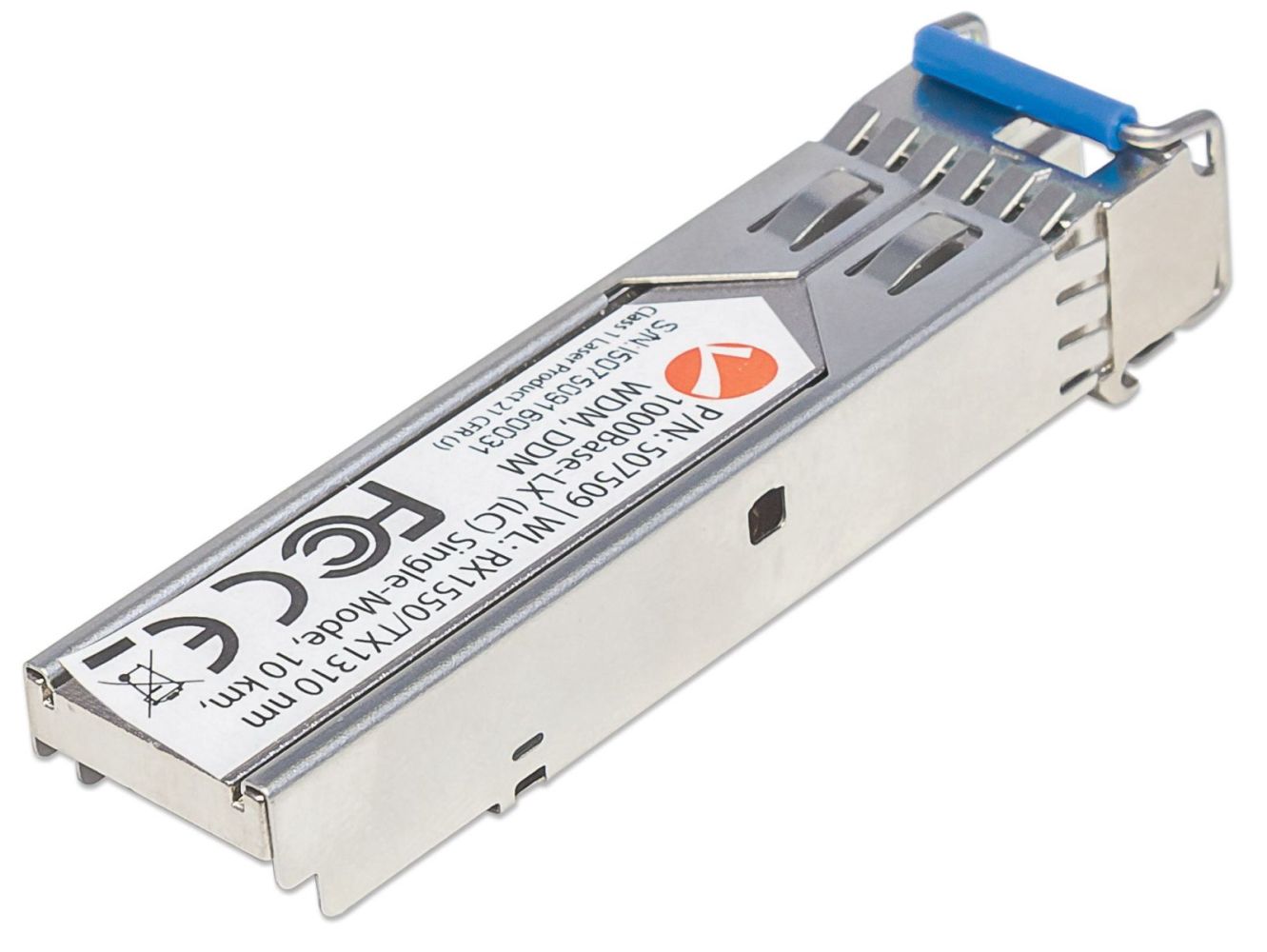

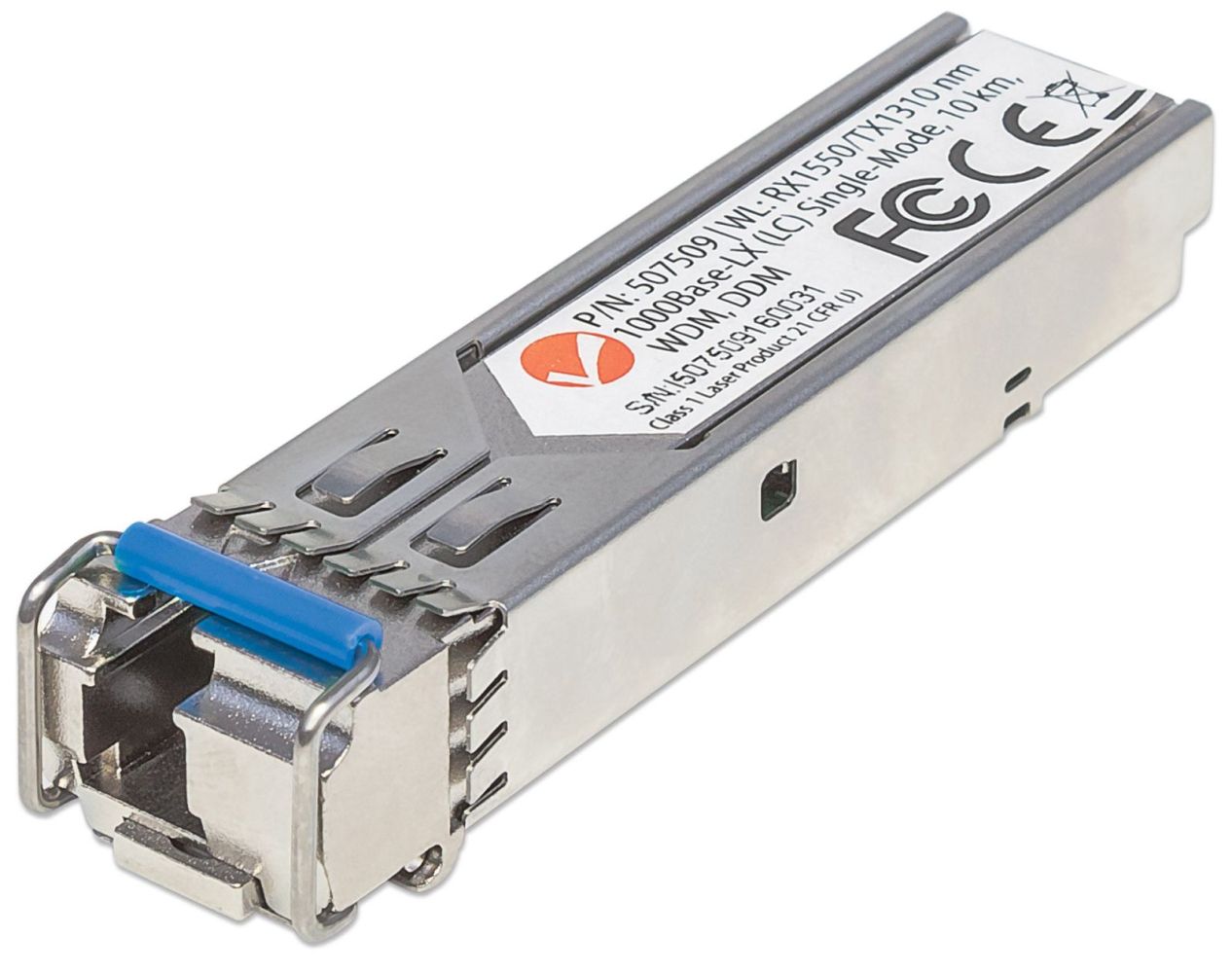

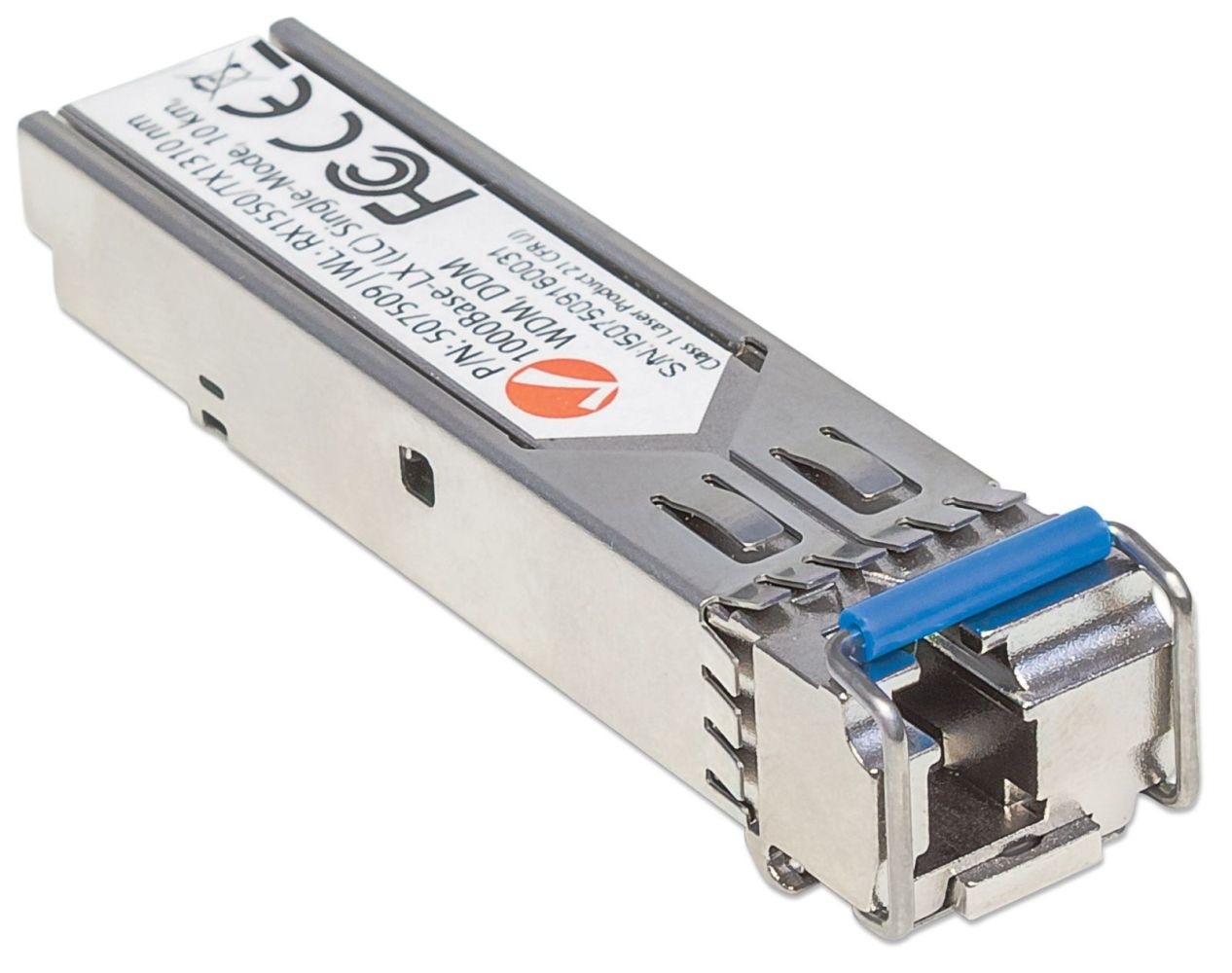

Intellinet 507509
Gigabit SFP mini GBIC Transceivers WDM bidirectional for fiber optic cables 1000Base-LX (LC) singlemode port, 10 km, WDM (RX1550 / TX1310)
|
41,46 EUR |
|
|
( 49,33 EUR incl. VAT ) ≈ £34.91 | ≈ $46.56 plus delivery charges: 53,00 € |
|
| Delivery time from supplier's stock (ca.) 5 workdaysinfo_outline | |
| End-Of-Life: | 13. May 2026 |
|---|---|
| Datasheet: | file_download Download |
| Lieske Part No.: | 953929 |
| Mfg Part No: | 507509 |
| UPC/EAN: | 766623507509 |
| Weight: | 0.037 kg |
Product information for Intellinet 507509:
- Requires use with bidirectional Gigabit WDM SFP Mini-GBIC Transceiver Model 507 486
- Data transfer rate: 1000 Mbit / s
- A 1000Base-LX singlemode LC duplex port for fiber-optic cable
- Supported FO range: up to 10 km
- WDM (wavelength Division multiplexing) uses only one fiber for data transmission and reception on separate wavelengths
- wavelengths: receiving (RX) , 1550 nm; Send (TX), 1310nm
- Compliant with SFP Multi-Source Agreement (MSA)
- Compatible with Cisco, HP and more
- SFP standard form factor
- Supports Digital Diagnostics Monitoring (DDM)
- Metal housing reduces electromagnetic interference
- up to 1, 25 Gbit / s bi-directional communication
- Supports hot plugging
- 3 years warranty standards
- IEEE 802.3z (Fiber Optic Gigabit Ethernet) General
- Supported Media: 1000Base-LX singlemode 9/125 microns fiber
- Connector: LC duplex port 1000Base-LX
- Range: 10 km Wavelength:
- receiving (RX): 1550nm
- Send (TX): 1310nm
- Fiber Power budget:
- Max TX Power:. -3 dB
- min TX Power: -8 dB.
- Sensitivity: -24 dB
- Power budget: 16 dB
- construction: SFP (Small form Factor Pluggable), 1.25 Gbps
- Certificates: FCC Class A, CE Mark, RoHS electricity
- Voltage: 3.3V
- Consumption: 1.0 watts (max.) Physical Details
- Dimensions: 57 (L) x 14 (W) x 12 (H) mm
- Weight: 20 g
- Operating temperature: 0 - 70 ° C
- Humidity: 10 - 85%, non-condensing
- storage temperature: -40 - 85 ° C delivery
- Gigabit SFP mini GBIC Transceivers WDM bidirectional for fiber optic cable Color: silver Product Dimensions: 57 (L) x 14 (W) x 12 (H) [mm]
| Certificates | |
| Compliance certificates | CE, RoHS, Federal Communications Commission (FCC) |
| Certification | FCC Class A, CE Mark |
| Features | |
| Product colour | Metallic |
| Hot-Plug support | |
| Logistics data | |
| Harmonized System (HS) code | 85369010 |
| Operational conditions | |
| Operating temperature (T-T) | 0 - 70 °C |
| Storage temperature (T-T) | -40 - 85 °C |
| Operating relative humidity (H-H) | 10 - 85% |
| Other features | |
| RX sensitivity | -24 dB |
| Performance | |
| SFP transceiver type | Fiber optic |
| Maximum data transfer rate | 1000 Mbit/s |
| Interface type | SFP |
| Fiber optic connector | LC |
| Fiber cable diameters supported (core/cladding) | 9/125 µm |
| Maximum transfer distance | 10000 m |
| Tx wavelength (max) | 1310 nm |
| Rx wavelength (max) | 1550 nm |
| Tx power (min) | -8 dBmW |
| Tx power (max) | -3 dBmW |
| Link budget | 16 dB |
| Ethernet interface type | Gigabit Ethernet |
| Networking standards | IEEE 802.3z |
| Duplex system | Full |
| Single-mode fiber (SMF) supported | |
| Ethernet LAN | |
| Power | |
| Input voltage | 3.3 V |
| Power consumption (typical) | 1 W |
| Weight & dimensions | |
| Width | 14 mm |
| Depth | 57 mm |
| Height | 12 mm |
| Weight | 37 g |
Questions & answers
What is the delivery time of Intellinet 507509 Gigabit SFP mini GBIC Transceivers WDM bidirectional for fiber optic cables 1000Base-LX (LC) singlemode port, 10 km, WDM (RX1550 / TX1310)?
The article Intellinet 507509 Gigabit SFP mini GBIC Transceivers WDM bidirectional for fiber optic cables 1000Base-LX (LC) singlemode port, 10 km, WDM (RX1550 / TX1310) is currently in stock
According to our experience the article is ready for dispatch within 5 working days. The delivery time usually refers to 1 piece. When ordering larger quantities, we can maybe shorten the delivery time. Just send us an inquiry about the desired quantity of Intellinet 507509 to our sales team for an exact delivery time.
How can I buy the item at a lower price?
We offer you Intellinet 507509 Gigabit SFP mini GBIC Transceivers WDM bidirectional for fiber optic cables 1000Base-LX (LC) singlemode port, 10 km, WDM (RX1550 / TX1310) always at the best possible price. We can give you a discount of 2% on Intellinet 507509 Gigabit SFP mini GBIC Transceivers WDM bidirectional for fiber optic cables 1000Base-LX (LC) singlemode port, 10 km, WDM (RX1550 / TX1310) if you choose payment in advance on ordering.
We also offer individual prices for your needs. You can get an offer by using the form Wholesale Inquiry.
