Intellinet 507509 Gigabit SFP Mini-GBIC transceiver WDM bidirectional 1000Base-LX (LC) single-mode port range up to 10 km RX1550/TX1310

Your rating:
Average rating
product review for Intellinet 507509 Gigabit SFP Mini-GBIC transceiver WDM bidirectional 1000Base-LX (LC) single-mode port range up to 10 km RX1550/TX1310
( 0 / 5 ) 0 ratings

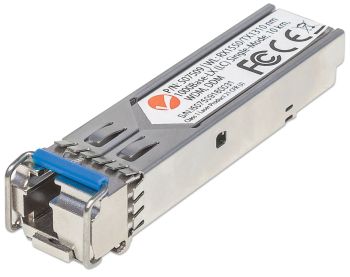

Intellinet 507509
This image may differ from the desired article.
Intellinet 507509Intellinet 507509Intellinet 507509Intellinet 507509
30,77 EUR
( 36,62 EUR incl. VAT )
≈ £25.76  |  ≈ $33.82
plus delivery charges: 55,00 €
Delivery time from supplier's stock (ca.) 8 workdaysinfo_outline
In Stock: >50 pieces
1x Intellinet 507509 Gigabit SFP Mini-GBIC transceiver WDM bidirectional 1000Base-LX (LC) single-mode port range up to 10 km RX1550/TX1310
Datasheet:file_download Download
Lieske Part No.:831198
Mfg Part No: 507509
UPC/EAN: 0766623507509
Weight:0.074 kg

Product information for Intellinet 507509:

  • Universally compatible with all INTELLINET Gigabit switches with SFP module ports and to all Ciso- or MSA-compliant SFP ports
    • Requires use with bidirectional Gigabit WDM SFP Mini-GBIC Transceiver Model 507 486
    • Data transfer rate: 1000 Mbit / s
    • A 1000Base-LX singlemode LC duplex port for fiber-optic cable
    • Supported FO range: up to 10 km
    • WDM (wavelength Division multiplexing) uses only one fiber for data transmission and reception on separate wavelengths
    • wavelengths: receiving (RX) , 1550 nm; Send (TX), 1310nm
    • Compliant with SFP Multi-Source Agreement (MSA)
    • Compatible with Cisco, HP and more
    • SFP standard form factor
    • Supports Digital Diagnostics Monitoring (DDM)
    • Metal housing reduces electromagnetic interference
    • up to 1, 25 Gbit / s bi-directional communication
    • Supports hot plugging
    • 3 years warranty standards
    • IEEE 802.3z (Fiber Optic Gigabit Ethernet)
    • General
    • Supported Media: 1000Base-LX singlemode 9/125 microns fiber
    • Connector: LC duplex port 1000Base-LX
    • Range: 10 km
    • Wavelength:
    • receiving (RX): 1550nm
    • Send (TX): 1310nm
    • Fiber Power budget:
    • Max TX Power:. -3 dB
    • min TX Power: -8 dB.
    • Sensitivity: -24 dB
    • Power budget: 16 dB
    • construction: SFP (Small form Factor Pluggable), 1.25 Gbps
    • Certificates: FCC Class A, CE Mark, RoHS
    • electricity
    • Voltage: 3.3V
    • Consumption: 1.0 watts (max.)
    • Physical Details
    • Dimensions: 57 (L) x 14 (W) x 12 (H) mm
    • Weight: 20 g
    • Operating temperature: 0 - 70 ° C
    • Humidity: 10 - 85%, non-condensing
    • storage temperature: -40 - 85 ° C
    • delivery
    • Gigabit SFP mini GBIC Transceivers WDM bidirectional for fiber optic cable Color: silver Product Dimensions: 57 (L) x 14 (W) x 12 (H) [mm]


    Certificates
    Compliance certificatesCE, RoHS, Federal Communications Commission (FCC)
    CertificationFCC Class A, CE Mark
    Features
    Product colourMetallic
    Hot-Plug supportYes
    Logistics data
    Harmonized System (HS) code85369010
    Operational conditions
    Operating temperature (T-T)0 - 70 °C
    Storage temperature (T-T)-40 - 85 °C
    Operating relative humidity (H-H)10 - 85%
    Other features
    RX sensitivity-24 dB
    Performance
    SFP transceiver typeFiber optic
    Maximum data transfer rate1000 Mbit/s
    Interface typeSFP
    Fiber optic connectorLC
    Fiber cable diameters supported (core/cladding)9/125 µm
    Maximum transfer distance10000 m
    Tx wavelength (max)1310 nm
    Rx wavelength (max)1550 nm
    Tx power (min)-8 dBmW
    Tx power (max)-3 dBmW
    Link budget16 dB
    Ethernet interface typeGigabit Ethernet
    Networking standardsIEEE 802.3z
    Duplex systemFull
    Single-mode fiber (SMF) supportedYes
    Ethernet LANYes
    Power
    Input voltage3.3 V
    Power consumption (typical)1 W
    Weight & dimensions
    Width14 mm
    Depth57 mm
    Height12 mm
    Weight37 g


    Product data sheet
    Datasheet for Intellinet 507509, EAN: 0766623507509
