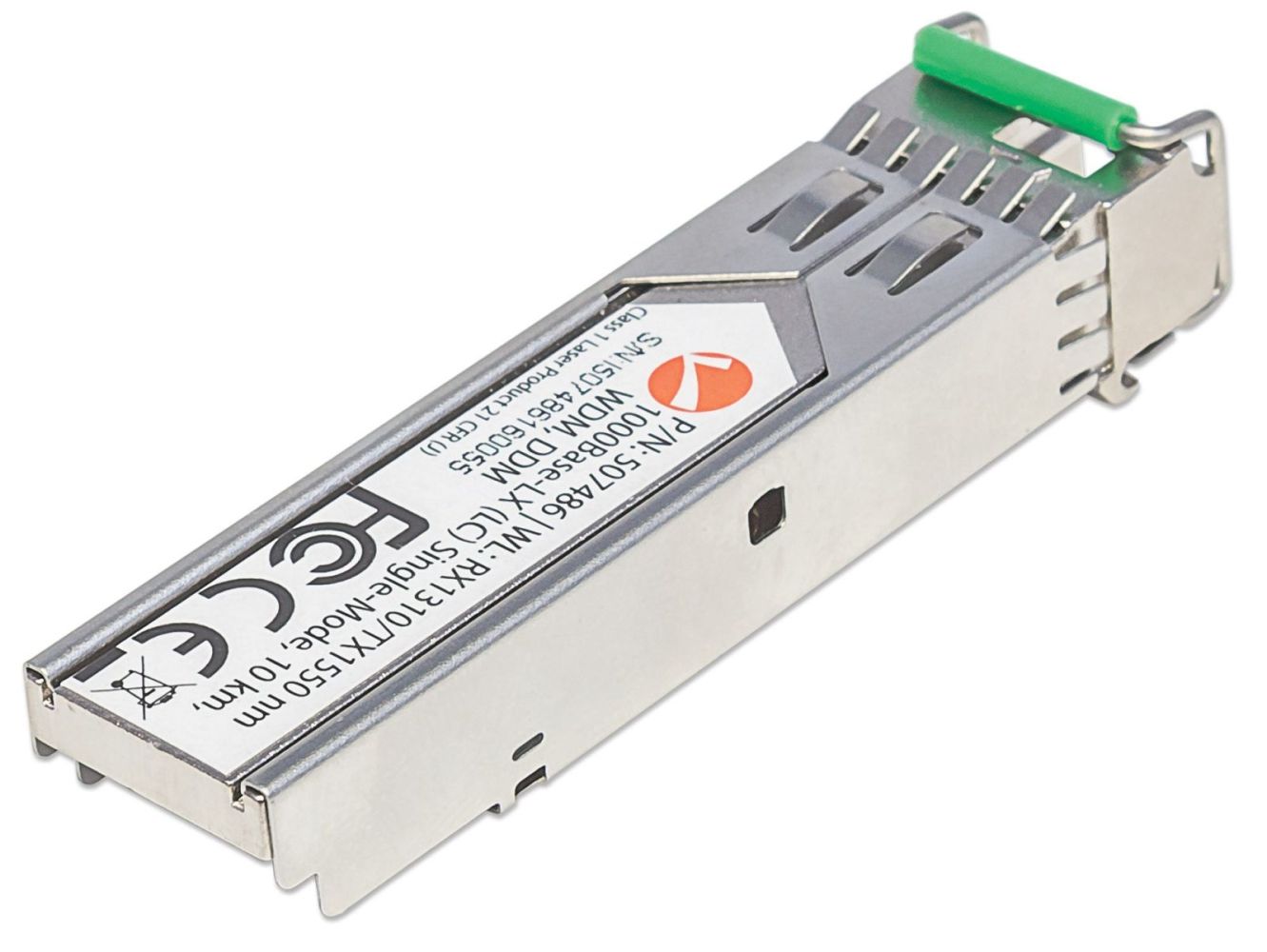

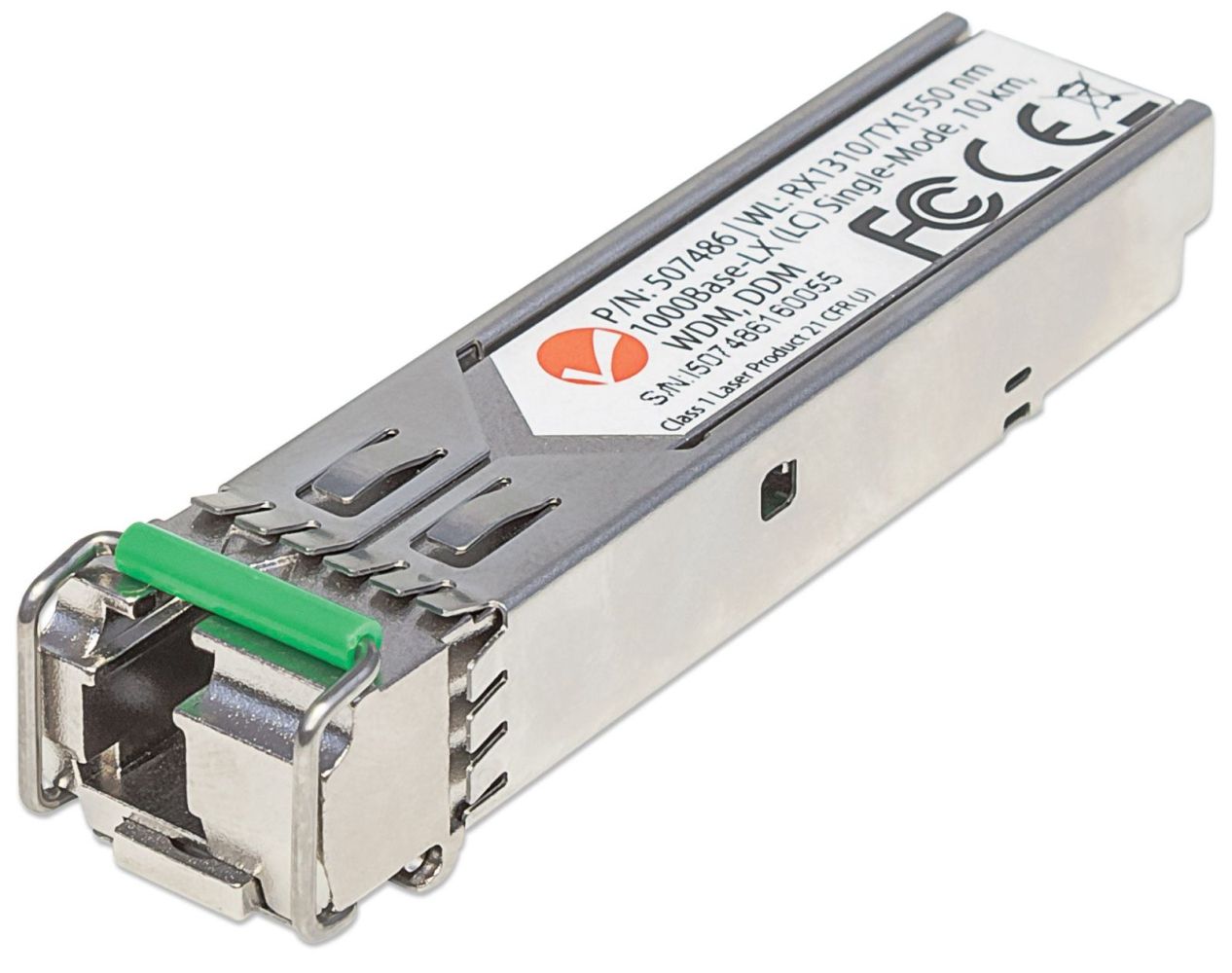

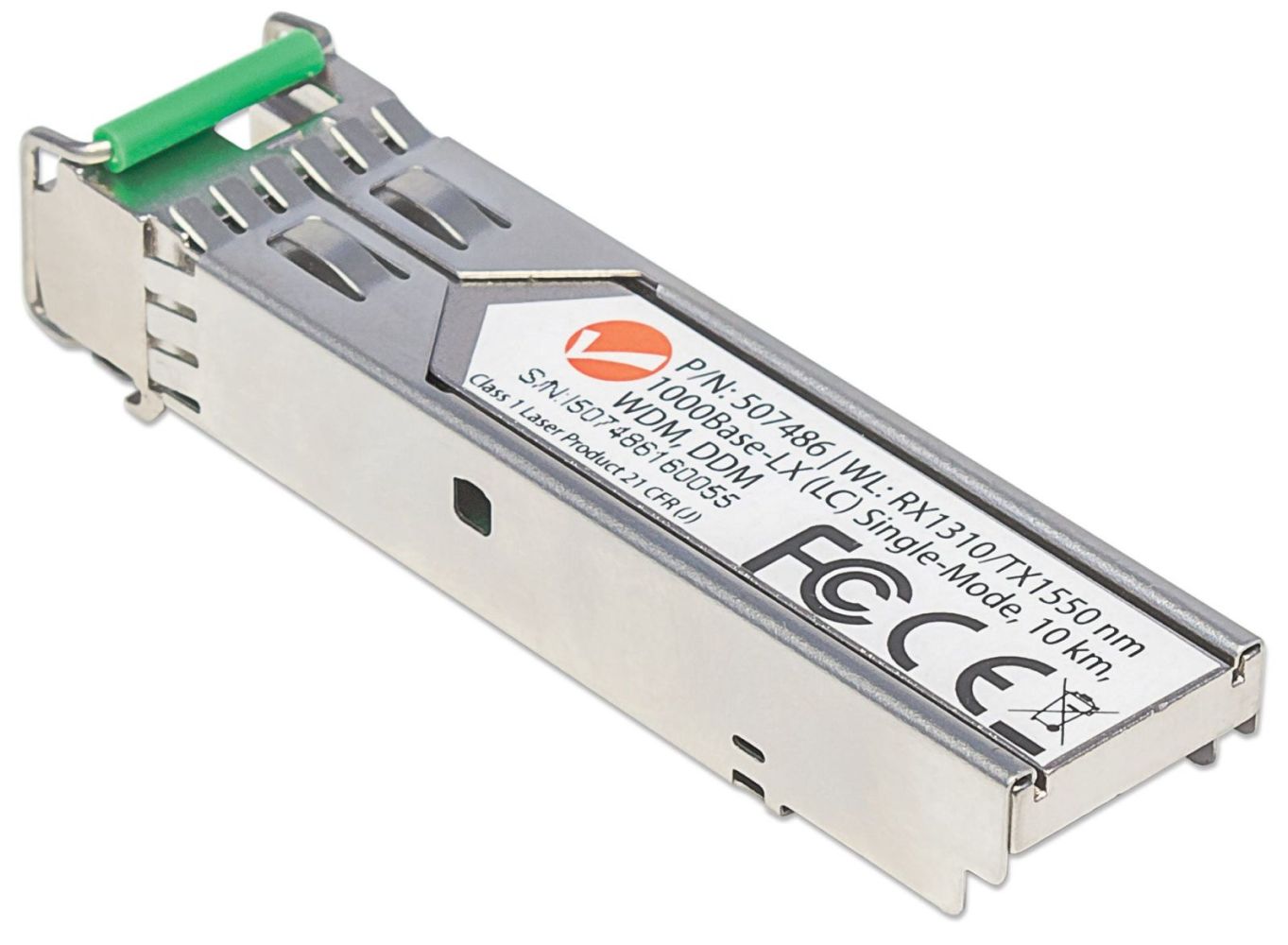

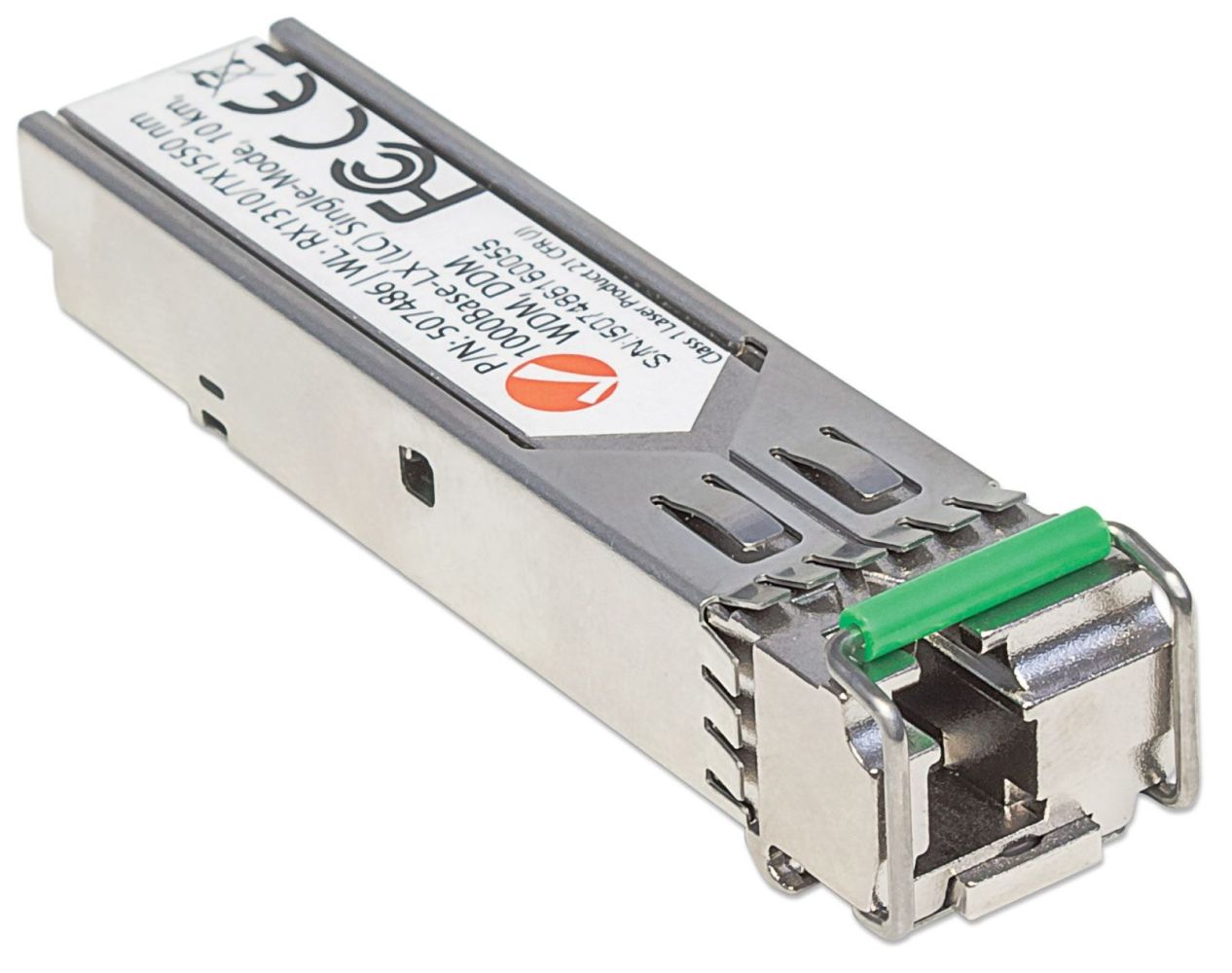

INTELLINET 507486 Gigabit SFP mini GBIC Transceivers WDM bidirectional for fiber optic cables 1000Base-LX (LC) singlemode port, 10 km, WDM (RX1310 / TX1550)
|
35,10 EUR 35,71 EUR |
|
|
( 41,77 EUR incl. VAT ) plus delivery charges |
|
| Delivery time from supplier's stock (ca.) 7 workdaysinfo_outline | |
| Lieske Part No.: | 953927 |
|---|---|
| Mfg Part No: | 507486 |
| UPC/EAN: | 766623507486 |
| Weight: | 0.03 kg |
Product information for INTELLINET 507486:
- Requires use with bidirectional Gigabit WDM SFP Mini-GBIC Transceiver Model 507 509
- Data transfer rate: 1000 Mbit / s
- A 1000Base-LX singlemode LC duplex port for fiber-optic cable
- Supported FO range: up to 10 km
- WDM (wavelength Division multiplexing) uses only one fiber for data transmission and reception on separate wavelengths
- wavelengths: receiving (RX) , 1310 nm; Send (TX), 1550nm
- Compliant with SFP Multi-Source Agreement (MSA)
- Compatible with Cisco, HP and more
- SFP standard form factor
- Supports Digital Diagnostics Monitoring (DDM)
- Metal housing reduces electromagnetic interference
- up to 1, 25 Gbit / s bidirectional communication
- Supports hot plugging
- 3 years warranty standards
- IEEE 802.3z (Fiber Optic Gigabit Ethernet) General
- Supported Media: 1000Base-LX singlemode 9/125 microns fiber
- Connector: LC duplex port 1000Base-LX
- Range: 10 km Wavelength:
- receiving (RX): 1310nm
- transmission (TX): 1550nm
- Fiber Power budget:
- Max TX Power:. -3 dB
- min TX Power: -8 dB.
- Sensitivity: -24 dB
- Power budget: 16 dB
- construction: SFP (Small form Factor Pluggable), 1.25 Gbps
- Certificates: FCC Class A, CE Mark, RoHS electricity
- Voltage: 3.3V
- Consumption: 1.0 watts (max.) Physical Details
- Dimensions: 57 (L) x 14 (W) x 12 (H) mm
- Weight: 20 g
- Operating temperature: 0 - 70 ° C
- Humidity: 10 - 85%, non-condensing
- storage temperature: -40 - 85 ° C delivery
- Gigabit SFP mini GBIC Transceivers WDM bidirectional for fiber optic cable Color: silver Product Dimensions: 57 (L) x 14 (W) x 12 (H) [mm]
