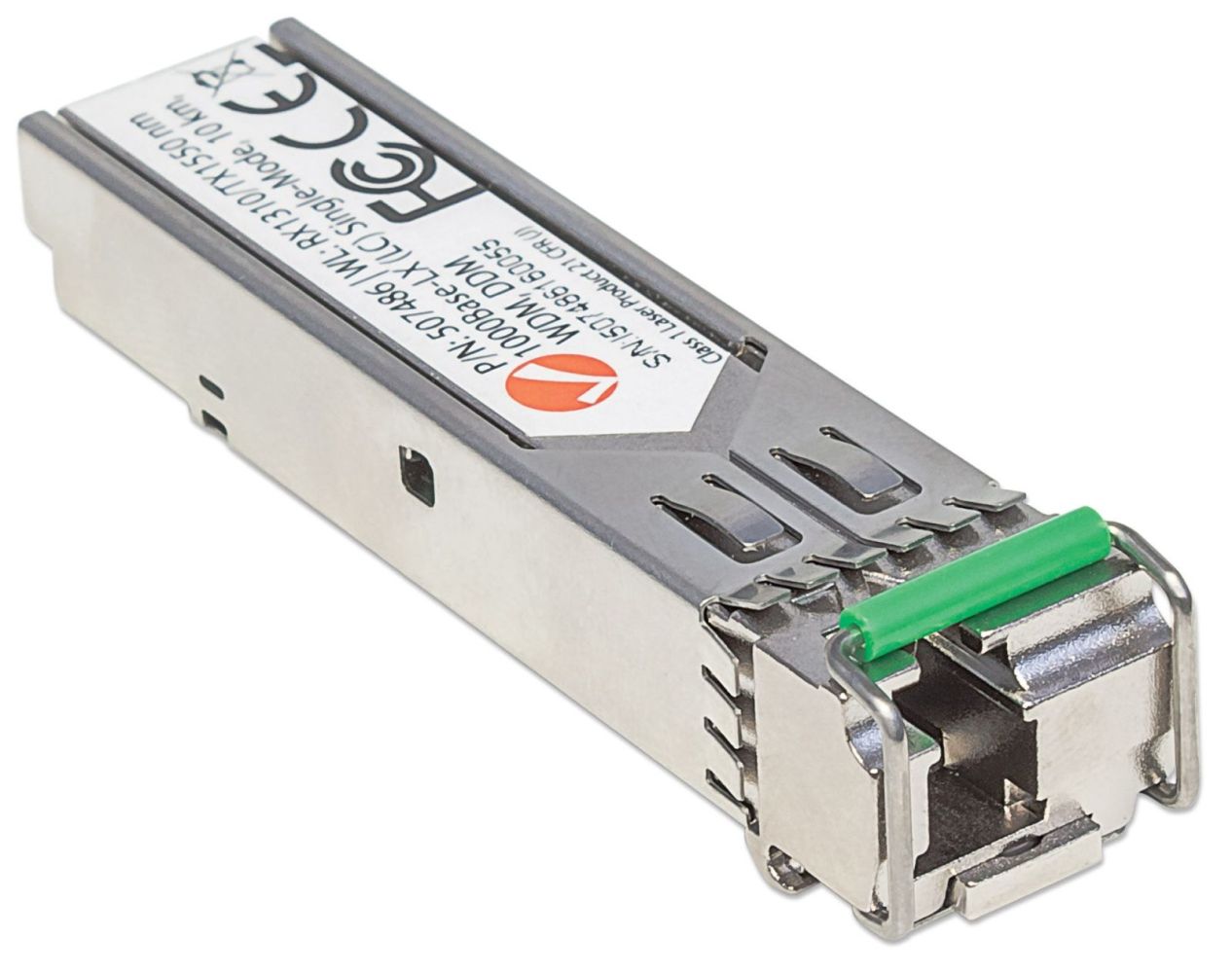

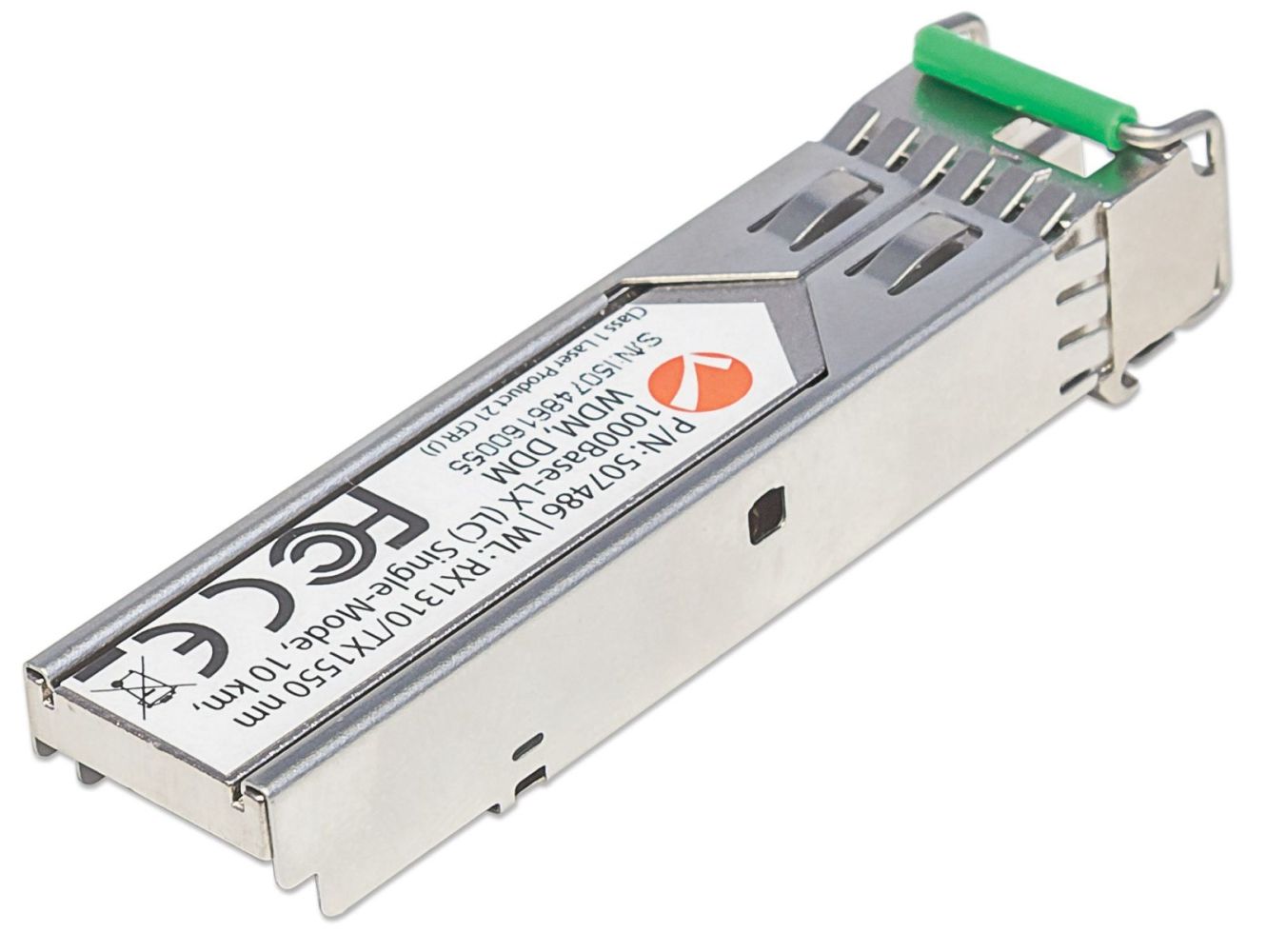

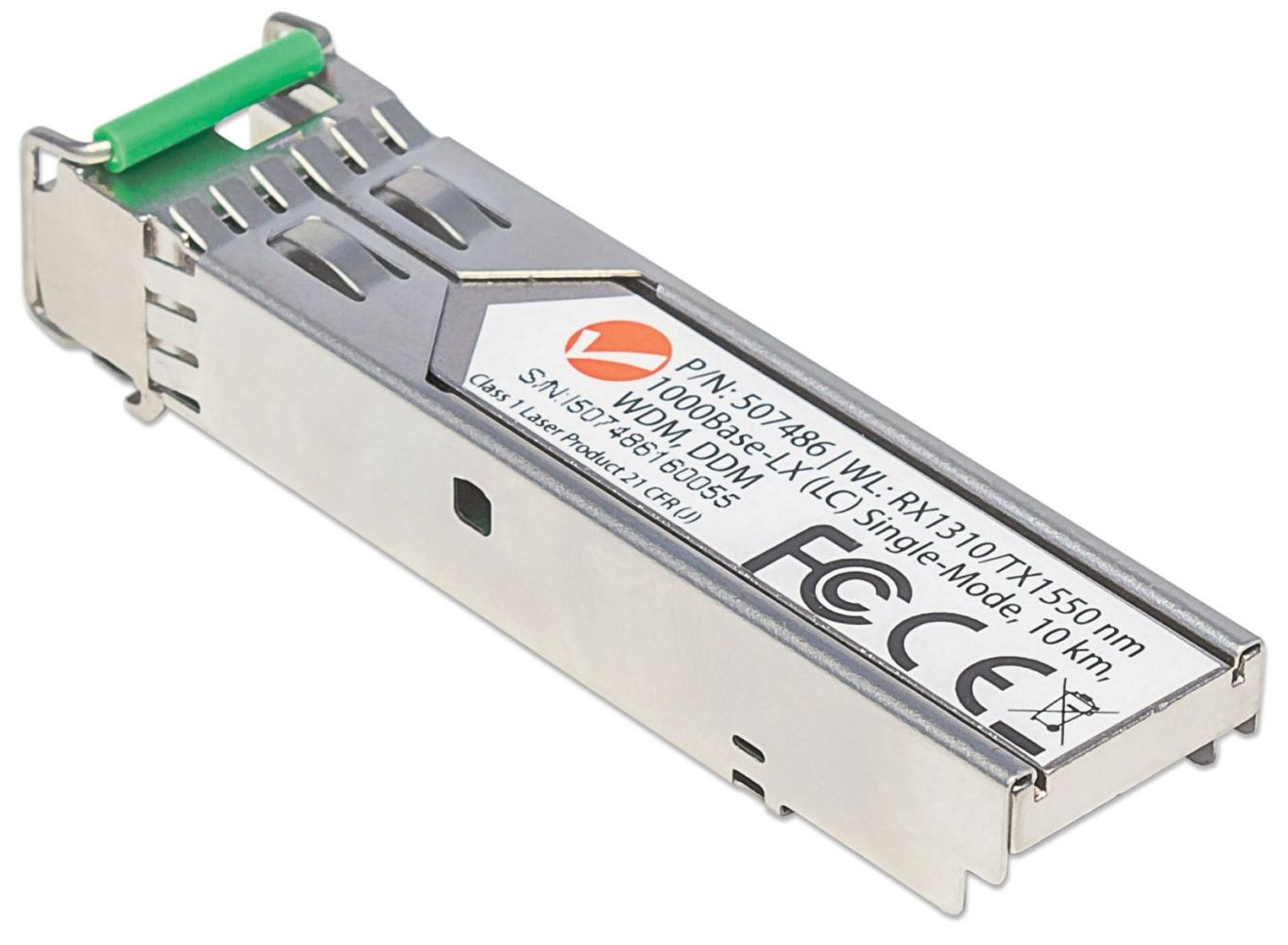

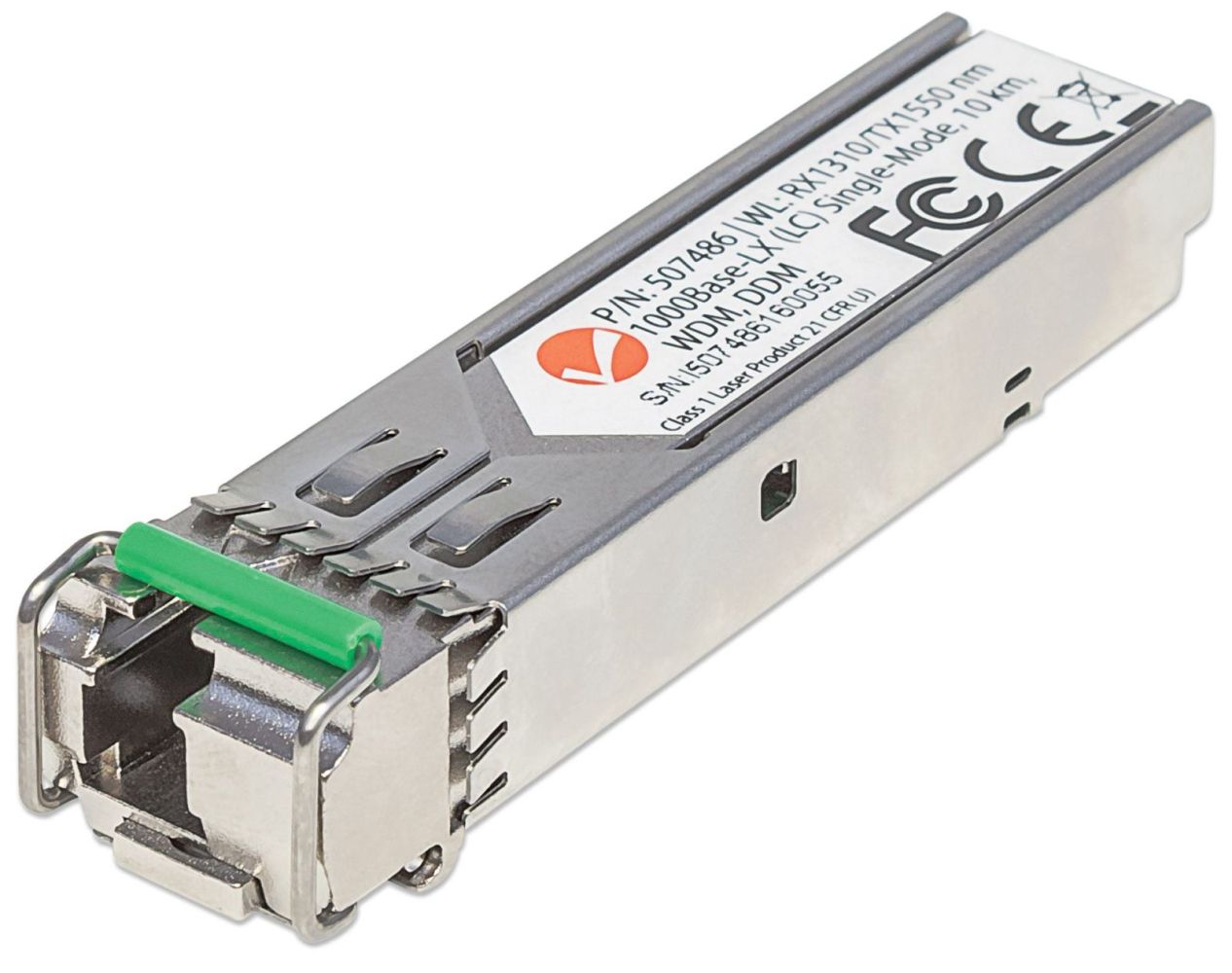

INTELLINET Gigabit SFP Mini-GBIC Transceiver WDM Bi-Directional 1000Base-LX LC Single-Mode Port Distance support 10km RX1310/TX1550
|
27,76 EUR |
|
|
( 33,03 EUR incl. VAT ) ≈ £23.37 | ≈ $31.17 plus delivery charges: 53,00 € |
|
| Delivery time from supplier's stock (ca.) 9 workdaysinfo_outline | |
| In Stock: >25 pieces | |
| Datasheet: | file_download Download |
|---|---|
| Lieske Part No.: | 831190 |
| Mfg Part No: | 507486 |
| UPC/EAN: | 0766623507486 |
| Weight: | 0.037 kg |
| Certificates | |
| Compliance certificates | CE, RoHS, Federal Communications Commission (FCC) |
| Features | |
| Product colour | Metallic |
| Hot-Plug support | |
| Logistics data | |
| Harmonized System (HS) code | 85369010 |
| Operational conditions | |
| Operating temperature (T-T) | 0 - 70 °C |
| Storage temperature (T-T) | -40 - 85 °C |
| Operating relative humidity (H-H) | 10 - 85% |
| Other features | |
| RX sensitivity | -24 dB |
| Packaging content | |
| Quantity per pack | 1 pc(s) |
| Performance | |
| SFP transceiver type | Fiber optic |
| Maximum data transfer rate | 1000 Mbit/s |
| Interface type | SFP |
| Fiber optic connector | LC |
| Fiber cable diameters supported (core/cladding) | 9/125 µm |
| Maximum transfer distance | 10000 m |
| Tx wavelength (max) | 1310 nm |
| Rx wavelength (max) | 1550 nm |
| Tx power (min) | -8 dBmW |
| Tx power (max) | -3 dBmW |
| Link budget | 16 dB |
| Networking standards | IEEE 802.3z |
| Cabling technology | 1000Base-LX |
| Duplex system | Full |
| Fiber ports quantity | 1 |
| Single-mode fiber (SMF) supported | |
| Ethernet LAN | |
| Power | |
| Power consumption (typical) | 1 W |
| Weight & dimensions | |
| Width | 14 mm |
| Depth | 57 mm |
| Height | 12 mm |
| Weight | 37 g |
Questions & answers
What is the delivery time of INTELLINET Gigabit SFP Mini-GBIC Transceiver WDM Bi-Directional 1000Base-LX LC Single-Mode Port Distance support 10km RX1310/TX1550?
The article INTELLINET Gigabit SFP Mini-GBIC Transceiver WDM Bi-Directional 1000Base-LX LC Single-Mode Port Distance support 10km RX1310/TX1550 is currently in stock
According to our experience the article is ready for dispatch within 9 working days. The delivery time usually refers to 1 piece. When ordering larger quantities, we can maybe shorten the delivery time. Just send us an inquiry about the desired quantity of Intellinet 507486 to our sales team for an exact delivery time.
How can I buy the item at a lower price?
We offer you INTELLINET Gigabit SFP Mini-GBIC Transceiver WDM Bi-Directional 1000Base-LX LC Single-Mode Port Distance support 10km RX1310/TX1550 always at the best possible price. We can give you a discount of 2% on INTELLINET Gigabit SFP Mini-GBIC Transceiver WDM Bi-Directional 1000Base-LX LC Single-Mode Port Distance support 10km RX1310/TX1550 if you choose payment in advance on ordering.
We also offer individual prices for your needs. You can get an offer by using the form Wholesale Inquiry.
