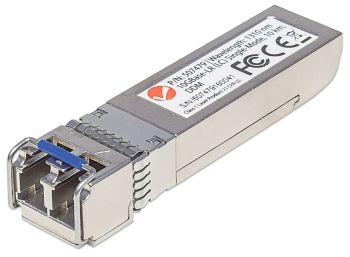

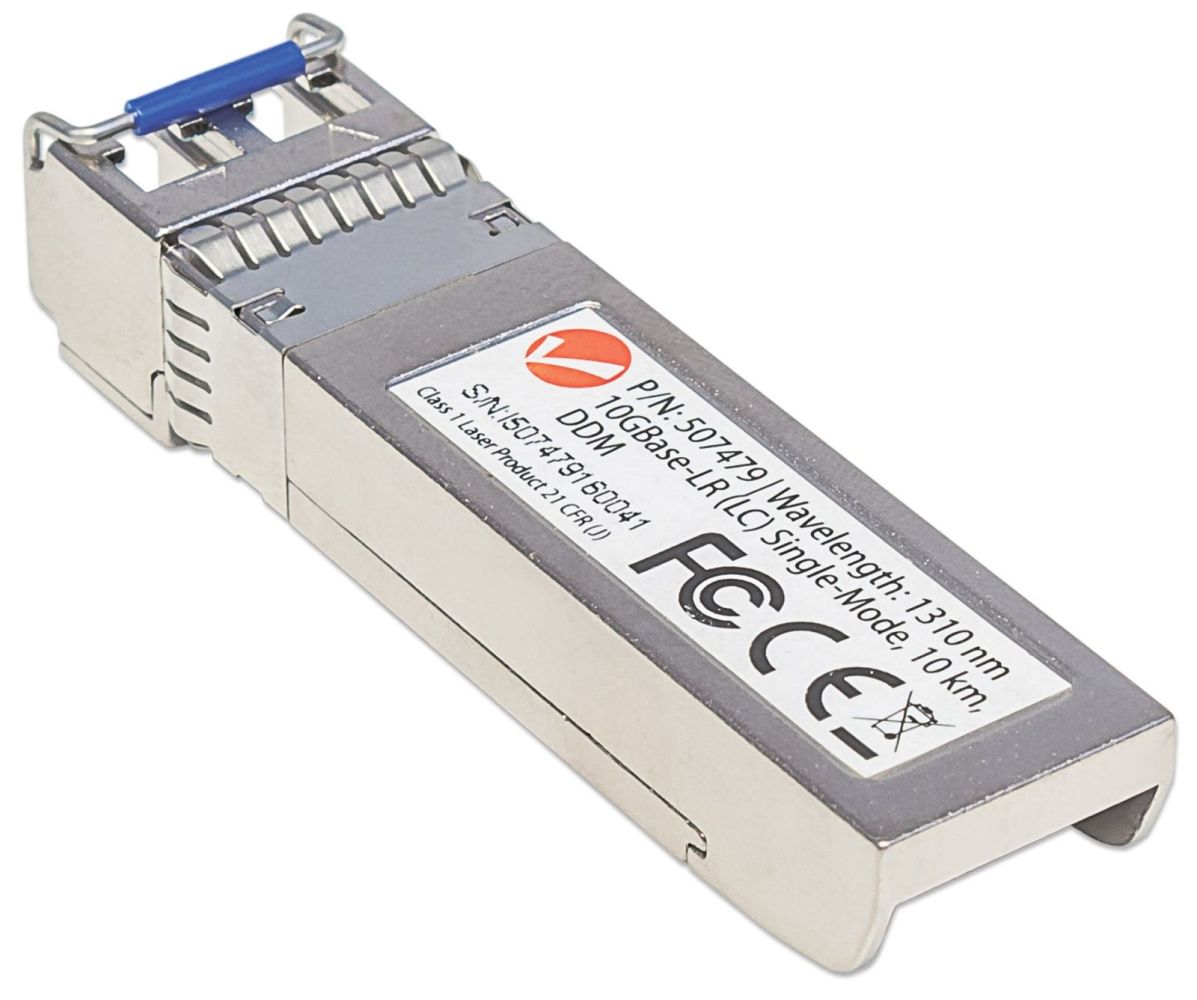

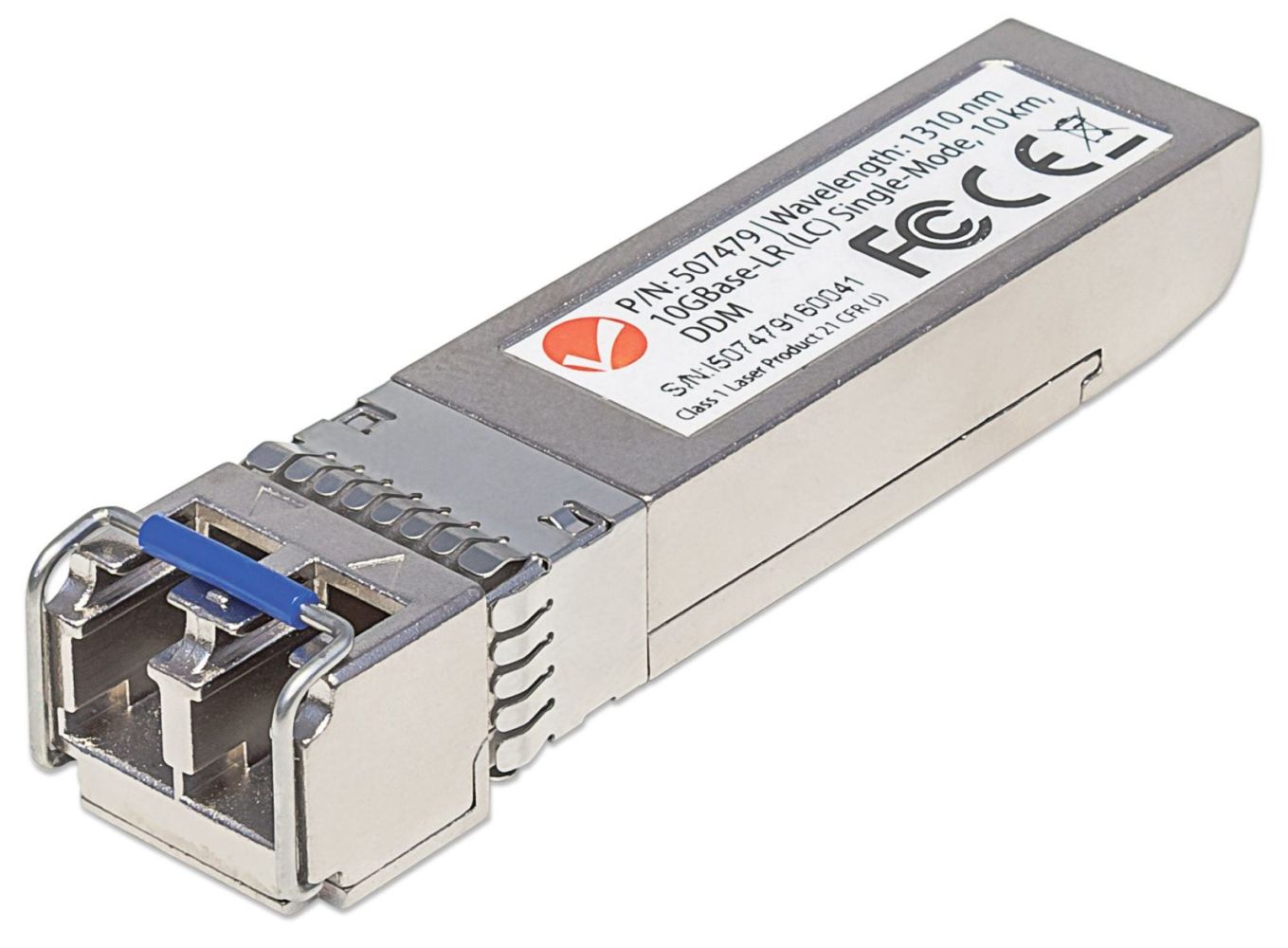

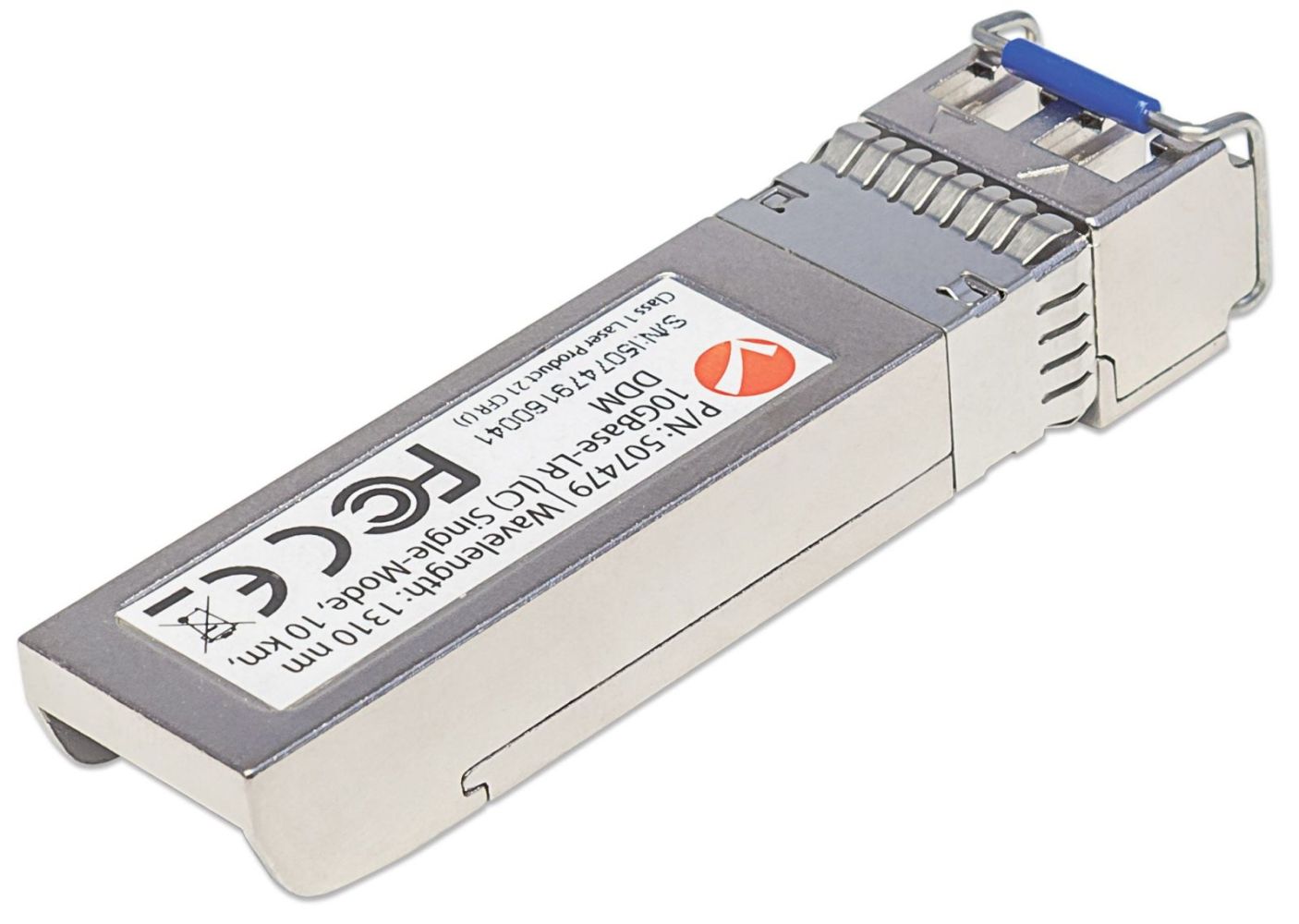

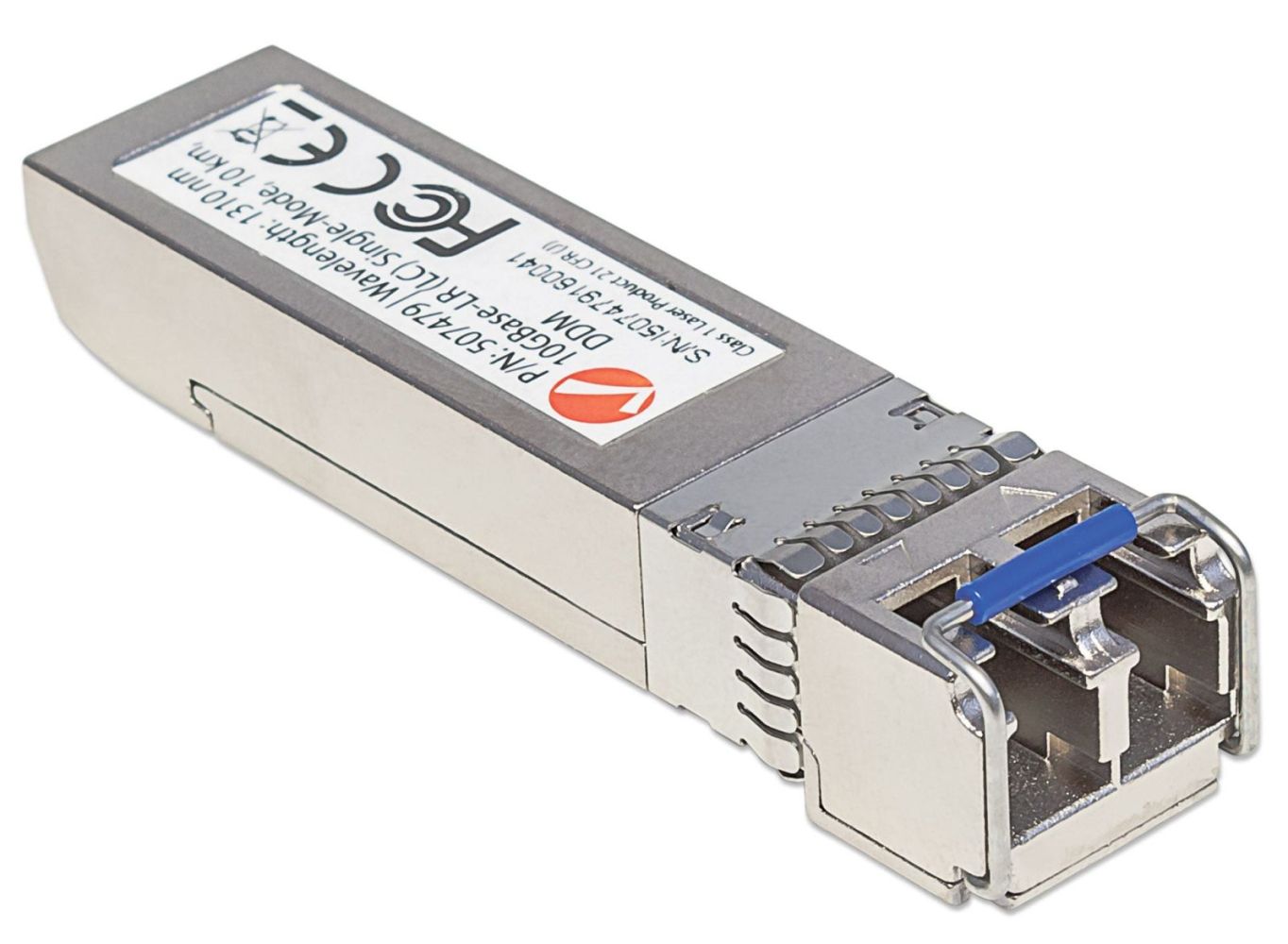

INTELLINET Gigabit SFP+ Mini-GBIC Transceiver 10GBase-LR LC Single-Mode Port Distance support 10km Wavelength 1310nm
|
96,04 EUR |
|
|
( 114,28 EUR incl. VAT ) ≈ £80.86 | ≈ $107.85 plus delivery charges: 53,00 € |
|
| Delivery time from supplier's stock (ca.) 9 workdaysinfo_outline | |
| In Stock: >50 pieces | |
| Datasheet: | file_download Download |
|---|---|
| Lieske Part No.: | 833207 |
| Mfg Part No: | 507479 |
| UPC/EAN: | 0766623507479 |
| Weight: | 0.04 kg |
| Certificates | |
| Compliance certificates | CE, RoHS, Federal Communications Commission (FCC) |
| Certification | FCC Class B, CE Mark, IEC-60825 |
| Features | |
| Product colour | Silver |
| Hot-Plug support | |
| Logistics data | |
| Harmonized System (HS) code | 85369010 |
| Operational conditions | |
| Operating temperature (T-T) | 0 - 70 °C |
| Storage temperature (T-T) | -40 - 85 °C |
| Operating relative humidity (H-H) | 10 - 85% |
| Performance | |
| SFP transceiver type | Fiber optic |
| Maximum data transfer rate | 11100 Mbit/s |
| Interface type | SFP+ |
| Fiber optic connector | LC |
| Fiber cable diameters supported (core/cladding) | 9/125 µm |
| SFP transceiver standard | LR |
| Maximum transfer distance | 10000 m |
| Wavelength | 1310 nm |
| Tx power (min) | -5 dBmW |
| Tx power (max) | 0 dBmW |
| Link budget | 8 dB |
| Networking standards | IEEE 802.3ae, IEEE 802.3z |
| Duplex system | Full |
| Single-mode fiber (SMF) supported | |
| Digital Diagnostics Monitoring (DDM) | |
| Power | |
| Maximum voltage | 3.3 V |
| Power consumption (typical) | 1 W |
| Weight & dimensions | |
| Width | 14 mm |
| Depth | 57 mm |
| Height | 12 mm |
| Weight | 37 g |
Questions & answers
What is the delivery time of INTELLINET Gigabit SFP+ Mini-GBIC Transceiver 10GBase-LR LC Single-Mode Port Distance support 10km Wavelength 1310nm?
The article INTELLINET Gigabit SFP+ Mini-GBIC Transceiver 10GBase-LR LC Single-Mode Port Distance support 10km Wavelength 1310nm is currently in stock
According to our experience the article is ready for dispatch within 9 working days. The delivery time usually refers to 1 piece. When ordering larger quantities, we can maybe shorten the delivery time. Just send us an inquiry about the desired quantity of Intellinet 507479 to our sales team for an exact delivery time.
How can I buy the item at a lower price?
We offer you INTELLINET Gigabit SFP+ Mini-GBIC Transceiver 10GBase-LR LC Single-Mode Port Distance support 10km Wavelength 1310nm always at the best possible price. We can give you a discount of 2% on INTELLINET Gigabit SFP+ Mini-GBIC Transceiver 10GBase-LR LC Single-Mode Port Distance support 10km Wavelength 1310nm if you choose payment in advance on ordering.
We also offer individual prices for your needs. You can get an offer by using the form Wholesale Inquiry.
