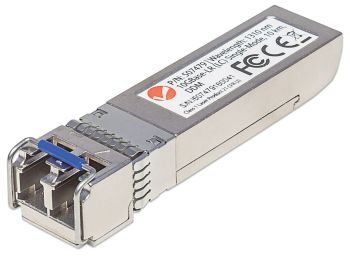

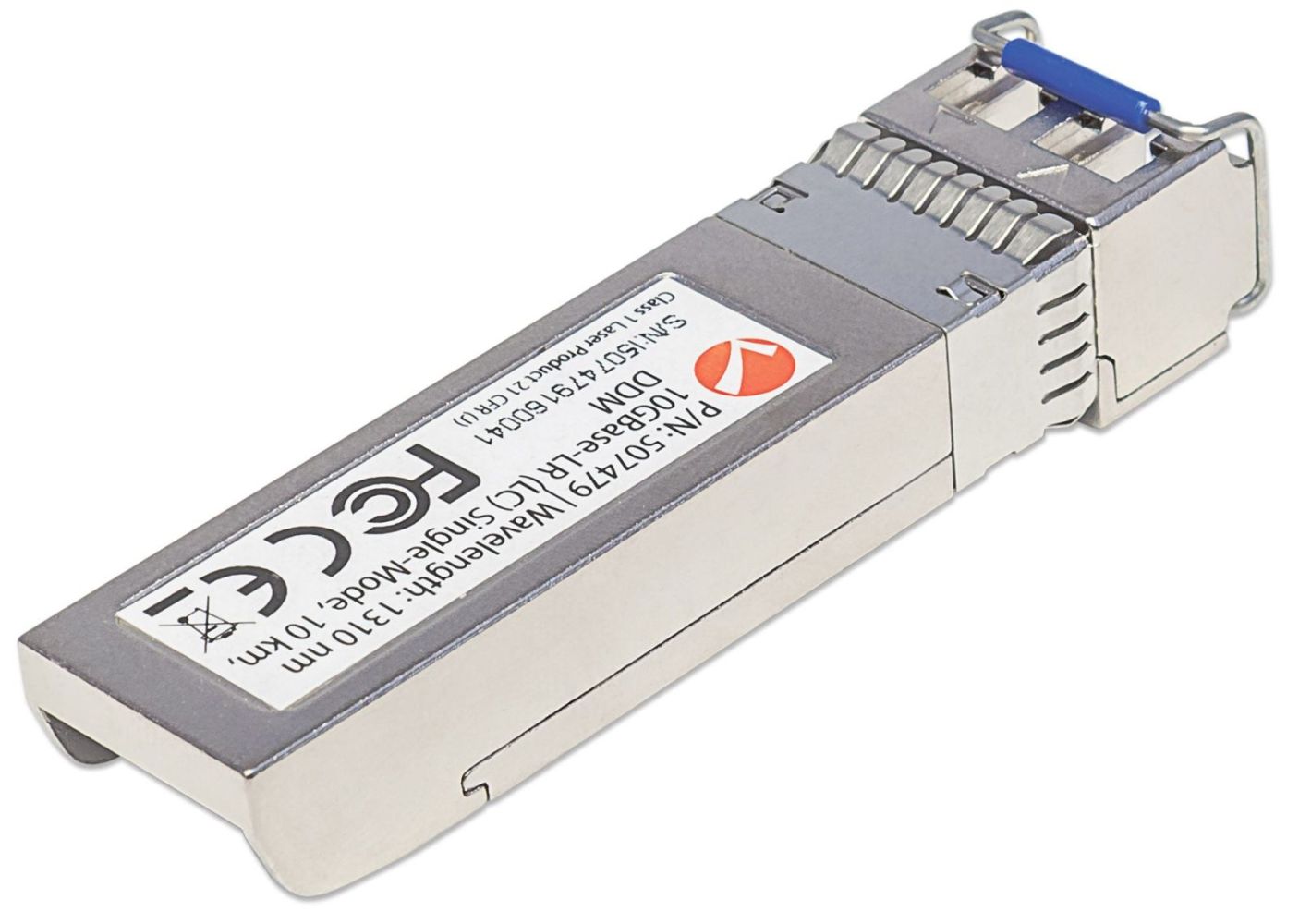

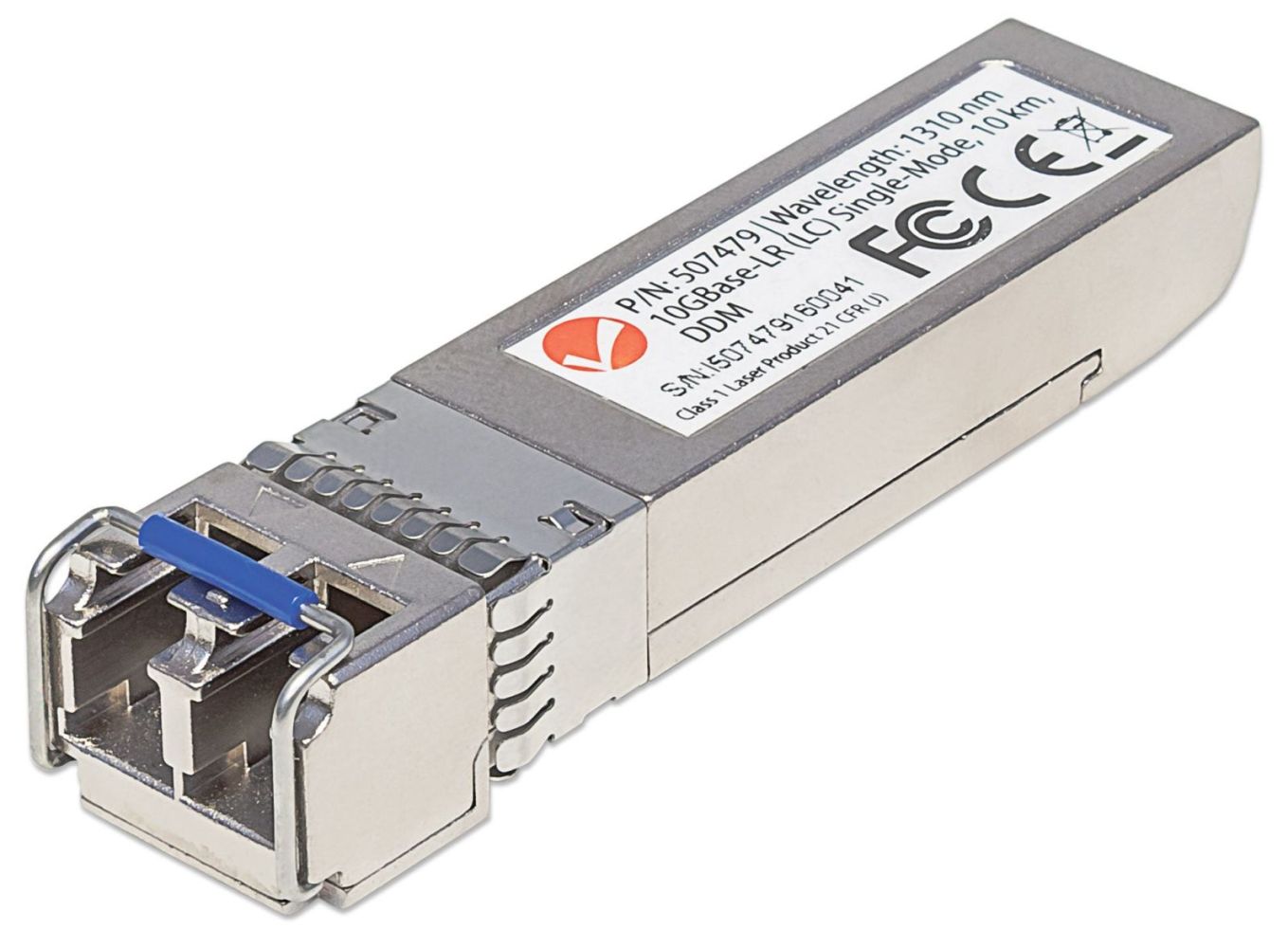

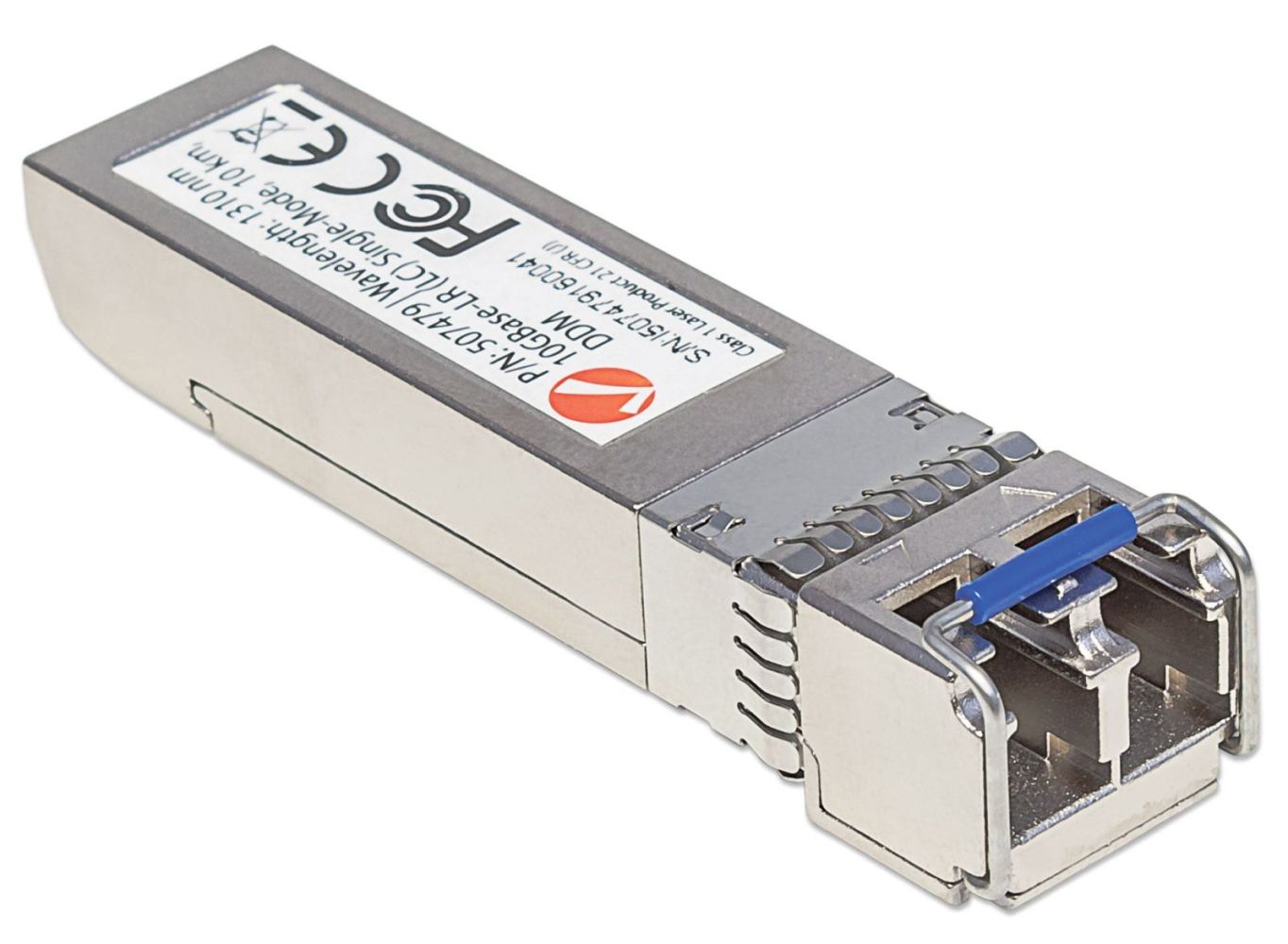

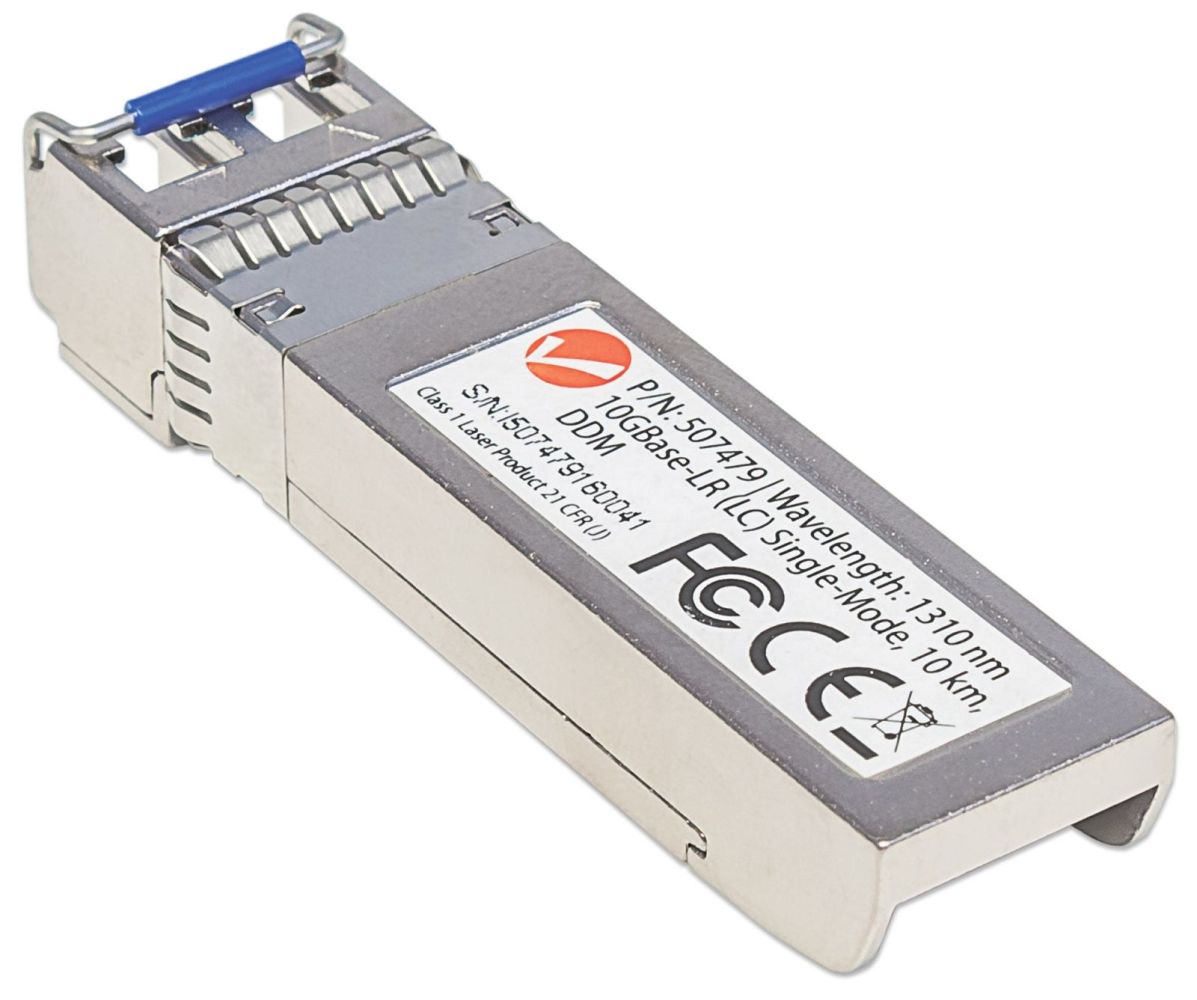

INTELLINET 507479 10 Gigabit SFP + Mini-GBIC transceivers for fiber optic cable 10GBase-LR (LC) singlemode port, 10 km
|
125,56 EUR |
|
|
( 149,42 EUR incl. VAT ) plus delivery charges |
|
| Delivery time from supplier's stock (ca.) 7 workdaysinfo_outline | |
| Lieske Part No.: | 953885 |
|---|---|
| Mfg Part No: | 507479 |
| UPC/EAN: | 766623507479 |
| Weight: | 0.03 kg |
Product information for INTELLINET 507479:
- Data transfer rate: 10 Gbit / s
- A 10GBase-LR single mode LC duplex port for fiber-optic cable
- Supported FO range: up to 10 km
- wavelength 1310nm
- Compliant with SFP Multi-source Agreement (MSA)
- Compatible with Cisco, HP and more
- SFP + standard form factor
- Supports Digital Diagnostics monitoring (DDM)
- metal housing reduces electromagnetic interference
- Up to 11.1 Gbit / s bidirectional communication
- Supports hot plugging
- 3 years warranty standards
- IEEE 802.3z (Fiber Optic Gigabit Ethernet)
- IEEE 802.3ae (Fiber Optic 10 Gigabit Ethernet) General
- Supported Media: 10GBase-LR multimode fiber
- Connector: LC duplex port
- range: 10 km with 9/125 micron cable
- Wavelength: 1310 nm
- Fiber Power Budget:
- Max TX Power:. 0 dB . - Min TX Power: -5 dB
- Sensitivity: -13 dB
- Power budget: 8 dB
- Type: SFP + (Enhanced Small form-Factor Pluggable), 11.1 Gbit / s max, 10.3 Gbit / s on average
- SFF-8472 Diagnostic monitoring interface for optical Transceivers
- Certificates: FCC Class B, CE Mark, IEC-60825, RoHS electricity
- Voltage: 3.3V
- Consumption: 1.0 watts (max.) Physical Details
- Dimensions: 57 (L) x 14 (W) x 12 (H) mm
- Weight: 20 g
- Operating temperature: 0 - 70 ° C
- Humidity: 10 - 85%, non-condensing
- storage temperature: -40 - 85 ° C delivery
- 10 Gigabit SFP + Mini-GBIC transceiver module color: silver Product Dimensions: 57 (L) x 14 (W) x 12 (H) [mm]
