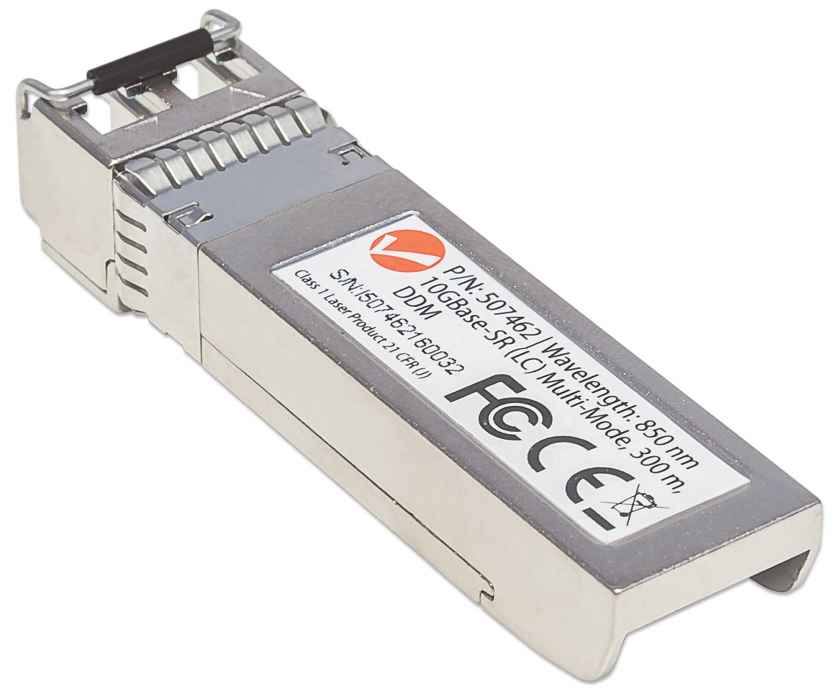

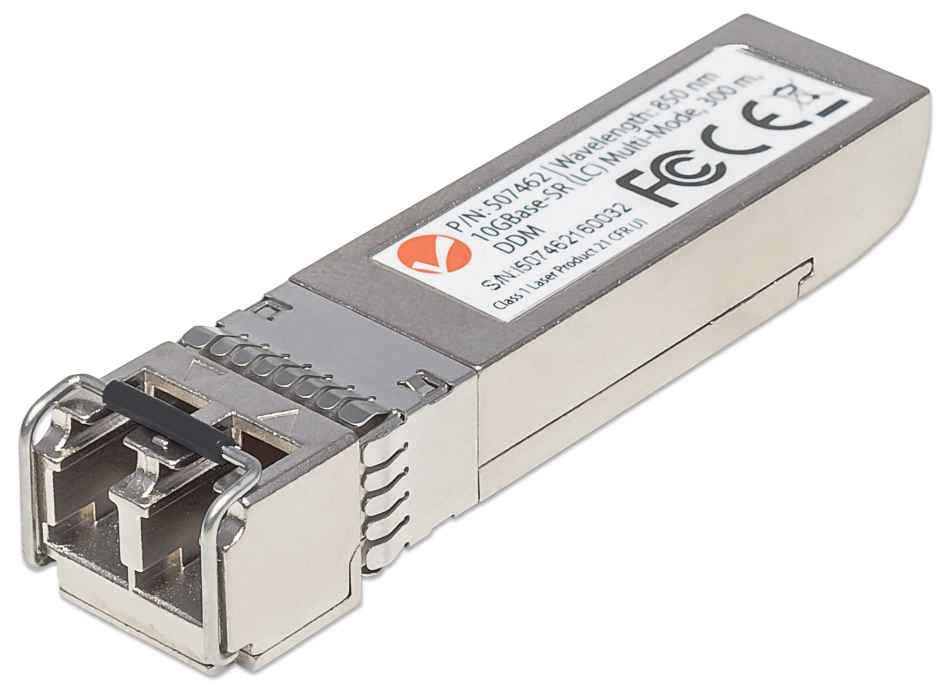

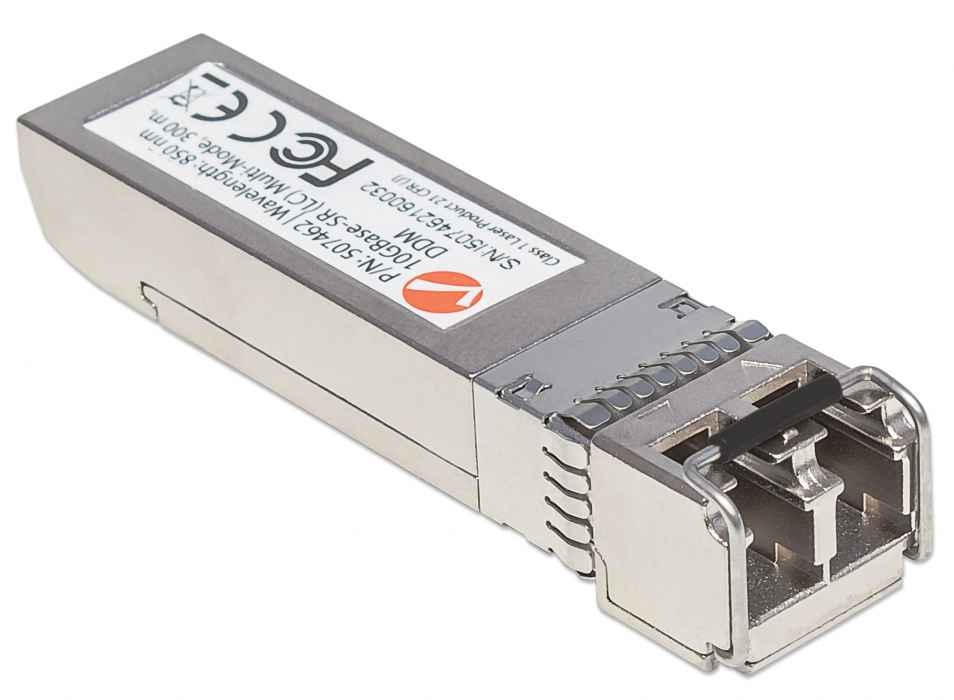

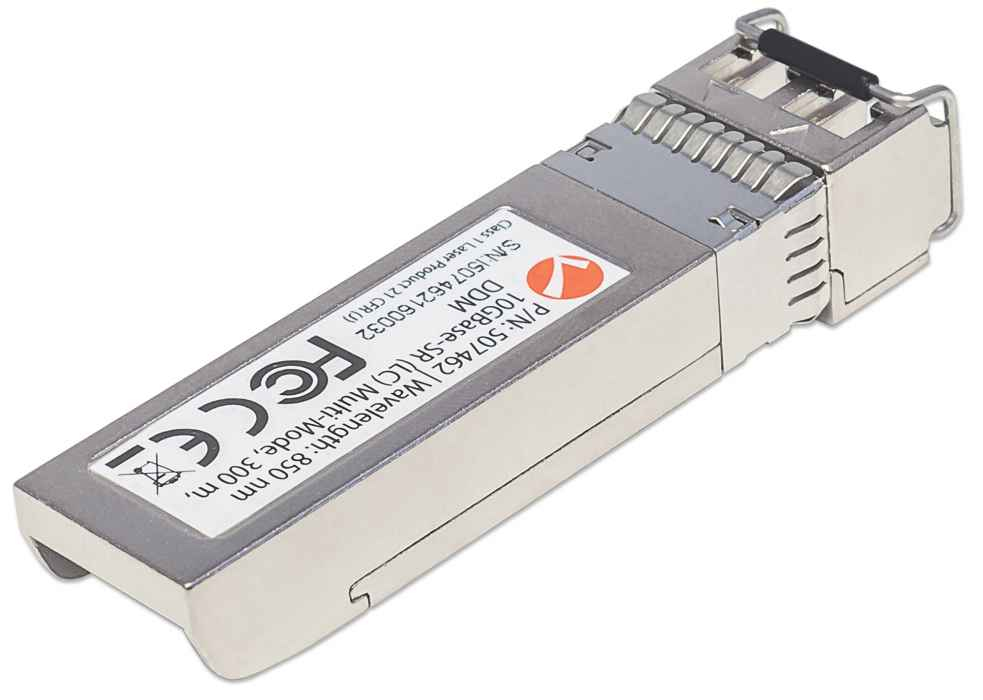

Intellinet 507462
10 Gigabit SFP + Mini-GBIC transceivers for fiber optic cable 10GBase-SR (LC) multimode port, 300 m
|
57,60 EUR |
|
|
( 68,54 EUR incl. VAT ) ≈ £48.50 | ≈ $64.68 plus delivery charges: 53,00 € |
|
| Delivery time from supplier's stock (ca.) 5 workdaysinfo_outline | |
| End-Of-Life: | 13. May 2026 |
|---|---|
| Datasheet: | file_download Download |
| Lieske Part No.: | 953899 |
| Mfg Part No: | 507462 |
| UPC/EAN: | 766623507462 |
| Weight: | 0.02 kg |
Product information for Intellinet 507462:
- Data transfer rate: 10 Gbit / s
- A 10GBase-SR multimode LC duplex port for fiber-optic cable
- Supported FO range: up to 300 m
- wavelength: 850 nm
- Compliant with SFP Multi-source Agreement (MSA)
- Compatible with Cisco, HP and more
- SFP + standard form factor
- Supports Digital Diagnostics monitoring (DDM)
- metal housing reduces electromagnetic interference
- up to 11.1 Gbit / s bidirectional communication
- Supports hot plugging
- 3 years warranty standards
- IEEE 802.3z (Fiber Optic Gigabit Ethernet)
- IEEE 802.3ae (Fiber Optic 10 Gigabit Ethernet) General
- Supported Media: 10GBase-SR fiber
- Connector: LC duplex port
- range:
- 300 m with 50/125 micron cable at 2000 MHz-km
- 33 m with 62.5 / 125 micron cables at 200 MHz-km
- wavelength: 850 nm
- Fiber Power budget:
- Max TX Power:. -1 dB
- min TX Power: -5 dB.
- Sensitivity: 12dB
- Power budget: 7 dB
- Type: SFP + (Enhanced Small form-Factor Pluggable), 11.1 Gbit / s max, 10.3 Gbit / s on average
- SFF-8472 Diagnostic monitoring interface for optical Transceivers
- Certificates: FCC Class A, CE Mark, IEC-60825, RoHS electricity
- Voltage: 3.3V
- Consumption: 1.0 watts (max.) Physical Details
- Dimensions: 57 (L) x 14 (W) x 12 (H) mm
- Weight: 20 g
- Operating temperature: 0 - 70 ° C
- Humidity: 10 - 85%, non-condensing
- storage temperature: -40 - 85 ° C delivery
- 10 Gigabit SFP + Mini-GBIC transceiver module color: silver Product Dimensions: 57 (L) x 14 (W) x 12 (H) [mm]
| Certificates | |
| Compliance certificates | CE, RoHS, Federal Communications Commission (FCC) |
| Certification | FCC Class A, CE Mark, IEC-60825, RoHS, NDAA |
| Features | |
| Product colour | Silver |
| Hot-Plug support | |
| Logistics data | |
| Harmonized System (HS) code | 85369010 |
| Operational conditions | |
| Operating temperature (T-T) | 0 - 70 °C |
| Storage temperature (T-T) | -40 - 85 °C |
| Operating relative humidity (H-H) | 10 - 85% |
| Packaging content | |
| Quantity per pack | 1 pc(s) |
| Performance | |
| SFP transceiver type | Fiber optic |
| Maximum data transfer rate | 11100 Mbit/s |
| Interface type | SFP+ |
| Fiber optic connector | LC |
| Fiber cable diameters supported (core/cladding) | 50/125,62.5/125 µm |
| SFP transceiver standard | SR |
| Maximum transfer distance | 300 m |
| Wavelength | 850 nm |
| Tx power (min) | -5 dBmW |
| Tx power (max) | -1 dBmW |
| Link budget | 7 dB |
| Ethernet interface type | Gigabit Ethernet |
| Networking standards | IEEE 802.3ae, IEEE 802.3z |
| Fiber ethernet cabling technology | 10GBASE |
| Duplex system | Full |
| Multi-mode fiber (MMF) supported | |
| Digital Diagnostics Monitoring (DDM) | |
| Power | |
| Maximum voltage | 3.3 V |
| Power consumption (typical) | 1 W |
| Weight & dimensions | |
| Width | 14 mm |
| Depth | 57 mm |
| Height | 12 mm |
| Weight | 37 g |
