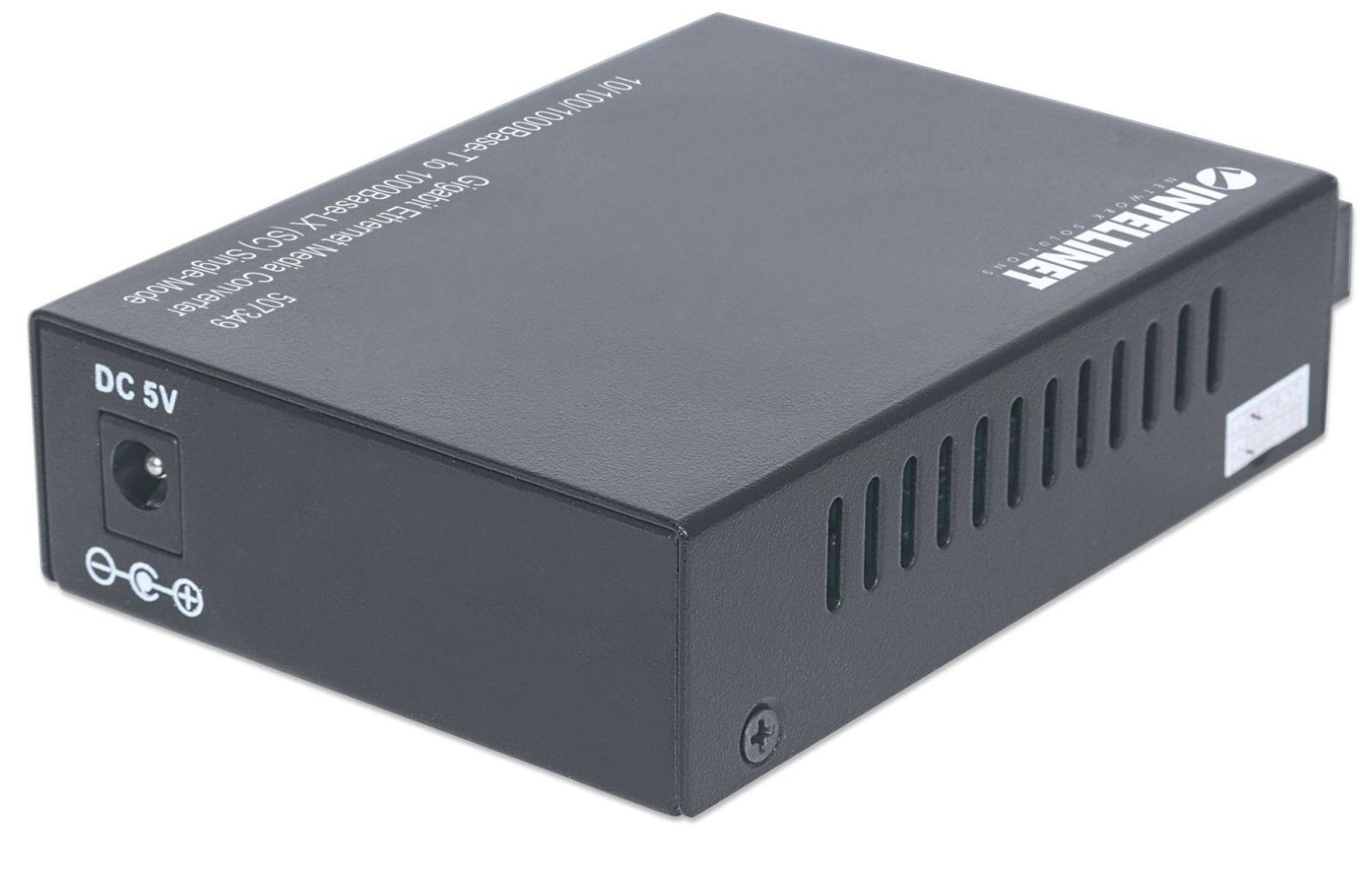

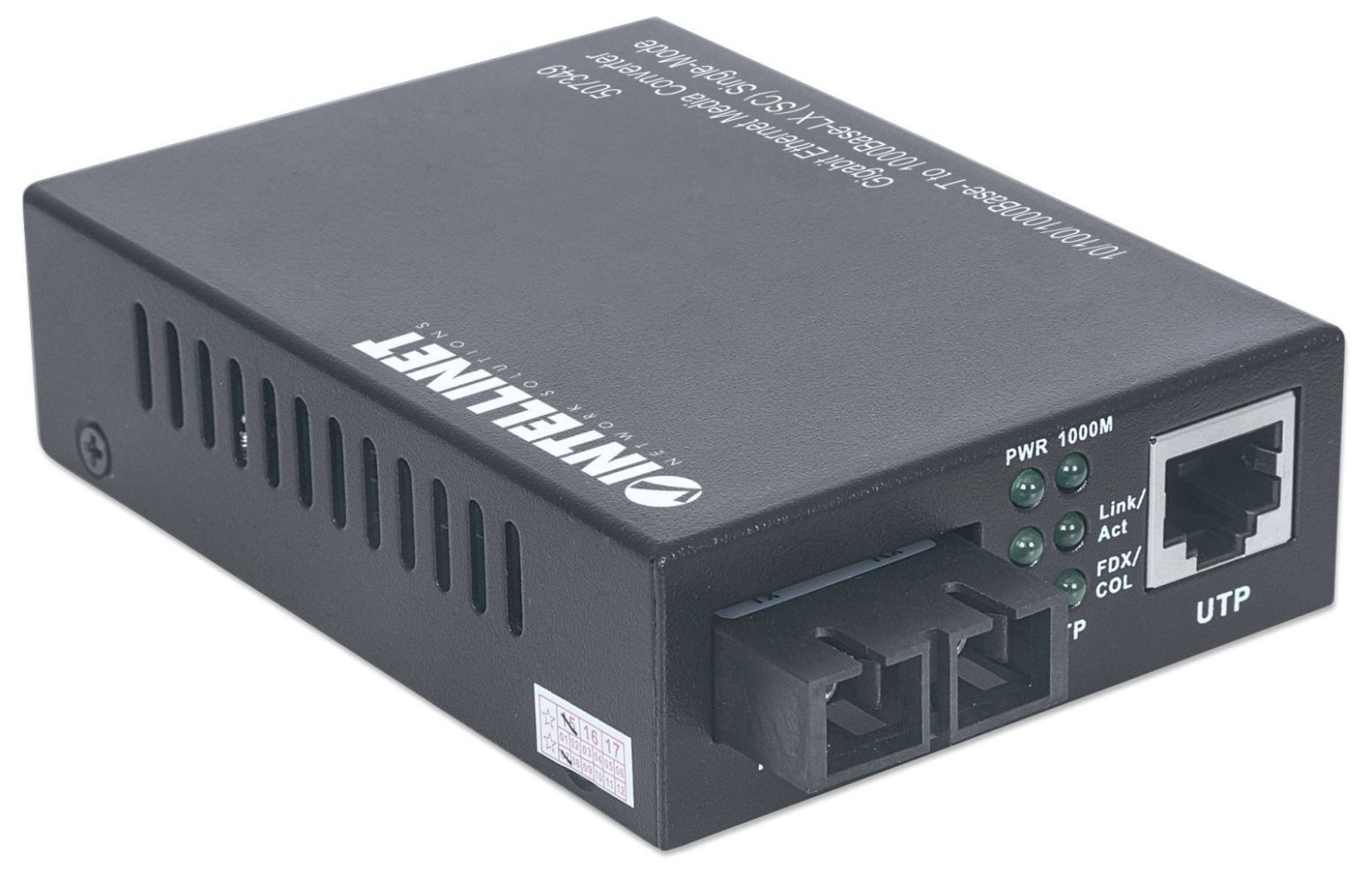

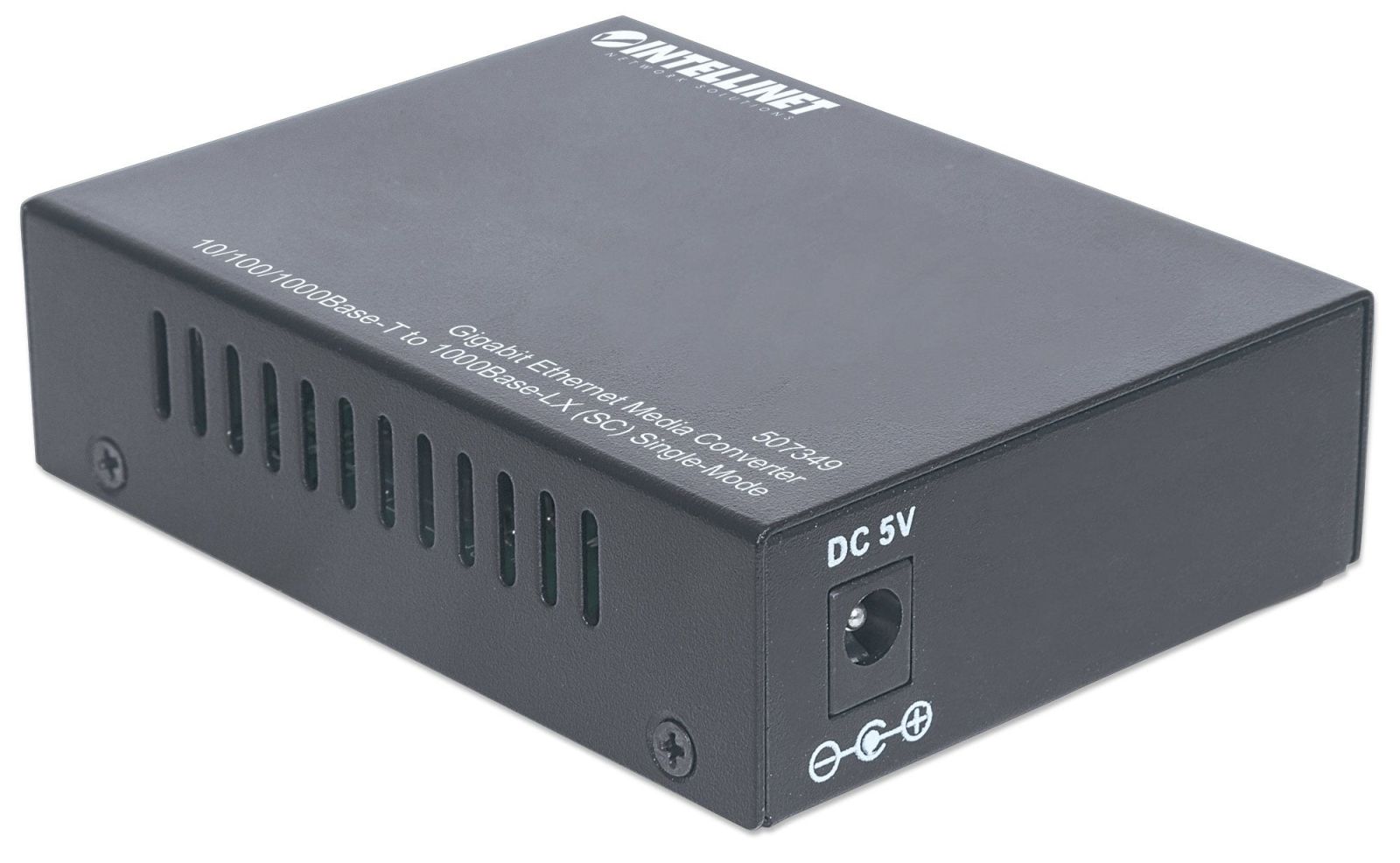

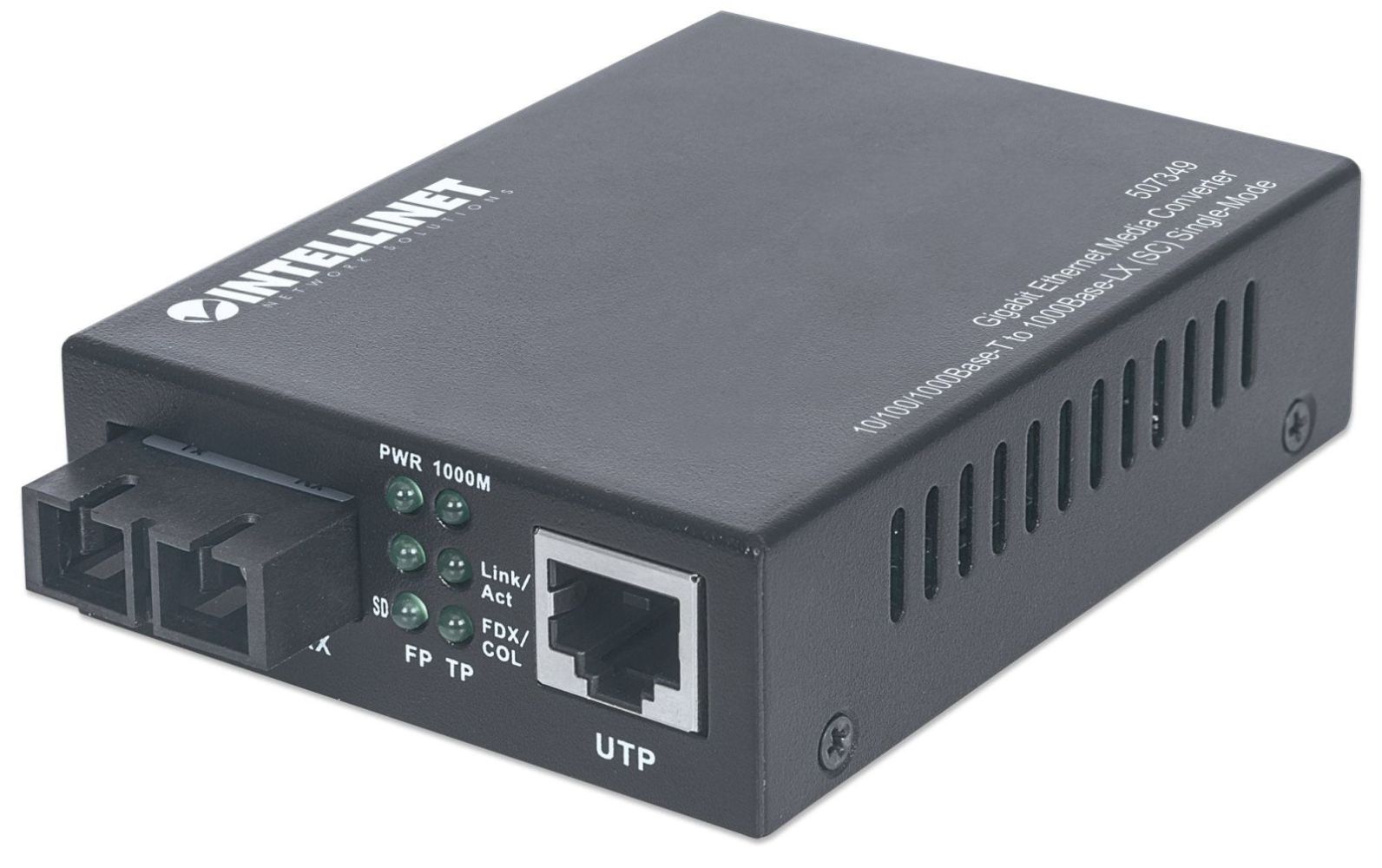

INTELLINET Gigabit Ethernet Single-Mode Media Converter 10/100/1000Base-T to 1000Base-LX SC Wavelength 1310 nm 20 km 12.4 mi
|
30,77 EUR |
|||||||||||
|
( 36,62 EUR incl. VAT ) ≈ £25.91 | ≈ $34.56 plus delivery charges: 53,00 € |
|||||||||||
| Delivery time from supplier's stock (ca.) 9 workdaysinfo_outline | |||||||||||
| In Stock: >25 pieces | |||||||||||
| Datasheet: | file_download Download | ||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|
| Lieske Part No.: | 469004 | ||||||||||
| Mfg Part No: | 507349 | ||||||||||
| UPC/EAN: | 0766623507349 | ||||||||||
| Weight: | 0.335 kg | ||||||||||
|
Graduated prices net
|
|||||||||||
| Certificates | |
| Certification | FCC Class B, CE |
| Features | |
| Product colour | Black |
| Housing material | Metal |
| Internal | |
| LED indicators | |
| Logistics data | |
| Harmonized System (HS) code | 85176990 |
| Network | |
| Maximum data transfer rate | 1000 Mbit/s |
| Converter input interface | 1000Base-T |
| Converter output interface | 1000Base-LX |
| Networking standards | IEEE 802.3, IEEE 802.3ab, IEEE 802.3u, IEEE 802.3z |
| Ethernet interface type | Gigabit Ethernet |
| Ethernet LAN data rates | 10,100,1000 Mbit/s |
| Copper ethernet cabling technology | 10BASE-T, 100BASE-TX, 1000BASE-T |
| Fiber ethernet cabling technology | 1000BASE‑LX |
| Duplex system | Full |
| Operational conditions | |
| Operating temperature (T-T) | 0 - 50 °C |
| Storage temperature (T-T) | -45 - 70 °C |
| Operating relative humidity (H-H) | 10 - 90% |
| Packaging content | |
| AC adapter included | |
| Manual | |
| Performance | |
| Maximum transfer distance | 20000 m |
| Wavelength | 1310 nm |
| Fiber mode structure | Single-mode |
| Fiber cable diameters supported (core/cladding) | 8.3/125,8.7/125,8/125,10/125 µm |
| Tx power (min) | -8 dBmW |
| Tx power (max) | -3 dBmW |
| Sensitivity | -22 dBmW |
| Mean time between failures (MTBF) | 100000 h |
| Ports & interfaces | |
| Connectivity technology | Wired |
| Ethernet LAN (RJ-45) ports | 1 |
| Fiber ports quantity | 1 |

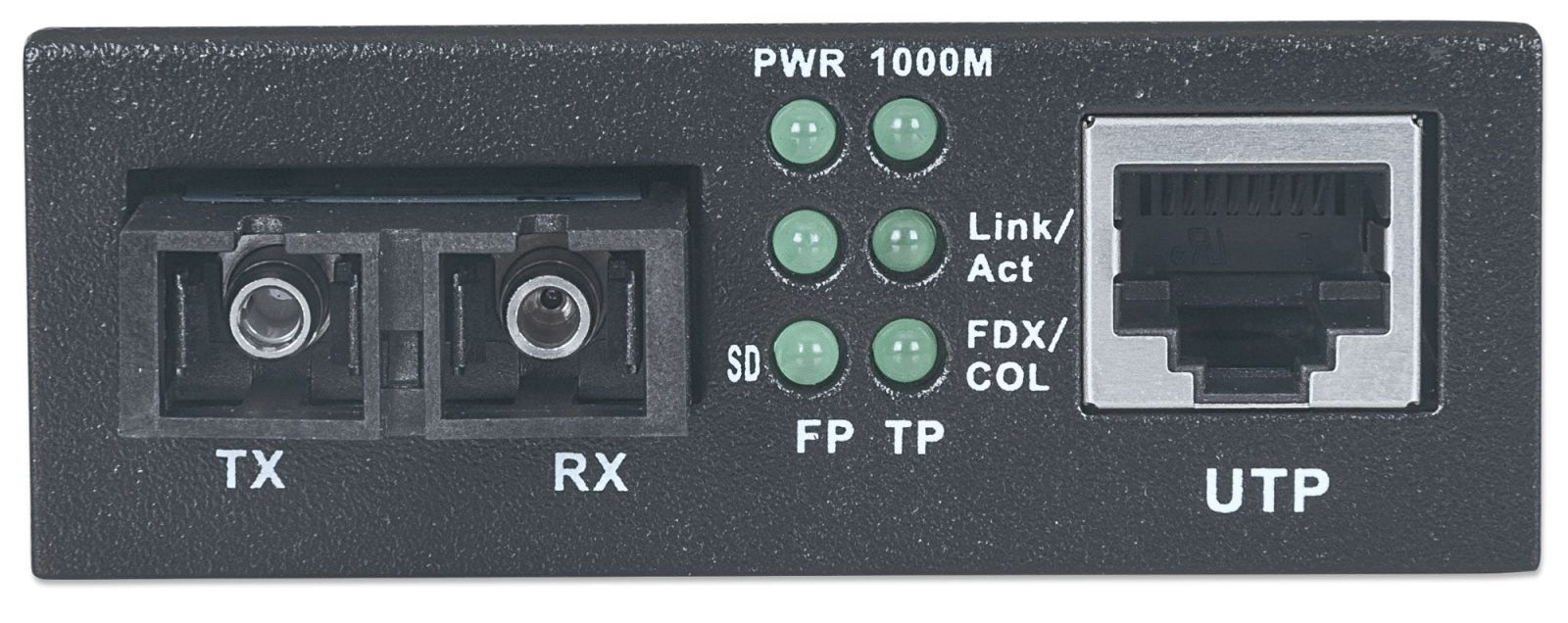

| Fiber optic connector | SC |

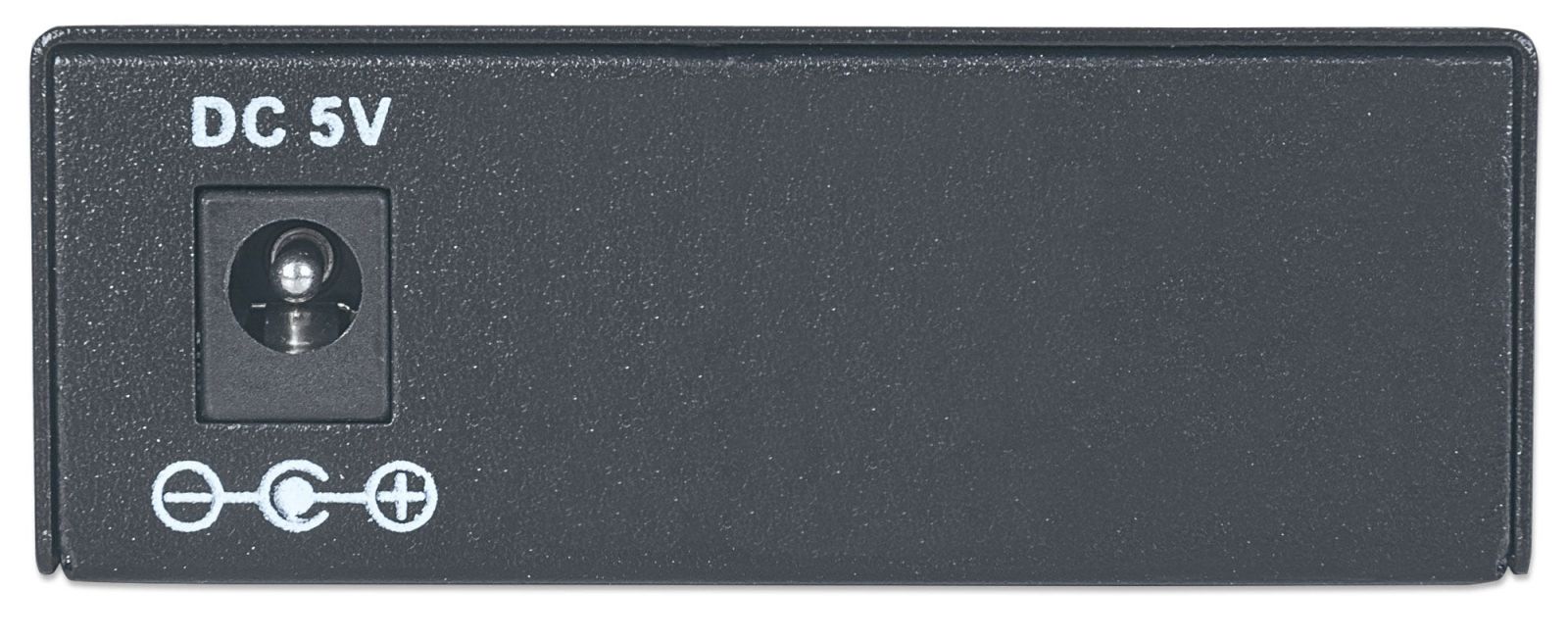

| DC-in jack | |
| Power | |
| Output voltage | 5 V |
| Output current | 1.2 A |
| Power consumption (max) | 5 W |
| External power adapter | |
| Weight & dimensions | |
| Width | 70 mm |
| Depth | 105 mm |
| Height | 26 mm |
| Weight | 180 g |
