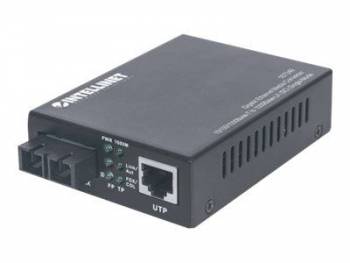

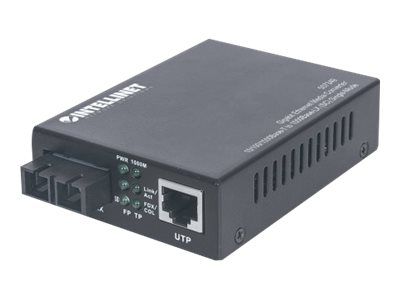

Intellinet 507349
Gigabit Ethernet Single-mode Media Converter 10/100 / 1000Base-T to 1000Base-LX (SC) singlemode, 20 km
|
27,38 EUR |
|
|
( 32,59 EUR incl. VAT ) ≈ £23.06 | ≈ $30.75 plus delivery charges: 53,00 € |
|
| Delivery time from supplier's stock (ca.) 5 workdaysinfo_outline | |
| End-Of-Life: | 13. May 2026 |
|---|---|
| Datasheet: | file_download Download |
| Lieske Part No.: | 414204 |
| Mfg Part No: | 507349 |
| UPC/EAN: | 766623507349 |
| Weight: | 0.18 kg |
Further Media-Converters from IntellinetFurther products in category Media-Converters
All products of Intellinet
Product information for Intellinet 507349:
- Data Transfer Rate: 10/100/1000 Mbit / s
- 10/100/1000 Mbit / s auto-sensing Gigabit RJ45 port with Auto MDI / MDI-X support
- RJ45 port with Auto MDI / MDI-X support and Auto Negotiation
- 1000Base-LX Single mode SC duplex port
- wavelength 1310 nm

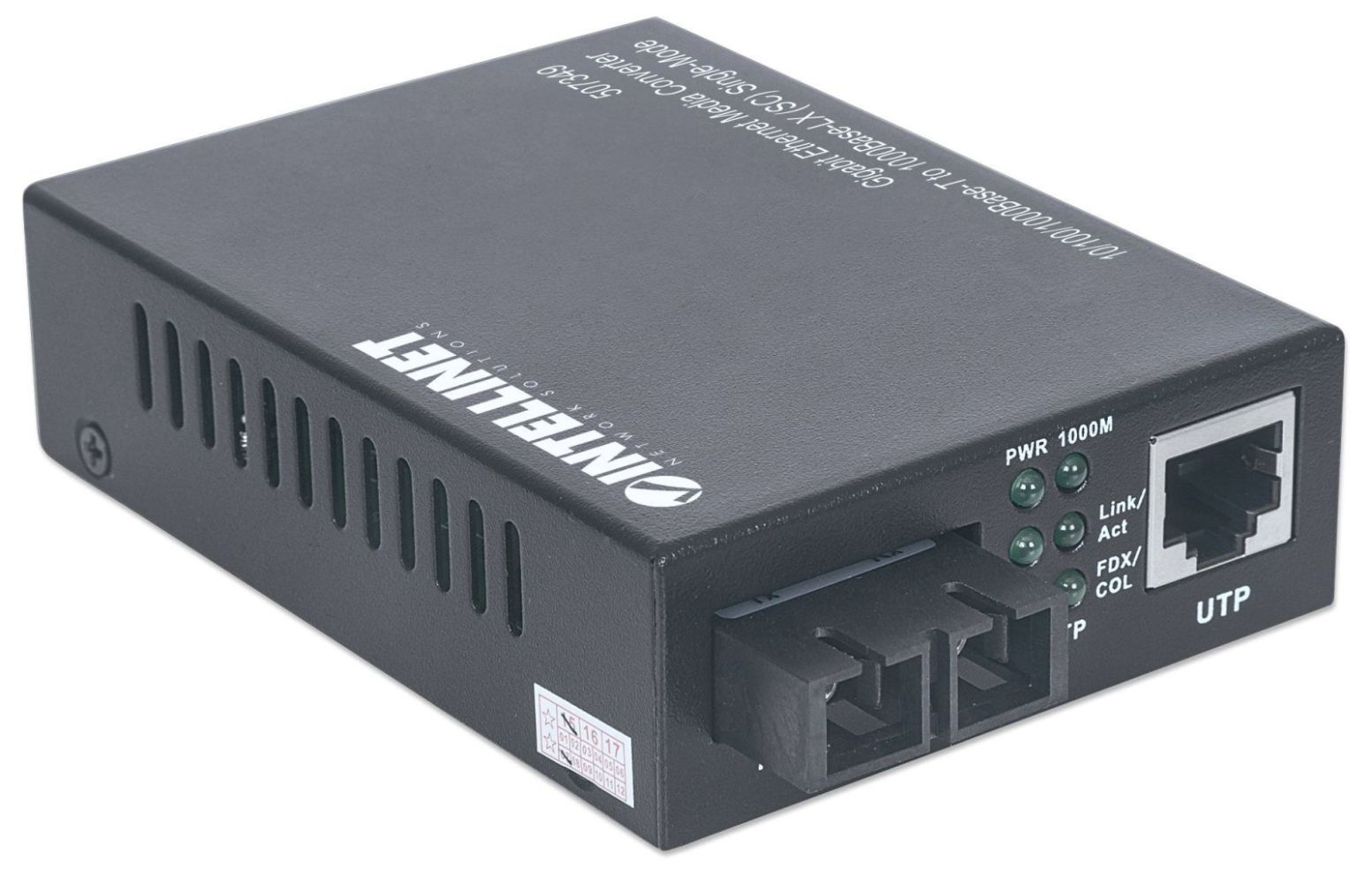

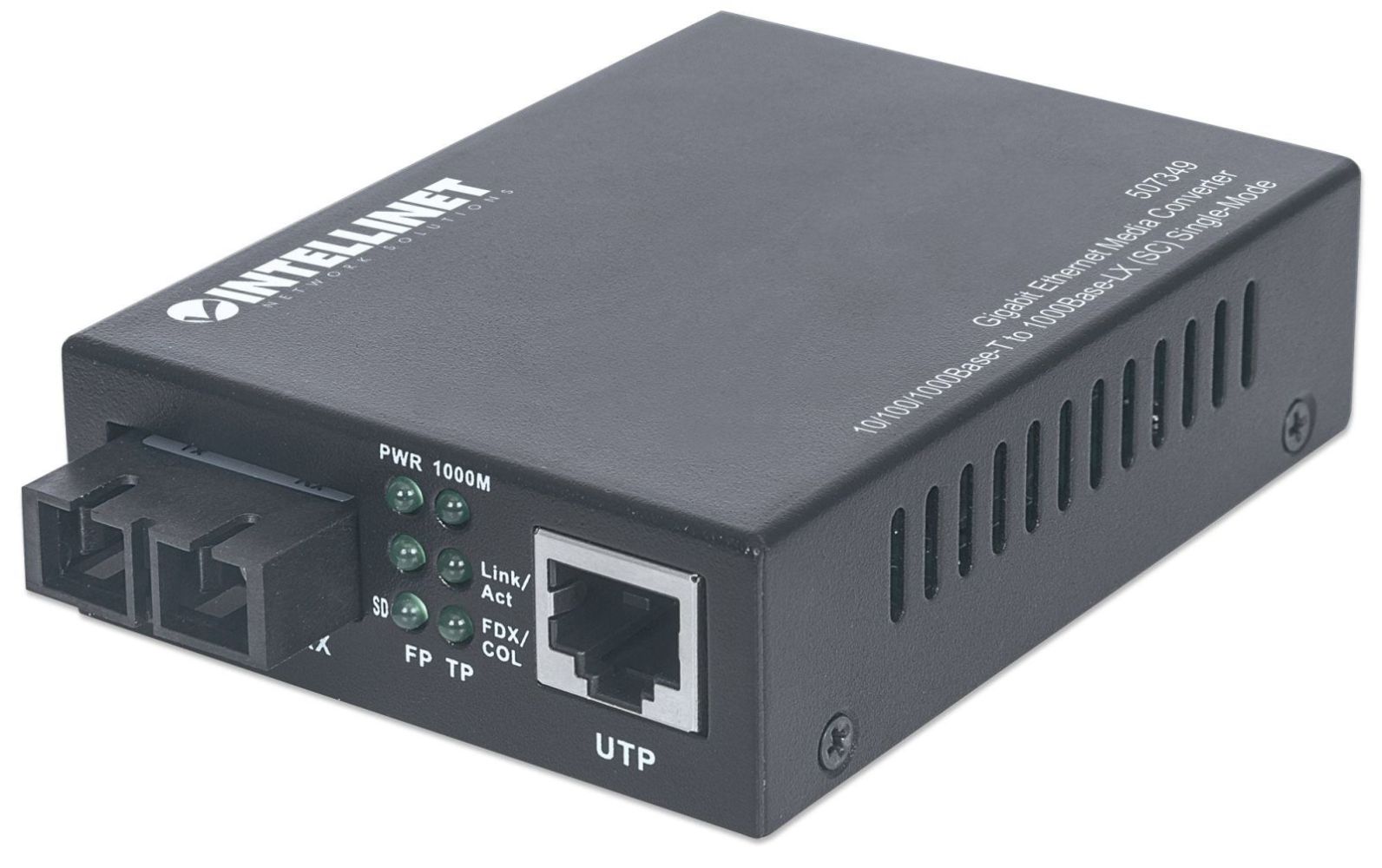

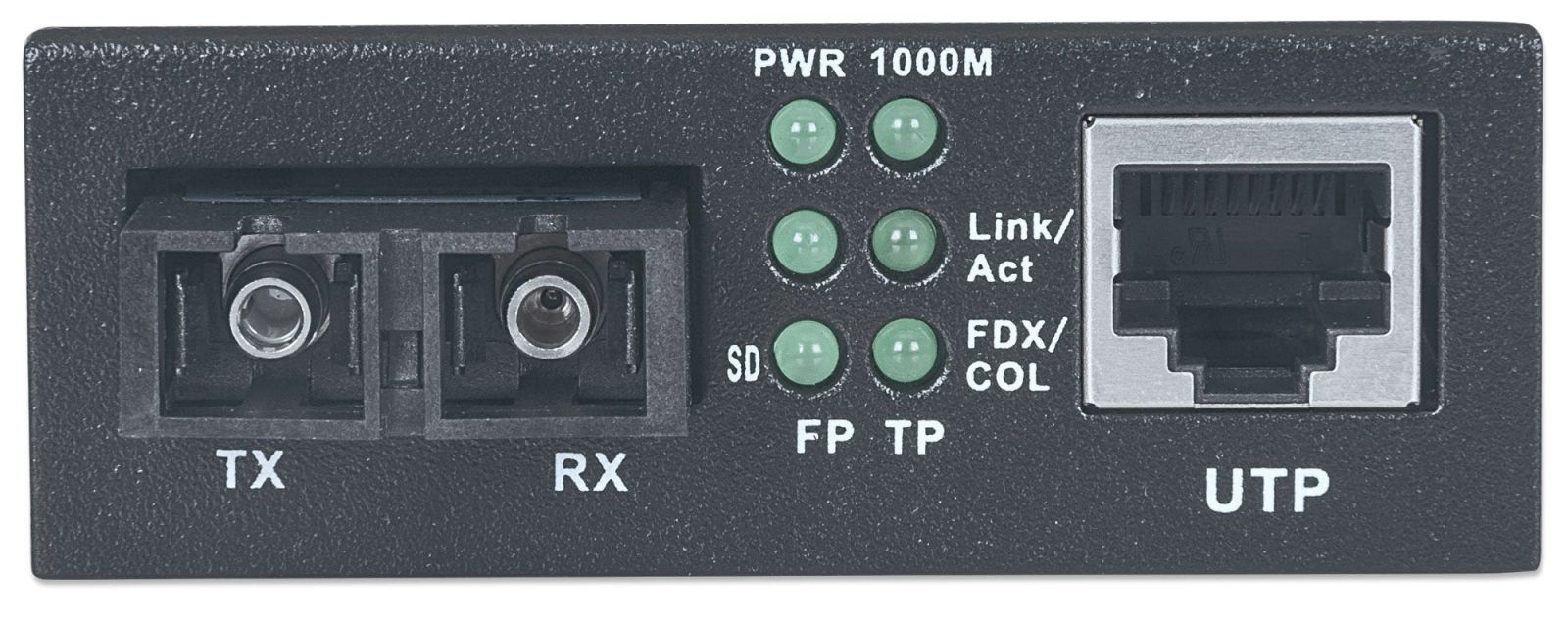

- Status LEDs for power and Link / TX for both ports
- External power supply, 5V
- as Suitable independent converter or with the 14-slot Media Converter Chassis, Model 507356
- 3 years warranty Standards
- IEEE 802.3 (Twisted Pair Ethernet)
- IEEE 802.3ab (Twisted Pair Gigabit Ethernet)
- IEEE 802.3u (Twisted Pair / Fiber Optic Fast Ethernet)
- IEEE 802.3z (Fiber Optic Gigabit Ethernet) General
- Supported Media:
- 1000Base-T CAT5 or higher UTP / STP RJ45, EIA / TIA 568
- 1000Base-LX Single-mode 8.3 / 125 microns or 8.7 / 125 micron or 8/125 microns or 10/125 micron
- Connections:
- RJ45 port, 1000Base-T
- SC duplex port 1000Base-LX
- Range:
- 20 km (fiber optic cables)
- 100 m (RJ45 cable)
- Wavelength: 1310 nm
- Power output: -8 to -3 dBm
- RX- sensitivity: -22 dBm =
- signal attenuation: 0.3 dB / km
- MTBF> 100,000 hours
- Certifications: FCC Class B, CE LEDs
- Electricity
- Link / Activity
- Full duplex / Collision
- 1000 Mbit / s display for RJ45 port
- Link display for fiber optic port electricity

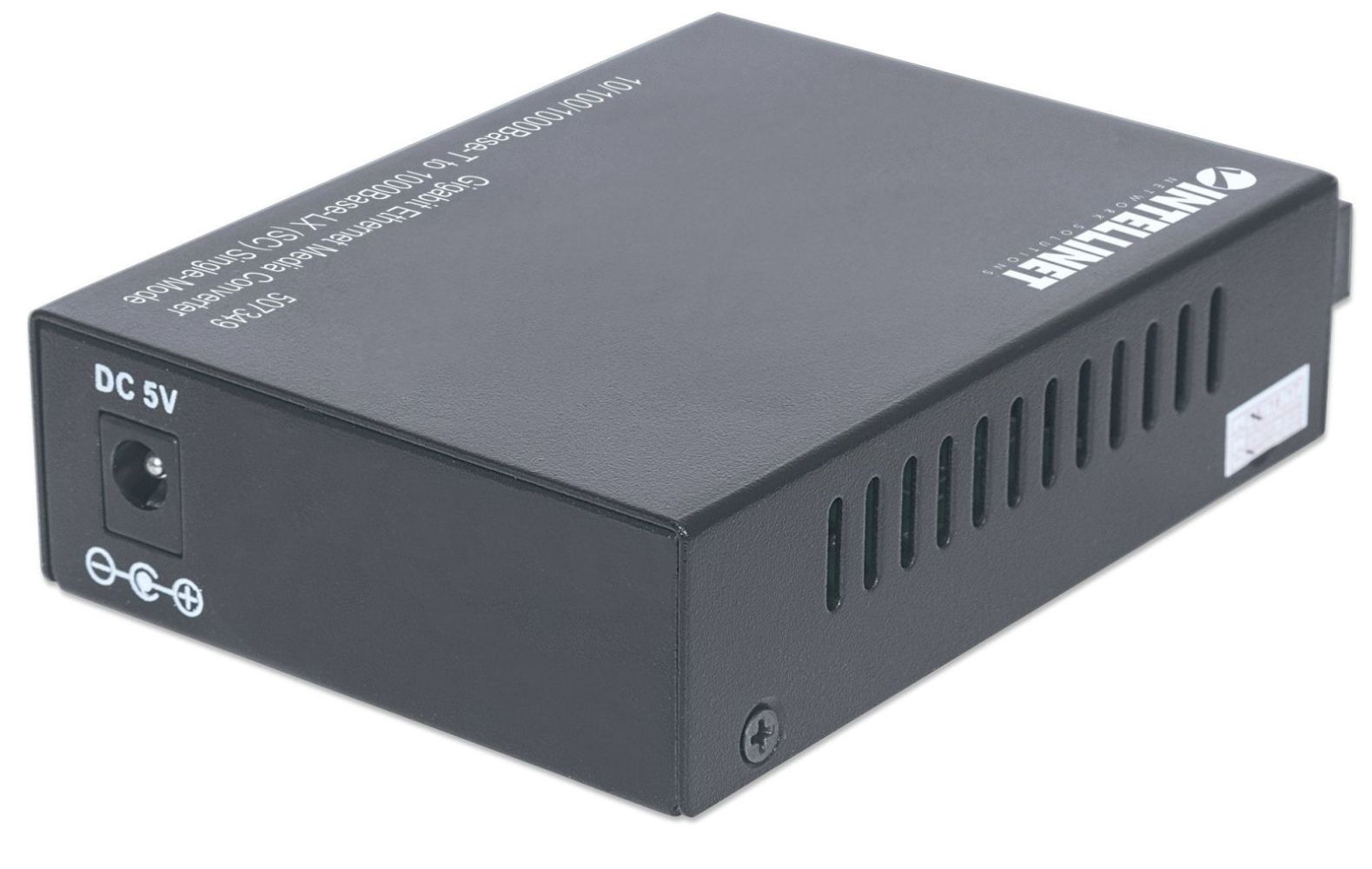

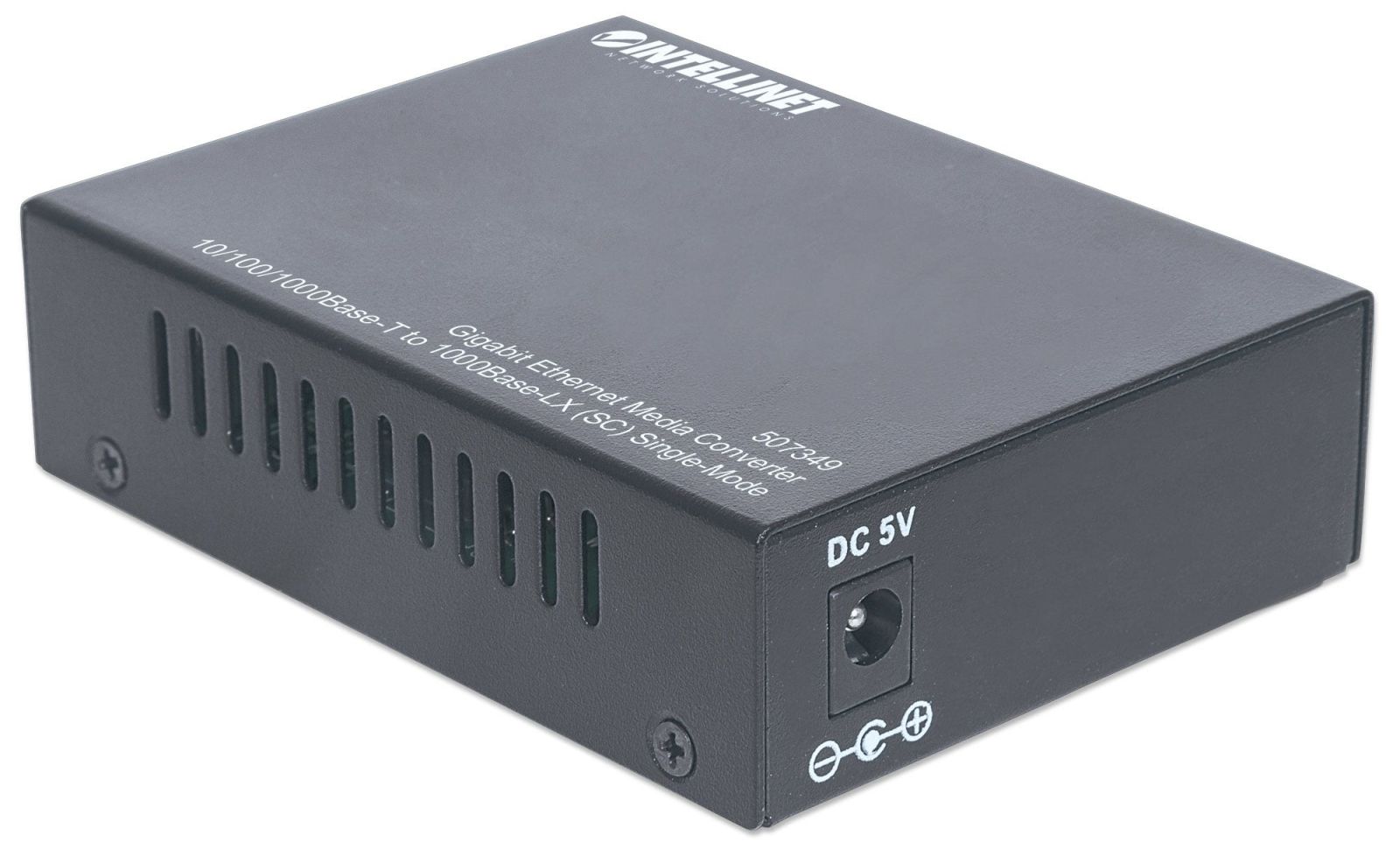

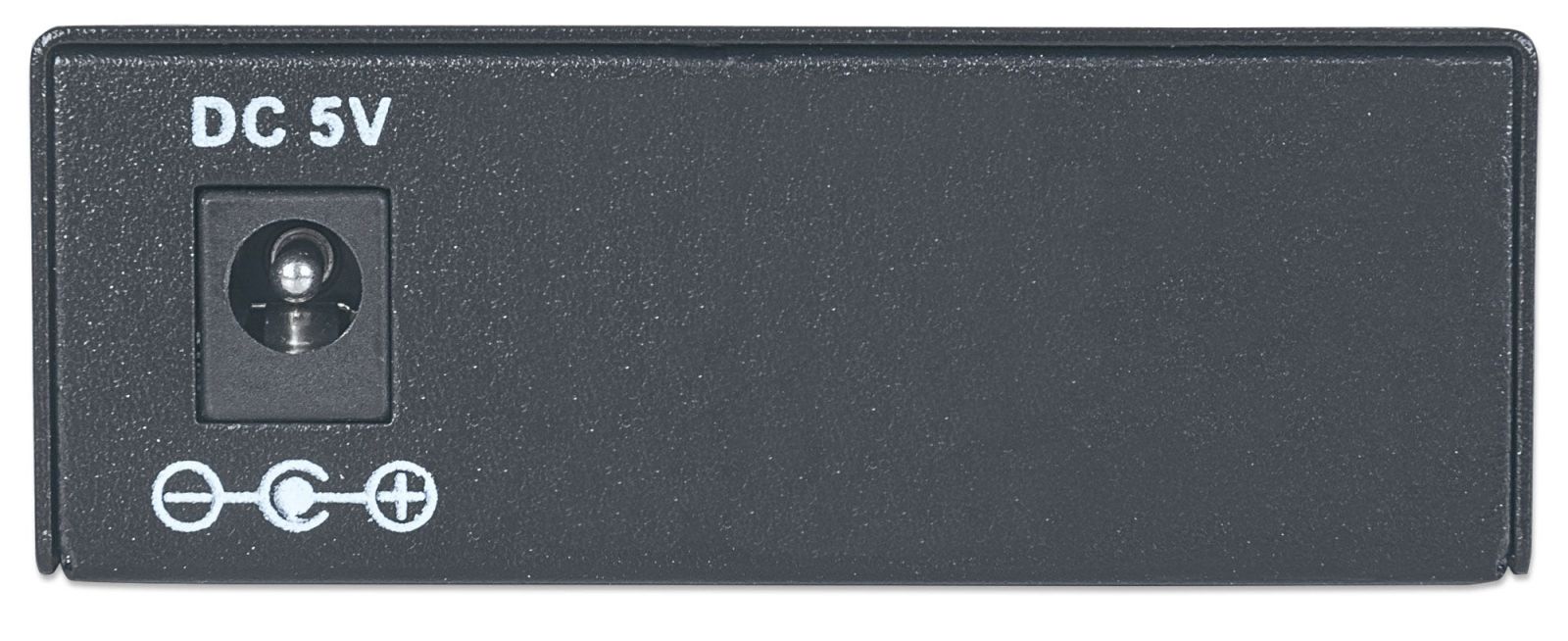

- External Power Supply, 5 V, 1.2 A
- Power consumption: 5 watts (max.) Technical details
- Metal housing
- Dimensions: 105 (L) x 70 (W) x 26 (H) mm
- Weight: 180g
- Operating temperature: 0 - 50 ° C
- Humidity: 10 - 90% RH, non-condensing
- Storage temperature: -45 - 70 ° C Delivery
- Gigabit Ethernet single-mode media converter
- power supply
- manual Color: Black Product dimensions: 105 (L) x 70 (W) x 26 (H) [mm]
| Certificates | |
| Certification | FCC Class B, CE |
| Features | |
| Product colour | Black |
| Housing material | Metal |
| Internal | |
| LED indicators | |
| Logistics data | |
| Harmonized System (HS) code | 85176990 |
| Network | |
| Maximum data transfer rate | 1000 Mbit/s |
| Converter input interface | 1000Base-T |
| Converter output interface | 1000Base-LX |
| Networking standards | IEEE 802.3, IEEE 802.3ab, IEEE 802.3u, IEEE 802.3z |
| Ethernet interface type | Gigabit Ethernet |
| Ethernet LAN data rates | 10,100,1000 Mbit/s |
| Copper ethernet cabling technology | 10BASE-T, 100BASE-TX, 1000BASE-T |
| Fiber ethernet cabling technology | 1000BASE‑LX |
| Duplex system | Full |
| Operational conditions | |
| Operating temperature (T-T) | 0 - 50 °C |
| Storage temperature (T-T) | -45 - 70 °C |
| Operating relative humidity (H-H) | 10 - 90% |
| Packaging content | |
| AC adapter included | |
| Manual | |
| Performance | |
| Maximum transfer distance | 20000 m |
| Wavelength | 1310 nm |
| Fiber mode structure | Single-mode |
| Fiber cable diameters supported (core/cladding) | 8.3/125,8.7/125,8/125,10/125 µm |
| Tx power (min) | -8 dBmW |
| Tx power (max) | -3 dBmW |
| Sensitivity | -22 dBmW |
| Mean time between failures (MTBF) | 100000 h |
| Ports & interfaces | |
| Connectivity technology | Wired |
| Ethernet LAN (RJ-45) ports | 1 |
| Fiber ports quantity | 1 |
| Fiber optic connector | SC |
| DC-in jack | |
| Power | |
| Output voltage | 5 V |
| Output current | 1.2 A |
| Power consumption (max) | 5 W |
| External power adapter | |
| Weight & dimensions | |
| Width | 70 mm |
| Depth | 105 mm |
| Height | 26 mm |
| Weight | 180 g |
