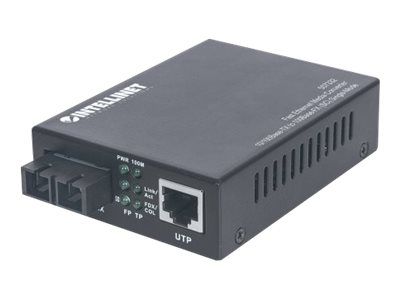

INTELLINET 507332 Fast Ethernet Single-mode Media Converter 10 / 100Base-TX to 100Base-FX (SC) singlemode, 20 km
|
-7% 31,75 EUR 34,21 EUR |
|||||||||||
|
( 37,78 EUR incl. VAT ) plus delivery charges |
|||||||||||
| Delivery time from supplier's stock (ca.) 7 workdaysinfo_outline | |||||||||||
| Lieske Part No.: | 414089 | ||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|
| Mfg Part No: | 507332 | ||||||||||
| UPC/EAN: | 766623507332 | ||||||||||
| Weight: | 0.18 kg | ||||||||||
|
Graduated prices net
|
|||||||||||
Product information for INTELLINET 507332:
- Data transfer rate: 100 Mbit / s
- 10 / 100Base-TX RJ45 port, maximum range 100 meters
- RJ45 port with Auto MDI / MDI-X support and auto negotiation
- 100Base-FX single-mode SC duplex port
- wavelength 1310 nm
- Status LEDs for power and Link / TX for both ports
- External Power Supply, 5 V
- Can be used as a stand-alone converter or with the 14-slot Media Converter Chassis, Model 507356
- 3 years Warranty Standards
- IEEE 802.3 (Twisted Pair Ethernet)
- IEEE 802.3u (Twisted Pair / Fiber Optic Fast Ethernet) General
- Supported Media:
- 10 / 100Base-TX CAT5 or higher UTP / STP RJ45, EIA / TIA 568
- 100Base-FX single-mode 8.3 / 125 micron fiber
- Connections:
- RJ45 Port, 10 / 100Base-TX
- SC port 100Base-FX
- Range:
- 20 km (fiber optic cables)
- 100 m (RJ45 cable)
- Wavelength: 1310 nm
- Power output: -15 - -3 dBm
- RX sensitivity: -32 dBm =
- Signal attenuation: 0.3 dB / km
- MTBF> 100,000 hours
- Certifications: FCC Class B, CE LEDs
- Electricity
- Link / Activity
- Full duplex / Collision
- display 100 MBit / s connection speed on RJ45 port
- Link display for fiber optic port electricity
- External Power Supply, 5 V, 1 A
- Power consumption: 5 watts (max.) Technical details
- Metal housing
- Dimensions: 105 (L) x 70 (W) x 26 (H) mm
- Weight: 180g
- Operating temperature: 0 - 50 ° C
- Humidity: 10 - 90% RH, non-condensing
- Storage temperature: -45 ° - 70 ° C Delivery
- Fast Ethernet singlemode media converter
- power supply
- manual Color: Black Product dimensions: 105 (L) x 70 (W) x 26 (H) [mm]
