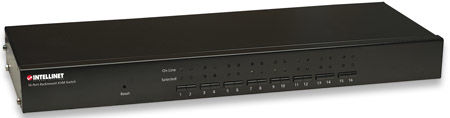

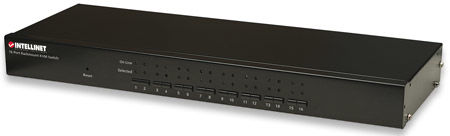

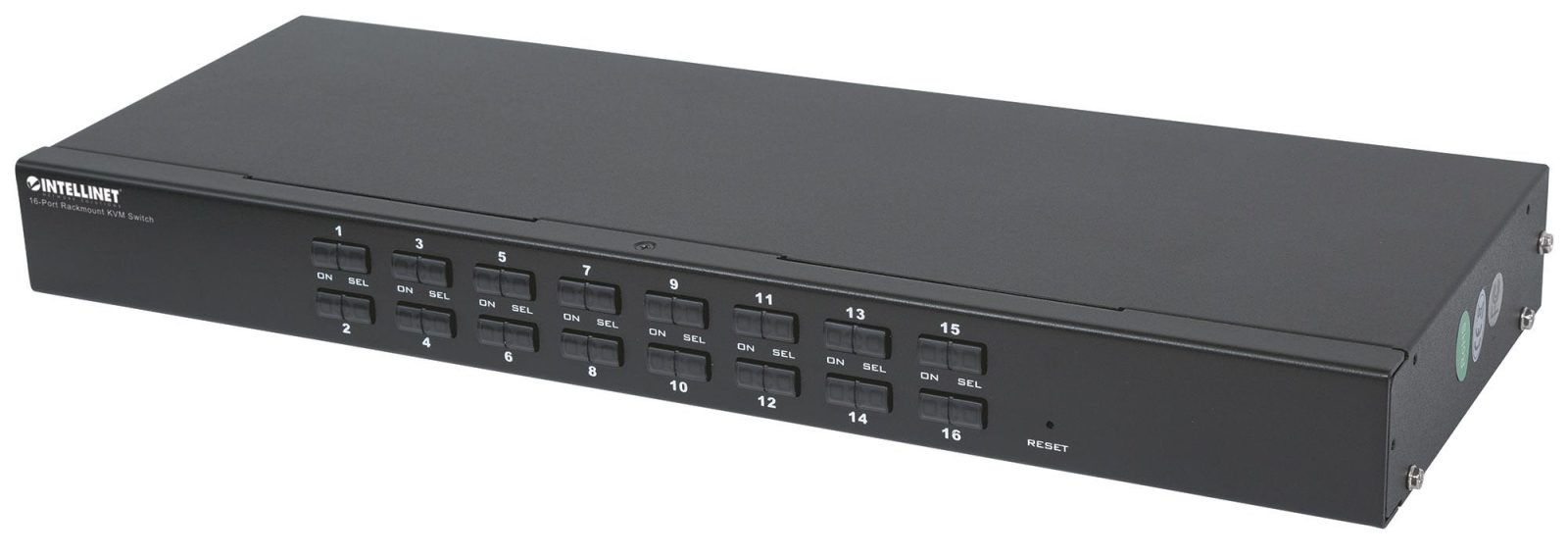

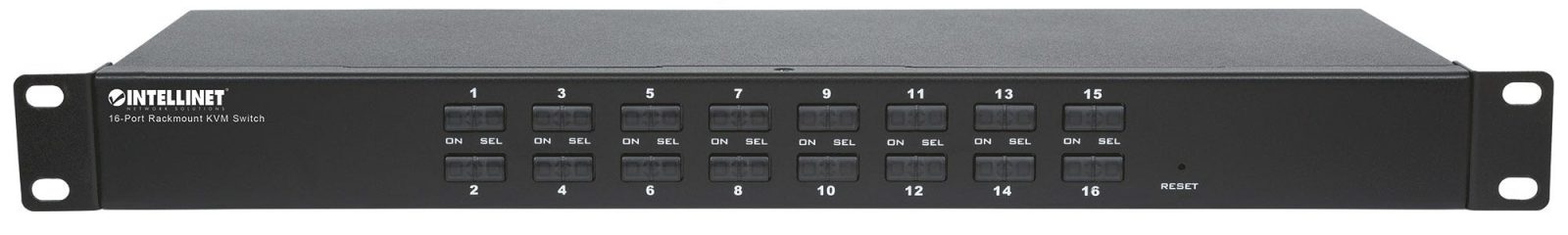

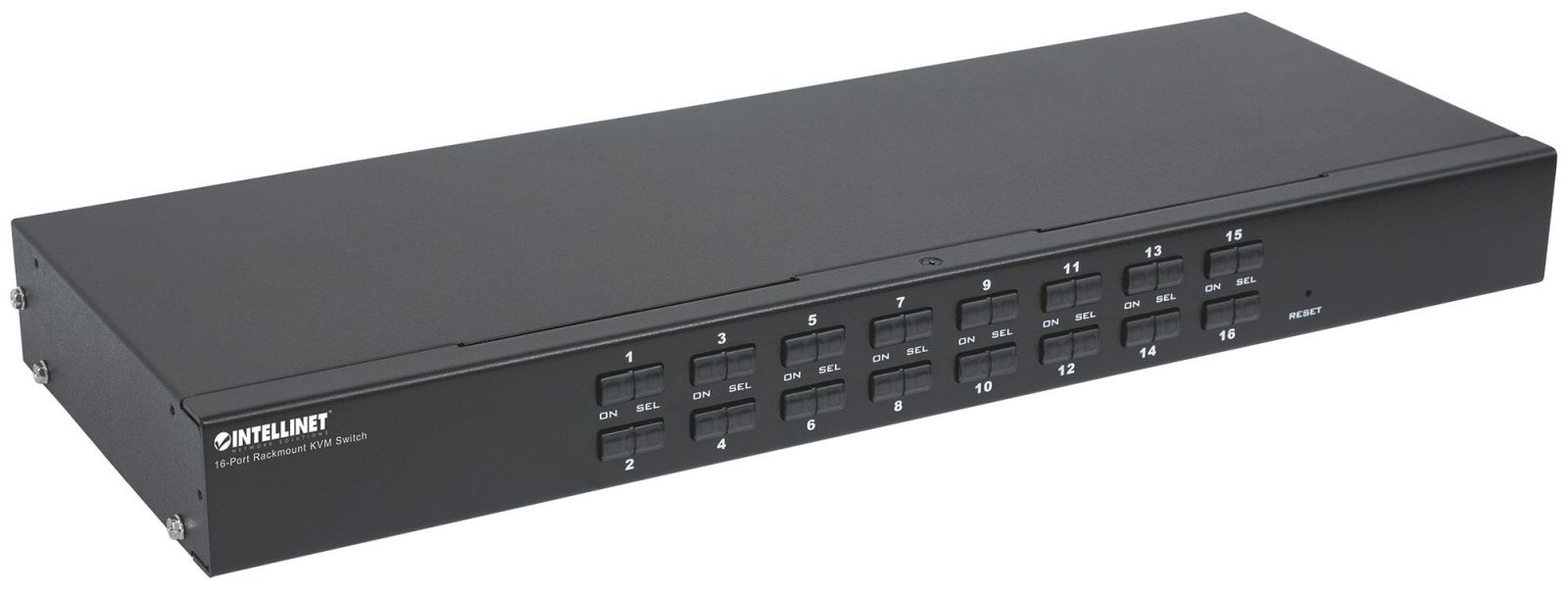

INTELLINET 506496 16-Port Rackmount KVM Switch Combo USB + PS / 2, On-screen display, including cables

The INTELLINET NETWORK SOLUTIONS 16-Port 48,3 cm ( 19 inch )KVM Switch with USB and PS/2-ports is ideal for PC and server management on a central console in commercial, campus and industrial environments. An on-screen display menu ( OSD) provides intuitive switching and the Kaskadierungsoption expanded system capacity for all connected computers. The switch provides a dedicated controller per port to keep the mouse and keyboard also functional with KVM switch off. superb picture quality even with up to 64 units in daisy-chain network guaranteed. Perfect keyboard / mouse emulation ensures maximum compatibility with PCs, servers and various operating systems. PS/2-Unterstützung USB and USB and PS/2-ports are supported on PC and console page. This especially in environments with mixed features a great advantage, that is, if both PCs with PS/2-connectors older and newer models can be used with USB ports cable included The INTELLINET NETWORK SOLUTIONS KVM Switch, model 506496, are all necessary connection cables in include delivery, making the familiar from other manufacturers search for the right cables unnecessary. OSD menu With the integrated on-screen display (OSD), the control of the KVM switch easy. these comfortable you will not want to miss want. Professional Features This switch provides professional features like auto logout, password protection, upgradeable firmware and Kaskadierungsoption The metal housing provides excellent shielding against electromagnetic interference, while providing robust protection against impact -.. Control up to 16 computers from a single keyboard, mouse and a monitor - USB and PS/2- support on console and PC side - 16 x 4-in-1 USB-/PS/2-Anschlusskabel supplied - Menu On Screen Display (OSD) - computer selection and control via buttons on front and on the OSD menu - Hot Plug and Play: KVM must not be switched off when connecting and disconnecting PCs - LEDs and numeric display for easy navigation - Supports resolutions up to 1600 x 900 - Supports Microsoft and Logitech standard 5-key mouse and compatibles - Auto Scan interval on OSD programmable - Password protection - auto-logout timeout - No software needed - Works across operating systems

























- 3 years warranty standards
- USB 1.1 / 2.0

Generally
- PC Connections: 16
- Console connections: 1

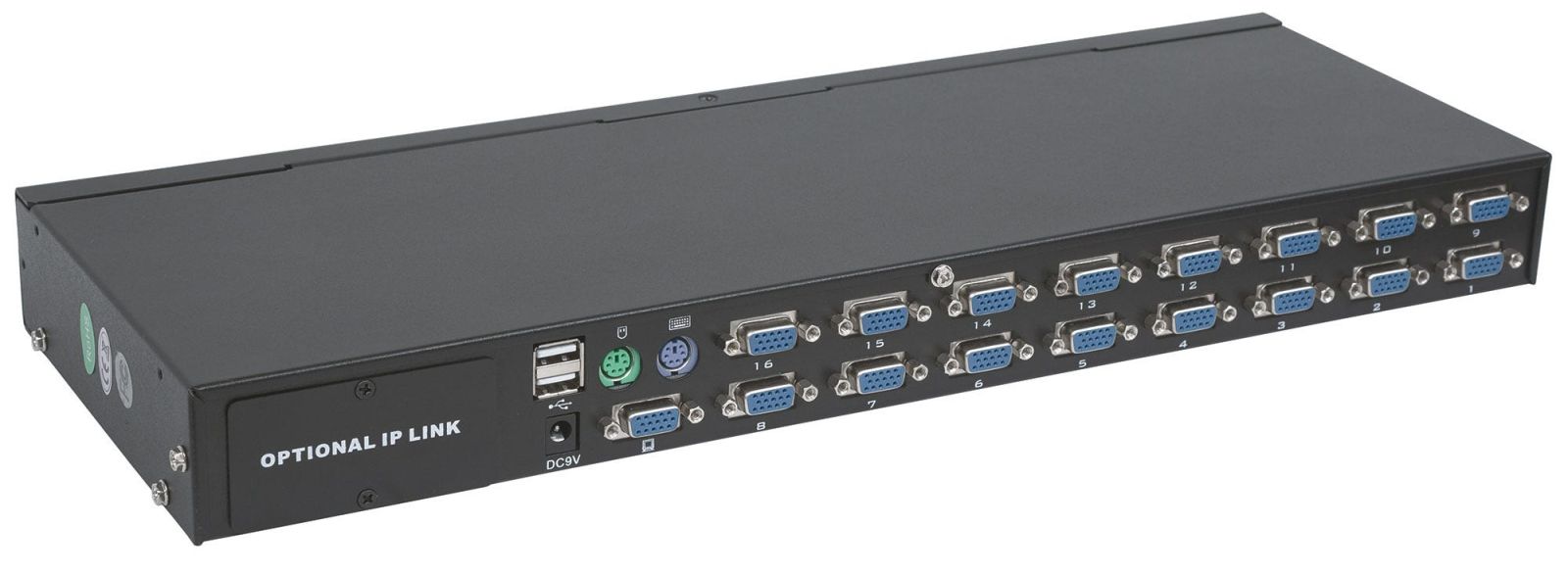

• PC Connections:
• 16 x HD15 connector for use with 4-in-1 connection cables (16 cables included)

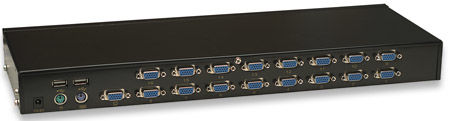

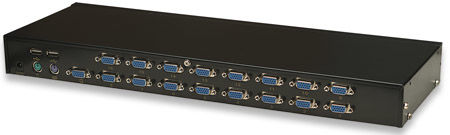

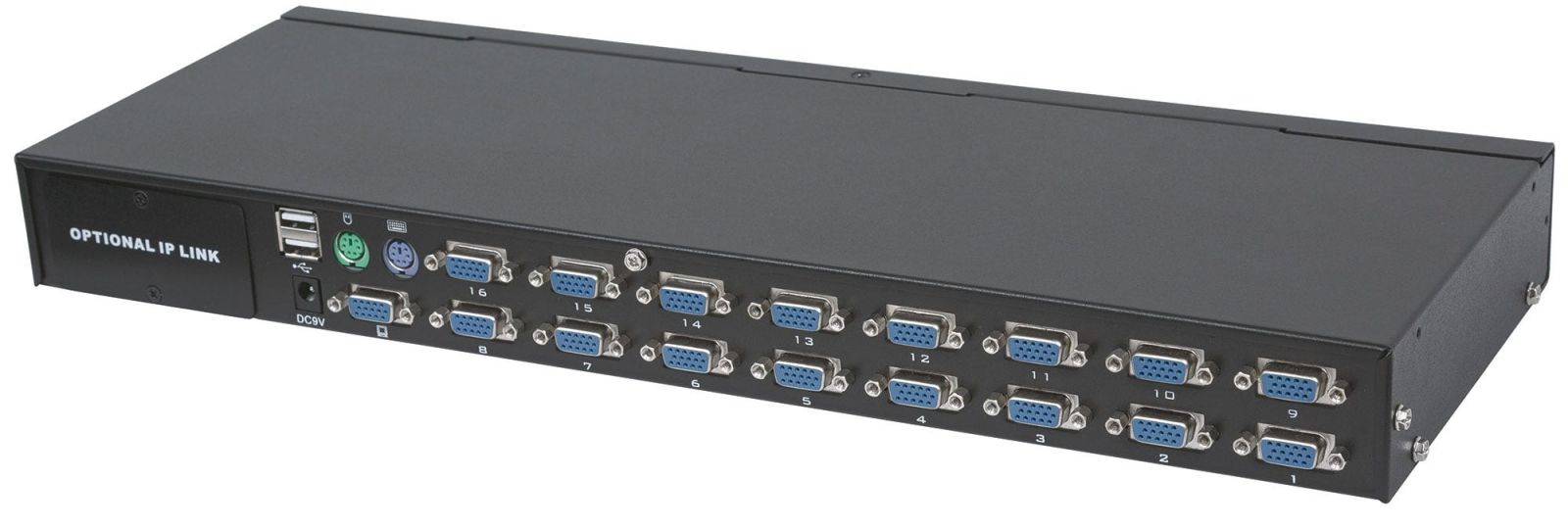

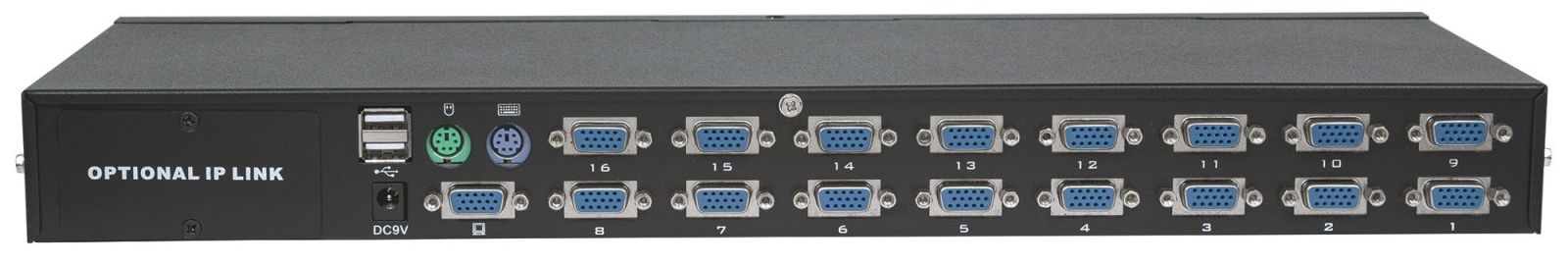

- Console connections:

• 2 x USB A (keyboard, mouse)
• 2 x PS / 2 Mini-DIN 6 connector (keyboard, mouse)
• 1 x HD15 Female

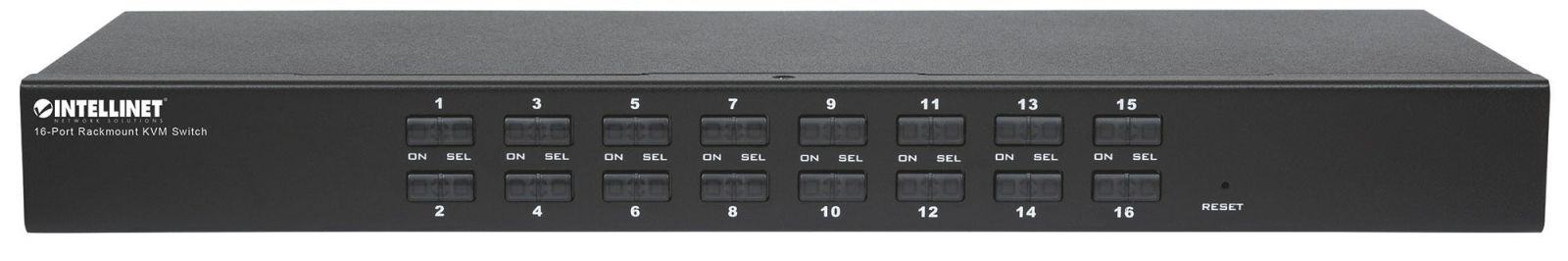

- Computer selection:

• Via buttons
• via On-Screen Display (OSD)
- Max.Resolution: 1600 x 900

• Video bandwidth: max. 350 MHz
- FCC Class B, CE, RoHS

LEDs

• 1-line LED per channel
• 1 PC LED per channel selection

Physical Specifications
- Metal housing

• Dimensions: 440 x 155 x 45 mm
• Weight: 6.0 kg
- Operating temperature: 0 - 50 ° C
- Humidity: 0 - 80% RH, non-condensing
- Storage temperature: -20 - 60 ° C

Current

• External power supply: 9 V DC, 1 A
• Power consumption: max. 500 mW

Scope of delivery

• 16-Port 48,3 cm ( 19 inch )KVM Switch
• 48,3 cm ( 19 inch )mounting angles
- Manual

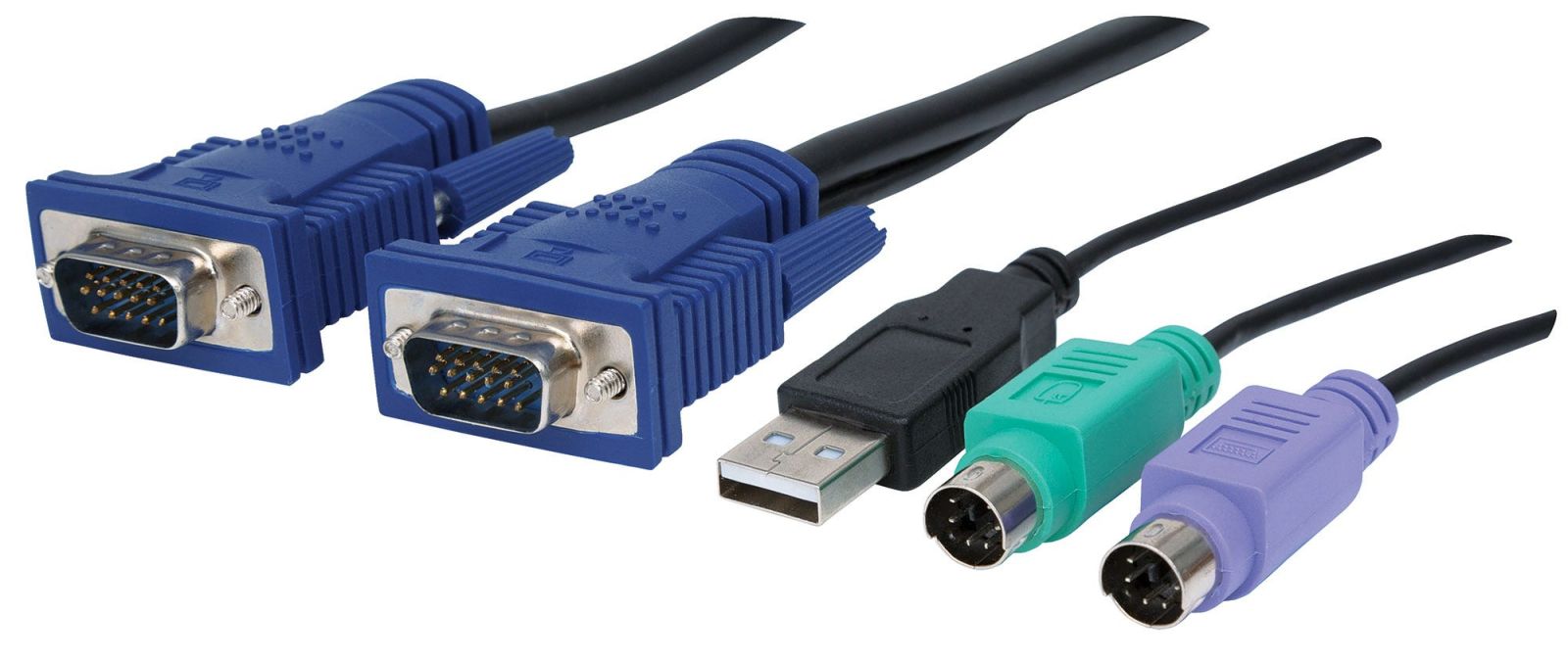

- 16 x 4-in-1 connection cable Color: Black Product dimensions: 440 (L) x 155 (W) x 45 (H) mm
