INTELLINET 208338

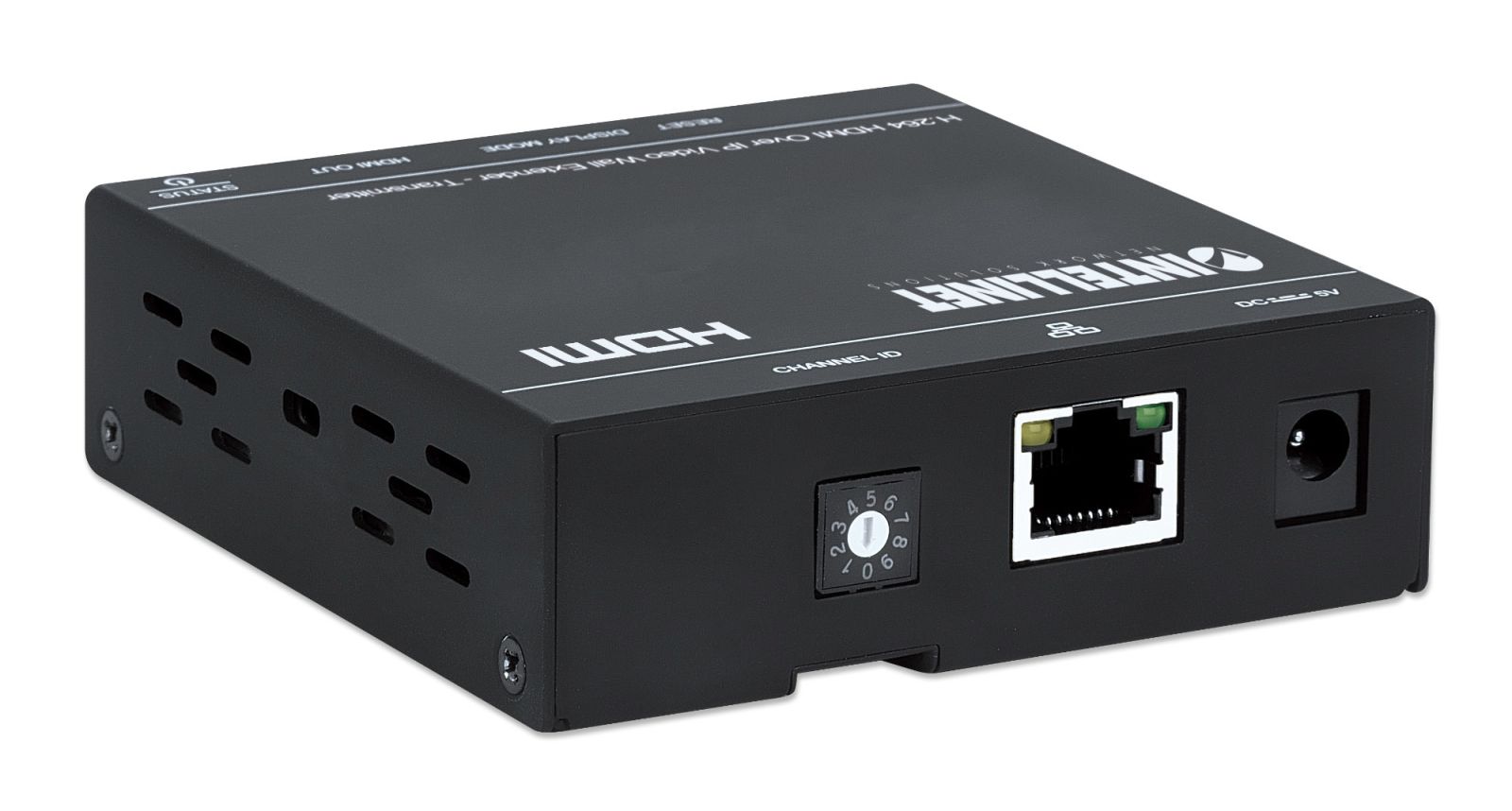

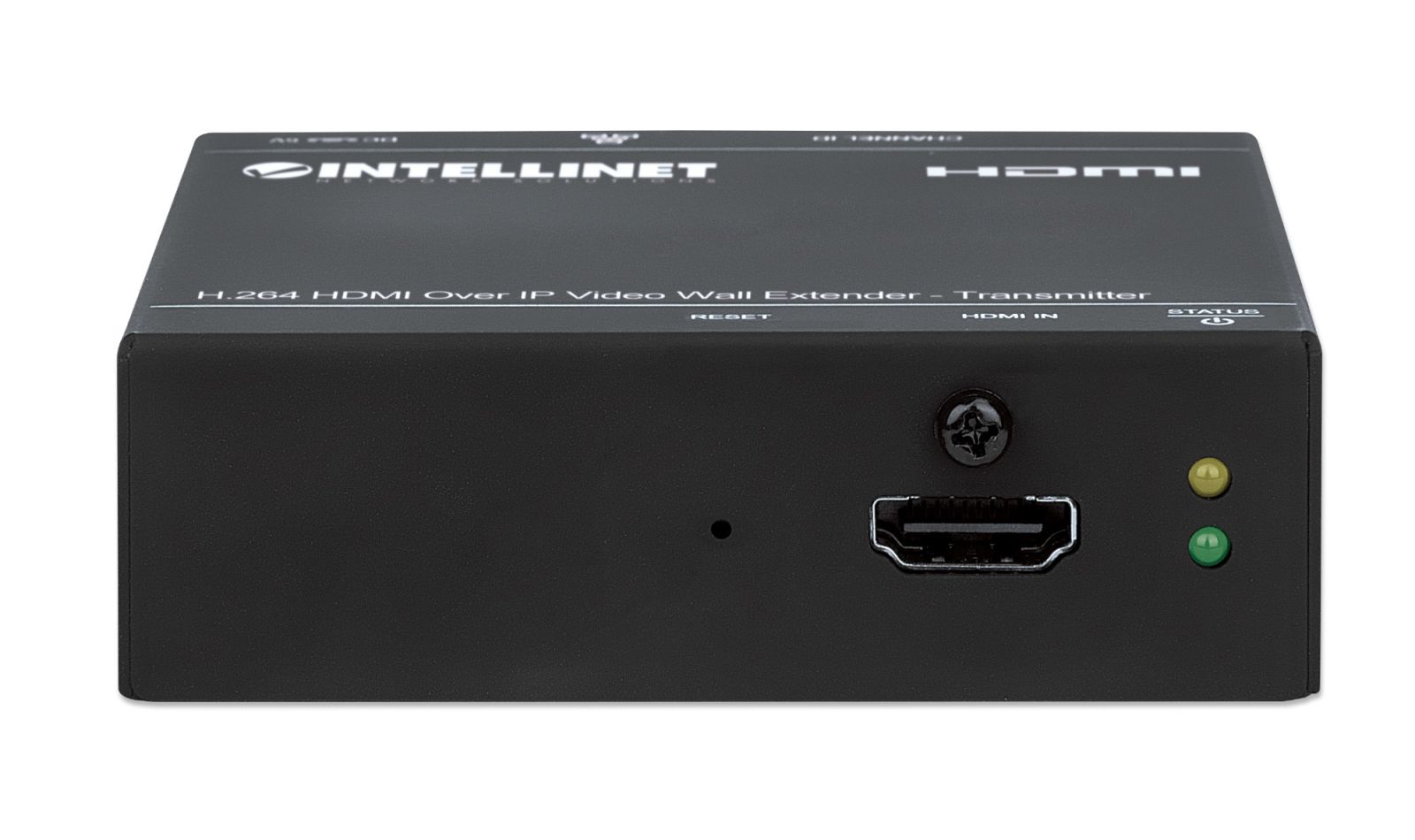

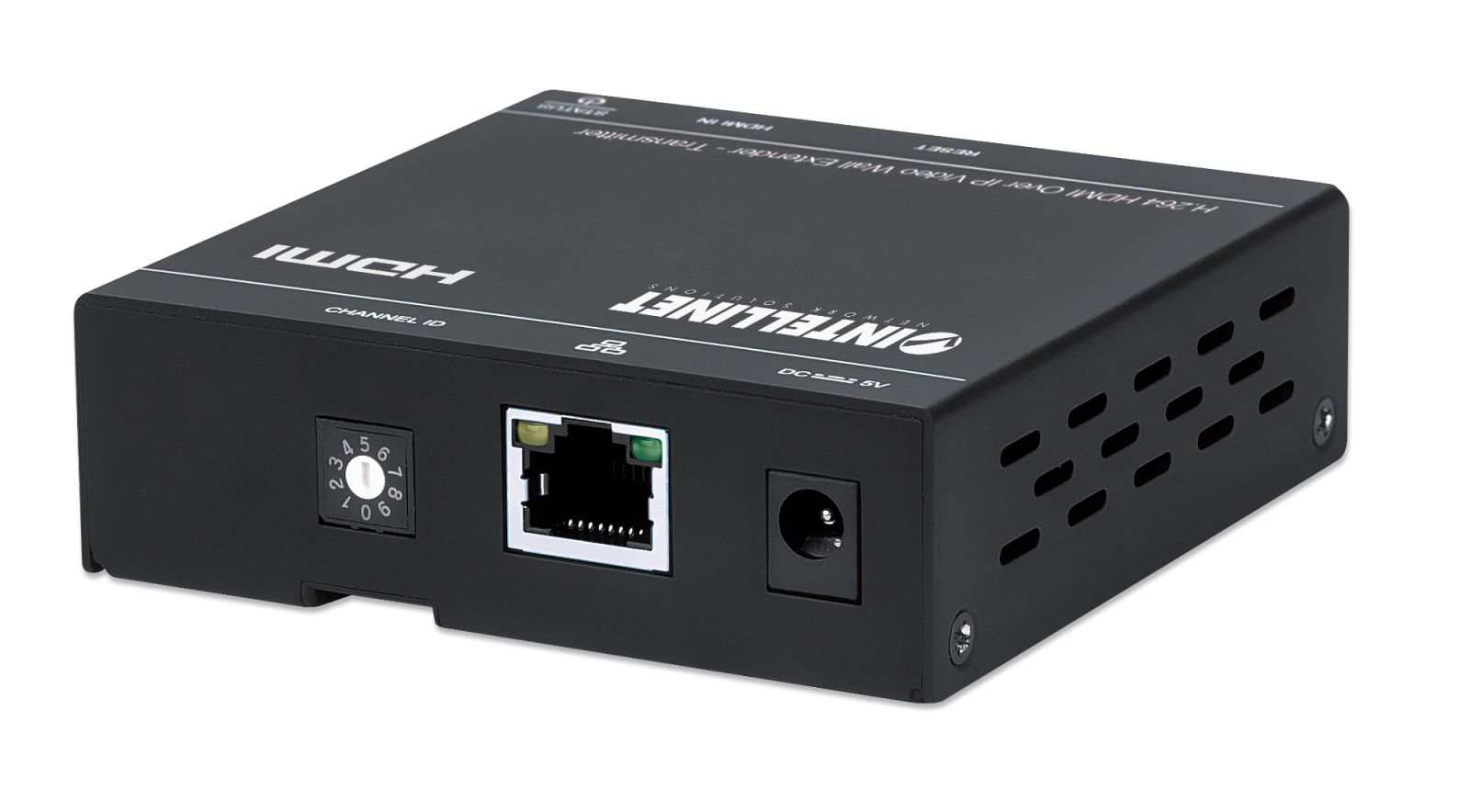

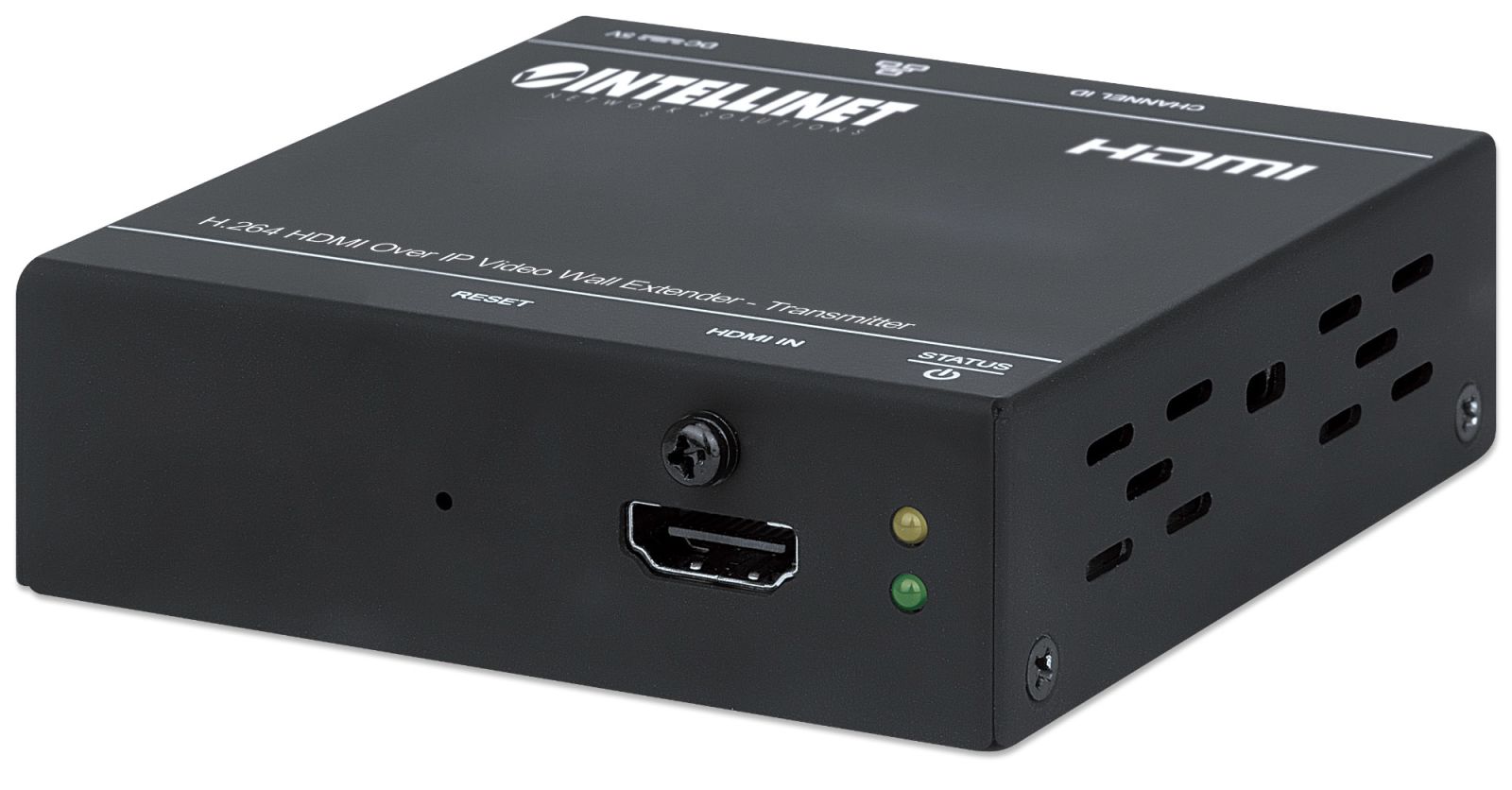

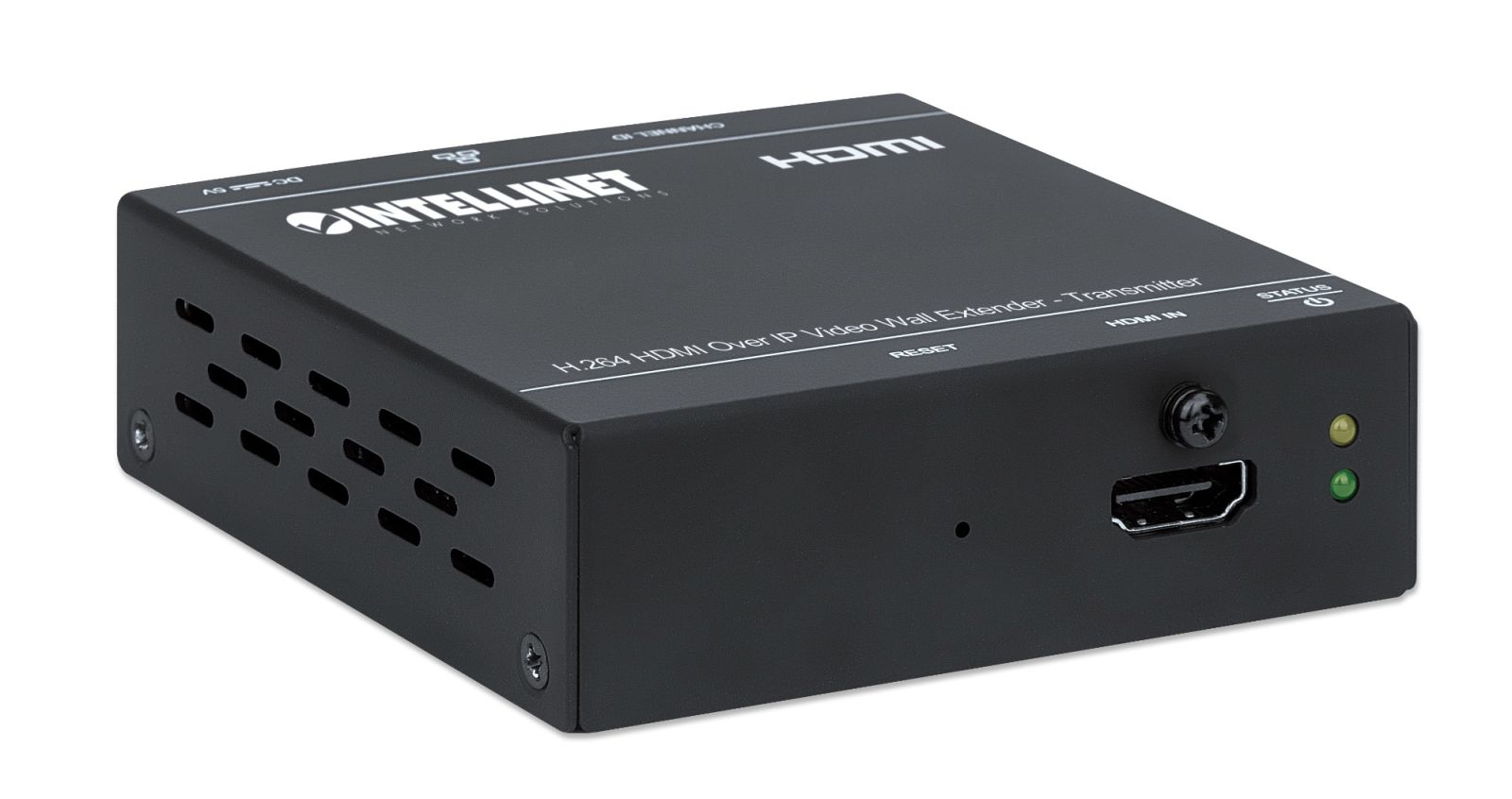

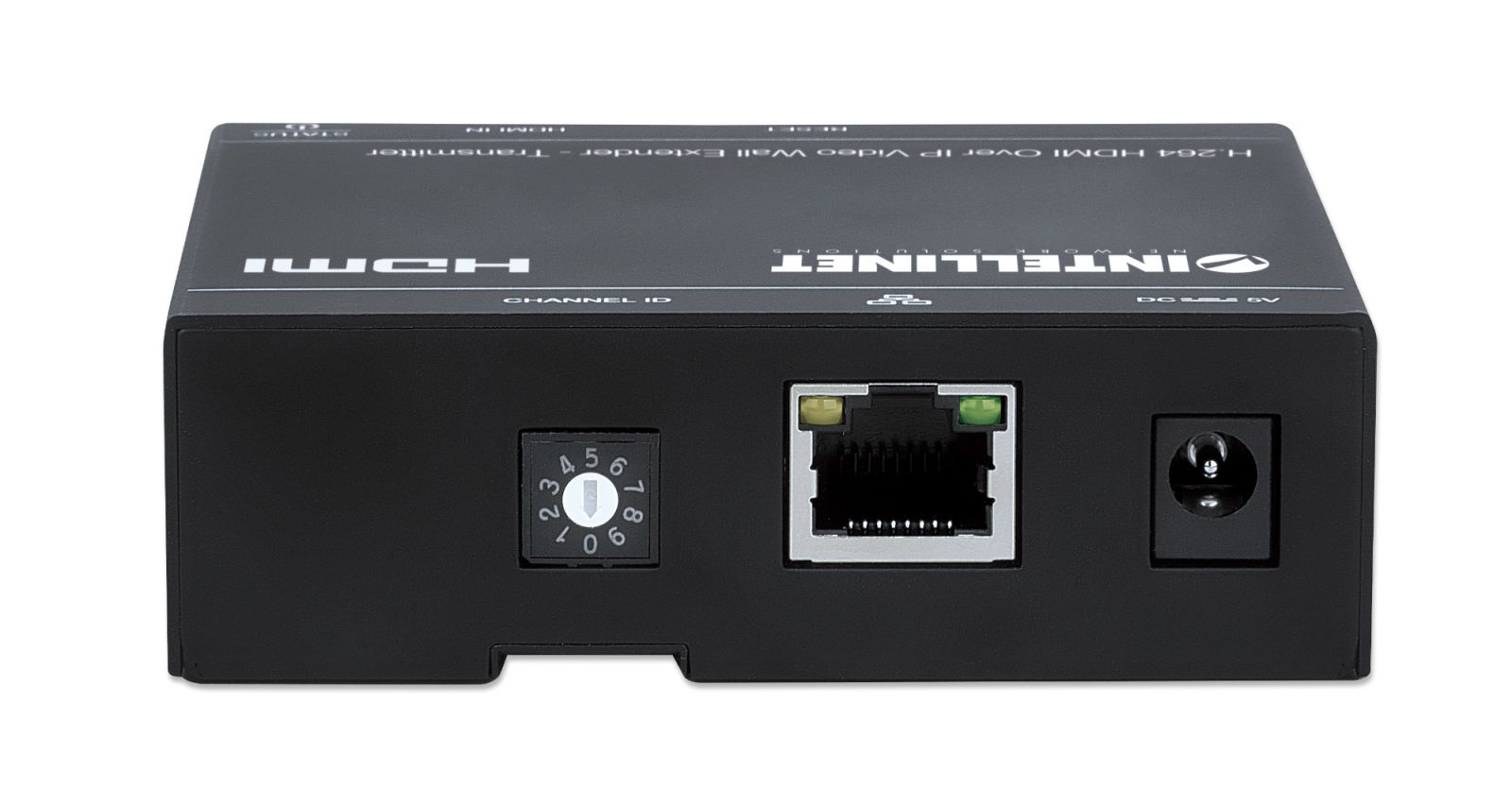

H.264 HDMI Over IP video wall extender, transmitter module Extends an H.264 compressed 1080p@60Hz signal up to 500 m via network, video wall, unicast & multicast transmission, mountable, black
|
-46% 98,33 EUR 182,92 EUR |
|
|
( 117,01 EUR incl. VAT ) plus delivery charges |
|
| Delivery time from supplier's stock (ca.) 7 workdaysinfo_outline | |
| Lieske Part No.: | 1002288 |
|---|---|
| Mfg Part No: | 208338 |
| UPC/EAN: | 766623208338 |
| Weight: | 0.12 kg |
Product information for INTELLINET 208338:
- For efficient distribution of an H.264 compressed 1080p signal to up to 246 receivers (see model #208345) and up to 500 m via network*
- For efficient distribution of a video signal to up to 246 receivers (see model #208345) and up to 500 m via network*
- Can be cascaded up to 4 times with network switches
- Supports video wall, point-to-point modes to-Point (Unicast), One-to-Many (Unicast) and Many-to-Many (Multicast)
- Uses the H.264 / MPEG-4 AVC format for video compression
- Supports resolution of 1080p@60Hz according to HDMI 1.3 -Specification
- Rotary switch for easy manual installation
- 15 - 60 Mbps transfer rate
- Supports LPCM audio formats at 48 kHz
- Surge protection up to 20 volts
- Fully HDCP compliant
- Plug & Play setup with quick network configuration
- Complies with VESA standards for Mounts on a display back
- 3 year warranty
- *Your router or switch must support IGMP snooping; Please check your device for the corresponding properties and activation standards and certificates:
- HDMI 1.3
- HDCP 1.2
- DVI 1.0
- DVI 1.0
- CE
- FCC
- RoHS2 General
- Distance source to display: 100 m max.
- Distance source to display via Network: 500m max.
- Power: 5V/2A; 1.4 m power cable
- LED display
- Rotary switch
- VESA standard: 100x100 Supported resolutions:
- 1080p
- 1080i
- 720p
- 720i
- 576p
- 576i
- 480p
- 480i Connections
- 1 x HDMI socket
- 1 x RJ45 socket
- 1 x 5V power socket, outer diameter 5.5mm Signal input/output
- Video input signal: 0.15 - 0.8V
- DDC input signal: 5V (TTL)
- Video output: HDCP 1.2 Physical details
- Dimensions: 87 x 88 x 27 mm
- Weight: 0.12 kg
- Housing: Aluminum Ambient conditions
- Operating temperature: 0 - 40 ° C
- Storage temperature: -20 - 60 ° C
- Humidity (non-condensing): 20 - 80% Scope of delivery
- H.264 HDMI Over IP video wall extender, transmitter module
- Power supply
- Wall mounting material
- A high-speed HDMI cable, 2 m
- Instructions Color: Black Product dimensions: 87.2 (L) x 88 (W) x 27 (H) [mm]
