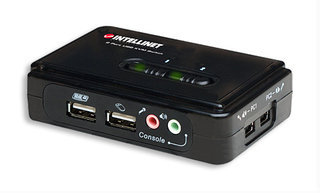

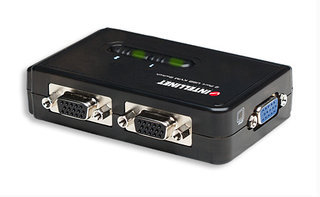

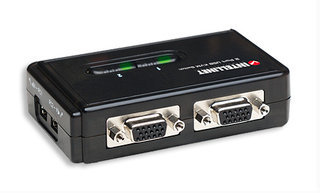

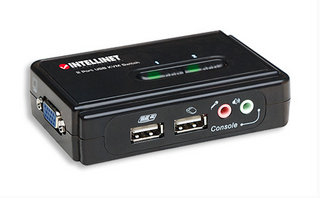

Intellinet 157025 2-Port compact KVM switch USB, compact, with cables and audio support content_copy

The INTELLINET NETWORK SOLUTIONS KVM Switch Model 157025 is a 2-port compact KVM switch with audio and microphone switching functionality. Its USB support on the console side is to use a USB keyboard and a USB mouse allowed. Supplied with 2 sets of detachable USB KVM combo cables and 2 sets of Audio & Mic cables are included for SOHO and desktop multimedia applications. You can access a USB keyboard, a mouse and a monitor and optional speaker and microphone, 2 USB-enabled multimedia computers, to review them and reboot. To the switching software client is used on your PC.

Win baserte Switching Software Support on PC
The KVM switch also provides a Win-based Switching Software that shows the current active PC and allows you to select PC and set hotkeys. The software appears as an icon in the system tray of the desktop and change the number when you switch to another PC. This small software tool you can use the KVM switch very easy to operate and control.


Audio and Microphone Switching offers uninterrupted multimedia control
The audio and microphone switching function of the KVM switch is to manage the multimedia systems on the two computers allowed. You can use the audio / mic monitor input and output data from any computer, without there right cables to connect. The user can also decide whether independent or simultaneous switching of both PC's functions are to be used. And you need only one set of speakers and a microphone for both computers.

USB interface compatibility support for multiple platforms
The USB interface technology offers support for PC, Macintosh G3/G4 and iMAC (The KVM Switching software supports only Windows platform).

No cables for KVM users
This KVM switch prevents using the supplied cable set to the usual cable clutter. - Allows operation of two USB computers with a mouse, a keyboard and a screen
- Uninterrupted switch the audio and microphone source
- Computers can be connected during operation (hot plugging)
- Computer selection via push button or keyboard hotkeys
- Status LEDs for easy overview
- Supports resolutions up to 1600 x 900
Required USB powered, no external power supply -
- Includes two connection cables for computer, speaker and microphone connection
- 3 year warranty standard
- USB 1.1

Generally
- PC Connections: 2
- Console Ports: 1
- PC Connections:
- 2 x USB type A (keyboard, mouse)
- 2 x HD15 (Video)
- 2 x 3.5 mm stereo connectors (for microphone and sound card connector)
- Console connections:
- 2 x USB type A (keyboard, mouse)
- 1 x HD15 female (video)
- Audio inputs:
- 1 x 3.5 mm jack (microphone)
- 1 x 3.5 mm jack (speaker)
- Selection of the computer:
- Via a button on the device
- Via hotkey
- Video Resolution: Max. 1600 x 900
- FCC Class B, CE, RoHS

LEDs
- One LED per computer

Current
- USB powered

Technical Details
- Plastic housing
- Dimensions: 86 (L) x 86 (W) x 26 (H) mm
- Weight: 0.7 kg
- Operating temperature: -10 - 50 ° C
- Humidity: 0% - 90% RH, non-condensing
- Storage temperature: -20 ° C - 60 ° C

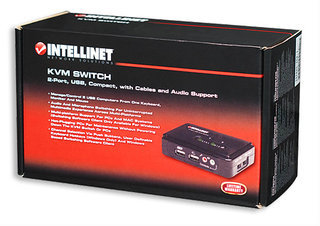

Scope of delivery
- 2-Port Compact KVM Switch
- Quick Start Guide
- PC and audio cable Color: Black Product Dimensions: 86 (L) x 86 (W) x 26 (H) mm

Design
Product colour	Black
Housing material	Plastic
Certification	FCC, CE
Rack mounting
LED indicators
Push button
Hot keys
Display
Built-in display
Operational conditions
Operating temperature (T-T)	-10 - 50 °C
Storage temperature (T-T)	-20 - 60 °C
Operating relative humidity (H-H)	0 - 90%
Other features
Compatible operating systems	Windows XP/Vista/7
Packaging content
Quick installation guide
Performance
Maximum resolution	1600 x 900 pixels
Ports & interfaces
Number of computers controlled	2
Keyboard port type	USB
Mouse port type	USB
Video port type	VGA
USB 2.0 ports quantity	2
Headphone outputs	1
Number of microphone inputs	1
Audio connections
DC-in jack
Power
External power adapter
USB powered
Sustainability
Compliance certificates	RoHS
System requirements
Windows operating systems supported
Weight & dimensions
Width	86 mm
Depth	86 mm
Height	26 mm
Weight	500 g

---
