CPU Intel Core Ultra 7 270K Plus LGA1851 Box 24 Cores 24 Threads 36M Cache content_copy

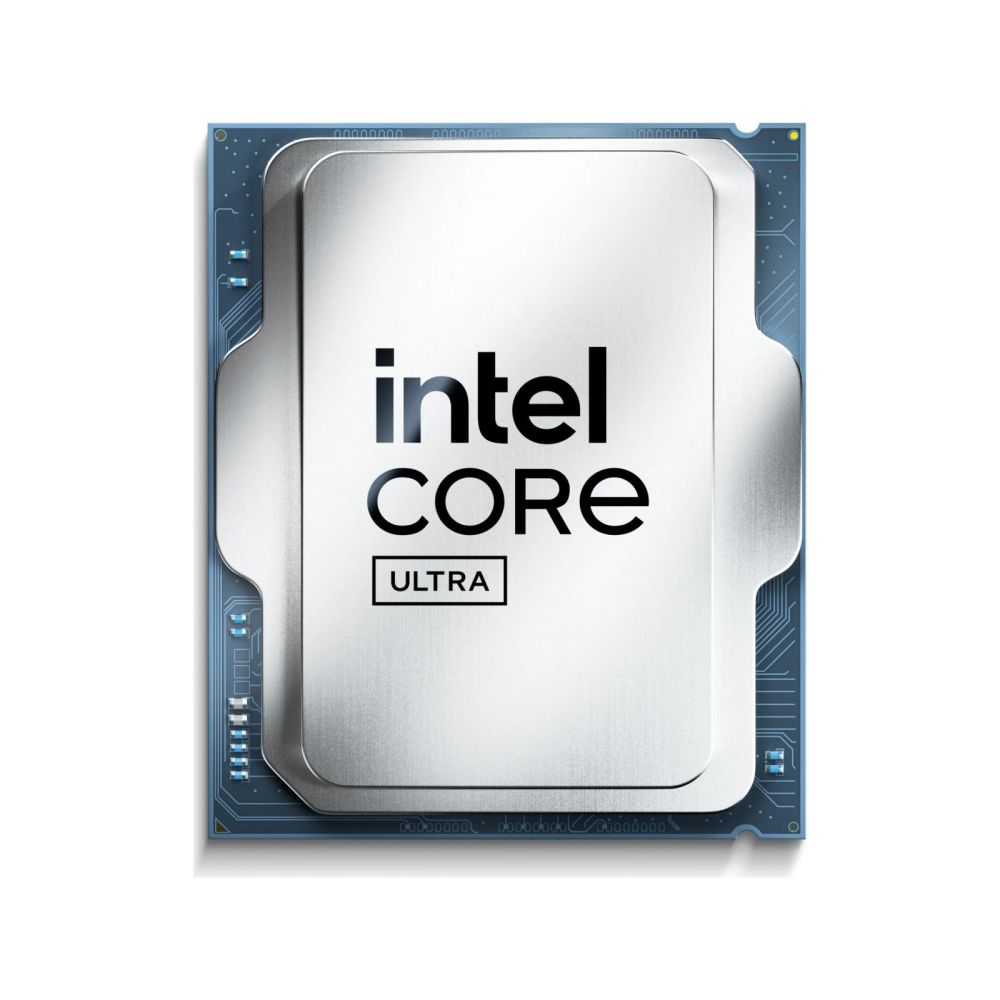

The Intel Core Ultra 7 270K Plus is a high-performance processor for desktop systems, developed for applications in the workstation and PC/client sector. It is based on the LGA 1851 socket (also referred to as Socket V1) and is delivered in a box packaging that includes the processor as well as the necessary documentation and software components. The processor features 24 cores and 24 threads, with an architecture consisting of 8 performance cores and 16 efficiency cores. The base frequency is 3.7 GHz, with a maximum turbo frequency reaching up to 5.5 GHz. The integrated graphics unit supports a base frequency of 300 MHz and can be dynamically boosted up to 2000 MHz. The integrated graphics is implemented as Intel graphics and supports display in modern desktop systems.

Applications

The processor is designed for use in desktop systems, particularly for workstations and PC/client systems. It is suitable for demanding applications such as professional image and video editing, 3D modeling, data analysis, and systems utilizing artificial intelligence (AI)-based functions. Support for AI software frameworks such as DirectML, OpenVINO, Windows ML, ONNX RT, WebNN enables integration into intelligent application environments. The processor’s total performance reaches up to 36 tera-operations per second, making it suitable for compute-intensive tasks.

Features and Specifications in Detail

The processor includes a 36-MB Smart Cache, which reduces data access times and enhances overall performance. The integrated NPU (Neural Processing Unit) Intel AI Boost supports the execution of AI-based tasks directly at the CPU level. Memory support is provided via Dual-Channel technology with DDR5-SDRAM, supporting maximum memory capacities of 256 GB. The maximum memory frequency is DDR5-7200, ensuring fast data transfer rates. The PCI-Express interfaces support versions 4.0 and 5.0, with 20 PCIe 5.0 and 4 PCIe 4.0 slots available to enable fast connections to storage and graphics cards.

Technology Explained Simply

The 24 cores of the processor enable parallel processing of multiple tasks, increasing system performance during multitasking and complex applications. The combination of 8 performance cores and 16 efficiency cores ensures an optimal balance between performance and energy efficiency. The turbo frequency of up to 5.5 GHz is activated under heavy load to provide short-term maximum computing power. The 36-MB Smart Cache acts as a cache for frequently used data, reducing access times. The integrated graphics unit, with a maximum frequency of 2000 MHz, enables video and image output without an additional graphics card, which is advantageous for entry-level or general-purpose systems.

Compatibility and Accessories

The processor is designed for motherboards with the LGA 1851 socket (Socket V1). It requires motherboards that support the DDR5-SDRAM memory architecture and PCI-Express specifications 4.0 and 5.0. The maximum memory capacity of 256 GB and support for DDR5-7200 require appropriately specified memory modules. The integrated graphics unit allows operation without an additional graphics card, although an external graphics card is recommended for demanding graphics applications. The NPU Intel AI Boost supports the use of AI software frameworks, which can be applied in various application areas.

Installation and Mounting

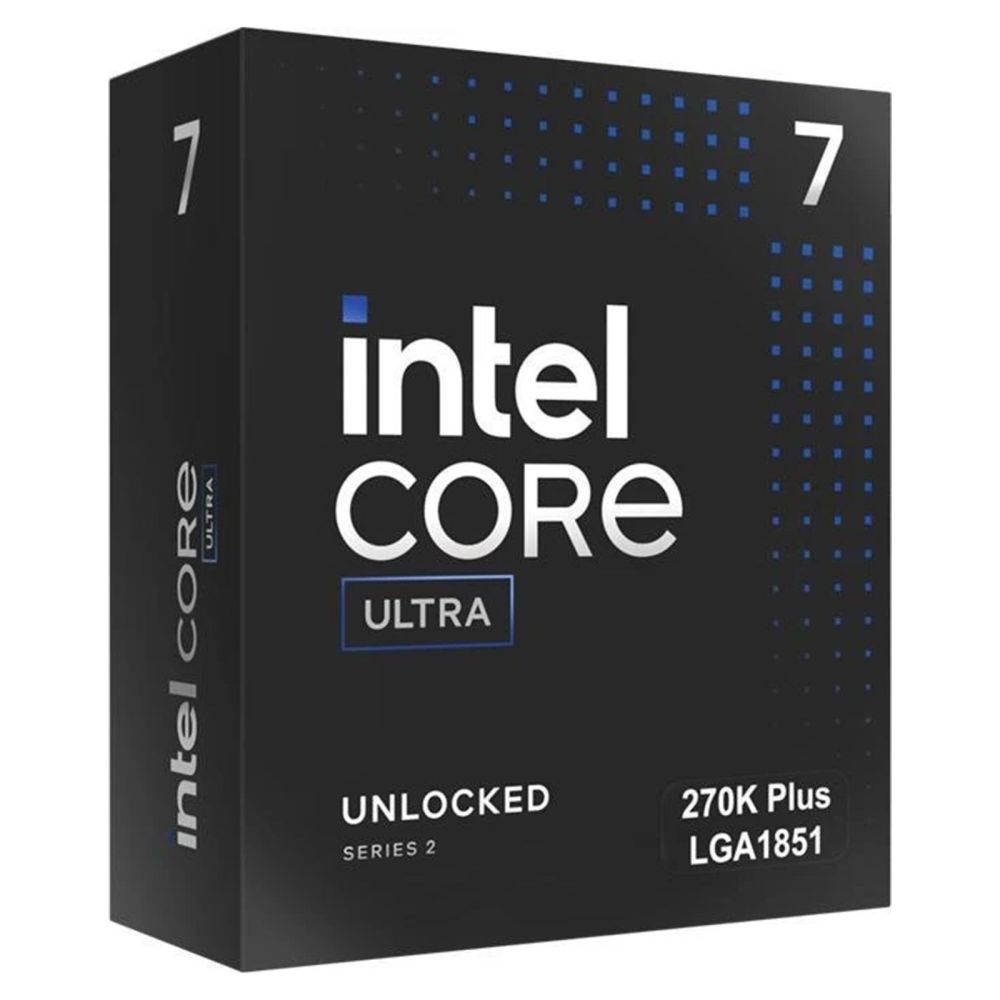

The processor is delivered in box packaging that includes the processor and necessary documentation. Installation involves placing the processor into the LGA 1851 socket on the motherboard. Exact mounting should follow the manufacturer’s instructions for the motherboard. The TDP (Thermal Design Power) is 125 W, requiring a correspondingly powerful cooling solution to maintain operating temperature within acceptable limits.

Operational Advantages

The processor offers high computing performance through its 24 cores and turbo frequency of up to 5.5 GHz. The integrated graphics unit enables operation without an additional graphics card, potentially reducing system costs. Support for DDR5-7200 and 256 GB memory ensures high bandwidth and large memory capacity. The NPU Intel AI Boost enables the use of AI-based applications directly on the processor, increasing system efficiency. The PCI-Express interfaces 4.0 and 5.0 provide fast connections to storage and graphics cards, enhancing overall system performance.

General
Processor family	Intel Core Ultra 7
Socket	LGA 1851
Packaging type	Box
Number of cores	24
Number of threads	24
Base frequency	3,7 GHz
Turbo frequency	5,5 GHz
Cache	36 MB
TDP	125 W
Memory channels	Dual-channel
Maximum internal memory	256 GB
Memory type	DDR5-SDRAM
PCI-Express slots version	4.0, 5.0
On-board graphics adapter base frequency	300 MHz
Maximum dynamic frequency of on-board graphics adapters	2000 MHz
NPU	Intel AI Boost
Market segment	Desktop
Usage conditions	Workstation, PC/Client/Tablet
Total processor power	36 Tera-operations per second

---
