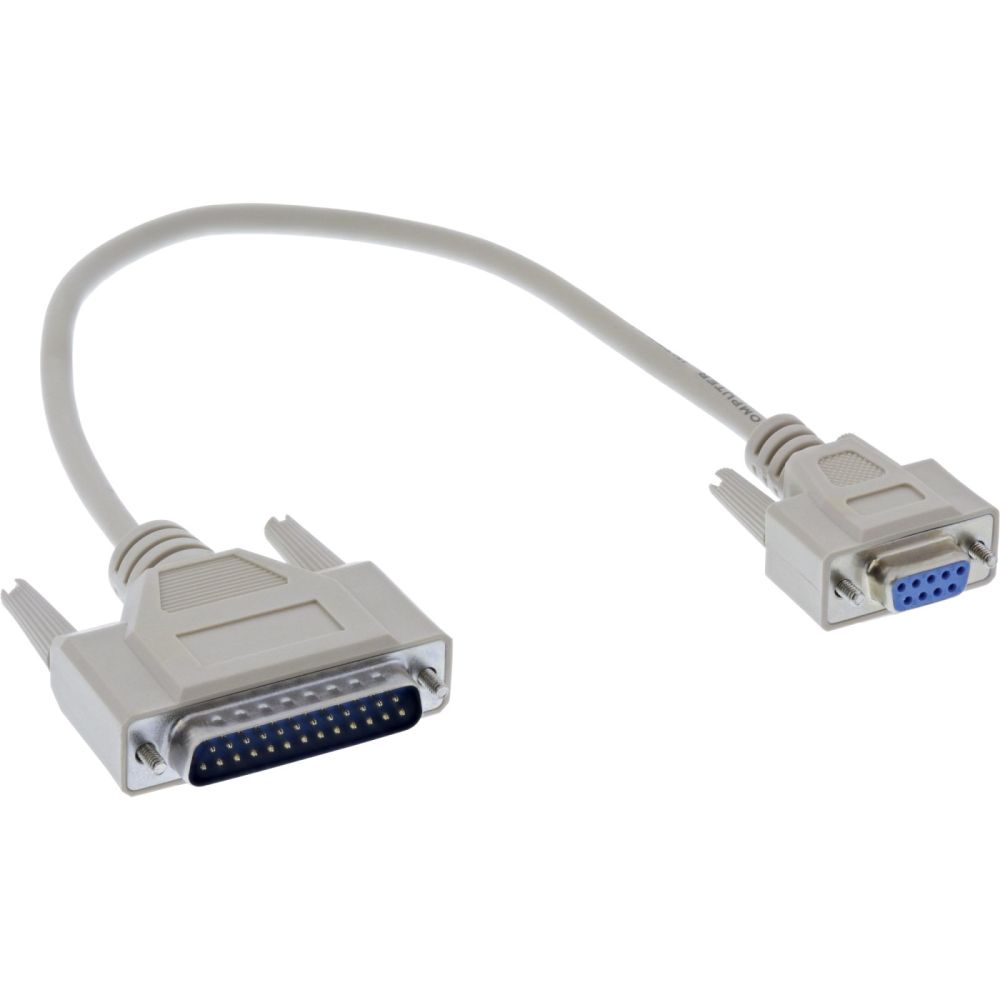

Inline® Serial Cable, DB9F to DB25M, moulded plugs, beige, 0.33m
|
2,94 EUR |
|||||||||||
|
( 3,50 EUR incl. VAT ) ≈ £2.46 | ≈ $3.29 plus delivery charges: 55,00 € |
|||||||||||
| Delivery time from supplier's stock (ca.) 9 workdaysinfo_outline | |||||||||||
| In Stock: >1000 pieces | |||||||||||
| Datasheet: | file_download Download | ||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|
| Lieske Part No.: | 22197735 | ||||||||||
| Mfg Part No: | S-19255A | ||||||||||
| UPC/EAN: | 4043718258079 | ||||||||||
| Weight: | 0.08 kg | ||||||||||
|
Graduated prices net
|
|||||||||||
Product information for Inline S-19255A:
Defined signal routing: Documented pinout (9-25) for traceable wiring.
Compact cable management: 0.33 m cable length reduces cable excess at the connection.
Shield continuity for ground contact: Shield-shield connection supports common shielding.
This serial cable creates a connection between a 9-pin socket and a 25-pin plug over a short distance. The unambiguous pinout enables a clear mapping of signals, so that existing interfaces can be connected without rewiring. The short cable length facilitates a tidy installation directly at the device or at the connection panel.
It proves itself in professional IT environments, in on-site installations and in service deployments, especially when existing serial connections need to be adapted or bridged. In existing infrastructures of companies and public institutions, the documented pinout helps with a fast, verifiable implementation.
Connection: 9-pin socket to 25-pin plug
Length: 0.33 m
Pinout: (9-25) 1-8, 2-3, 3-2, 4-20, 5-7, 6-6, 7-4, 8-5, 9-22, shield-shield
Color: Gray
UL: E324703
| Features | |
| Product colour | Grey |
| Cable length | 0.33 m |
| Connector 1 | DB9F |
| Connector 2 | DB25M |
| Connector 1 gender | Male |
| Connector 2 gender | Female |
| Packaging data | |
| Package width | 17 mm |
| Package depth | 21 mm |
| Package height | 15 mm |
| Package weight | 80 g |
| Package volume | 100 cm³ |
| Technical data | |
| Length packaging | 0.021m |
| Shielding | Double shielding |
| UL E-number | E324703 |
| Width packaging | 0.017m |
| Side A | 9pin female |
| Colour | Grey |
| Operation temperature | -10 to +60°C |
| Side B | 25pin plug |
| Height packaging | 0.015m |
| Weight | 0.080kg |
| Packaging volume | 0.0001m³ |
| Signal | Data |
| Length | 0.33m |
| UL | |
