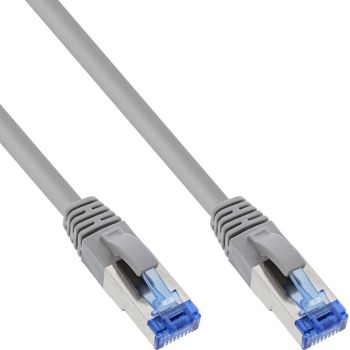

150pcs. B-Pack InLine® patch cable, S/FTP (PiMf), Cat.6A, LSZH, CU, grey, 0.3m content_copy

You will receive 150 pieces of item 76833 packed in a plastic bag to protect against moisture and an outer carton.
Highest quality patch cables for professional cabling in the Gigabit and 10 Gigabit range, for use in data centres and server cabinets.Assignment according to TIA/EIA 568B2.1
Cable construction: S/FTP (PiMf) 4x2xAWG26/7, solid copper wire
Overall braided shield with pair-wise foil shielding
Sheath: Halogen-free sheath, LSZH, compliant with standards IEC 60332-1-2, IEC 60754-1, IEC 60754-2, IEC 61034
RJ45 plug (50µ" gold-plated contacts) with special design and latch protection
Blue-coloured plug for differentiation
Suitable for Gigabit and 10 Gigabit applications
InLine Bulk ecoPacks are environmentally friendly bulk packaging in which the items are only packed together in a PE bag to protect them from moisture and in a standard cardboard box. The packaging unit varies depending on the size of the item for optimum utilisation. InLine Bulk ecoPacks are particularly suitable for direct use, e.g. for your own needs or for installation at the customer's premises. You get the proven InLine quality with minimal packaging. This saves time and money and protects the environment.
More economical: Quick unpacking saves you time
Ideal for use at the customer's premises
More environmentally friendly: Less packaging - less waste
The cables are packed together in a PE bag to protect them from moisture. No individual slip bags.
More economical:
The packaging unit is based on the optimal utilisation of the carton capacity. Resources are optimally used and utilised.
Cheaper: Price advantage through volume purchase
5% below the individual/normal price.

Certificates
Compliance certificates	Electronic Industries Alliance (EIA), Telecommunicatios Industry Association (TIA)
Features
Product colour	Grey
Cable length	0.3 m
Cable standard	Cat6a
Cable shielding	S/FTP (S-STP)
Connector 1	RJ-45
Connector 2	RJ-45
Connector 1 gender	Male
Connector 2 gender	Male
Connector 1 form factor	Straight
Connector 2 form factor	Straight
Connector contacts plating	Gold
Jacket material	Low smoke zero halogen (LSZH)
Cable shape	Round
Conductor material	Copper
Ethernet interface type	10 Gigabit Ethernet
Networking standards	IEEE 802.3bt
AWG wire size	26
Data transfer rate	10000 Mbit/s
Total Power over Ethernet (PoE) budget	90 W
Country of origin	Taiwan
Power over Ethernet (PoE)
Operational conditions
Operating temperature (T-T)	-10 - 60 °C
Storage temperature (T-T)	-20 - 70 °C
Packaging content
Quantity per pack	150 pc(s)
Packaging data
Package width	215 mm
Package depth	290 mm
Package height	230 mm
Package weight	3.14 kg
Package type	Polybag
Technical data
Assignment	1:1
Design	Round cable
Type	Cat.6A
Sheath	Halogen-free (LSZH)
Max. supported data transfer rate	10Gb/s
Signal	Network
Article length	30.00cm
Data transmission rate	10Gb/s
Conductor material	CU (copper)
Storage temperature	-20 to +70°C
Colour	Grey
Side B	RJ45 plug straight
Max. supported power	90W
Height packaging	0.230m
Length packaging	0.290m
Width packaging	0.215m
Diameter	AWG 26
Operation temperature	-10 to +60°C
Side A	RJ45 plug straight
Max. supported PoE standard	802.3bt
Length	0.30m
Weight	3.140kg
Shielding	S/FTP (PiMf)
Patch cable category	Cat.6A
Wire pairs used for power transmission	The specific method used is determined by the PSE (Power Sourcing Equipment)
Net weight	2.700kg
UL
PoE/PoE+/PoE++
Weight & dimensions
Depth	300 mm
Outer diameter	6.2 mm
Weight	2.7 kg

---
