24pcs. Bulk-Pack InLine® Keystone RJ45 jack slim, Cat.6A, integrated cable tie content_copy

Fast Cat.6A cabling with slim keystone moduleSecurely mounted via SNAP-In: Tool-free latching saves time during expansion and service.
High bandwidth up to 10 Gb/s: High-performance data connections for modern networks.
Reliable shielding: Fully shielded die-cast housing reduces interference.
Efficient series installation: 24-pack simplifies projects with many ports.
The slim RJ45 keystone module in Cat.6A enables high-performance Ethernet links up to 10 Gb/s and can be quickly inserted via SNAP-In into 48,3 cm ( 19 inch ) blank panels and outlet boxes. The IDC strip and the integrated cable clip facilitate clean termination of solid installation cables, while the fully shielded die-cast housing supports stable signal quality. PoE and PoE+ are supported; the robust design is rated for 750 mating cycles.
In daily operations, the module proves itself in on-site installations, in professional IT environments, and in the expansion of existing infrastructures in companies and public institutions. The 24-piece bulk pack reduces packaging effort and speeds processing in rack projects and larger service deployments.
Connection: RJ45 socket, keystone SNAP-In module
Standard: Cat.6A, 500 MHz
Data rate: up to 10 Gb/s

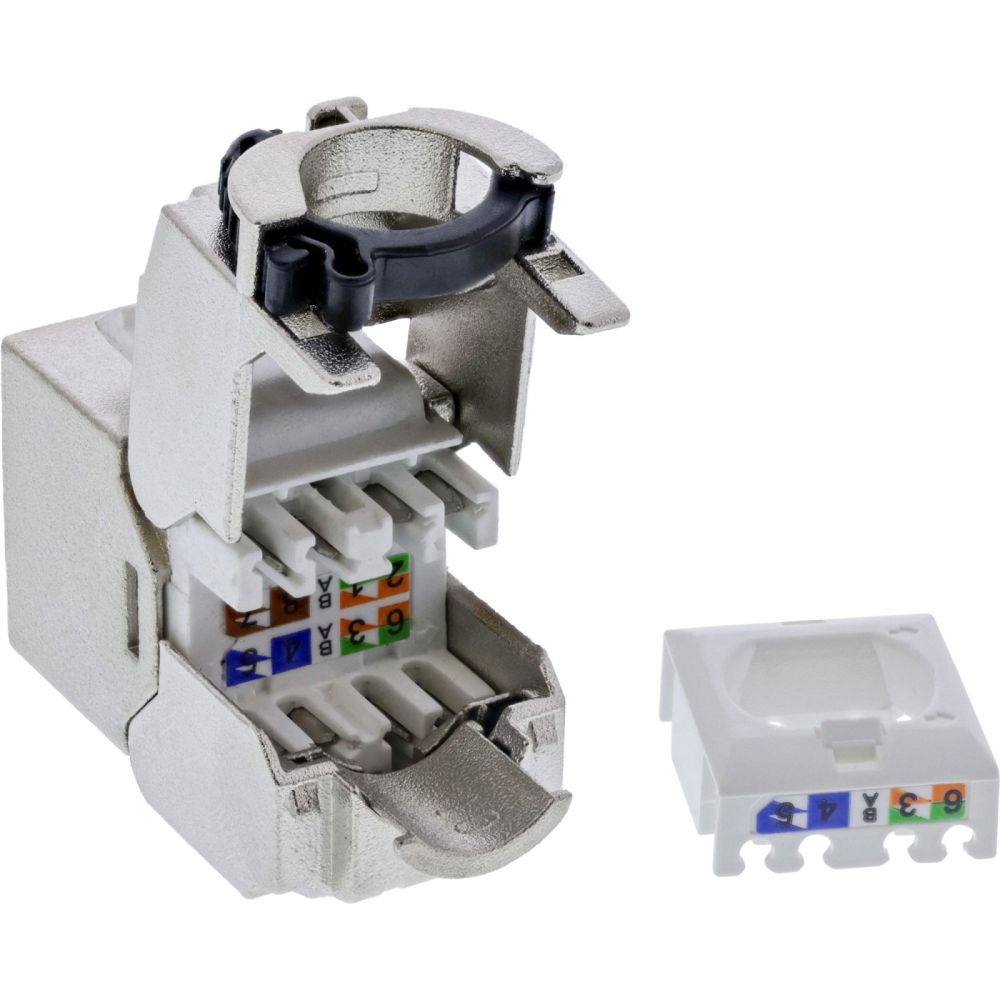

Termination: IDC strip
Shielding: fully shielded
Housing: die-cast
Compatibility: 48,3 cm ( 19 inch ) blank plate and outlet boxes
Conductor: solid installation cables AWG 22-26
Cable diameter: 6.0-8.5 mm
Dimensions: width 14.5 mm, length 31.5 mm, height 19.4 mm (cutout height: 16 mm)
PoE support: PoE, PoE+
Mating cycles: 750
Packaging unit: 24 pieces

Features
Construction type	Flat
Product colour	Silver
Connector 1	RJ-45
Connector 2	LSA
Connector 1 gender	Female
AWG wire size	22/23/24/26
Networking standards	IEEE 802.3bt
Frequency	500 MHz
Power over Ethernet (PoE)
Magnetically shielded
Logistics data
Country of origin	Taiwan
Operational conditions
Operating temperature (T-T)	-10 - 60 °C
Storage temperature (T-T)	-40 - 70 °C
Packaging content
Quantity per pack	24 pc(s)
Packaging data
Package volume	700 cm³
Package type	Polybag
Package width	73 mm
Package depth	152 mm
Package height	57 mm
Package weight	435 g
Technical data
Length packaging	0.152m
Max. supported power	90W
Width packaging	0.073m
Max. supported PoE standard	802.3bt
Connection A	RJ45 female
Storage temperature	-40 to +70°C
Operation temperature	-10 to +60°C
Article width	2.20cm
Packaging volume	0.0007m³
Wire pairs used for power transmission	The specific method used is determined by the PSE (Power Sourcing Equipment)
Type	Keystone
PU	24
Weight	0.435kg
Net weight	0.016kg
PoE+	PoE+
Article height	1.50cm
Type of packaging	Bulk
Height packaging	0.057m
Article length	3.30cm
Max. supported data transfer rate	10Gb/s
Network category	Cat.6A
Connection B	LSA clamp
Keystone SNAP-In compatible
Shielding
Weight & dimensions
Width	22 mm
Depth	33 mm
Height	15 mm
Weight	16 g

---
