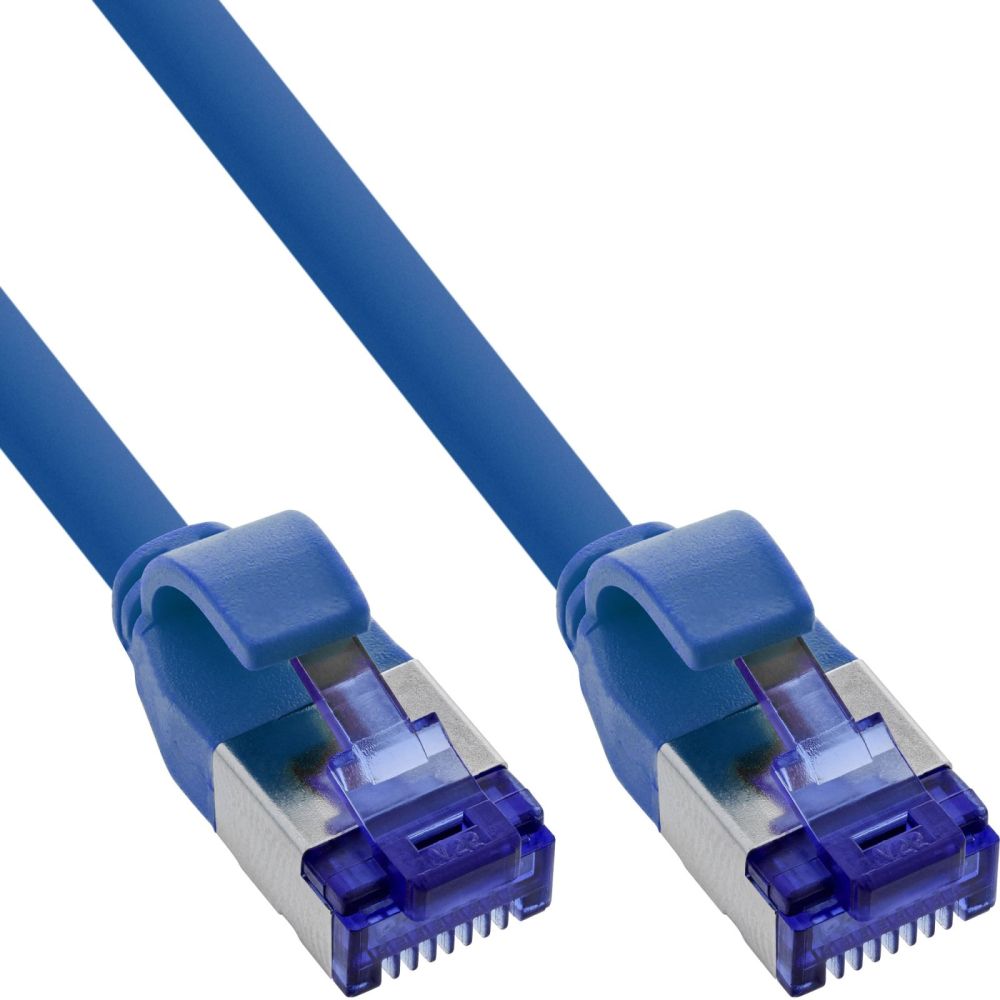

60pcs B-Pack InLine® Slim Cat.6A S/FTP LSZH Patch Cable blue 3m content_copy

You will receive 60 pieces of item 74903B, packed in a plastic bag for protection against moisture and supplied in an outer carton.
Conductor material: Pure copper
Cable construction: S/FTP (individual pair and overall shielding)
Jacket material: TPE (LSZH – Low Smoke Zero Halogen)
Wire gauge: AWG28
Operating temperature: -20 to +75 °C

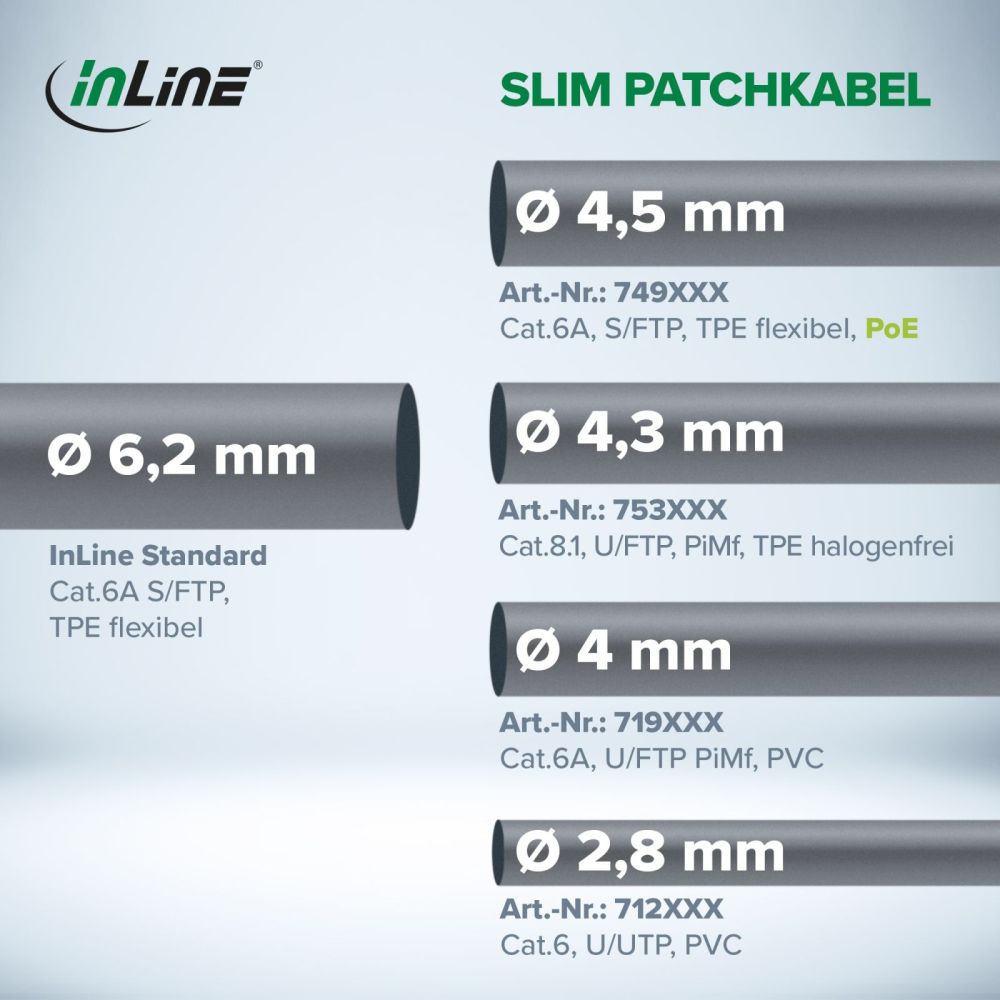

Outer diameter: 4.1 mm
Pin assignment: 1:1 according to T568B
PoE support: Yes, up to 87 Watts (4PPoE)
InLine Bulk ecoPacks are environmentally friendly bulk packaging solutions in which the products are packed together in a single PE bag for protection against moisture and supplied in a standard outer carton. The packaging quantity varies depending on the product size to ensure optimum carton utilization. InLine Bulk ecoPacks are especially suitable for direct use, for example for in-house requirements or on-site customer installations. You receive the proven InLine quality with minimal packaging. This saves time and money while protecting the environment.
More economical: Faster unpacking saves you time
Ideal for customer installations
More environmentally friendly: Less packaging - Less waste
The cables are packed together in a single PE bag to protect them from moisture. Individual slip bags are eliminated.
More efficient:
The packaging unit is based on the optimum utilization of the carton capacity. Resources are used and utilized efficiently.
More cost-effective: Price advantage through bulk purchasing
5% below the individual/standard price

Certificates
Compliance certificates	CE, REACH, RoHS
Features
Product colour	Blue
Cable length	3 m
Cable standard	Cat6a
Cable shielding	S/FTP (S-STP)
Connector 1	RJ-45
Connector 2	RJ-45
Connector 1 gender	Male
Connector 2 gender	Male
Connector 1 form factor	Straight
Connector 2 form factor	Straight
Connector contacts plating	Gold
Jacket material	Low smoke zero halogen (LSZH), Thermoplastic elastomer (TPE)
Cable shape	Round
Conductor material	Copper
AWG wire size	28
Data transfer rate	10000 Mbit/s
Frequency	500 MHz
Power over Ethernet (PoE) type supported	PoE+, PoE++ (4PPoE)
Power over Ethernet (PoE)
Molded cable boot
Operational conditions
Operating temperature (T-T)	-20 - 75 °C
Storage temperature (T-T)	-20 - 75 °C
Other features
Dimensions (WxDxH)	15 x 3000 x 12 mm
Packaging content
Quantity per pack	60 pc(s)
Packaging data
Package width	190 mm
Package depth	280 mm
Package height	290 mm
Package weight	4.2 kg
Package volume	16000 cm³
Technical data
Type	Cat.6A
Data transmission rate	10Gb/s
Patch cable category	Cat.6A
Packaging volume	0.0160m³
Article width	1.50cm
Operation temperature	-20 to +75°C
Max. supported PoE standard	802.3bt
Net weight	3.900kg
Conductor material	CU (copper)
Sheath	TPE (LSZH)
Max. supported data transfer rate	10Gb/s
Diameter	AWG 28
Side A	RJ45 plug straight
Article height	1.20cm
Shielding	S/FTP (PiMf)
Height packaging	0.290m
Length packaging	0.280m
Wire pairs used for power transmission	All
Assignment	1:1
Storage temperature	-20 to +75°C
Max. supported power	90W
Colour	Blue
Design	Round cable slim
Weight	4.200kg
Signal	Network
Side B	RJ45 plug straight
Width packaging	0.190m
Article length	300.00cm
PoE/PoE+/PoE++
UL
Gold plated contacts
Technical details
Sustainability compliance
Weight & dimensions
Width	15 mm
Depth	3000 mm
Height	12 mm
Outer diameter	4.5 mm
Weight	3.9 kg

---
