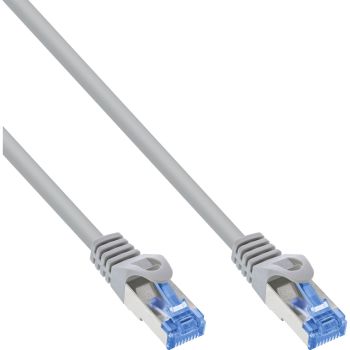

50pcs B-Pack InLine® Cat.6A S/FTP LSZH Patch Cable, CCA, grey, 2m content_copy

You will receive 50 pieces of item 72602, packed in a plastic bag for protection against moisture and supplied in an outer carton.
Conductor material: High-quality CCA alloy made from copper-clad aluminum conductors (40% copper)
Sheath material: TPE (LSZH – flame retardant, halogen-free, flexible)
Operating temperature: -20 to +75 °C
Outlet diameter: 6.0 mm
Population: 1:1 according to T568B
PoE support: 4PPOE, compatible with PoE/PoE+/PoE++ (up to 90 W)
InLine Bulk ecoPacks are environmentally friendly bulk packaging solutions in which the products are packed together in a single PE bag for protection against moisture and supplied in a standard outer carton. The packaging quantity varies depending on the product size to ensure optimum carton utilization. InLine Bulk ecoPacks are especially suitable for direct use, for example for in-house requirements or on-site customer installations. You receive the proven InLine quality with minimal packaging. This saves time and money while protecting the environment.
More economical: Faster unpacking saves you time
Ideal for customer installations
More environmentally friendly: Less packaging - Less waste
The cables are packed together in a single PE bag to protect them from moisture. Individual slip bags are eliminated.
More efficient:
The packaging unit is based on the optimum utilization of the carton capacity. Resources are used and utilized efficiently.
More cost-effective: Price advantage through bulk purchasing
5% below the individual/standard price

Certificates
Compliance certificates	CE, REACH, RoHS
Features
Product colour	Grey
Cable length	1 m
Cable standard	Cat6a
Cable shielding	S/FTP (S-STP)
Connector 1	RJ-45
Connector 2	RJ-45
Connector 1 gender	Male
Connector 2 gender	Male
Connector 1 form factor	Straight
Connector 2 form factor	Straight
Connector contacts plating	Gold
Jacket material	Low smoke zero halogen (LSZH)
Cable shape	Round
Conductor material	Copper-Clad Aluminium (CCA)
AWG wire size	26
Data transfer rate	10000 Mbit/s
Power over Ethernet (PoE) type supported	PoE+, PoE++ (4PPoE)
Power over Ethernet (PoE)
Molded cable boot
Operational conditions
Operating temperature (T-T)	-20 - 75 °C
Other features
Dimensions (WxDxH)	12 x 2000 x 16 mm
Packaging content
Quantity per pack	1 pc(s)
Packaging data
Package width	190 mm
Package depth	280 mm
Package height	290 mm
Package weight	3.7 kg
Package volume	16000 cm³
Package type	Polybag
Technical data
Patch cable category	Cat.6A
Packaging volume	0.0160m³
Article height	1.60cm
Conductor material	CCA (copper/aluminium)
Sheath	TPE (LSZH)
Max. supported power	90W
Article width	1.20cm
Diameter	AWG 26
Colour	Grey
Outer diameter	6.0mm
Side B	RJ45 plug straight
Width packaging	0.190m
Shielding	S/FTP (PiMf)
Assignment	1:1
Length packaging	0.280m
Max. supported data transfer rate	10Gb/s
Type	Cat.6A
Operation temperature	-20 to +75°C
Net weight	3.300kg
Data transmission rate	10Gb/s
Side A	RJ45 plug straight
Article length	200.00cm
Design	Round cable
Height packaging	0.290m
Weight	3.700kg
Wire pairs used for power transmission	All
Signal	Network
Storage temperature	-20 to +75°C
Max. supported PoE standard	802.3bt
PoE/PoE+/PoE++
Gold plated contacts
UL
Weight & dimensions
Width	12 mm
Depth	2000 mm
Height	16 mm
Outer diameter	5 mm
Weight	3.3 kg

---
