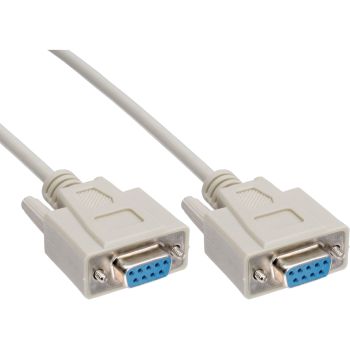

35pcs. Bulk-Pack InLine® Serial Cable molded DB9 female to female, 3m content_copy

You will receive 35 pieces of item 12224 packed in a plastic bag to protect against moisture and an outer box.
9pin Sub D socket to 9pin Sub D socket encapsulated with knurl-thumb screwsPin assignment: 1-7+8, 2-3, 3-2, 4-6, 5-5, 6-4, 7+8-1, shield-shield
InLine Bulk ecoPacks are environmentally friendly bulk packaging in which the items are only packed in a PE bag to protect against moisture and in a uniform box. The packaging unit varies depending on the item size for optimal utilization. InLine Bulk ecoPacks are particularly suitable for direct use, e.g. B. for your own use or for installation at the customer's site. You get the proven InLine quality with minimal packaging. This saves time and money and protects the environment.
More economical: quick unpacking saves you time
Ideal for use by customers
More environmentally friendly: Less packaging (small waste)
The cables are packed together in a PE bag to protect against moisture. Individual slip bags are no longer needed.
More economical:
The packaging is based on the optimal utilization of the carton capacity. Resources are optimally used and utilized.
Cheaper: price advantage through bulk purchase
5% below the individual/normal price

Features
Product colour	Beige
Cable length	3 m
Connector 1	DB-9
Connector 2	DB-9
Connector 1 gender	Female
Connector 2 gender	Female
Connector 1 form factor	Straight
Connector 2 form factor	Straight
AWG wire size	28
Country of origin	Taiwan
Operational conditions
Operating temperature (T-T)	0 - 40 °C
Storage temperature (T-T)	-10 - 60 °C
Packaging data
Quantity per pack	35 pc(s)
Package type	Polybag
Package width	215 mm
Package depth	290 mm
Package height	230 mm
Package weight	5.83 kg
Package volume	14400 cm³
Technical data
Colour	Beige
Outer diameter	5.4mm
Width packaging	0.215m
Variant	Molded, with knurl-thumb screws
Length packaging	0.290m
Side A	9pin female
Assignment	1-7+8, 2-3, 3-2, 4-6, 5-5, 6-4, 7+8-1, shield-shield
Side B	9pin female
Packaging volume	0.0144m³
Type	Nullmodem
Weight	5.830kg
Signal	Data
Height packaging	0.230m
Article length	300.00cm
UL
Weight & dimensions
Cable diameter	5.4 mm
Depth	3000 mm

---
