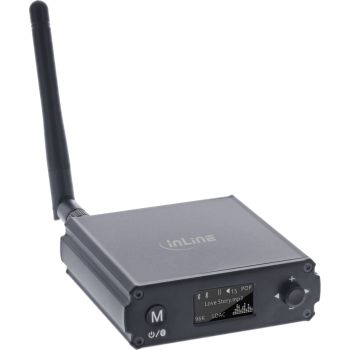

InLine® Bluetooth 5.1 HiFi Receiver & USB DAC, with LCD content_copy

Upgrade existing hi-fi system wirelessly and via USBEasy upgrade without a new purchase: Wireless streaming or USB DAC for existing audio devices.
Flexible connection to the system: Either analog via RCA stereo or digital via Toslink.
Quick operation on the device: Volume knob, 7 equalizer profiles and 2,5 cm ( 1 inch ) OLED display.
Stable connection with long range: Bluetooth 5.1 with up to 30 m.
Clear, dynamic sound: Low distortion and high dynamic range.
With this Bluetooth 5.1 audio receiver with USB DAC, you conveniently bring high-quality sound to your hi-fi system or active speakers. Music reaches the device wirelessly via Bluetooth or via USB-C as an external DAC and is output to your audio chain either analog or digital. You adjust playback conveniently on the device and keep all information in view on the OLED display.
In existing AV installations, during on-site modernizations, and in service deployments, the device enables a contemporary expansion without interfering with the cabling. It integrates reliably into meeting, training, and media rooms of companies and public institutions as well as into demanding private setups.
Bluetooth: Version 5.1
Bluetooth chipset: Qualcomm QCC5125
Supported codecs: LDAC, aptX, aptX-LL, aptX HD, AAC, SBC
Inputs: Bluetooth, USB-C audio
Outputs: Toslink optical, 2x RCA analog stereo
D/A converter: ES9018K2M SABRE32
PCM support: 96 kHz / 24 bit
Range: up to 30 m
RCA output level: 1.8 Vrms / 0 dB
THD+N (B-weighted): 0.02 % at 1 kHz, 0 dB
Signal-to-noise ratio: -114 dB
Dynamic range: -115 dB
Crosstalk: -114 dB
Display: OLED, 2,5 cm ( 1 inch ), monochrome
Controls: Volume knob, 7 equalizer profiles
Housing: Aluminum
Dimensions: 8.89 x 7.62 x 2.54 cm (without antenna)
Color: Black
Power supply: 5 V DC / 0.08 A via included USB power supply
Power supply input: 100-240 V AC, 50/60 Hz
Power supply output: 5.0 V DC, max. 1.0 A, 5.0 W
Efficiency in operation: 73.9 %
No-load consumption: 0.06 W

Audio
Signal-to-Noise Ratio (SNR)	-114 dB
Logistics data
Country of origin	China
Packaging content
Cables included	Audio, Optical, RCA, USB Type-A to DC, USB Type-A to USB Type-C
Ports & interfaces
Audio (L/R) out	2
DC-in jack
Power
Power source	AC
AC input voltage	100 - 240 V
Technical data
Signal transmission	Bluetooth 5.1 with aptX HD
Length packaging	0.141m
Colour	Black
Bluetooth	5.1 with aptX HD
Article width	7.60cm
Weight	0.377kg
Packaging volume	0.0011m³
Input	Bluetooth, USB-C socket
Article height	2.40cm
Width packaging	0.124m
Control	1x volume
Output (1)	1x Toslink, Digital Optical (SPDIF)
Article length	8.30cm
Height packaging	0.060m
Output (2)	2x RCA analog Stereo
Type	Bluetooth True Hi-Fi Audio Receiver
Net weight	0.114kg
Technical details
Product colour	Black
Package volume	1100 cm³
Compliance certificates	CE
Sustainability compliance
Weight & dimensions
Width	76 mm
Depth	83 mm
Height	24 mm
Weight	114 g
Package weight	377 g
Package depth	141 mm
Package width	124 mm
Package height	60 mm
Package type	Box

---
