InLine® AmpUSB-EQ, Hi-Res AUDIO HiFi DSD USB Audio DAC content_copy

More sound control and connectivity in a USB DAC with tubeHigh-resolution playback in PCM and DSD: Up to 384 kHz/32 bit and DSD 2.8/5.6 MHz for detailed sound.
Adjustable sound with 12AU7 tube and 3-band EQ: Precisely tailor treble, mid and bass to room and preference.
Diverse sources and low-loss digitization: USB, S/PDIF optical, RCA/phono, line-in and aux in; save analog signals on a PC or notebook as files.
Powerful headphone operation: Reliably drives 16-600 Ohm, with 3.5 mm and 6.3 mm outputs.
Stable, low-noise playback: Asynchronous USB mode, De-pop function and metal housing reduce background noise.

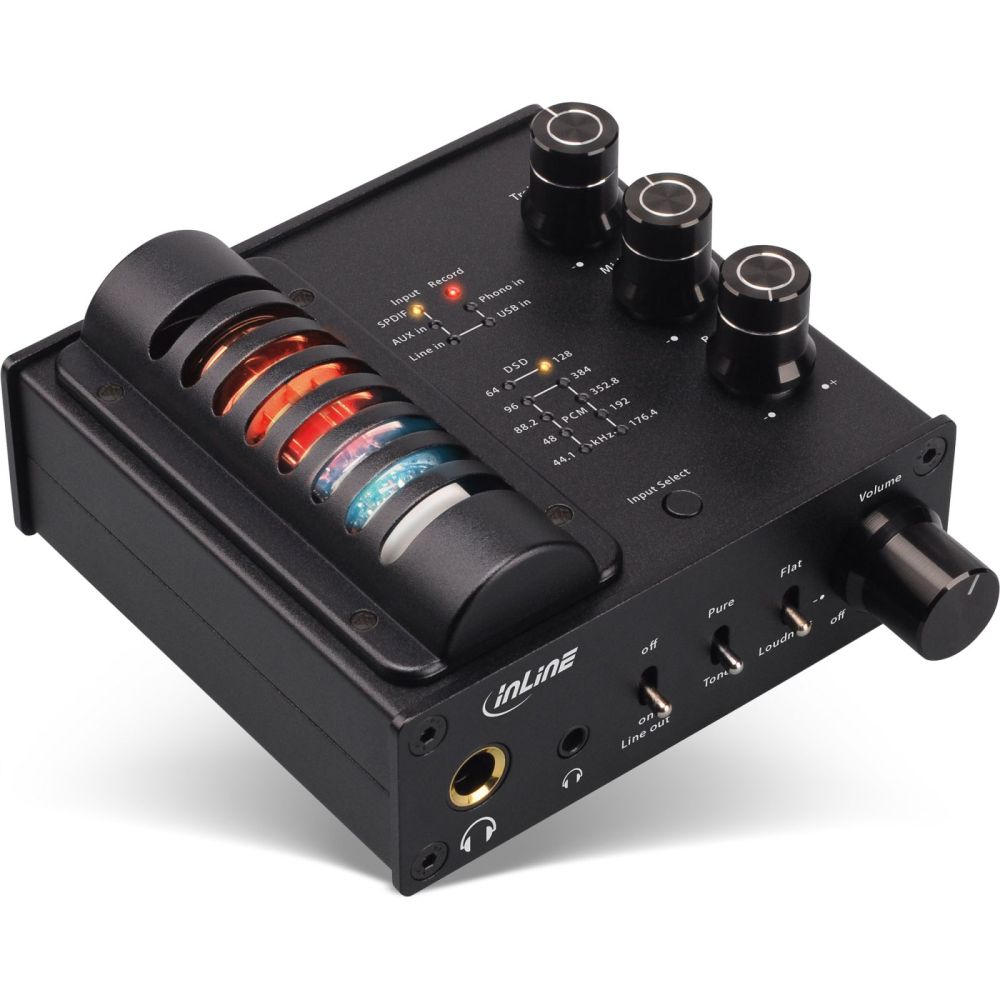

This USB DAC with integrated 12AU7 tube connects computers, players and headphones into a high-quality listening chain. The combination of high-resolution DAC and analog 3-band tone control enables fine adjustment to the recording, speakers or headphones. Use the Input Select button to switch comfortably between the inputs; in parallel, headphone outputs in 3.5 mm and 6.3 mm as well as line, S/PDIF/pre and bass outputs are available.
In professional IT environments, in on-site installations, in service deployments or in existing infrastructures of companies and public institutions, the device supports both precise monitoring at the desk and the archiving of analog collections. The reliable A/D recording function helps to digitize records and cassettes cleanly and make them media-neutral.

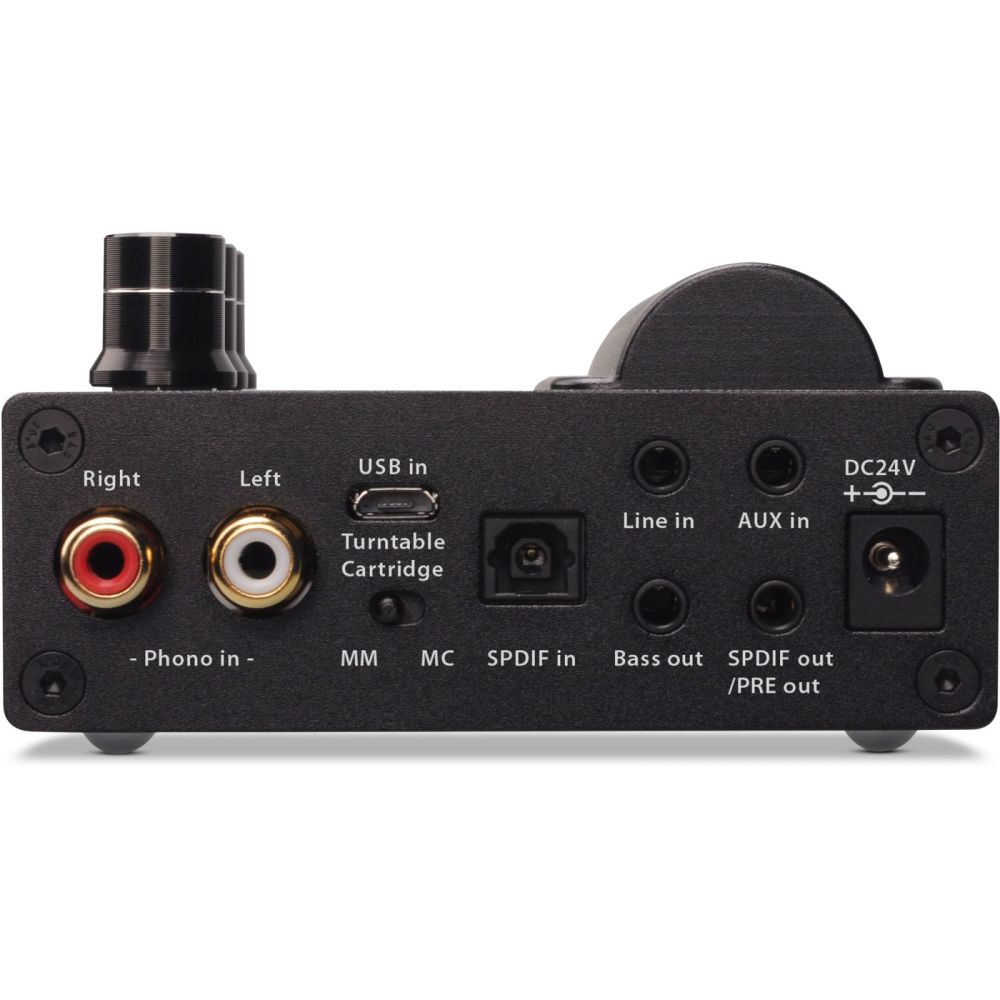

Input ports: Micro-USB, S/PDIF optical, RCA/phono, line-in, aux in

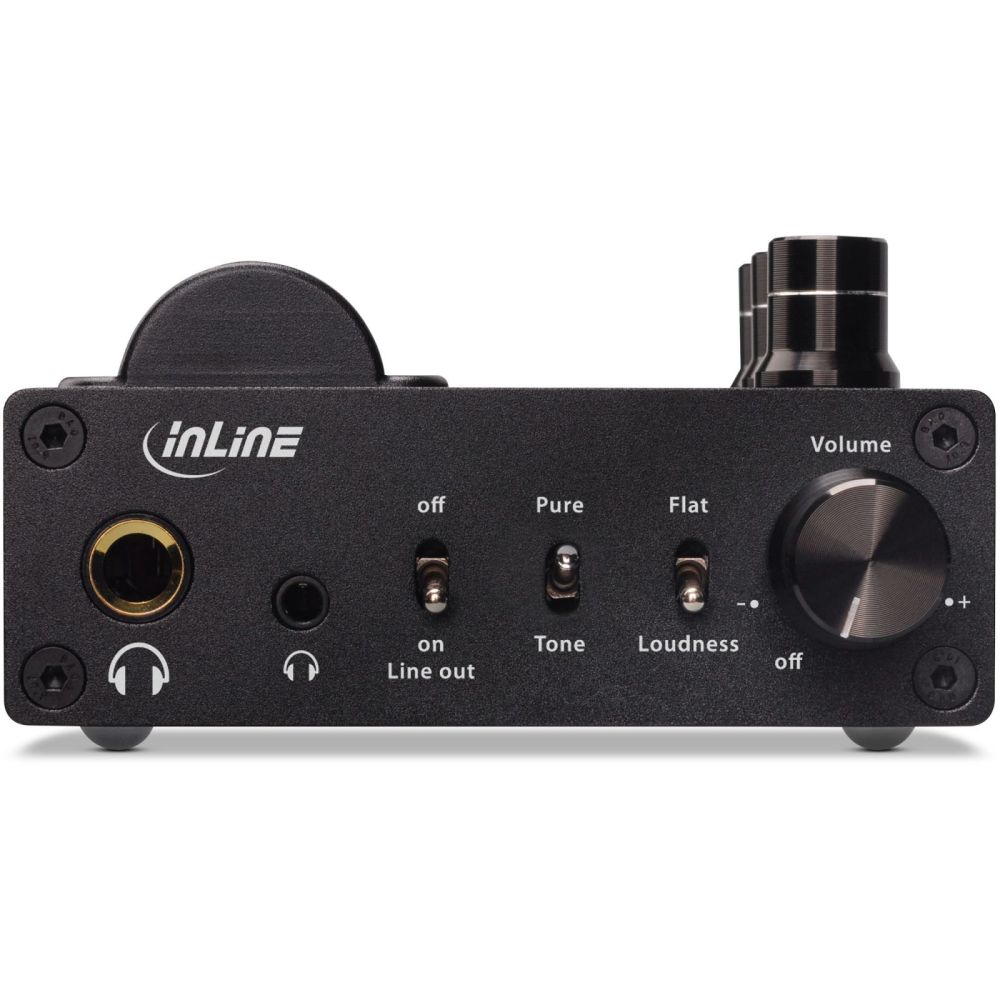

Output ports: 3.5 mm headphone, 6.3 mm headphone, line-out, S/PDIF/pre out, bass out
DAC chipset: ES9018Q2C
Tube amplifier: 12AU7
PCM playback: up to 384 kHz/32 bit
DSD playback: 2.8/5.6 MHz, native and DoP
USB operation: Asynchronous
Headphone impedance: 16-600 Ohm
Output power 6.3 mm: approx. 210 mW (16 Ohm), approx. 190 mW (32 Ohm)
Output power 3.5 mm: approx. 110 mW (16 Ohm), approx. 125 mW (32 Ohm)
Equalizer: 3-band (treble, mid, bass)
Treble: 3 kHz-20 kHz, -12 dB to +12 dB, center frequency 18 kHz
Mid: 200 Hz-4 kHz, -10 dB to +10 dB, center frequency 1 kHz
Bass: 20-250 Hz, -14 dB to +14 dB, center frequency 100 Hz
Loudness EQ: Hardware
Turntable switch: MM/MC
Volume control: Analog
Driver: ASIO

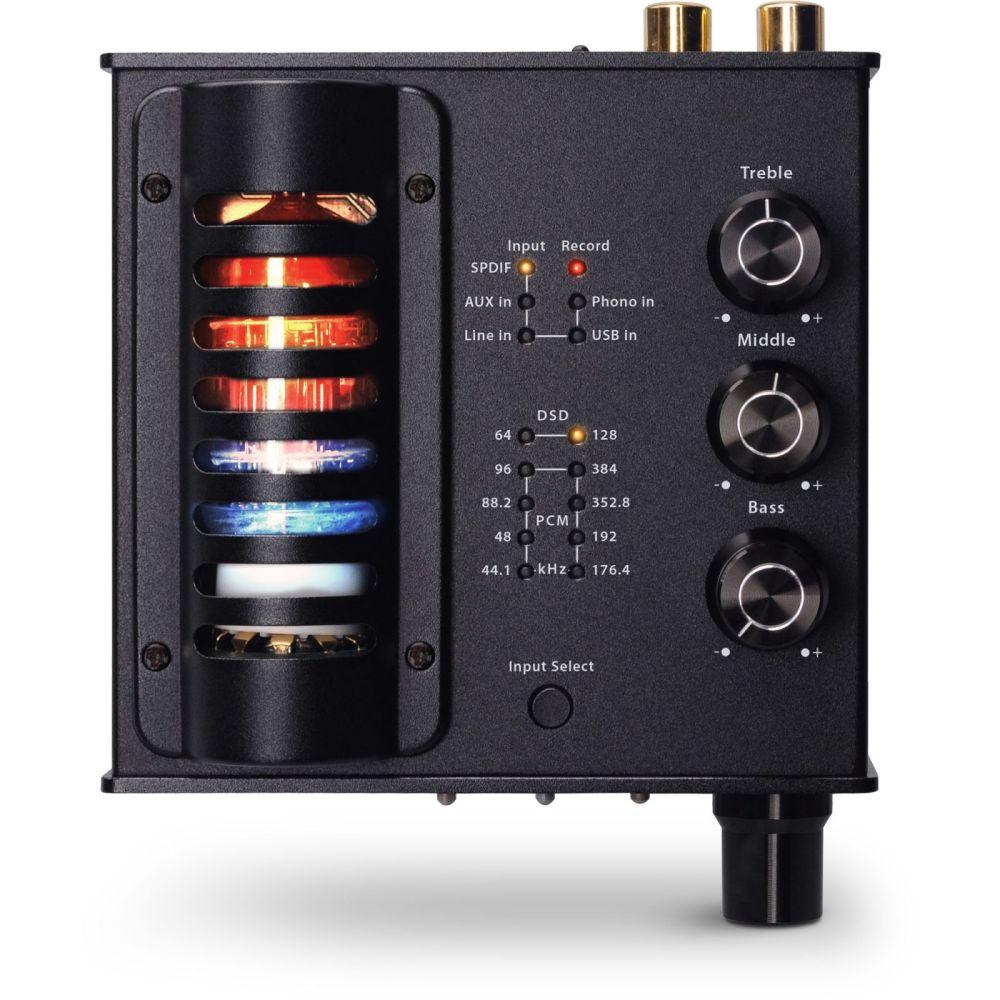

Indicators: LEDs for DSD, PCM and input status
Housing: Metal
De-pop function: Integrated
Power supply: DC 24 V via external power supply
Operating systems: Windows 10/8.x/7 (32/64-bit), Mac OS X
Scope of delivery: USB DAC, USB connection cable, 24 V/2 A power supply (barrel plug 5.5 mm outer, 2.1 mm inner), CD with driver and software
Color: Black

Audio
Equalizer
Treble adjustment
Packaging content
Cables included	USB
Manual
Ports & interfaces
Headphone connectivity	3.5 mm/6.35 mm
Audio (L/R) in	1
Line-out
DC-in jack
System requirements
Windows operating systems supported	Windows 10, Windows 7, Windows 8, Windows 8.1
Mac operating systems supported
Technical data
Type	AmpUSB-EQ 384KHz/32bit DSD USB Audio DAC
Length packaging	0.235m
Interface	Micro USB
Output (2)	1x line-in, SPDIF / Pre out and 1x bass out
Control	3x treble/middle/bass, 1x volume
Output (1)	1x 3.5mm and 1x 6.3mm headphone jack, stereo
Article width	11.20cm
Weight	0.855kg
Height packaging	0.082m
Width packaging	0.222m
Signal transmission	Wired
Digital Output	DSD 2.8/5.6MHz, PCM 384KHz/32bit, DSD native or DoP
Net weight	0.282kg
Input	1x chinch/phono, 1x optical SPDIF, 1x line-in and aux-in
Colour	Black
Special feature	Hi-Res, USB DSD 384kHz/32Bit with 3-band equalizer and tube
System requirements	Windows 11/10/8.x/7 (32/64-bit) and MAC OS X
Article length	9.40cm
Packaging volume	0.0043m³
Article height	4.50cm
Bluetooth
Technical details
LED indicators	Status
Product colour	Black
Package volume	4300 cm³
Weight & dimensions
Width	112 mm
Depth	94 mm
Height	45 mm
Weight	282 g
Package weight	855 g
Package depth	235 mm
Package width	222 mm
Package height	82 mm

---
