INLINE AmpEQ Tri-Tone Hi-Res AUDIO Pre-Amp and Headphone-Amp 3,5mm stereo USB powered content_copy

Individual tone control: Treble, mid-range and bass can be adjusted separately thanks to the integrated 3-band equalizer with precise rotary controls.
Optimized sound at any volume: Loudness switch boosts low and high frequencies for fuller sound at low volumes.
Flexible use: Two 3.5mm line INs, headphone and line OUT connections make the amplifier versatile for use with PC, cell phone or audio sources.
Plug & Play with USB power: Power supply via micro USB - ideal for mobile listening or space-saving desktop solutions.
Compact and high-quality: Robust metal housing with gold-plated sockets - for durability and stable signal quality.

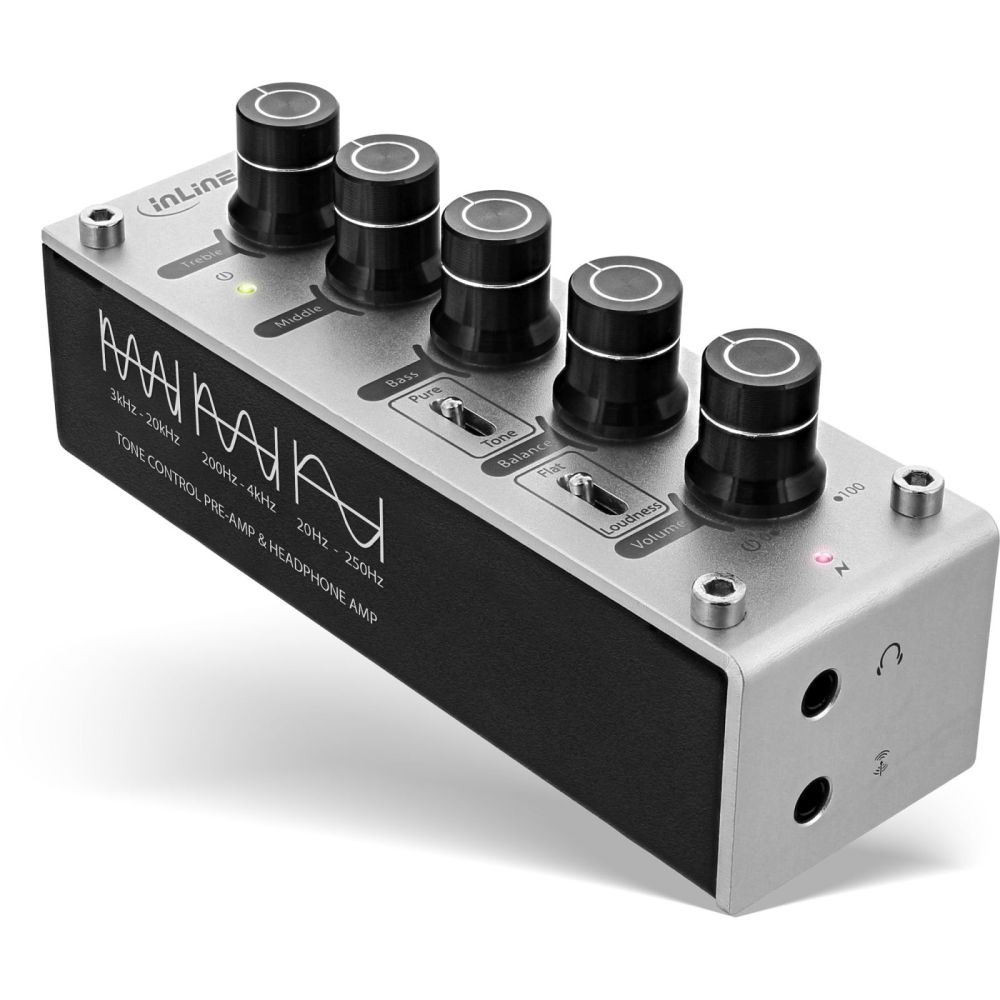

The InLine AmpEQ is a portable hi-fi headphone amplifier with integrated equalizer for anyone who wants to customize their sound. Treble, mid-range and bass can be specifically adjusted using three rotary controls. In addition, the switchable loudness function ensures a balanced sound even at low volumes.
Two 3.5 mm line inputs enable the connection of various audio sources such as smartphones, PCs or music players. Headphones (equalizer & amplification) as well as other devices can be operated via line OUT (equalizer signal) via separate outputs. This means the AmpEQ can be flexibly adapted to any listening situation - ideal for at home, on the go or in a setup with other modules.
Thanks to the micro USB power supply, the amplifier can be easily connected to power banks, laptops or USB power supplies. Balance and volume controls complete the features and offer full control over the sound. The sturdy metal housing protects the technology, while gold-plated sockets ensure consistently good signal transmission.
Equalizer frequency ranges: Treble: 3KHz-20KHz, Mid: 200Hz-4KHz, Bass: 20Hz-250Hz
Other controls: volume, balance
stereo crosstalk: 90 dB
headphone impedance: 16-600 Ohm
Inputs/Outputs: 2x 3.5mm Line-IN, 1x Headphones, 1x Line-OUT
Power supply: Micro-USB 5V/0.5A
Dimensions: 11.6 x 3.8 x 4.8 cm

Audio
Adjustable volume
Treble adjustment
Ports & interfaces
Headphone connectivity	3.5mm
Audio (L/R) in	2
USB 2.0 ports quantity	1
Line-out
Line-in
Technical data
Type	Headphone amplifier with 3-band equalizer
Height packaging	0.073m
Article height	4.80cm
Weight	0.399kg
Article width	3.80cm
Special feature	With 3-band equalizer
Output (1)	3.5mm stereo jack socket, 3.5mm stereo jack socket Line-OUT
Net weight	0.290kg
Colour	Silver
Output (2)	1x 3.5mm stereo output Line-OUT (Equalizer)
Control	3x treble/middle/bass, 1x balance, 1x volume
Packaging volume	0.0018m³
Article length	11.60cm
Signal transmission	Wired
Interface	Micro USB
Length packaging	0.172m
Input	2x 3.5mm stereo input Line-IN
Width packaging	0.142m
Hi-Res
Bluetooth
Digital Output
Technical details
Product colour	Silver
Package volume	1800 cm³
Weight & dimensions
Width	38 mm
Depth	116 mm
Height	48 mm
Weight	290 g
Package weight	399 g
Package depth	172 mm
Package width	142 mm
Package height	73 mm

---
