InLine® Solar cable extension set incl. solar plug 6mm² black/red 0.5m content_copy

The solar cable H1Z2Z2-K, 6mm², incl. solar plug in a set of two (black/red) has been specially developed for the cabling of photovoltaic systems and offers the highest reliability and durability. With its robust construction and outstanding technical properties, it ensures that the PV system will operate efficiently and safely for years to come.High nominal and working voltage: with a nominal voltage of 1.0/1.0 kV AC and a working voltage of 1.5 kV DC in accordance with EN 50618, the cable is ideally designed for the requirements of modern solar systems.
Robust construction: With an external cable diameter of 6.3 mm and a nominal wall thickness of the insulation of 0.7 mm and the coating of 0.8 mm, the cable is robust and durable.
Conductor cross-section: 6 mm², fine-wired
Conductor material: copper, tinned
DC line resistance: 3.3 9 Ohm/km
Voltage test on cable: AC 6.5 kV, DC 15 kV
Current carrying capacity: Tested according to EN 50618
Ozone and weather resistance, UV resistance: Tested according to EN 60811 / 50618
Flame resistance: complies with EN 60332-1-2, LSOH (Low Smoke Zero Halogen)
Insulation: halogen-free, low-smoking, cross-linked polyolefin (XLPO)
Ambient temperature: -40°C to +90 °C
Min. bending radius: 26 mm
Durability: With a high resistance to UV radiation, ozone and weathering, the cable offers a reliable solution for long-term applications.
Easy installation: Thanks to its flexibility and robust construction, the cable is easy to lay and is suitable for a wide range of installations.

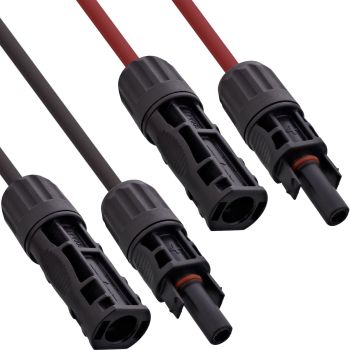

Pre-assembled solar plugs/sockets (MC4, Standard4, PC4 compatible) for immediate connection of solar panels and inverters, incl. dust caps
The H1Z2Z2-K 6mm² solar cable is the ideal choice for safe and efficient cabling of your photovoltaic system. With its high-quality construction and comprehensive protective features, it ensures reliable power transmission and helps to maximise the energy efficiency of your system.
Note on the wire cross-section:
The required wire cross-section depends on the current and the distance or cable length. If in doubt, please consult a solar technician to find out which wire cross-section you need.

Features
Product type	Medium voltage cable
Product colour	Black, Red
Insulation thickness	0.7 mm
Conductor material	Tinned copper
Conductor cross section	6 mm²
Fire-resistant
Logistics data
Country of origin	Taiwan
Packaging data
Package width	190 mm
Package depth	250 mm
Package height	20 mm
Package weight	146 g
Power
Operating voltage (max)	1500 V
Technical data
Colour	Black/red
Article width	2.00cm
Side B	Solar socket (2x)
Operation temperature	-40 to +90°C
Weight	0.146kg
Side A	Solar connector (2x)
Outer diameter	6.3mm
Width packaging	0.190m
Type	Solar cables
Net weight	0.134kg
Signal	Power
Bending radius (static)	>26mm
Article height	2.00cm
Height packaging	0.020m
Diameter	6mm²
Article length	50.00cm
Length packaging	0.250m
Shielding	Unshielded
Technical details
Doesn't contain	Halogen
Package volume	0 cm³
Compliance certificates	RoHS, TÜV mark
Weight & dimensions
Length	0.5 m
Diameter	6.3 mm
Width	20 mm
Depth	500 mm
Height	20 mm
Weight	134 g

---
