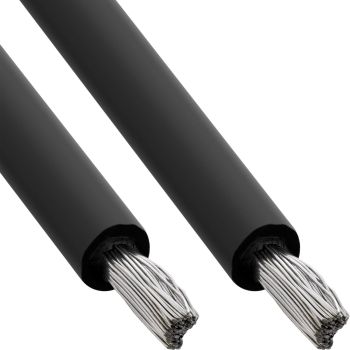

InLine® Solar installation cable H1Z2Z2-K 6mm² black 50m content_copy

The solar cable H1Z2Z2-K, 6mm², has been specially developed for the cabling of photovoltaic systems and offers maximum reliability and durability. With its robust construction and outstanding technical properties, it ensures that the PV system is operated efficiently and safely for years to come.High nominal and working voltage: with a nominal voltage of 1.0/1.0 kV AC and an operating voltage of 1.5 kV DC in accordance with EN 50618, the cable is ideally designed for the requirements of modern solar installations.
Robust construction: With an external cable diameter of 6.3 mm and a nominal wall thickness of the insulation of 0.7 mm and the coating of 0.8 mm, the cable is robust and durable.
Conductor cross-section: 6 mm², fine wire
Conductor material: copper, tinned
DC line resistance: 3.39 Ohm/km
Voltage test on the cable: AC 6.5 kV, DC 15 kV
Current carrying capacity: Tested according to EN 50618
Ozone and weather resistance, UV resistance: Tested according to EN 60 811 / 50618
Flame resistance: Complies with EN 60332-1-2, LSOH (Low Smoke Zero Halogen)
Insulation: Halogen-free, low-smoking, cross-linked polyolefin (XLPO)
Ambient temperature: -40°C to +90 °C
Min. bending radius: 26 mm
Advantages of the solar cable H1Z2Z2-K, 6mm²:Durability: With a high resistance to UV radiation, ozone and weathering, the cable offers a reliable solution for long-term applications.
Easy installation: Thanks to its flexibility and robust construction, the cable is easy to lay and suitable for a wide range of installations.
The solar cable H1Z2Z2-K, 6mm², is the optimal choice for safe and efficient cabling of your photovoltaic system. With its high-quality construction and comprehensive protective features, it ensures reliable power transmission and helps to maximise the energy efficiency of your system.
Note on the wire cross-section:
The required wire cross-section depends on the current and the distance or cable length. If in doubt, please consult a solar technician to find out which wire cross-section you need.

Features
Product type	Medium voltage cable
Product colour	Black
Insulation thickness	0.7 mm
Conductor material	Tinned copper
Conductor cross section	6 mm²
Fire-resistant
Packaging data
Package width	250 mm
Package depth	250 mm
Package height	80 mm
Package weight	4.05 kg
Power
Operating voltage (max)	1500 V
Technical data
Operation temperature	-40 to +90°C
Width packaging	0.250m
Type	Solar cables
Net weight	3.997kg
Outer diameter	6.3mm
Shielding	Unshielded
Length packaging	0.250m
Signal	Power
Diameter	6mm²
Article height	0.70cm
Height packaging	0.080m
Article length	5000.00cm
Weight	4.048kg
Colour	Black
Packaging volume	0.0050m³
Bending radius (static)	>26mm
Article width	0.70cm
Length	50m
Technical details
Doesn't contain	Halogen
Package volume	5000 cm³
Compliance certificates	TÜV mark
Weight & dimensions
Length	50 m
Diameter	6.3 mm
Width	7 mm
Depth	50000 mm
Height	7 mm
Weight	4 kg

---
