InLine® Solar installation cable H1Z2Z2-K 4mm² red 25m content_copy

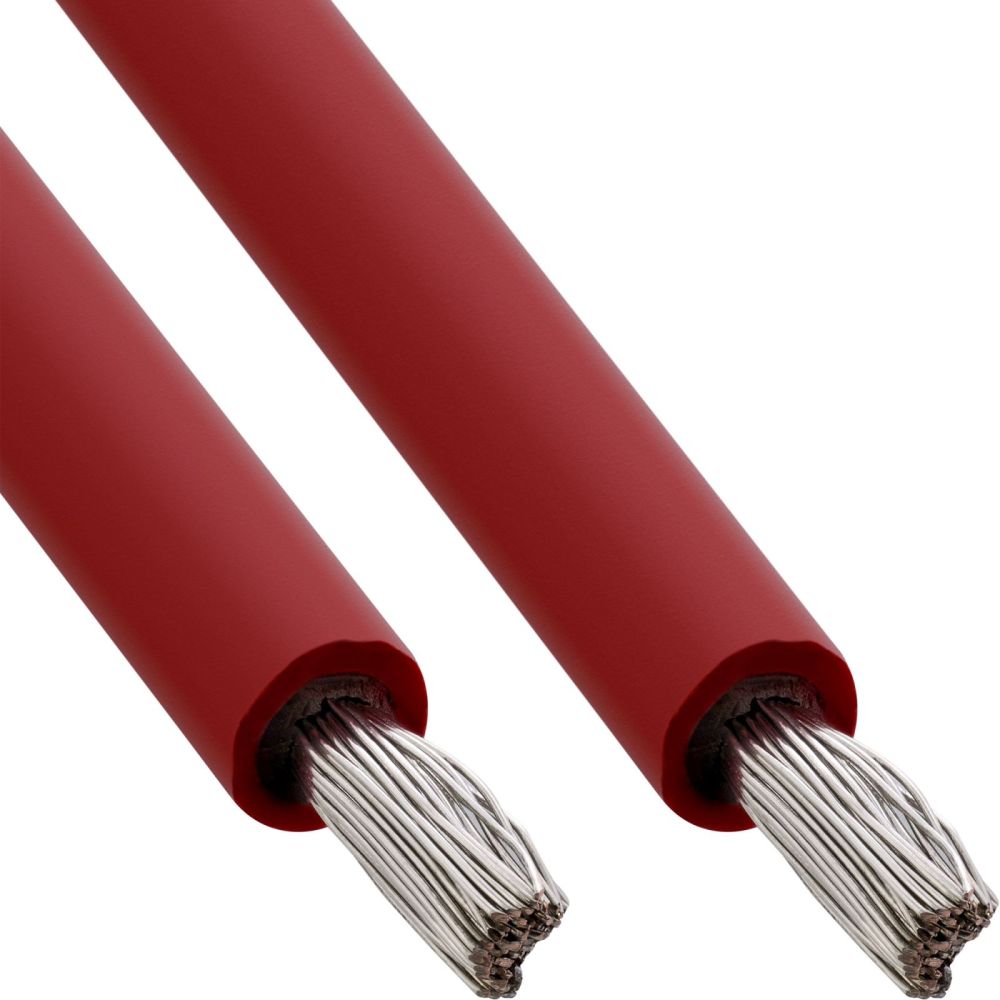

The solar cable H1Z2Z2-K, 4mm², has been specially developed for the cabling of photovoltaic systems and offers maximum reliability and durability. With its robust construction and outstanding technical properties, it ensures that the PV system is operated efficiently and safely for years to come.High nominal and working voltage: with a nominal voltage of 1.0/1.0 kV AC and a working voltage of 1.5 kV DC in accordance with EN 50618, the cable is ideally designed for the requirements of modern solar installations.
Robust construction: With an external cable diameter of 5.5 mm and a nominal wall thickness of the insulation of 0.7 mm and the coating of 0.8 mm, the cable is robust and durable.
Conductor cross-section: 4 mm², fine-wired
Conductor material: copper, tinned
DC line resistance: 5.09 Ohm/km
Voltage test on cable: AC 6.5 kV, DC 15 kV
Current carrying capacity: Tested according to EN 50618
Ozone and weather resistance, UV resistance: Tested according to EN 60 811 / 50618
Flame resistance: Complies with EN 60332-1-2, LSOH (Low Smoke Zero Halogen)
Insulation: Halogen-free, low-smoking, cross-linked polyolefin (XLPO)
Ambient temperature: -40°C to +90 °C
Min. bending radius: 22 mm
Advantages of the solar cable H1Z2Z2-K, 4mm²:Durability: With a high resistance to UV radiation, ozone and weathering, the cable offers a reliable solution for long-term applications.
Easy installation: Thanks to its flexibility and robust construction, the cable is easy to lay and suitable for a wide range of installations.
The solar cable H1Z2Z2-K, 4mm², is the optimal choice for safe and efficient cabling of your photovoltaic system. With its high-quality construction and comprehensive protective features, it ensures reliable power transmission and helps to maximise the energy efficiency of your system.
Note on the wire cross-section:
The required wire cross-section depends on the current and the distance or cable length. If in doubt, please consult a solar technician to find out which wire cross-section you need.

Features
Product type	Medium voltage cable
Product colour	Red
Insulation thickness	0.7 mm
Conductor material	Tinned copper
Conductor cross section	4 mm²
Fire-resistant
Packaging data
Package width	255 mm
Package depth	250 mm
Package height	82 mm
Package weight	1.56 kg
Power
Operating voltage (max)	1500 V
Technical data
Type	Solar cables
Article width	0.40cm
Colour	Red
Bending radius (static)	>22mm
Article height	0.40cm
Height packaging	0.082m
Operation temperature	-40 to +90°C
Article length	2500.00cm
Packaging volume	0.0052m³
Diameter	4mm²
Length packaging	0.250m
Signal	Power
Width packaging	0.255m
Length	25m
Net weight	1.407kg
Weight	1.560kg
Outer diameter	5.5mm
Shielding	Unshielded
Technical details
Doesn't contain	Halogen
Package volume	5200 cm³
Compliance certificates	TÜV mark
Weight & dimensions
Length	25 m
Diameter	5.5 mm
Width	4 mm
Depth	25000 mm
Height	4 mm
Weight	1.41 kg

---
