InLine® RJ45 breakout socket to 9-pin screw terminal, top-hat rail, shielded content_copy

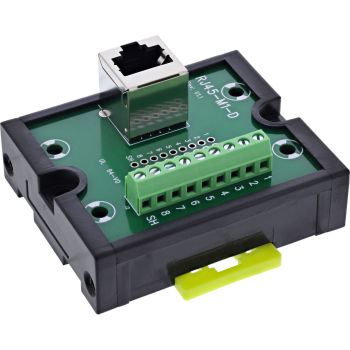

RJ45 breakout socket with clear terminal assignment: Shielded 8P8C socket directly connected to 9-pin screw terminal – for structured and solder-free network wiring.
Side terminal connection for compact integration: The side-mounted screw terminal strip allows for space-saving wiring – ideal for control cabinets or dense test environments.
Direct mounting on DIN rail: The housing is equipped with a pre-mounted DIN rail clip – for easy and standard-compliant installation in control cabinets or control distributors.
Ideal for industrial networks: For secure connection, diagnosis, or rewiring of Ethernet signals in service, test, or embedded environments.
High signal quality: An insulation resistance of ≥ 10 MΩ at 300 V DC and a rated current of 1.0 A per pin ensure reliable signal transmission – even in continuous industrial operation.
The InLine® RJ45 breakout adapter with shielded 8P8C socket and integrated 9-pin screw terminal (8 data lines + shield) enables direct and structured wiring of Ethernet signals – without any soldering. The side-accessible terminal strip is clearly labeled and supports wires in the range of 16–26 AWG.
Tool-assisted wiring is performed with a flat-head screwdriver ≤ 2.5 mm. The pre-mounted clip allows the adapter to be mounted directly on a DIN rail – ideal for standard-compliant integration in control cabinets or control distributors.
The robust design, tested electrical safety, and complete shielding make the adapter a reliable solution for industrial applications, e.g., in prototyping, network diagnostics, or embedded systems.
RJ45 interface: Shielded 8P8C socket (breakout version)
Screw terminal strip: 9 terminals (8 data + shield), 5.0 mm pitch, with pressure plate
Connection range: 16–26 AWG
Actuation: With flat-blade screwdriver ≤ 2.5 mm
Rated current: 1.0 A per pin
Max. operating voltage: 100 V between two signals
Insulation resistance: ≥ 10 MΩ @ 300 V DC
Operating temperature: –20 °C to +70 °C
Insulation layer: EVA insulation on underside
Mounting: Pre-mounted clip for DIN top-hat rail
Dimensions: approx. 60.45 × 53.6 × 43.0 mm (W × H × D)

Certificates
Compliance certificates	RoHS, TÜV mark
Features
Connector(s)	RJ45 8P8C / Terminal block, 9-pin
Connector gender	Female/Female
Connector form factor	Straight/Angled
Product colour	Black, Green
AWG wire size	26/16
Dielectric strength	300 V
Contact resistance	10 mΩ
Current	1 A
Logistics data
Country of origin	Taiwan
Operational conditions
Operating temperature (T-T)	-20 - 70 °C
Packaging data
Quantity per pack	1 pc(s)
Package width	70 mm
Package depth	110 mm
Package height	42 mm
Package weight	76 g
Package volume	100 cm³
Technical data
Width packaging	0.070m
Article width	6.50cm
Side A	RJ45 female
Packaging volume	0.0001m³
Type	For top-hat rail
Net weight	0.048kg
Weight	0.076kg
Article length	5.90cm
Height packaging	0.042m
Length packaging	0.110m
Article height	3.30cm
Weight & dimensions
Dimensions (WxDxH)	65 x 59 x 33 mm
Weight	48 g
Width	65 mm
Depth	59 mm
Height	33 mm

---
