InLine® RJ45 socket to push-in terminal, 8-pin, Cat.5e, 15cm cable content_copy

Push-in terminal for quick wiring: Single wires (18–26 AWG) can be quickly plugged in – a flat-head screwdriver ≤ 2.5 mm is all you need to remove them.
Cat.5e RJ45 socket with fixed 15 cm connection cable: The shielded 8P8C socket is connected directly to the push-in terminal via a permanently integrated cable (length: 15 cm) – for flexible connections in confined spaces.
Space-saving cable solution for flexible integration: Thanks to its compact design and connected cable, the adapter is ideal for mobile measuring stations, embedded projects, or control cabinet installations.
Versatile use in industry: Perfect for temporary network connections, diagnostic tools, control systems, or prototyping – particularly suitable for changing test scenarios.
High signal quality: An insulation resistance of ≥ 10 MΩ at 300 V DC and a rated current of 1.0 A per pin ensure reliable signal transmission – even in continuous industrial operation.

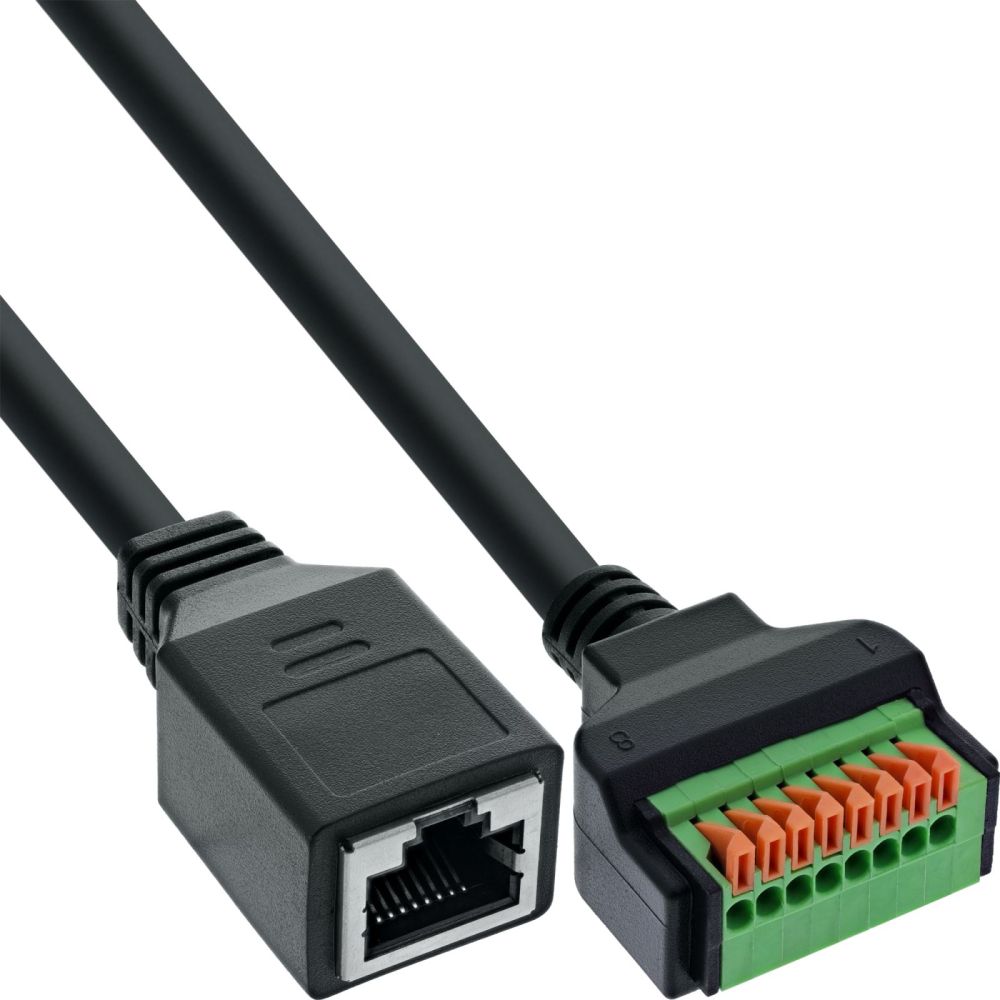

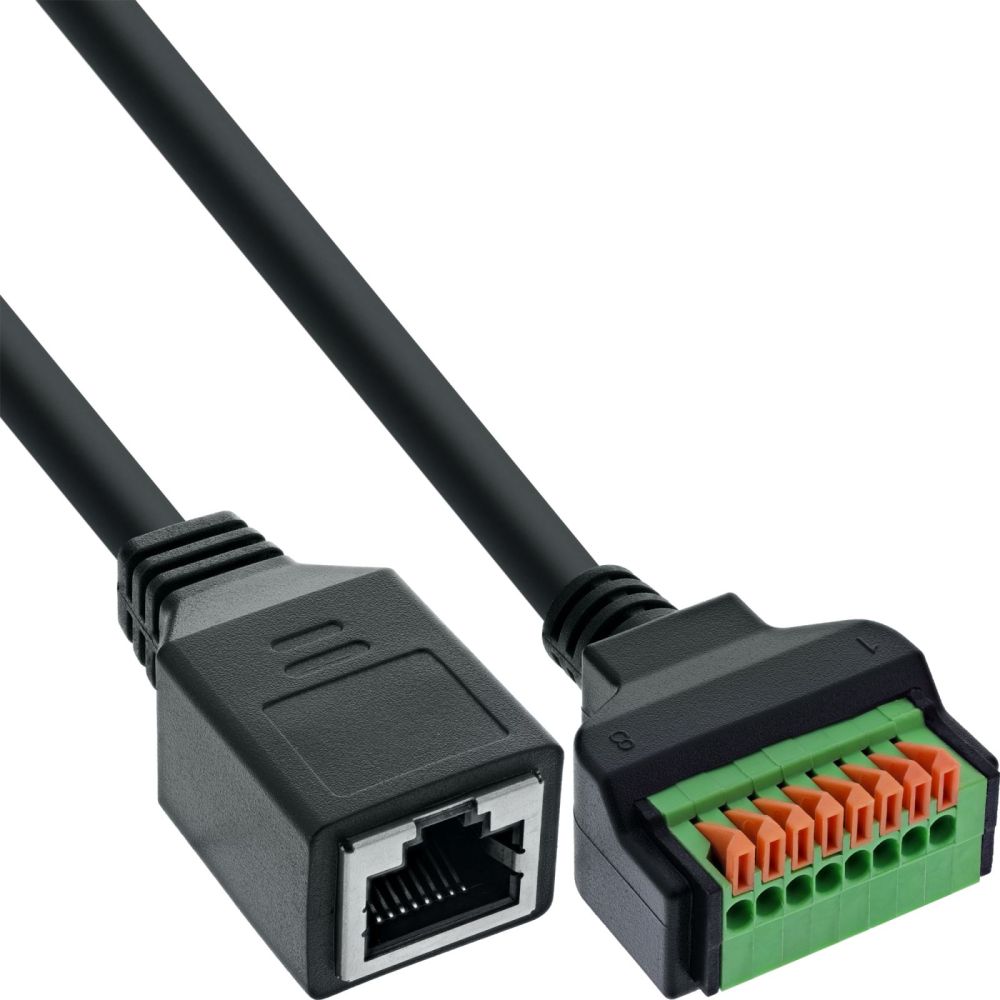

The InLine® RJ45 terminal block adapter with permanently integrated 15 cm cable and 8-pin push-in terminal connects structured Ethernet signals (Cat.5e) with open wire ends – without soldering or screws. The shielded RJ45 socket (8P8C) is connected directly to the push-in terminal via a robust cable.
The push-in technology allows tool-free connection of wires in the 18–26 AWG range. If necessary, the connection can be disconnected using a flat-head screwdriver ≤ 2.5 mm via the color-coded buttons – ideal for frequent rewiring in test or prototype environments.
With a cable length of approx. 15 cm and an outer diameter of approx. 6 mm (shielded round cable), the adapter is also suitable for tight installation situations, e.g., in mobile test equipment or control cabinets. The shielded design and tested quality (short-circuit and wiring test) make it a robust solution for industrial networks and embedded applications.
RJ45 interface: Cat.5e, 8P8C socket (shielded)
Cable length: 15 cm (Cat.5e, shielded, 4×2 wires, 24 AWG, flexible)
Terminal system: Push-in terminal (spring-loaded technology)
Number of poles: 8 signals (1:1 connected)
Connection range: 18–26 AWG (solid or stranded conductor with ferrule)
Actuation: Release with flat-head screwdriver ≤ 2.5 mm
Rated current: 1.0 A per pin
Max. operating voltage: 100 V between two signals
Insulation resistance: ≥ 10 MΩ @ 300 V DC
Operating temperature: –10 °C to +70 °C
Insulation layer: EVA insulation on underside
Dimensions without cable: approx. 43 × 33 × 20 mm (L × W × H)

Certificates
Compliance certificates	RoHS, TÜV mark
Features
Connector(s)	RJ45 Cat.5e 8P8C / Terminal block, 8-pin
Connector gender	Female/Female
Connector form factor	Straight
Product colour	Black
AWG wire size	26/16
Dielectric strength	300 V
Contact resistance	10 mΩ
Current	1 A
Logistics data
Country of origin	Taiwan
Operational conditions
Operating temperature (T-T)	-10 - 70 °C
Packaging data
Quantity per pack	1 pc(s)
Package width	100 mm
Package depth	165 mm
Package height	17 mm
Package weight	39 g
Package volume	100 cm³

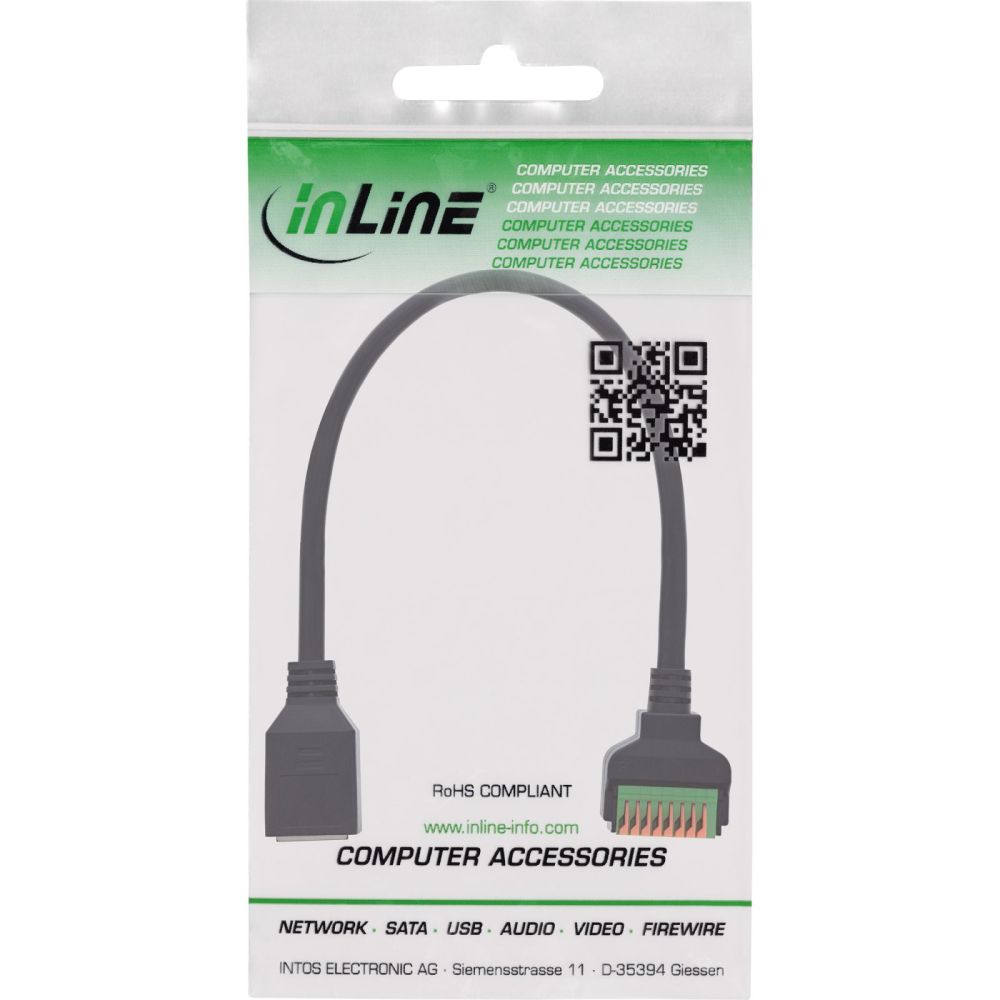

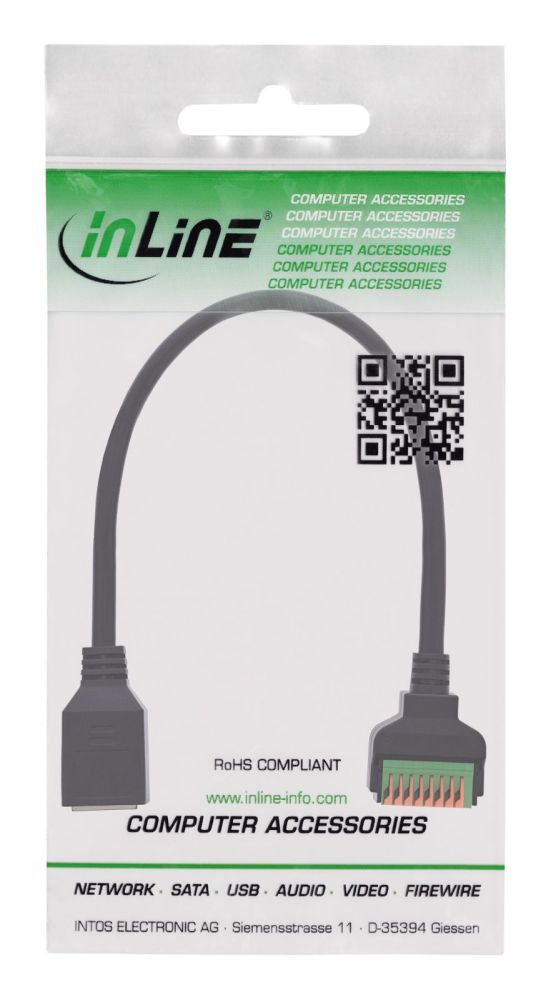

Package type	Polybag
Technical data
Packaging volume	0.0001m³
Variant	With cabel
Net weight	0.036kg
Weight	0.039kg
Length packaging	0.165m
Article width	2.80cm
Side A	RJ45 female
Height packaging	0.017m
Width packaging	0.100m
Article height	1.60cm
Article length	32.00cm
Weight & dimensions
Dimensions (WxDxH)	28 x 320 x 16 mm
Weight	36 g
Cable length	0.15 m
Width	28 mm
Depth	320 mm
Height	16 mm

---
