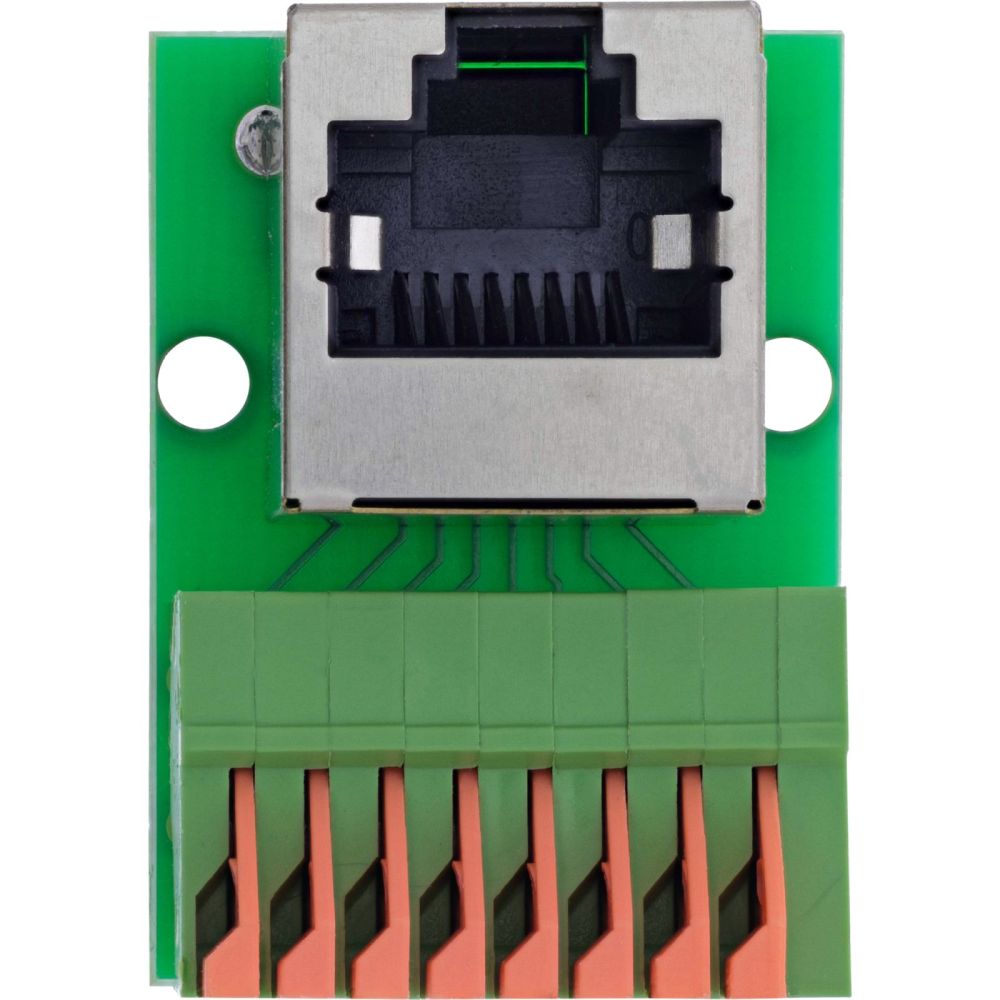

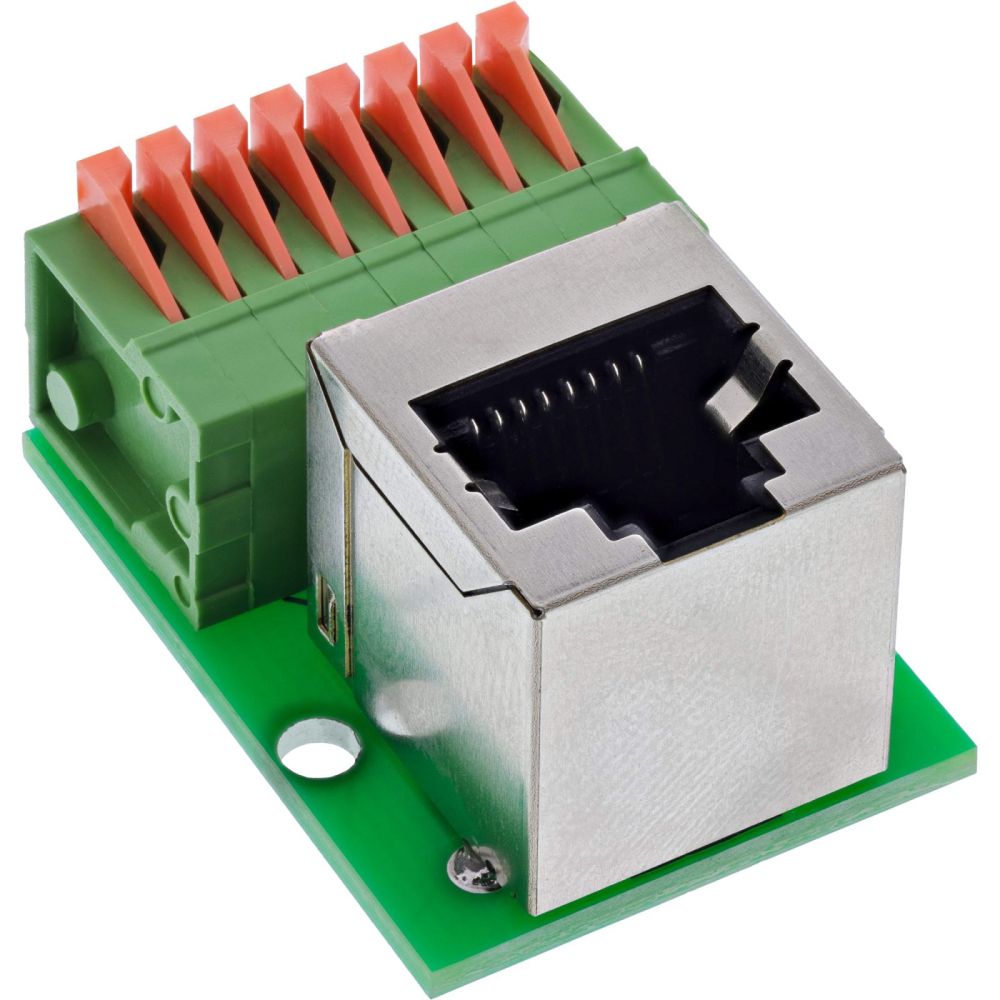

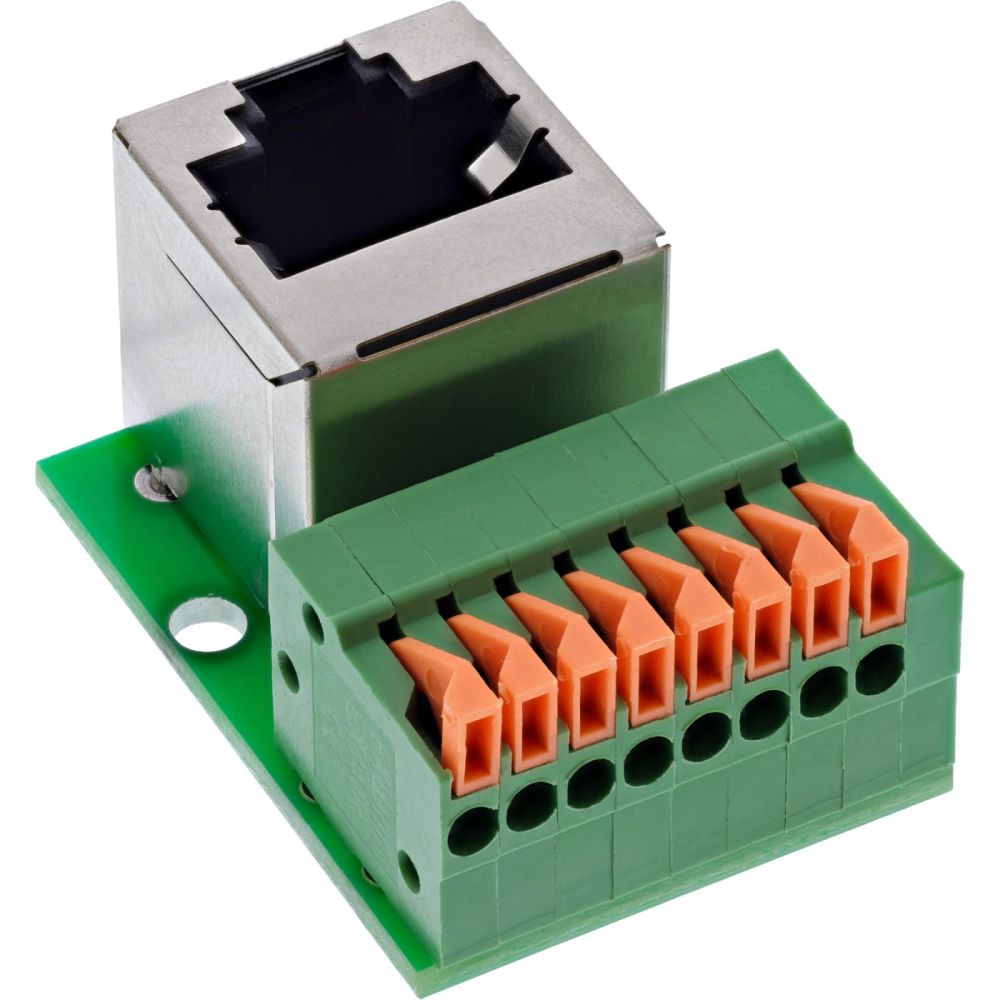

InLine® RJ45 socket on push-in terminal, 8-pin, Cat.5e, angled content_copy

Push-in terminal for quick wiring: Single wires (18–26 AWG) can be quickly plugged in—all you need to disconnect them is a flat-head screwdriver ≤ 2.5 mm.
Structured network connection via Cat.5e: The shielded socket meets Category 5e requirements and provides a stable Ethernet connection for prototypes, test systems, and industrial environments.
Angled design for space-saving wiring: The 90° angled RJ45 socket (8P8C) is ideal for installations with a shallow installation depth – e.g., in wall housings, racks, or flat distribution panels.
Versatile use in industry: Ideal for embedded systems, test setups, temporary network connections, or control cabinet construction—anywhere where quick wire changes are necessary.
High signal quality: An insulation resistance of ≥ 10 MΩ at 300 V DC and a rated current of 1.0 A per pin ensure stable signal transmission – even under continuous load in industrial applications.
The InLine® RJ45 terminal block adapter with angled Cat.5e socket and push-in terminal was specially developed for space-critical network connections. The shielded RJ45 socket (8P8C, 90° angled) is directly connected to an 8-pin push-in terminal block and enables quick connection of open wire ends – without soldering or screws.
The push-in technology is ideal for applications with frequent wire changes, e.g., in test environments, prototypes, or embedded systems. Individual wires in the range of 18–26 AWG can be easily plugged in. A standard flat-blade screwdriver ≤ 2.5 mm is sufficient for removal.
Thanks to its compact design (only 33 mm high) and angled socket position, the adapter is particularly suitable for use in tight housings or flat distribution panels. The robust workmanship and tested electrical properties ensure reliable operation – even in industrial environments.
RJ45 interface: Cat.5e, 8P8C socket (shielded, 90° angled)
Terminal system: Push-in terminal (spring-loaded technology)
Number of poles: 8 signals (1:1 connected)
Connection range: 18–26 AWG (solid or stranded conductor with ferrule)
Actuation: Release with flat-blade screwdriver ≤ 2.5 mm
Rated current: 1.0 A per pin
Max. operating voltage: 100 V between two signals
Insulation resistance: ≥ 10 MΩ @ 300 V DC
Operating temperature: –10 °C to +70 °C
Insulation layer: EVA insulation on underside
Dimensions: approx. 43 × 33 × 24 mm (L × W × H)

Certificates
Compliance certificates	RoHS, TÜV mark
Features
Connector(s)	RJ45 Cat.5e 8P8C / Terminal block, 8-pin
Connector gender	Female/Female
Connector form factor	Straight/Angled
Product colour	Green
AWG wire size	26/16
Dielectric strength	300 V
Contact resistance	10 mΩ
Current	1 A
Logistics data
Country of origin	Taiwan
Operational conditions
Operating temperature (T-T)	-10 - 70 °C
Packaging data
Quantity per pack	1 pc(s)
Package width	70 mm
Package depth	135 mm
Package height	25 mm
Package weight	13 g
Package volume	100 cm³
Package type	Polybag
Technical data
Net weight	0.011kg
Side A	RJ45 female
Length packaging	0.135m
Article length	3.60cm
Design	Angled upwards
Packaging volume	0.0001m³
Article width	2.40cm
Weight	0.013kg
Width packaging	0.070m
Article height	2.00cm
Height packaging	0.025m
Weight & dimensions
Dimensions (WxDxH)	24 x 36 x 20 mm
Weight	11 g
Width	24 mm
Depth	36 mm
Height	20 mm

---
