InLine® RJ45 socket to terminal block, 8-pin, push-in terminal content_copy

Push-in terminal for quick wiring: Single wires (18–26 AWG) are simply plugged in—no tools required. A flat-head screwdriver ≤ 2.5 mm is all you need to release them.
Standardized RJ45 socket for structured wiring: The 8P8C interface allows direct connection to network components – ideal for control, service, or test environments.
Compact design for space-critical applications: With a height of only 33 mm, the adapter also fits into flat housings, mounting rail slots, or mobile measuring devices.
Versatile use in industry: Ideal for control cabinet installations, embedded systems, machine networking, test environments, or rapid prototyping – without soldering or screws.
High signal quality: An insulation resistance of ≥ 10 MΩ at 300 V DC and a rated current of 1.0 A per pin ensure reliable and secure signal transmission – even under continuous load in industrial environments.

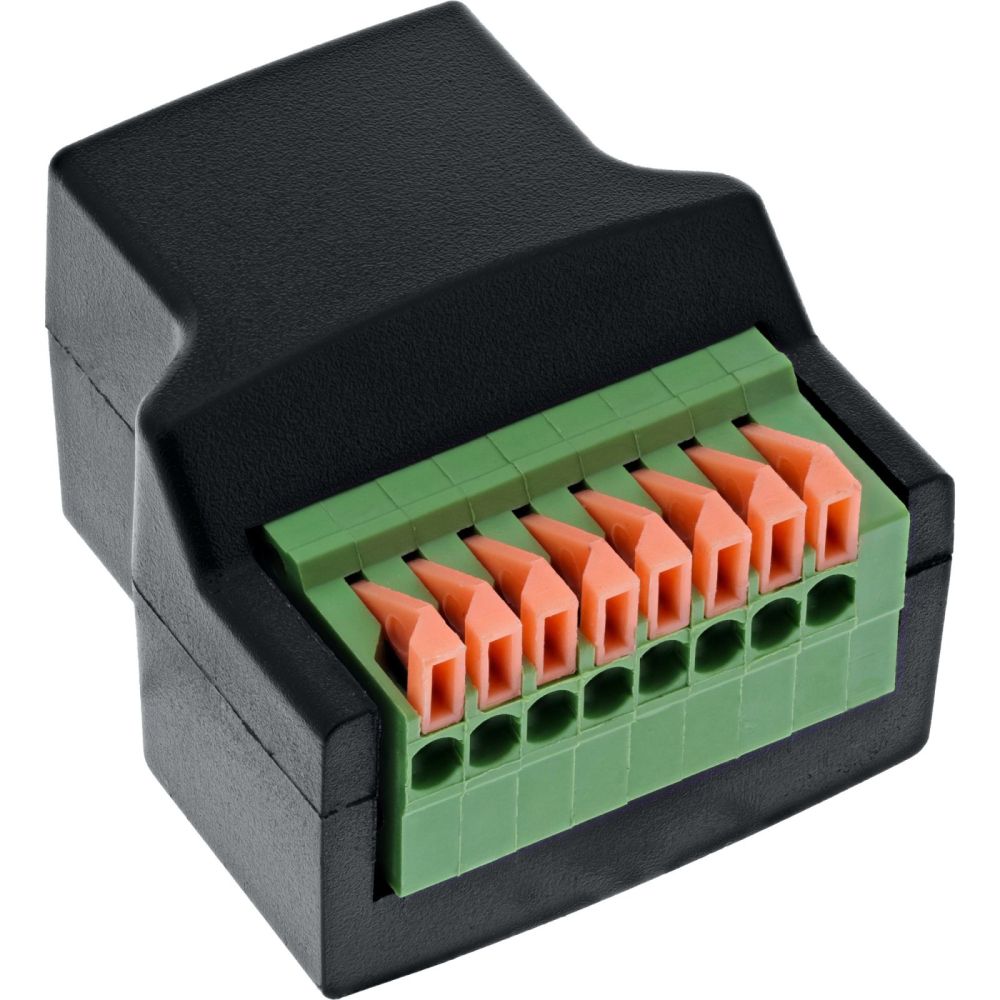

The InLine® RJ45 terminal block adapter with integrated push-in terminal enables tool-free connection of Ethernet signals (8P8C) with open wire ends – ideal for industrial applications, laboratories, or test environments.

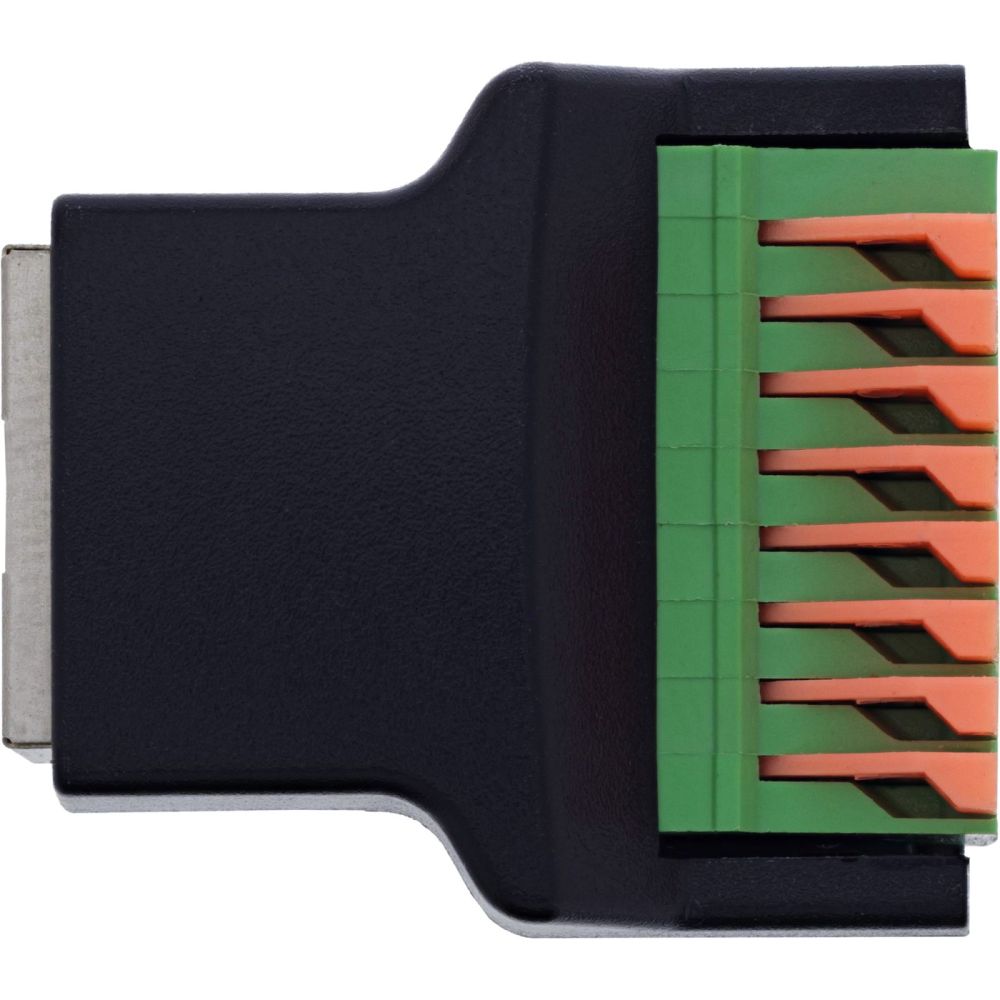

The permanently installed RJ45 socket (8-pin) is connected internally directly to a compact push-in terminal block. This allows quick connection of wires in the 18–26 AWG range – without any screws. A color-coded release button allows the connection to be released with a flat-head screwdriver ≤ 2.5 mm.
The compact design without additional mounting devices is particularly suitable for use in prototyping setups, diagnostic modules, embedded systems, or temporary test setups. The clearly marked connection area ensures safe and unambiguous signal assignment.

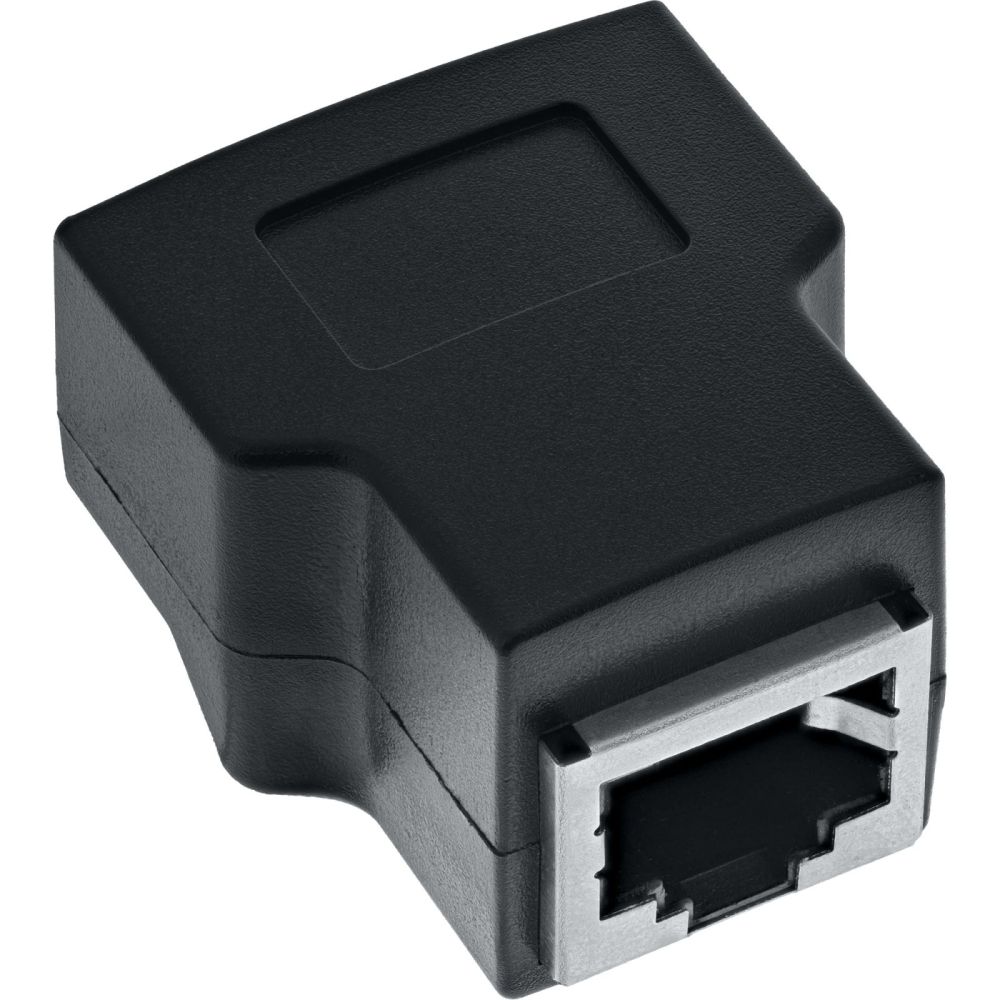

RJ45 interface: 8P8C socket (straight, shielded)
Terminal system: Push-in terminal (spring-loaded technology)
Number of poles: 8 signals (1:1 connected)
Connection range: 18–26 AWG (solid or stranded conductor with ferrule)
Actuation: Release with flat-blade screwdriver ≤ 2.5 mm
Rated current: 1.0 A per pin
Max. operating voltage: 100 V between two signals
Insulation resistance: ≥ 10 MΩ @ 300 V DC
Operating temperature: –10 °C to +70 °C
Insulation layer: EVA insulation on underside
Dimensions: approx. 43 × 33 × 20 mm (L × W × H)

Certificates
Compliance certificates	RoHS, TÜV mark
Features
Connector(s)	RJ45 8P8C / Terminal block, 8-pin
Connector gender	Female/Female
Connector form factor	Straight
Product colour	Black
AWG wire size	26/16
Dielectric strength	300 V
Contact resistance	10 mΩ
Current	1 A
Logistics data
Country of origin	Taiwan
Operational conditions
Operating temperature (T-T)	-10 - 70 °C
Packaging data
Quantity per pack	1 pc(s)
Package width	70 mm
Package depth	135 mm
Package height	25 mm
Package weight	16 g
Package volume	100 cm³
Package type	Polybag
Technical data
Width packaging	0.070m
Article height	2.10cm
Packaging volume	0.0001m³
Article width	2.80cm
Net weight	0.014kg
Weight	0.016kg
Side A	RJ45 female
Length packaging	0.135m
Article length	3.30cm
Height packaging	0.025m
Weight & dimensions
Dimensions (WxDxH)	28 x 33 x 21 mm
Weight	14 g
Width	28 mm
Depth	33 mm
Height	21 mm

---
