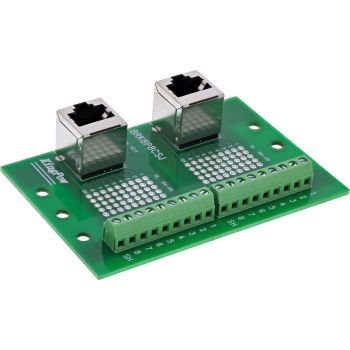

InLine® Terminal block, 2x RJ45 socket, upwards, for top-hat rail content_copy

Time savings during installation: Two screw terminal blocks for 8 wires plus shield each enable fast, solder-free wiring – tool-assisted with a flat-head screwdriver ≤ 2.5 mm, suitable for 16–26 AWG.
Dual RJ45 interface with separate signal routing: Two standardized RJ45 sockets (8P8C) are aligned upwards – ideal for structured network wiring where space is limited in depth.
Standard-compliant DIN rail mounting: The housing is prepared for DIN mounting rails and allows space-saving and secure integration into control cabinets.
Suitable for parallel Ethernet lines: Perfect for industrial test setups, redundancy lines, or structured signal distribution in control and test environments.
High signal quality: An insulation resistance of ≥ 10 MΩ at 300 V DC and a rated current of 1.0 A per pin ensure reliable and secure data transmission – even under continuous load in industrial environments.
The InLine® RJ45 terminal block with two vertically aligned sockets (8P8C) enables structured, space-saving Ethernet wiring in industrial environments. Each RJ45 socket is fully connected via a separate 9-pin screw terminal strip (8 signals + shield) – ideal for parallel network signals, redundancy paths, or test connections.
The screw terminals are accessible from the side, numbered, and support wires in the range of 16–26 AWG. Wiring is quick and tool-assisted using a flat-blade screwdriver ≤ 2.5 mm.
Thanks to the pre-mounted DIN rail clip, the module is immediately ready for standard-compliant integration in the control cabinet or distribution box. The robust design and tested short-circuit and miswiring protection ensure reliable use in continuous industrial operation.
RJ45 interface: 2× 8P8C socket (facing upwards)
Screw terminal strip: 2x 9 terminals (8 signals + shield), grid dimension 5.0 mm, with pressure plate
Connection range: 16–26 AWG
Actuation: With flat-blade screwdriver ≤ 2.5 mm
Rated current: 1.0 A per pin
Max. operating voltage: 100 V between two signals
Insulation resistance: ≥ 10 MΩ @ 300 V DC
Operating temperature: –20 °C to +70 °C
Insulation layer: EVA insulation on underside
Mounting: Prepared for DIN top-hat rail
Dimensions: approx. 60.45 × 89.7 × 43.0 mm (W × H × D)

Certificates
Compliance certificates	RoHS, TÜV mark
Features
Connector(s)	2x RJ45 8P8C / 2x Terminal block 9 terminals
Connector gender	Female/Female
Connector form factor	Straight/Angled
Product colour	Green
AWG wire size	26/16
Dielectric strength	300 V
Contact resistance	10 mΩ
Current	1 A
Logistics data
Country of origin	Taiwan
Operational conditions
Operating temperature (T-T)	-20 - 70 °C
Packaging data
Quantity per pack	1 pc(s)
Package width	70 mm
Package depth	110 mm
Package height	42 mm
Package weight	75 g
Package volume	100 cm³
Technical data
Width packaging	0.070m
Side A	2x RJ45 socket
Packaging volume	0.0001m³
Type	For top-hat rail
Article width	6.00cm
Height packaging	0.042m
Article height	1.70cm
Net weight	0.038kg
Weight	0.075kg
Article length	9.00cm
Length packaging	0.110m
Design	Angled upwards
Weight & dimensions
Dimensions (WxDxH)	60 x 90 x 17 mm
Weight	38 g
Width	60 mm
Depth	90 mm
Height	17 mm

---
