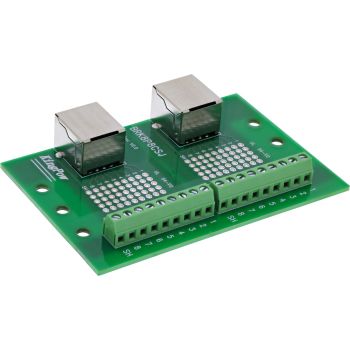

InLine® Terminal block, 2x RJ45 socket, straight, for top-hat rail content_copy

Time savings during installation: Two screw terminal strips for 8 wires plus shielding each enable fast, solder-free wiring – tool-assisted with a flat-head screwdriver ≤ 2.5 mm, suitable for 16–26 AWG.
Dual RJ45 interface with separate signal routing The two standardized RJ45 sockets (8P8C) in a straight design are independently connected – ideal for parallel cable routing, redundancy solutions, or testing purposes.
DIN rail mounting for orderly system integration: Robust housing with pre-mounted DIN rail clip – ideal for structured network and control cabling in control cabinets.
Versatile use in industry: Suitable for Ethernet signal distribution, machine communication, embedded projects, or network diagnostics in test environments.
High signal quality: An insulation resistance of ≥ 10 MΩ at 300 V DC and a rated current of 1.0 A per pin ensure reliable and secure data transmission – even under continuous load in industrial environments.
The InLine® terminal block with two RJ45 sockets (8P8C, straight version) and separate terminal assignment was developed for structured network connections in control cabinets, test environments, or embedded systems.
Both sockets are completely independently connected to a screw terminal strip with 9 connections (8 signals + shield) – ideal for parallel signal routing, redundancy solutions, or comparative measurements.
The terminal strips (5.0 mm pitch) support single wires in the 16–26 AWG range and can be wired with a flat-blade screwdriver ≤ 2.5 mm.
Thanks to the pre-mounted DIN rail clip, the module is immediately ready for standard-compliant integration into common mounting rail systems.
The robust design, well-thought-out signal routing, and tested short-circuit and miswiring protection make the adapter the ideal choice for demanding industrial Ethernet applications.
RJ45 interface: 2x 8P8C socket (straight design)
Screw terminal strip: 2x 9 terminals (8 signals + shield), 5.0 mm pitch, with pressure plate
Connection range: 16–26 AWG
Actuation: With flat-head screwdriver ≤ 2.5 mm
Rated current: 1.0 A per pin
Max. operating voltage: 100 V between two signals
Insulation resistance: ≥ 10 MΩ @ 300 V DC
Operating temperature: –20 °C to +70 °C
Insulation layer: EVA insulation on underside
Mounting: Prepared for DIN top-hat rail
Dimensions: approx. 60.45 × 89.7 × 43.0 mm (W × H × D)

Certificates
Compliance certificates	RoHS, TÜV mark
Features
Connector(s)	2x RJ45 8P8C / 2x Terminal block 9 terminals
Connector gender	Female/Female
Connector form factor	Straight
Product colour	Green
AWG wire size	26/16
Dielectric strength	300 V
Contact resistance	10 mΩ
Current	0.7 A
Logistics data
Country of origin	Taiwan
Operational conditions
Operating temperature (T-T)	-20 - 70 °C
Packaging data
Quantity per pack	1 pc(s)
Package width	70 mm
Package depth	110 mm
Package height	42 mm
Package weight	73 g
Package volume	100 cm³
Technical data
Net weight	0.036kg
Weight	0.073kg
Width packaging	0.070m
Side A	2x RJ45 socket
Article length	9.00cm
Design	Straight
Article height	1.90cm
Length packaging	0.110m
Article width	6.00cm
Packaging volume	0.0001m³
Type	For top-hat rail
Height packaging	0.042m
Weight & dimensions
Dimensions (WxDxH)	60 x 90 x 19 mm
Weight	36 g
Width	60 mm
Depth	90 mm
Height	19 mm

---
