InLine® Terminal block, RJ45 socket, straight, for top-hat rail content_copy

Time savings during installation: The screw terminal block for 8 wires plus shield enables fast, solder-free wiring – tool-assisted with a flat-head screwdriver ≤ 2.5 mm, suitable for 16–26 AWG.
Integrated RJ45 interface for structured wiring: The standardized RJ45 socket (8P8C) in a straight design allows direct connection to network components – ideal for test benches, service work, or digital controls.
Space-saving DIN rail mounting: The housing is prepared for DIN mounting rails and enables standard-compliant, space-saving installation in the control cabinet.
Versatile use in industry: Suitable for network diagnostics, machine communication, embedded systems, control technology, or test setups with Ethernet connection.
High signal quality: An insulation resistance of ≥ 10 MΩ at 300 V DC and a rated current of 1.0 A per pin ensure reliable and secure data transmission – even under continuous load in industrial environments.

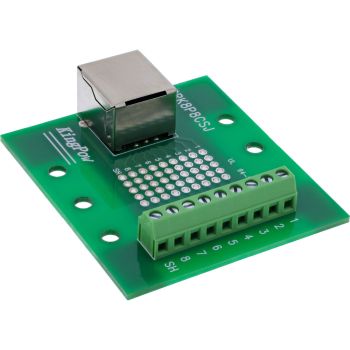

The InLine® RJ45 terminal block with straight socket and side screw terminal strip enables the structured connection of Ethernet signals in control cabinets, test fields, or laboratories. The permanently installed RJ45 socket (8P8C) is directly connected to a 9-pin screw terminal – 8 wires plus shield.
The terminal strip supports wires in the range of 16–26 AWG and is easy to wire with a flat-blade screwdriver ≤ 2.5 mm. The pre-mounted DIN rail clip allows the module to be integrated onto mounting rails quickly and securely. The robust design and tested short-circuit and miswiring protection make the adapter ideal for industrial applications.
RJ45 interface: 8P8C socket (straight version)
Screw terminal block: 9 terminals (8 signals + shield), 5.0 mm pitch, with pressure plate
Connection range: 16–26 AWG
Actuation: With flat-blade screwdriver ≤ 2.5 mm
Rated current: 1.0 A per pin
Max. operating voltage: 100 V between two signals
Insulation resistance: ≥ 10 MΩ @ 300 V DC
Operating temperature: –20 °C to +70 °C
Insulation layer: EVA insulation on underside
Mounting: Prepared for DIN top-hat rail
Dimensions: approx. 60.45 × 53.6 × 43.0 mm (W × H × D)

Certificates
Compliance certificates	RoHS, TÜV mark
Features
Connector(s)	RJ45 8P8C / Terminal block 9 terminals
Connector gender	Female/Female
Connector form factor	Straight
Product colour	Green
AWG wire size	26/16
Dielectric strength	300 V
Contact resistance	10 mΩ
Current	1 A
Logistics data
Country of origin	Taiwan
Operational conditions
Operating temperature (T-T)	-20 - 70 °C
Packaging data
Quantity per pack	1 pc(s)
Package width	70 mm
Package depth	110 mm
Package height	42 mm
Package weight	55 g
Package volume	100 cm³
Technical data
Net weight	0.019kg
Weight	0.055kg
Design	Straight
Packaging volume	0.0001m³
Type	For top-hat rail
Article length	6.00cm
Side A	RJ45 female
Length packaging	0.110m
Article height	1.70cm
Height packaging	0.042m
Width packaging	0.070m
Article width	5.40cm
Weight & dimensions
Dimensions (WxDxH)	54 x 60 x 17 mm
Weight	19 g
Width	54 mm
Depth	60 mm
Height	17 mm

---
