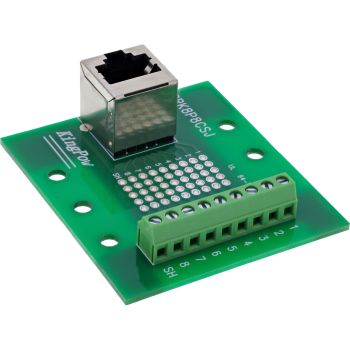

InLine® Terminal block, RJ45 socket, upwards, for top-hat rail content_copy

Time savings during installation: The screw terminal block for 8 wires plus shield allows for quick wiring – tool-assisted with a flat-head screwdriver ≤ 2.5 mm, suitable for 16–26 AWG.
Integrated RJ45 interface for structured wiring: The standardized RJ45 socket (8P8C) enables direct connection to network components – ideal for service work or in test environments.
Space-saving DIN rail mounting: The housing is designed for quick mounting on DIN rails – particularly suitable for structured installations in control cabinets.
Versatile use in industry: For applications in network diagnostics, machine communication, prototyping, control technology, or embedded systems.
High signal quality: An insulation resistance of ≥ 10 MΩ at 300 V DC and a rated current of 1.0 A per pin ensure reliable and secure data transmission – even under continuous load in industrial environments.
The InLine® RJ45 terminal block with upward-facing socket and side screw terminal strip has been developed for professional use in control cabinets or laboratories. The 8-pin RJ45 socket (8P8C) is firmly integrated into the housing and connects directly to the internal terminal strip.
The eight wires and the additional shield contact can be connected quickly and clearly via the screw terminals accessible from the side. The terminals support stranded wires in the range of 16–26 AWG and can be reliably connected with a flat-blade screwdriver ≤ 2.5 mm.
The pre-assembled DIN rail mounting is ideal for structured installations and test setups. 100% tested for short circuits and miswiring.
RJ45 interface: 8P8C socket (facing upwards)
Screw terminal strip: 9 terminals (8 signals + shield), 5.0 mm pitch, with pressure plate
Connection range: 16–26 AWG
Actuation: With flat-blade screwdriver ≤ 2.5 mm
Rated current: 1.0 A per pin
Max. operating voltage: 100 V between two signals
Insulation resistance: ≥ 10 MΩ @ 300 V DC
Operating temperature: –20 °C to +70 °C
Insulation layer: EVA insulation on underside
Mounting: Prepared for DIN top-hat rail
Dimensions: approx. 60.45 × 53.6 × 43.0 mm (W × H × D)

Certificates
Compliance certificates	RoHS, TÜV mark
Features
Connector(s)	RJ45 8P8C / Terminal block 9 terminals
Connector gender	Female/Female
Connector form factor	Straight/Angled
Product colour	Green
AWG wire size	26/16
Dielectric strength	300 V
Contact resistance	10 mΩ
Current	1 A
Logistics data
Country of origin	Taiwan
Operational conditions
Operating temperature (T-T)	-20 - 70 °C
Packaging data
Quantity per pack	1 pc(s)
Package width	70 mm
Package depth	110 mm
Package height	42 mm
Package weight	58 g
Package volume	100 cm³
Technical data
Side A	RJ45 female
Net weight	0.021kg
Weight	0.058kg
Length packaging	0.110m
Article height	2.00cm
Packaging volume	0.0001m³
Type	For top-hat rail
Width packaging	0.070m
Article width	5.40cm
Height packaging	0.042m
Design	Angled upwards
Article length	6.00cm
Weight & dimensions
Dimensions (WxDxH)	54 x 60 x 20 mm
Weight	21 g
