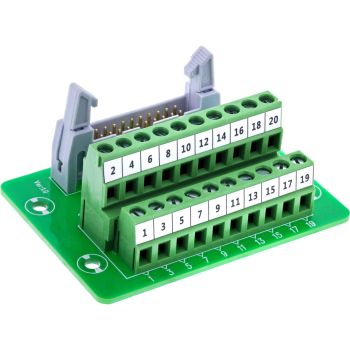

InLine® IDC 20 socket to terminal block, 10-pin, on circuit board content_copy

Time savings during installation: The 10-pin screw terminal block with pressure plate allows for quick, tool-assisted wiring – for wires in the 16–26 AWG range.
Standardized IDC interface with clear pin assignment: The 20-pin socket (2×10) ensures structured signal separation – ideal for orderly system wiring in test, control, and prototype environments.
Compact design for structured installation: Compact design on a sturdy printed circuit board for direct integration into housings, adapter panels, or test environments.
For modular control and test systems: Ideal for prototyping, embedded applications, system tests, or signal distributors with IDC ribbon cables.
High signal quality: Tested insulation resistance up to 300 V AC, rated current 1 A per pin, and 100% short-circuit testing for long-term operational reliability.
The InLine® IDC-20-to-terminal block adapter connects a 20-pin IDC socket (2×10) to a 10-pin screw terminal strip for easy signal wiring – no soldering required. The robust design on a stable circuit board is particularly suitable for structured installations in test benches, control devices, or embedded systems.
The screw terminals (5.0 mm pitch) are clearly labeled and support single wires from 16–26 AWG. Wiring is tool-assisted with a flat-head screwdriver ≤ 2.5 mm. An EVA insulating layer provides reliable protection when mounting on conductive surfaces.
Thanks to 100% short-circuit and wiring testing and standardized signal routing, the adapter is ideal for professional use in industrial test environments, prototypes, or control cabinets.
Note: Two adjacent IDC pins are internally connected to a screw terminal (e.g., pins 1+2 → terminal 1).
IDC interface: 20-pin IDC socket (2×10), pitch 2.54 mm
Screw terminal strip: 10 terminals, pitch 5.0 mm, with pressure plate
Signal assignment: GND (ground), D0 to D7 (digital signal lines, assignable depending on application)
Connection range: 16–26 AWG
Actuation: With flat-head screwdriver ≤ 2.5 mm
Rated current: 0.8 A per pin
Max. operating voltage: 100 V between two signals
Insulation resistance: ≥ 10 MΩ @ 300 V DC
Max. conductor resistance: 5 ohms
Operating temperature: –10 °C to +70 °C
Insulation layer: EVA insulation on underside
Dimensions: approx. 71 × 51 × 48.7 mm (W × H × D)

Certificates
Compliance certificates	RoHS, TÜV mark
Features
Connector(s)	IDC 20 / Terminal block 10 terminals
Connector gender	Female/Female
Product colour	Green, Light grey
AWG wire size	26/16
Dielectric strength	300 V
Contact resistance	10 mΩ
Current	1 A
Logistics data
Country of origin	Taiwan
Operational conditions
Operating temperature (T-T)	-10 - 70 °C
Packaging data
Quantity per pack	1 pc(s)
Package width	70 mm
Package depth	110 mm
Package height	42 mm
Package weight	85 g
Package volume	100 cm³
Package type	Polybag
Technical data
Height packaging	0.042m
Packaging volume	0.0001m³
Side A	10-pin IDC 20 socket
Width packaging	0.070m
Article width	5.10cm
Article length	7.10cm
Weight	0.085kg
Length packaging	0.110m
Article height	2.90cm
Net weight	0.049kg
Weight & dimensions
Dimensions (WxDxH)	51 x 71 x 29 mm
Weight	49 g
Width	51 mm
Depth	71 mm
Height	29 mm

---
