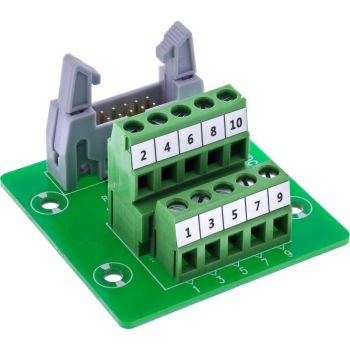

InLine® IDC 10 socket to terminal block, 5-pin, on circuit board content_copy

Time savings during installation: The 5-pin screw terminal block with pressure plate allows for quick, tool-assisted wiring – for wires in the 16–26 AWG range.
Standardized IDC interface with clear pin assignment: The 10-pin socket (2×5) ensures clean signal separation – ideal for structured wiring in test, control, and laboratory applications.
Space-saving PCB solution with logical arrangement: Compact design on a stable PCB for direct integration into housings, adapter panels, or test environments.
Flexible use in industry: Suitable for commissioning, embedded projects, signal distribution, or control lines in digital systems.
High signal quality: Tested insulation resistance up to 300 V AC, rated current 1 A per pin, and 100% short-circuit testing for long-term operational safety.
The InLine® IDC-10-to-terminal block adapter with 5-pin screw terminal strip offers a compact solution for connecting digital signals, power lines, or control connections—without soldering. The combination of IDC socket (2×5) and side-accessible terminal strip is mounted on a robust printed circuit board and optimized for industrial environments.
The screw terminals (5.0 mm pitch) are clearly labeled and support stranded wires in the range of 16–26 AWG. Tool-assisted wiring is performed using a flat-blade screwdriver ≤ 2.5 mm. An EVA insulating layer provides protection during installation on conductive surfaces. With 100% short-circuit testing and high insulation values, the adapter is ideal for test systems, control devices, or embedded applications.
IDC interface: 10-pin IDC socket (2×5), pitch 2.54 mm
Screw terminal block: 5 terminals, pitch 5.0 mm, with pressure plate
Signal assignment: GND (ground), D0 to D3 (digital signal lines, assignable depending on application)
Connection range: 16–26 AWG
Actuation: With flat-blade screwdriver ≤ 2.5 mm
Rated current: 1.0 A per pin
Max. operating voltage: 100 V between two signals
Insulation resistance: ≥ 10 MΩ @ 300 V DC
Max. conductor resistance: 5 ohms
Operating temperature: –10 °C to +70 °C
Insulation layer: EVA insulation on underside
Dimensions: approx. 50 × 21.2 × 18.4 mm (L × W × H)

Certificates
Compliance certificates	RoHS, TÜV mark
Features
Connector(s)	IDC 10 / Terminal block 5 terminals
Connector gender	Female/Female
Product colour	Green, Light grey
AWG wire size	26/16
Dielectric strength	300 V
Contact resistance	10 mΩ
Current	1 A
Logistics data
Country of origin	Taiwan
Operational conditions
Operating temperature (T-T)	-10 - 70 °C
Packaging data
Quantity per pack	1 pc(s)
Package width	70 mm
Package depth	110 mm
Package height	42 mm
Package weight	65 g
Package volume	100 cm³
Package type	Polybag
Technical data
Weight	0.065kg
Width packaging	0.070m
Article height	2.90cm
Packaging volume	0.0001m³
Article width	5.00cm
Net weight	0.030kg
Length packaging	0.110m
Article length	5.10cm
Height packaging	0.042m
Side A	5-pin IDC 10 socket
Weight & dimensions
Dimensions (WxDxH)	50 x 51 x 29 mm
Weight	30 g
Width	50 mm
Depth	51 mm
Height	29 mm

---
