InLine® 6.35mm jack plug to terminal block, mono, 2-pin content_copy

Time savings during installation: Quick wiring via screw terminals for 18–26 AWG – tool-assisted with flat-head screwdriver ≤ 2.5 mm.
Reliable mono audio connection: 6.35 mm jack plug (TS) with clearly assigned terminals (signal/ground) – ideal for audio technology, test setups, or control lines.
Side terminal strip for compact installation: Adjacent terminals in a 5.0 mm grid size enable space-saving integration – e.g., in audio racks or test environments.
Versatile use in industry: For analog signal wiring in audio applications, control devices, development laboratories, or measuring systems.
High signal quality: An insulation resistance of ≥ 10 MΩ at 300 V DC and a rated current of up to 1 A per pin ensure stable and reliable signal transmission in industrial environments.

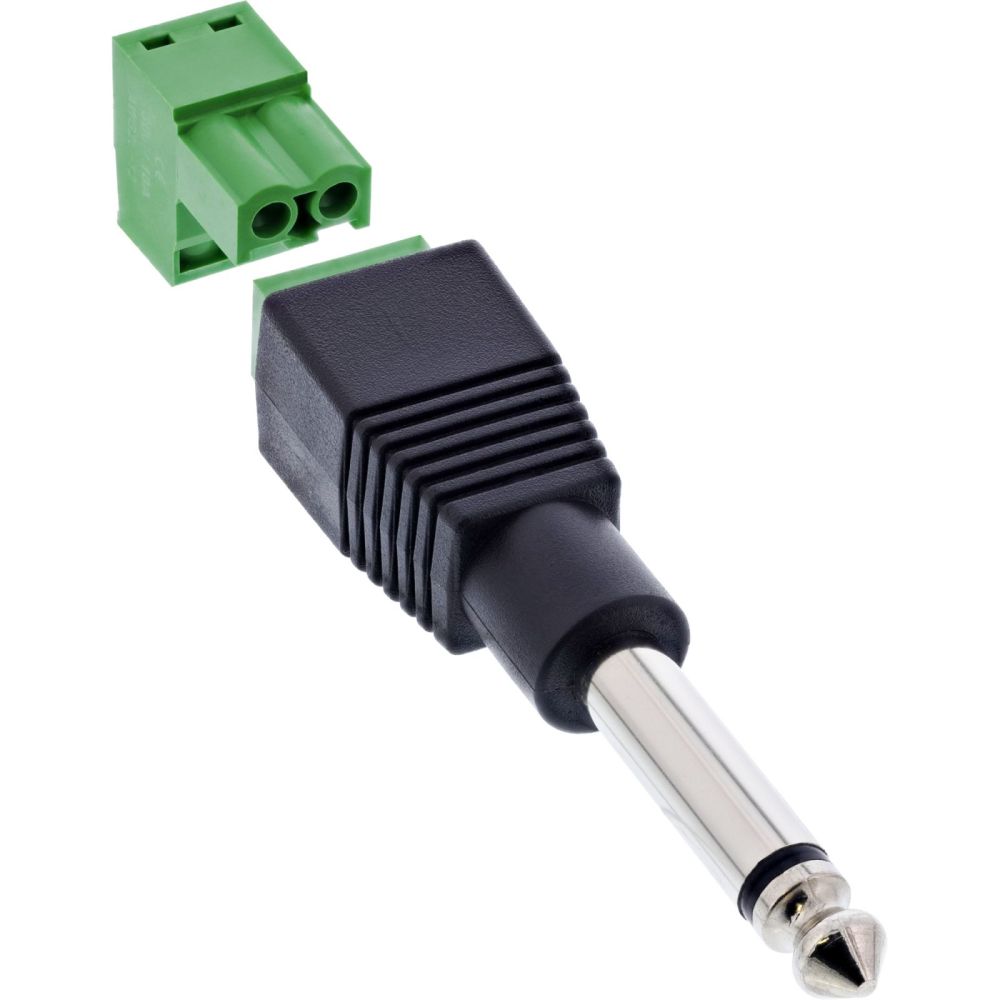

The InLine® 6.35 mm jack plug (TS, mono) on terminal block enables fast and solder-free wiring of analog signals. Ideal for audio signals, control lines, or test setups, this adapter offers an easy way to make contact – without any soldering.

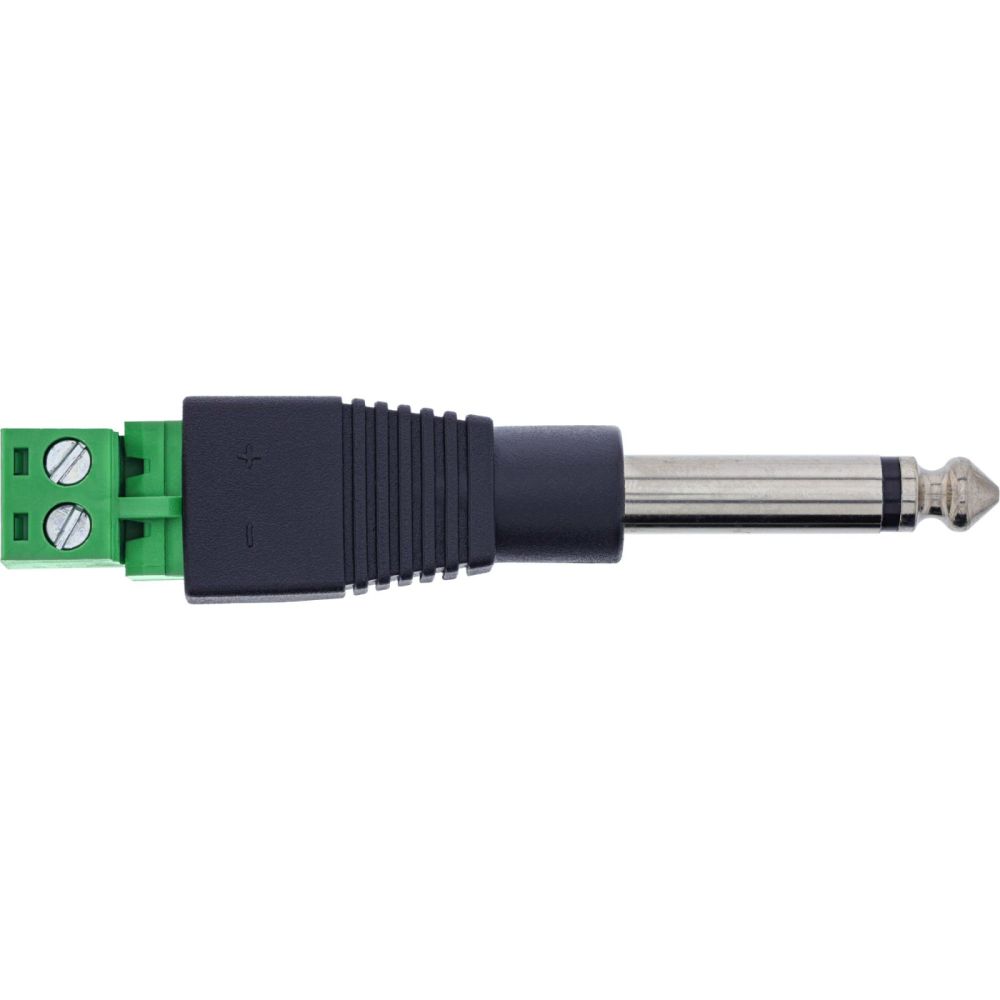

The 2-pole screw terminal strip is clearly labeled: + (signal), – (ground). It supports wires in the range of 18–26 AWG and allows tool-assisted wiring with a flat-head screwdriver ≤ 2.5 mm. The robust housing with EVA insulation layer provides reliable protection when mounted on a conductive surface.
Thanks to its compact design, the adapter is also suitable for space-critical applications – e.g., in audio racks, test systems, or embedded projects.
Jack connection: 6.35 mm TS jack plug (2-pin, mono)
Number of pins / terminal assignment: 2 terminals / + (signal), – (ground)

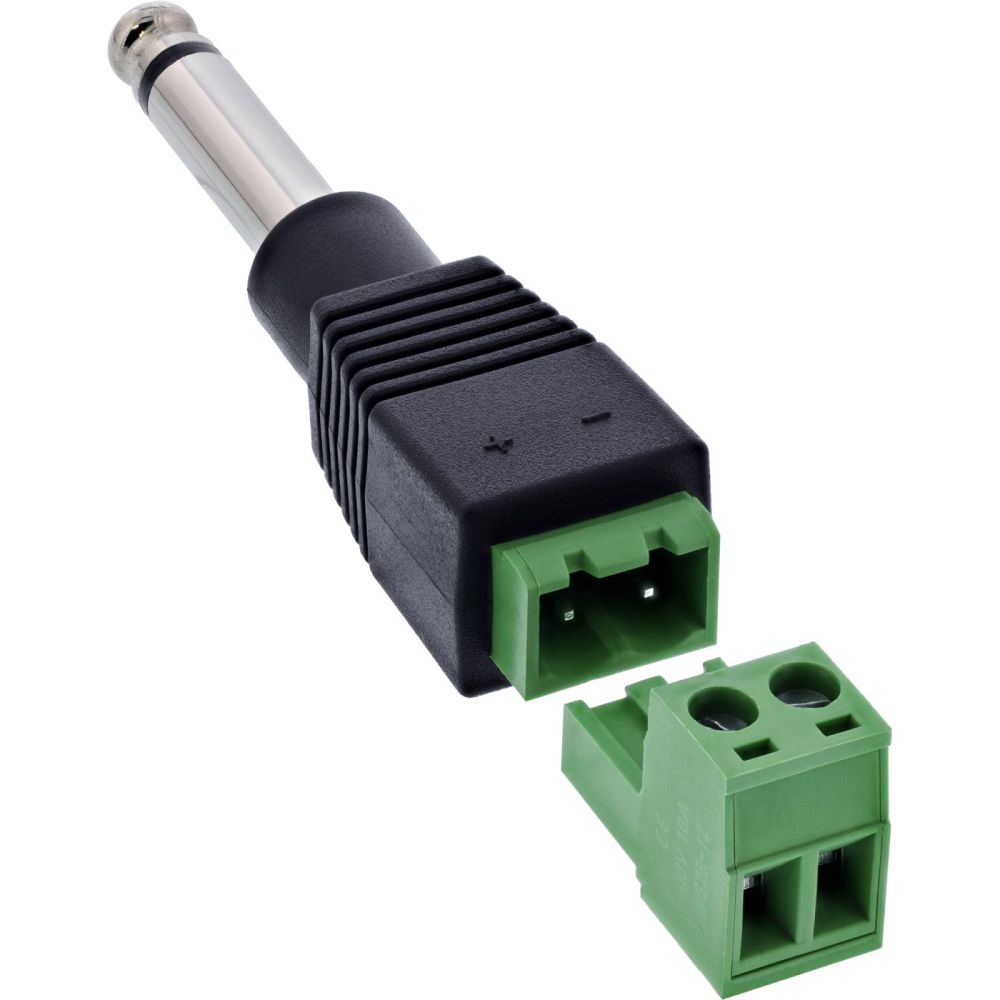

Connection technology: Screw terminal with pressure plate, 5.0 mm pitch
Connection range: 18–26 AWG
Actuation: With flat-blade screwdriver ≤ 2.5 mm
Rated current: 1.0 A per pin
Max. operating voltage: 100 V between two signals
Insulation resistance: ≥ 10 MΩ @ 300 V DC
Max. conductor resistance: 5 ohms
Operating temperature: –10 °C to +70 °C
Insulation layer: EVA insulation on underside

Certificates
Compliance certificates	RoHS, TÜV mark
Features
Connector(s)	6.35 mm 2-pin jack TS / Terminal block 2 terminals
Connector gender	Male/Female
Connector form factor	Straight
Product colour	Black, Green
AWG wire size	26/16
Dielectric strength	300 V
Contact resistance	10 mΩ
Voltage	70 V
Current	1 A
Logistics data
Country of origin	Taiwan
Operational conditions
Operating temperature (T-T)	-10 - 70 °C
Packaging data
Quantity per pack	1 pc(s)
Package width	70 mm
Package depth	135 mm
Package height	20 mm
Package weight	16 g
Package volume	100 cm³

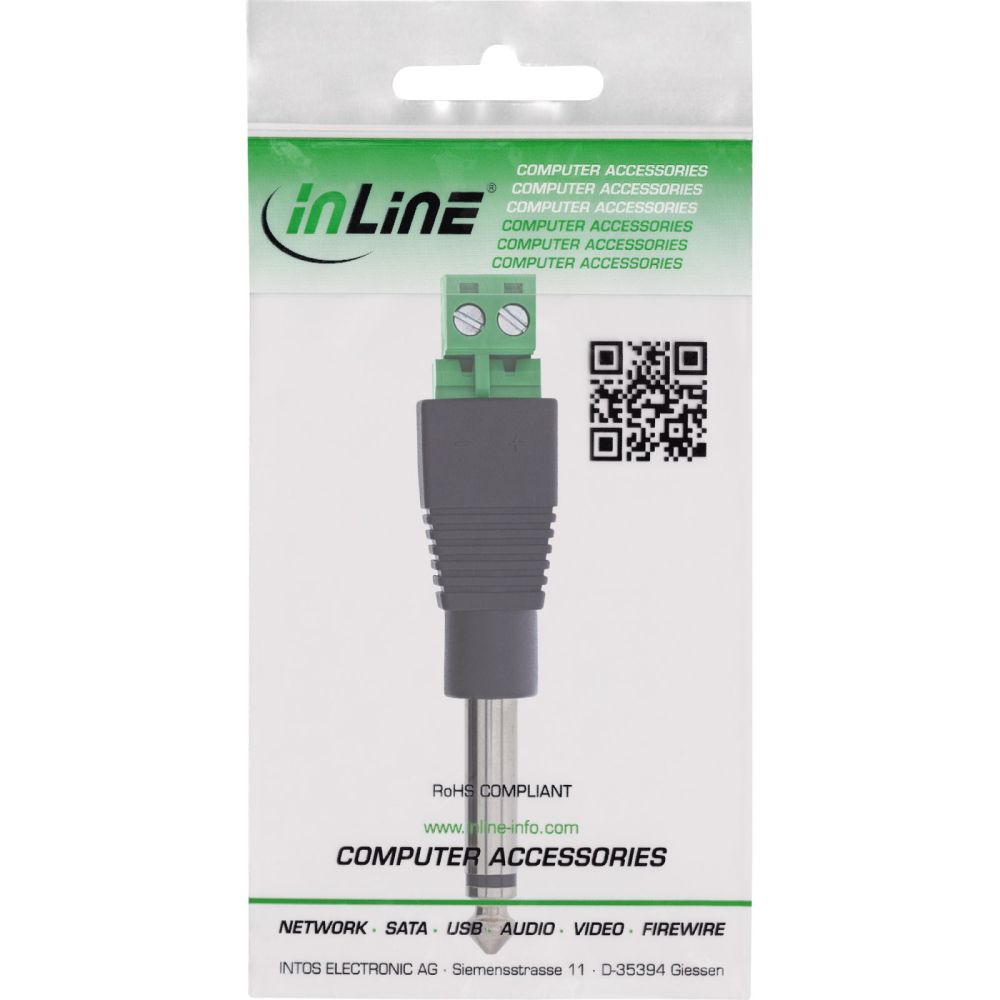

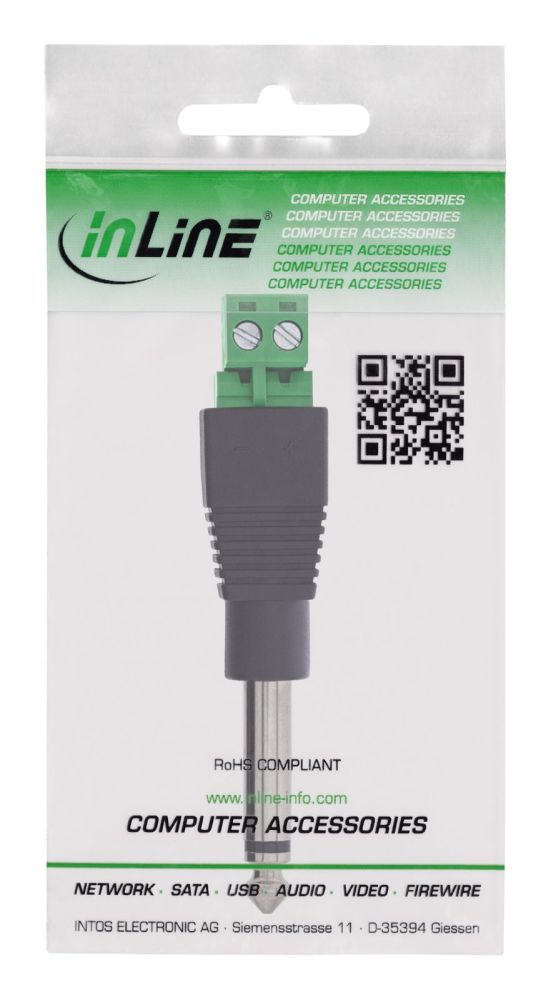

Package type	Polybag
Technical data
Height packaging	0.020m
Net weight	0.014kg
Article length	8.00cm
Width packaging	0.070m
Variant	Mono
Weight	0.016kg
Article height	1.60cm
Length packaging	0.135m
Article width	1.60cm
Packaging volume	0.0001m³
Side A	6.3mm 2-pin jack plug
Weight & dimensions
Dimensions (WxDxH)	16 x 80 x 16 mm
Weight	14 g
Width	16 mm
Depth	80 mm
Height	16 mm

---
