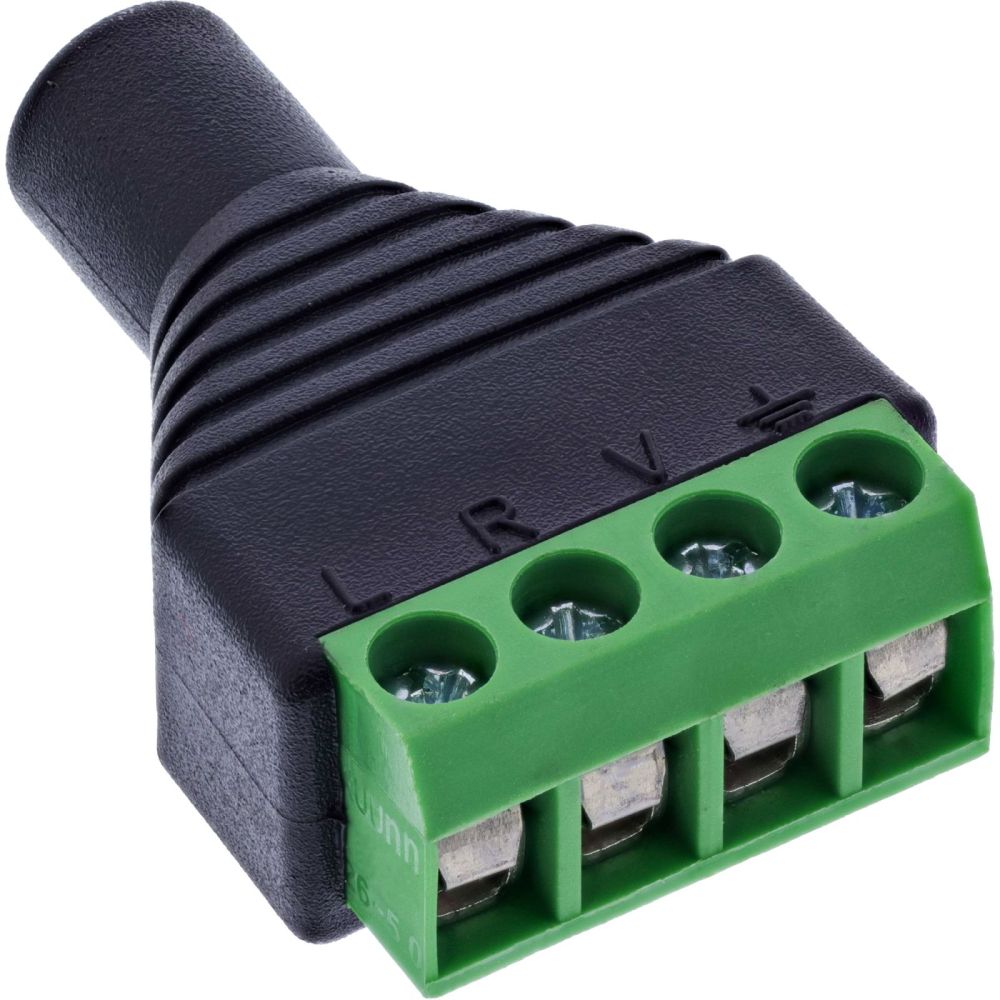

InLine® 3.5mm jack socket 4-pin stereo/micro to terminal block content_copy

Time savings during installation: Quick wiring via screw terminals for 18–26 AWG – tool-assisted with flat-head screwdriver ≤ 2.5 mm.
Precise contacting of audio/microphone signals: 3.5 mm jack socket (TRRS, 4-pin) with clearly labeled terminal strip (L, R, V, +) – ideal for headset, audio, or control cables in test and prototyping setups.
Side terminal strip for space-saving installation: Compact connection block with adjacent terminals – ideal for limited space, e.g., in test boxes or distribution panels.
Versatile use in industry: For integrating analog audio signals into control units, multimedia modules, development labs, or test benches.
High signal quality: An insulation resistance of ≥ 10 MΩ at 300 V DC and a rated current of up to 1 A per pin ensure reliable signal transmission – even in continuous operation.
The InLine® 3.5 mm 4-pin jack-to-terminal block adapter enables solder-free connection of analog audio and microphone signals to screw terminals – ideal for headsets, combo plugs, or TRRS interfaces in industry and laboratories.

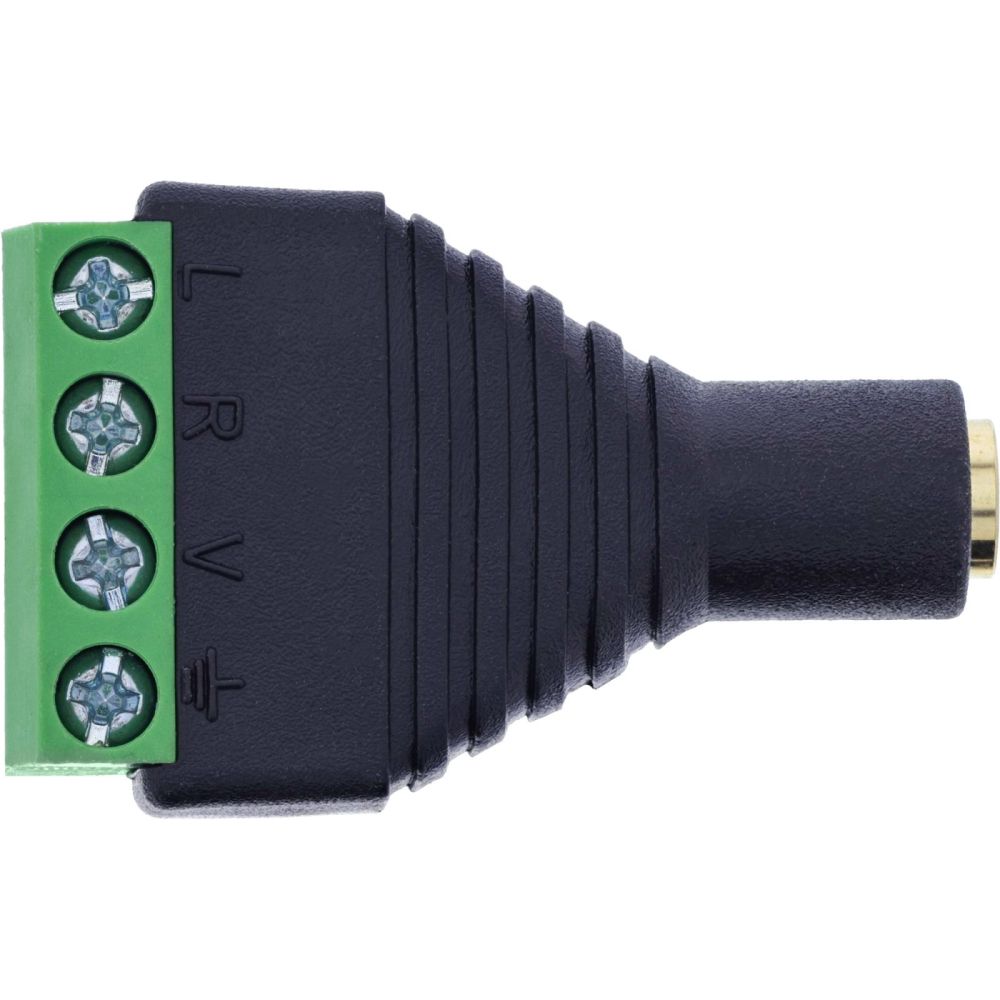

The connections are clearly labeled:
L (left), R (right), V (microphone/voltage), + (common ground/shielding).
The screw terminals with a 5.0 mm grid size support 18–26 AWG wires and can be connected using a flat-blade screwdriver ≤ 2.5 mm.
Thanks to its compact design, the jack socket is particularly suitable for space-critical applications in test equipment, audio racks, or embedded systems. An EVA insulating layer provides additional protection when mounted on a conductive surface.

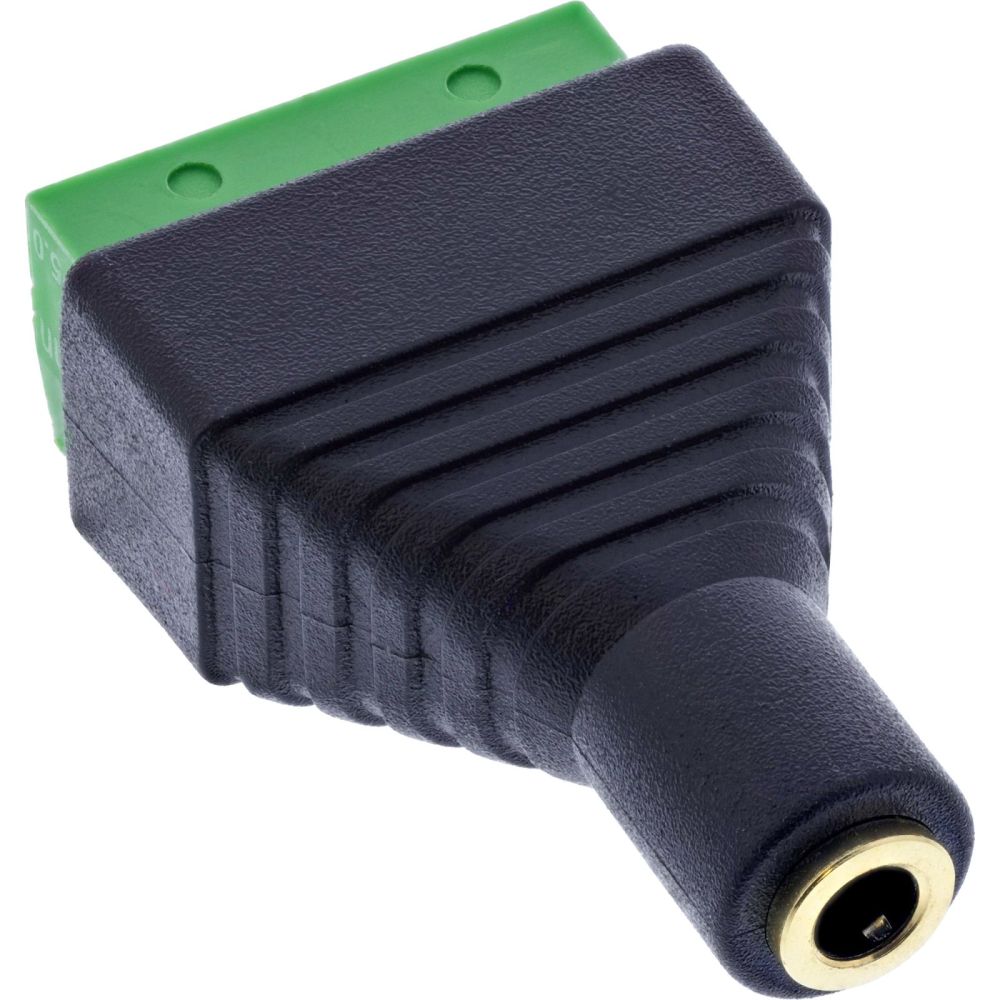

Jack connection: 3.5 mm TRRS jack socket (4-pin, stereo/microphone)
Number of poles / terminal assignment: 4 terminals / L, R, V, +
Connection technology: Screw terminal with pressure plate, 5.0 mm pitch
Connection range: 18–26 AWG
Actuation: With flat-blade screwdriver ≤ 2.5 mm
Rated current: 1.0 A per pin
Max. operating voltage: 100 V between two signals
Insulation resistance: ≥ 10 MΩ @ 300 V DC
Max. conductor resistance: 5 ohms
Operating temperature: –10 °C to +70 °C
Insulation layer: EVA insulation on underside

Certificates
Compliance certificates	RoHS, TÜV mark
Features
Connector(s)	3.5 mm 4-pin jack TRRS / Terminal block 4 terminals
Connector gender	Female/Female
Connector form factor	Straight
Product colour	Black, Green
AWG wire size	26/16
Dielectric strength	300 V
Contact resistance	10 mΩ
Current	1 A
Logistics data
Country of origin	Taiwan
Operational conditions
Operating temperature (T-T)	-10 - 70 °C
Packaging data
Quantity per pack	1 pc(s)
Package width	70 mm
Package depth	135 mm
Package height	20 mm
Package weight	11 g
Package volume	100 cm³
Package type	Polybag
Technical data
Packaging volume	0.0001m³
Variant	Stereo/Micro
Net weight	0.009kg
Weight	0.011kg
Article length	3.60cm
Article height	1.20cm
Width packaging	0.070m
Side A	3.5 mm 4-pin jack socket
Height packaging	0.020m
Length packaging	0.135m
Article width	2.30cm
Weight & dimensions
Dimensions (WxDxH)	23 x 36 x 12 mm
Weight	9 g
Width	23 mm
Depth	36 mm
Height	12 mm

---
