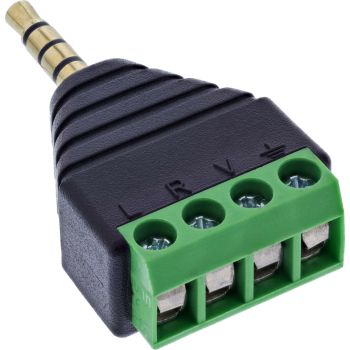

InLine® 3.5 mm 4-pin jack plug to terminal block, stereo/microphone, black content_copy

Time savings during installation: Quick wiring via screw terminals for 18–26 AWG – tool-assisted with flat-head screwdriver ≤ 2.5 mm.
Precise contacting of audio/microphone signals: 4-pin 3.5 mm jack with assigned terminal strip (L, R, V, +) – ideal for audio, headset, or control cables in prototyping and test environments.
Side terminal strip for space-saving installation: Compact connection solution with adjacent screw terminal strip – ideal for narrow adapter panels or confined test environments.
Versatile industrial applications: For signal processing, control engineering, multimedia interfaces, or development laboratories with analog audio integration.
High signal quality: Insulation resistance ≥ 10 MΩ at 300 V DC and rated current up to 1 A – robust and suitable for continuous operation under industrial conditions.
The InLine® 3.5 mm 4-pin jack-to-terminal block adapter offers an easy way to wire analog audio and microphone signals without soldering. The 3.5 mm jack plug (TRRS) is directly connected to a 4-pin screw terminal block. The connections are clearly labeled: L (left), R (right), V (microphone/voltage), + (common ground or shielding) – ideal for signal splitting in headset or combo plug applications.
The screw terminals with a 5.0 mm pitch support wires in the 18–26 AWG range. Wiring is tool-assisted using a flat-blade screwdriver with a blade width ≤ 2.5 mm. The compact design allows for use in confined installation situations, e.g., in test setups, development laboratories, or audio interfaces. The EVA insulation layer provides protection when mounted on conductive surfaces.
Jack connection: 3.5 mm TRRS jack plug (4-pin, L/R/microphone/ground)
Number of poles / terminal assignment: 4 terminals / L, R, V, +
Connection technology: Screw terminal with pressure plate, 5.0 mm pitch
Connection range: 18–26 AWG
Actuation: With flat-blade screwdriver ≤ 2.5 mm
Rated current: 1.0 A per pin
Max. operating voltage: 100 V between two signals
Insulation resistance: ≥ 10 MΩ @ 300 V DC
Max. conductor resistance: 5 ohms
Operating temperature: –10 °C to +70 °C
Insulation layer: EVA insulation on underside

Certificates
Compliance certificates	RoHS, TÜV mark
Features
Connector(s)	3.5 mm 4-pin jack TRRS / Terminal block 4 terminals
Connector gender	Male/Female
Connector form factor	Straight
Product colour	Black, Green
AWG wire size	26/16
Dielectric strength	300 V
Contact resistance	10 mΩ
Current	1 A
Logistics data
Country of origin	Taiwan
Operational conditions
Operating temperature (T-T)	-10 - 70 °C
Packaging data
Quantity per pack	1 pc(s)
Package width	70 mm
Package depth	135 mm
Package height	15 mm
Package weight	12 g
Package volume	100 cm³
Package type	Polybag
Technical data
Net weight	0.010kg
Article length	4.40cm
Width packaging	0.070m
Article width	2.30cm
Height packaging	0.015m
Side A	3.5 mm 4-pin jack plug
Packaging volume	0.0001m³
Variant	Stereo/Micro
Weight	0.012kg
Length packaging	0.135m
Article height	1.40cm
Weight & dimensions
Dimensions (WxDxH)	23 x 44 x 14 mm
Weight	10 g
Width	23 mm
Depth	44 mm
Height	14 mm

---
