InLine® USB-C socket to terminal block, 5-pin, with cable content_copy

Time savings during installation: Quick wiring via screw terminals for 16–26 AWG – tool-assisted with flat-head screwdriver ≤ 2.5 mm.
Integrated USB cable for flexible applications: The 1-meter connection cable connects systems immediately – without additional accessories or soldering.
Clear terminal assignment & secure contact: 5-pin terminals with pressure plate, clearly labeled 1: –, 2: D+, 3: D–, 4: +, 5: S (shield) – ideal for service, testing, and prototyping.
Versatile use in industry: For fast connection of USB 2.0 signals in test setups, laboratories, commissioning, or troubleshooting – without soldering.
High signal quality: An insulation resistance of ≥ 10 MΩ at 300 V DC and a rated current of 0.7 A per pin ensure reliable signal transmission – even under continuous load and in industrial environments.

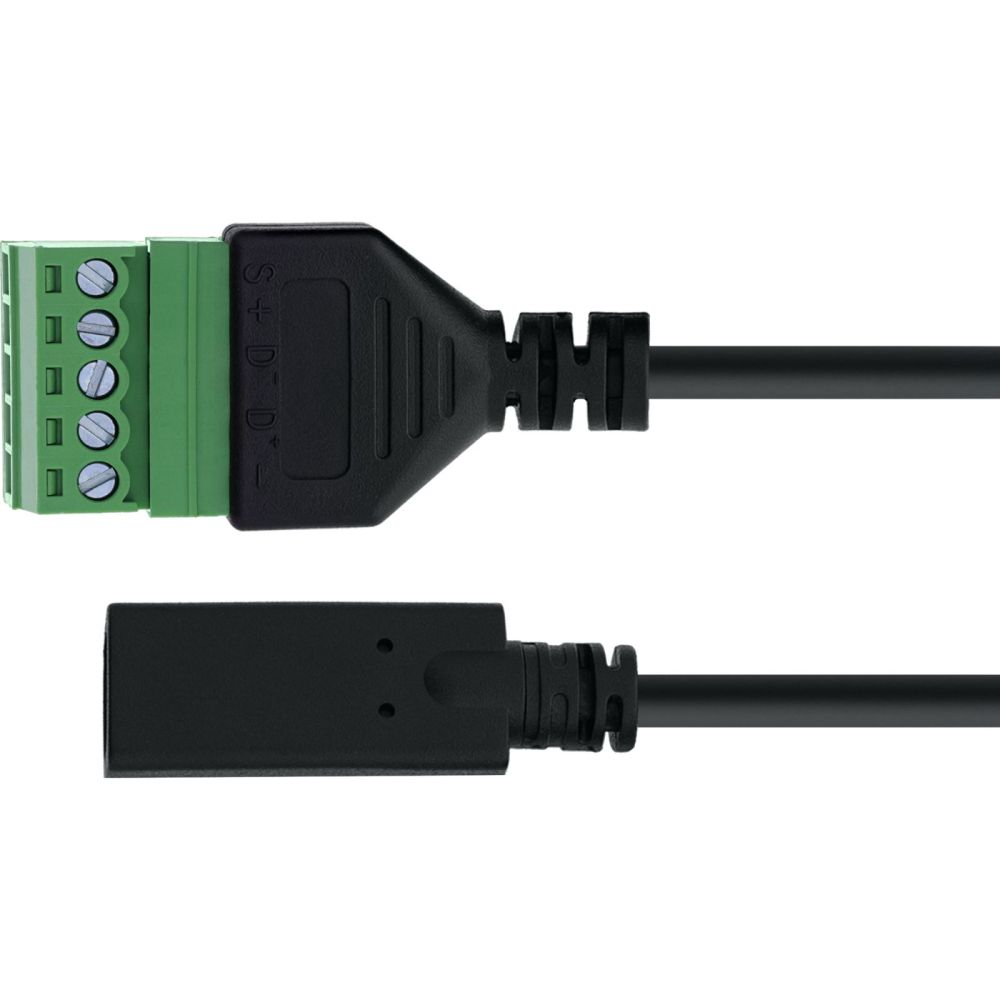

The InLine® USB‑C 2.0 terminal block adapter with 5‑wire connection cable combines the advantages of a modern USB‑C connection with the flexibility of open signal wiring. The USB‑C socket is permanently connected to a 5‑pin screw terminal block – ideal for test benches, diagnostic devices, or embedded systems.

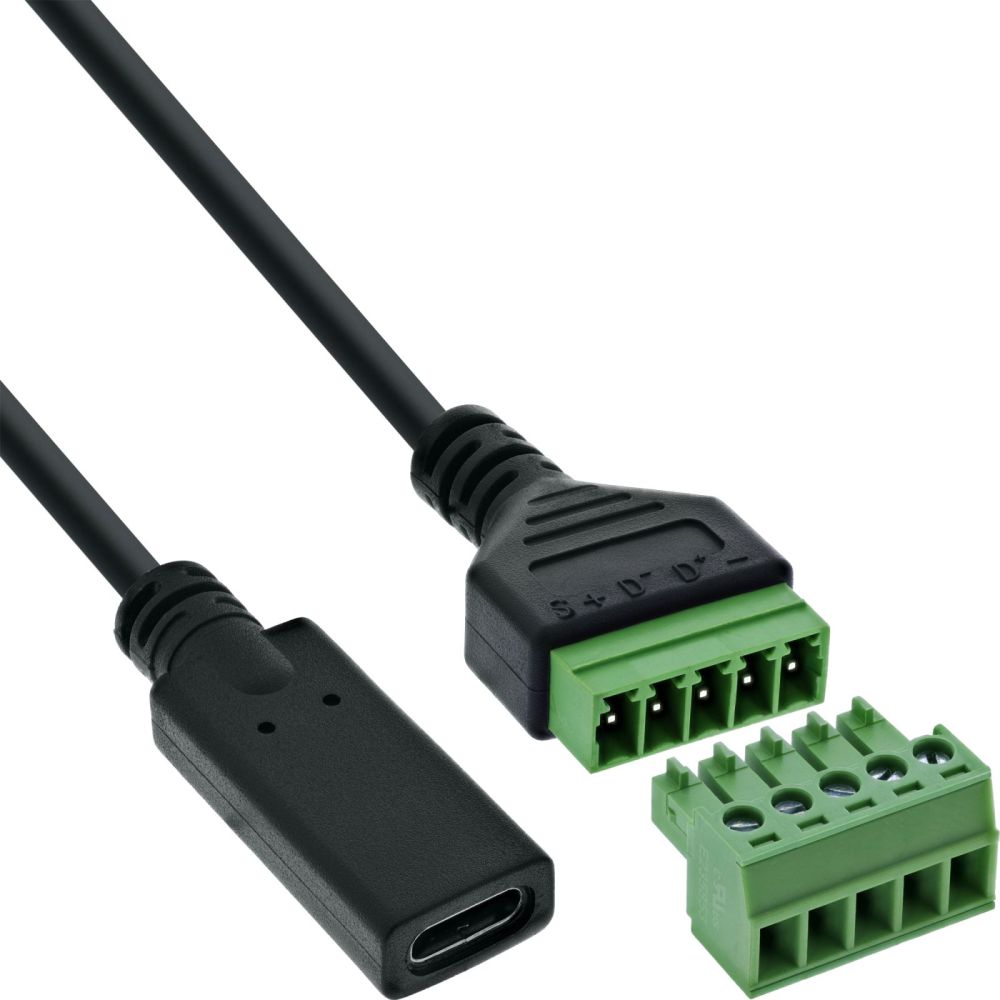

The terminals are clearly labeled (1: ground, 2: D+, 3: D–, 4: voltage, 5: shield) and enable safe and error-free signal assignment. The terminal connections with a 5.0 mm grid size support wires in the 16–26 AWG range. Wiring is tool-assisted with a flat-head screwdriver ≤ 2.5 mm.
The permanently integrated 1-meter connection cable reduces wiring effort and ensures immediate operation – e.g., in control systems, development boards, or mobile test stations. An EVA insulation layer on the underside provides additional protection when mounting on conductive surfaces.
USB interface: USB‑C 2.0, female connector
Cable length: approx. 1 m (PVC, permanently integrated)
Number of pins / assignment: 5 terminals / 1: – / 2: D+ / 3: D– / 4: + / 5: S
Connection technology: Screw terminal with pressure plate, 5.0 mm pitch
Connection range: 16–26 AWG
Actuation: With flat-blade screwdriver ≤ 2.5 mm
Rated current: 0.7 A per pin
USB operating voltage (VBUS): 5 V DC
Test voltage (insulation resistance): 300 V AC / 1 minute
Insulation resistance: ≥ 10 MΩ @ 300 V DC
Operating temperature: –20 °C to +105 °C
Insulation layer: EVA insulation on underside
Dimensions: Terminal block approx. 50 × 21.2 × 18.4 mm (L × W × H)

Certificates
Compliance certificates	RoHS, TÜV mark
Features
Connector(s)	USB-C / Terminal block, 5-pin
Connector gender	Female/Female
Connector form factor	Straight
Product colour	Black, Green
AWG wire size	26/16
Dielectric strength	300 V
Contact resistance	10 mΩ
Current	0.7 A
Logistics data
Country of origin	Taiwan
Operational conditions
Operating temperature (T-T)	-20 - 105 °C
Packaging data
Quantity per pack	1 pc(s)
Package width	100 mm
Package depth	165 mm
Package height	13 mm
Package weight	36 g
Package volume	100 cm³
Package type	Polybag
Technical data
Weight	0.036kg
Side A	USB-C female
Packaging volume	0.0001m³
Variant	With cabel
Article length	100.00cm
Length packaging	0.165m
Article width	2.20cm
Width packaging	0.100m
Article height	1.20cm
Height packaging	0.013m
Net weight	0.033kg
Weight & dimensions
Dimensions (WxDxH)	22 x 1000 x 12 mm
Weight	33 g
Cable length	1 m
Width	22 mm
Depth	1000 mm
Height	12 mm

---
