InLine® USB-C plug to terminal block, 5-pin, with cable content_copy

Time savings during installation: Quick wiring via screw terminals for 16–26 AWG – tool-assisted with flat-head screwdriver ≤ 2.5 mm.
Integrated USB cable for flexible applications: The 1-meter connection cable connects systems immediately – without additional accessories or soldering.
Clear terminal assignment & secure contact: 5-pin terminals with pressure plate, clearly labeled 1: –, 2: D+, 3: D–, 4: +, 5: S (shield) – ideal for service, testing, and prototyping.
Versatile use in industry: For fast connection of USB 2.0 signals in test setups, laboratories, commissioning, or troubleshooting – without soldering.
High signal quality: An insulation resistance of ≥ 10 MΩ at 300 V DC and a rated current of 0.7 A per pin ensure reliable signal transmission – even under continuous load and in industrial environments.

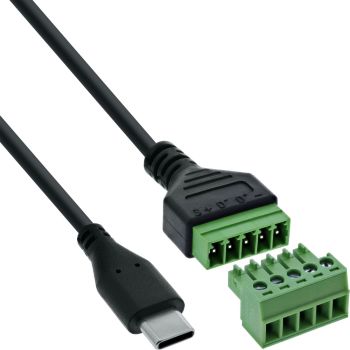

The InLine® USB‑C 2.0 terminal block adapter with 5-wire connection cable combines the advantages of a modern USB‑C connection with the flexibility of open signal wiring. The USB‑C plug is permanently connected to a 5-pin screw terminal block – ideal for test stations, diagnostic devices, or embedded systems.
The screw terminals are clearly labeled (1: ground, 2: D+, 3: D–, 4: voltage, 5: shield) and enable secure and unambiguous signal assignment. The terminals with a 5.0 mm grid size support wires in the range of 16–26 AWG. Wiring is tool-assisted with a flat-head screwdriver ≤ 2.5 mm.
The integrated 1-meter connection cable reduces wiring effort and allows immediate use – e.g., on controllers, development boards, or mobile measurement systems. An EVA insulating layer on the underside provides additional protection when mounting on conductive surfaces.
USB interface: USB‑C 2.0, plug
Cable length: approx. 1 m (PVC, permanently integrated)
Number of pins / assignment: 5 terminals / 1: – / 2: D+ / 3: D– / 4: + / 5: S
Connection technology: Screw terminal with pressure plate, 5.0 mm pitch
Connection range: 16–26 AWG
Actuation: With flat-blade screwdriver ≤ 2.5 mm
Rated current: 0.7 A per pin
USB operating voltage (VBUS): 5 V DC
Test voltage (insulation resistance): 300 V AC / 1 minute
Insulation resistance: ≥ 10 MΩ @ 300 V DC
Operating temperature: –20 °C to +105 °C
Insulation layer: EVA insulation on underside
Dimensions: Terminal block approx. 50 × 21.2 × 18.4 mm (L × W × H)
