InLine® USB-A plug to terminal block, 5-pin, without cable content_copy

Time savings during installation: Quick wiring via screw terminals for 16–26 AWG – tool-assisted with flat-head screwdriver ≤ 2.5 mm.
Clear terminal assignment & secure contact: 5-pin terminals with pressure plate, clearly labeled 1: –, 2: D+, 3: D–, 4: +, 5: S (shield) – ideal for service, testing, and prototyping.
Versatile industrial use: For quick connection of USB 2.0 signals in test setups, laboratories, commissioning, or troubleshooting – no soldering required.
Compact design: Only approx. 50 mm total length; can also be integrated into tight setups or adapter strips to save space.
High signal quality: An insulation resistance of ≥ 10 MΩ at 300 V DC and a rated current of 0.7 A per pin ensure reliable signal transmission – even under continuous load and in industrial environments.
The InLine® USB‑A terminal block adapter offers a practical solution for transferring USB‑2.0 signals to a 5‑pin terminal block without soldering or cable connection. Typical applications can be found in the areas of service, test setups, development, or prototyping.

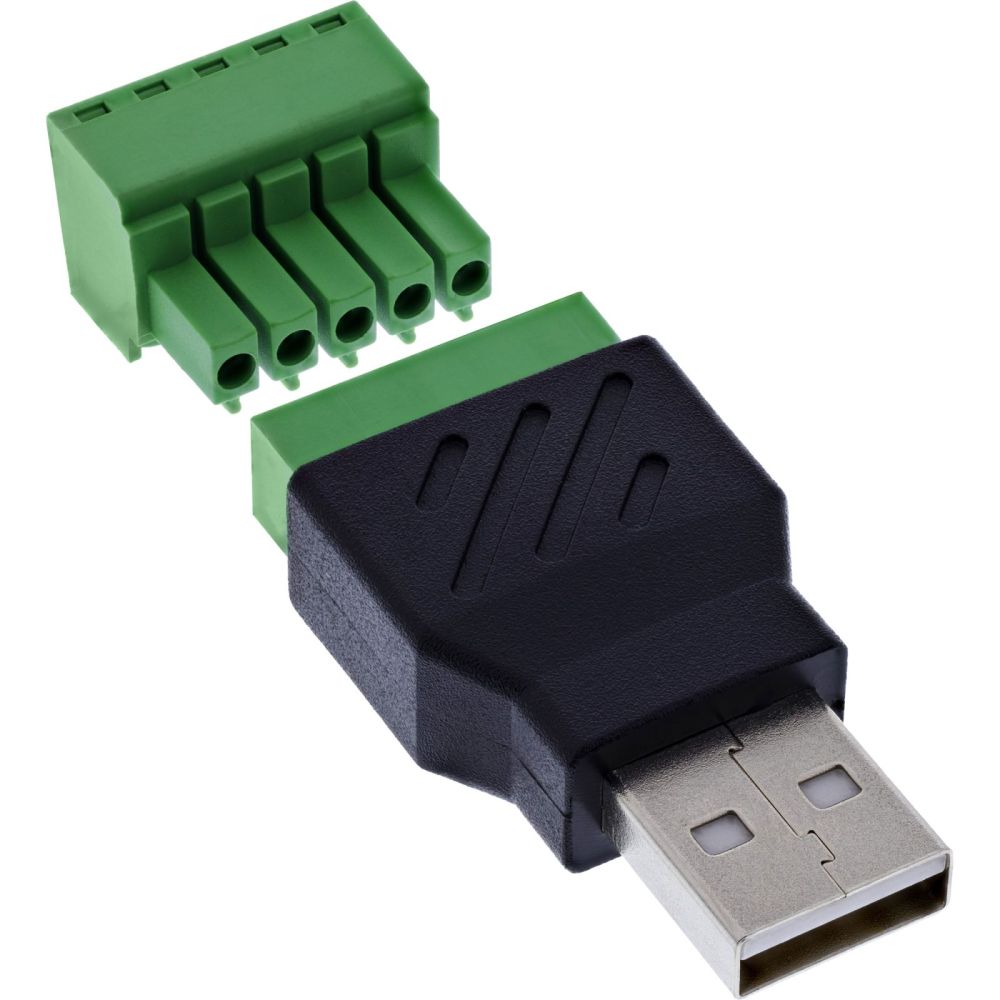

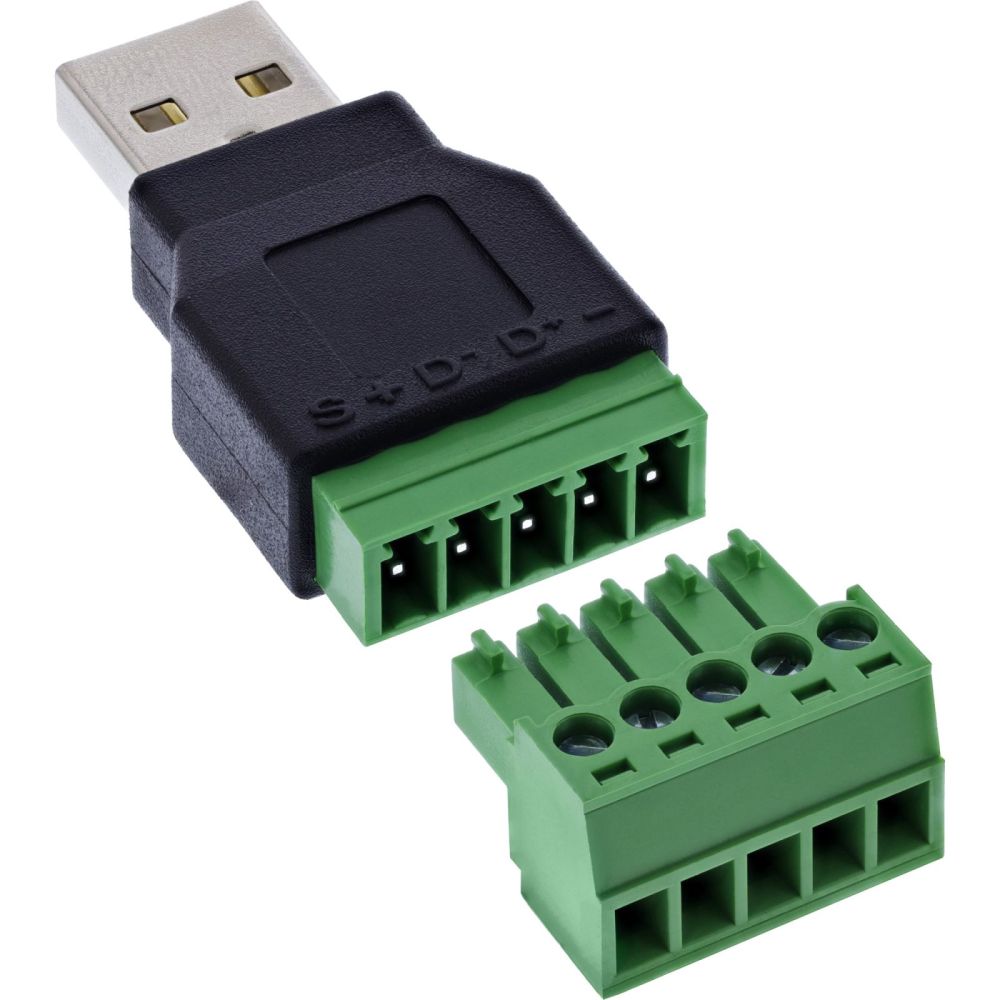

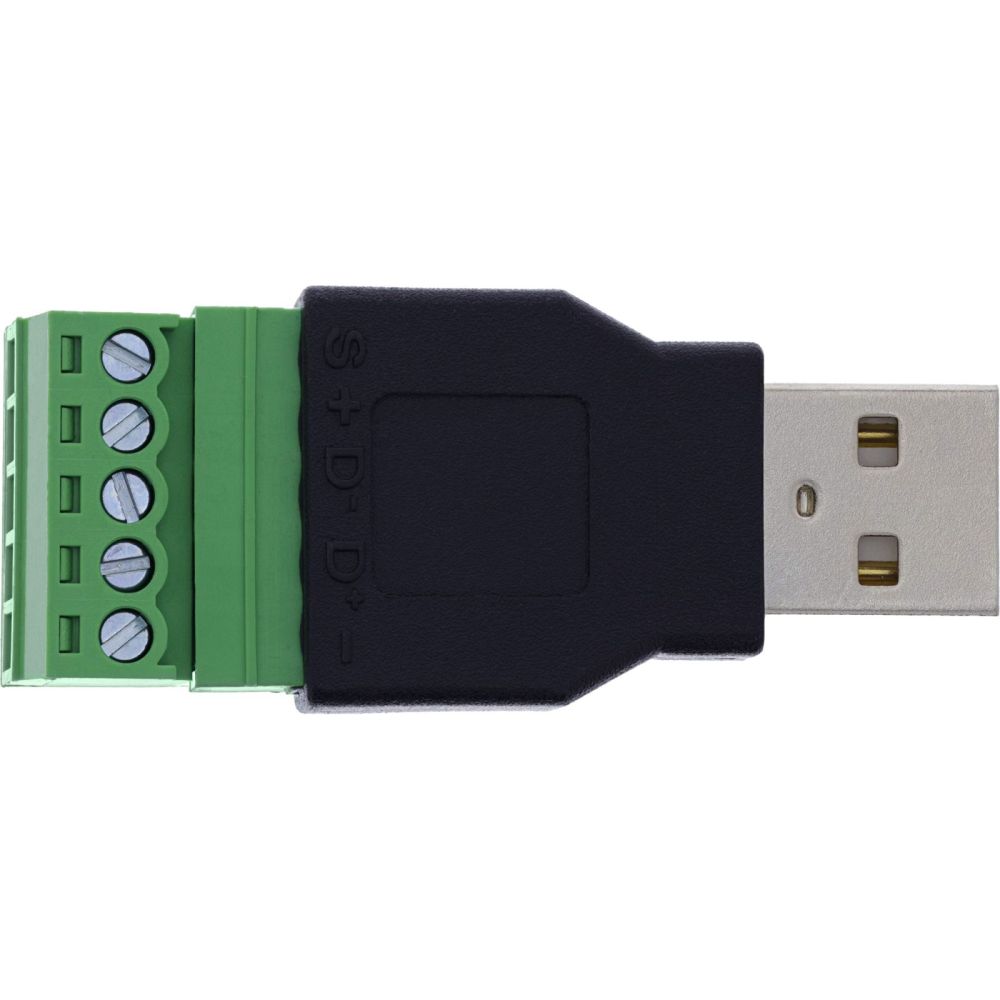

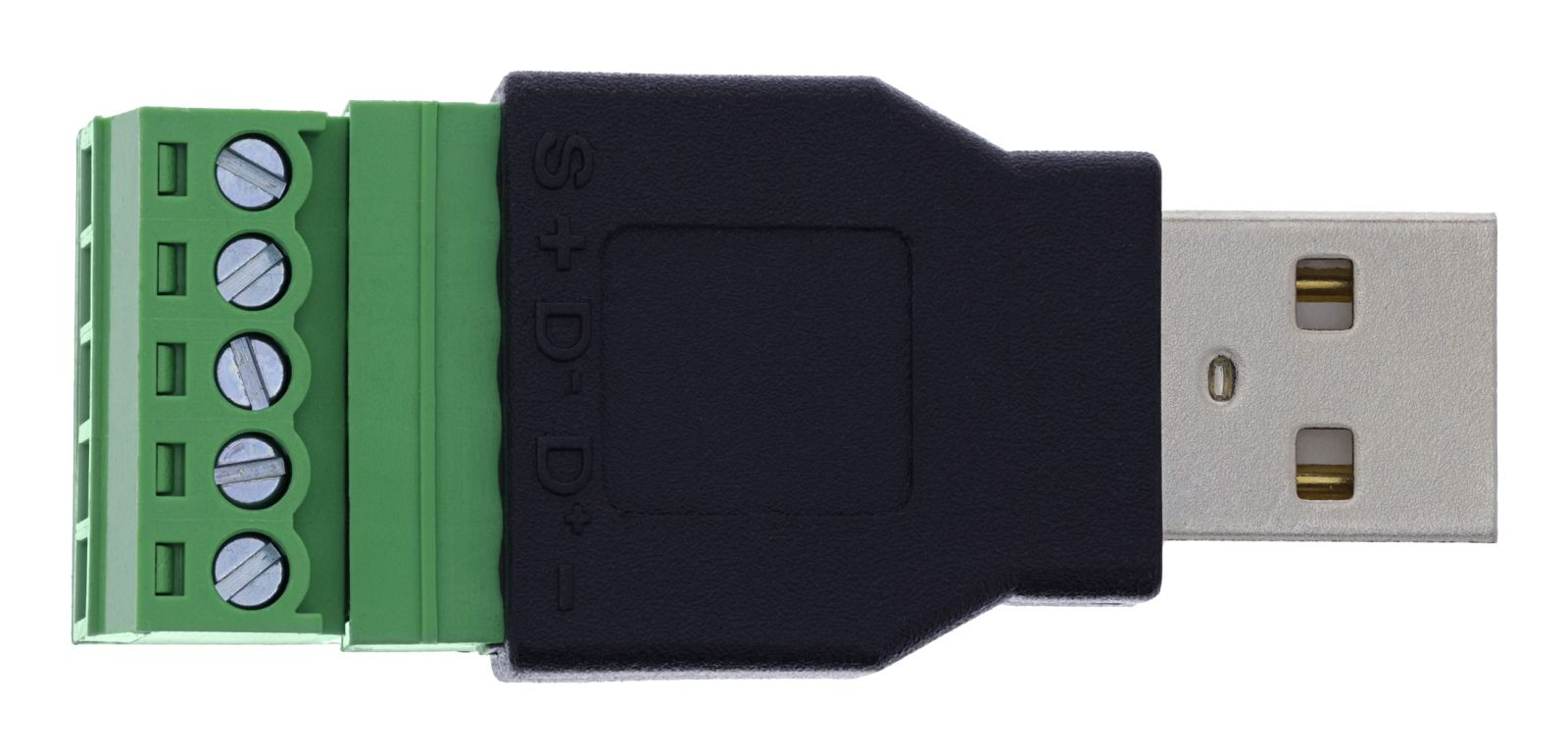

The standard-size USB‑A connector is directly connected to a 5‑pin screw terminal block. The clear labeling of the terminals – 1: Ground (–), 2: D+, 3: D–, 4: Voltage (+), 5: Shield (S) – enables easy and reliable signal assignment. The terminal connections with a 5.0 mm grid dimension support single wires in the 16–26 AWG range.
Wiring is carried out with the aid of a flat-head screwdriver. Thanks to its compact housing, the adapter is particularly space-saving – e.g. in test equipment, mobile measuring stations, or in laboratories.
USB interface: USB‑A 2.0, plug
Number of pins / assignment: 5 terminals / 1: – / 2: D+ / 3: D– / 4: + / 5: S
Connection technology: Screw terminal with pressure plate, 5.0 mm pitch
Connection range: 16–26 AWG
Actuation: With flat-blade screwdriver ≤ 2.5 mm
Rated current: 0.7 A per pin
USB operating voltage (VBUS): 5 V DC
Test voltage (insulation resistance): 300 V AC / 1 minute
Insulation resistance: ≥ 10 MΩ @ 300 V DC
Operating temperature: –20 °C to +105 °C
Insulation layer: EVA insulation on underside
Dimensions: approx. 50 × 21.2 × 18.4 mm (L × W × H)

Certificates
Compliance certificates	RoHS, TÜV mark
Features
Connector(s)	USB-A / Terminal block, 5-pin
Connector gender	Male/Female
Connector form factor	Straight
Product colour	Black, Green
AWG wire size	26/16
Dielectric strength	300 V
Contact resistance	10 mΩ
Current	0.7 A
Logistics data
Country of origin	Taiwan
Operational conditions
Operating temperature (T-T)	-20 - 105 °C
Packaging data
Quantity per pack	1 pc(s)
Package width	70 mm
Package depth	135 mm
Package height	12 mm
Package weight	13 g
Package volume	100 cm³
Package type	Polybag
Technical data
Article length	5.00cm
Net weight	0.011kg
Side A	USB-A male
Packaging volume	0.0001m³
Variant	Without cable
Width packaging	0.070m
Article width	2.10cm
Height packaging	0.012m
Weight	0.013kg
Length packaging	0.135m
Article height	1.40cm
Weight & dimensions
Dimensions (WxDxH)	21 x 50 x 14 mm
Weight	11 g
Width	21 mm
Depth	50 mm
Height	14 mm

---
