InLine® D-Sub 37 terminal block, connector, 2-row, screw terminal, lateral content_copy

Time savings during installation: Quick wiring via 37 side-mounted screw terminals for 18–26 AWG – tool-assisted with flat-blade screwdriver ≤ 2.5 mm.
Stable connection thanks to screw lock: The D-Sub 37 connector is equipped with a mounting thread (UNC #4-40) and enables secure mechanical fastening with matching sockets – vibration-proof and durable.
Versatile use in industry: Ideal for signal distribution, test stations, control units, or temporary measurement systems with high connection density.
Side-mounted terminal strip: The connections are positioned next to each other – ideal for limited depth and many signal wires on one level.
High signal quality: An insulation resistance ≥ 10 MΩ at 300 V DC and a rated current of 0.8 A per pin ensure reliable signal transmission – even under continuous load.

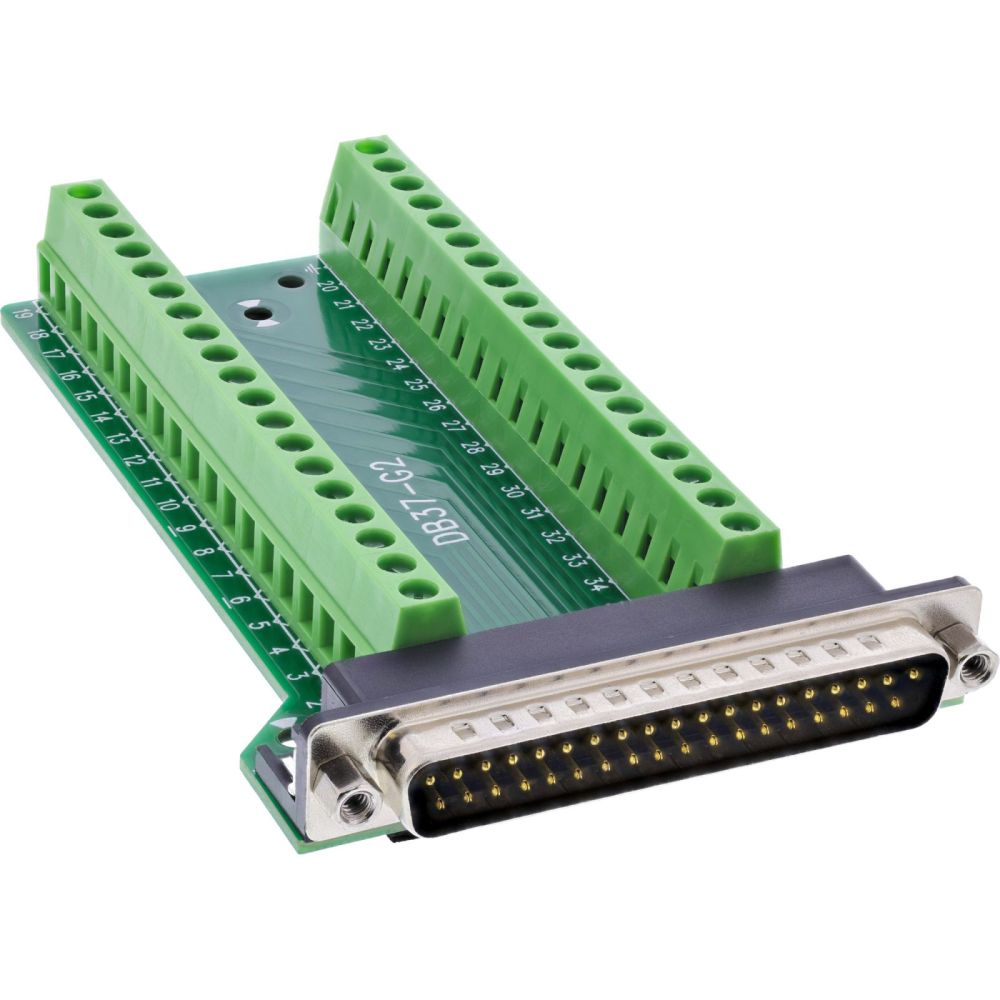

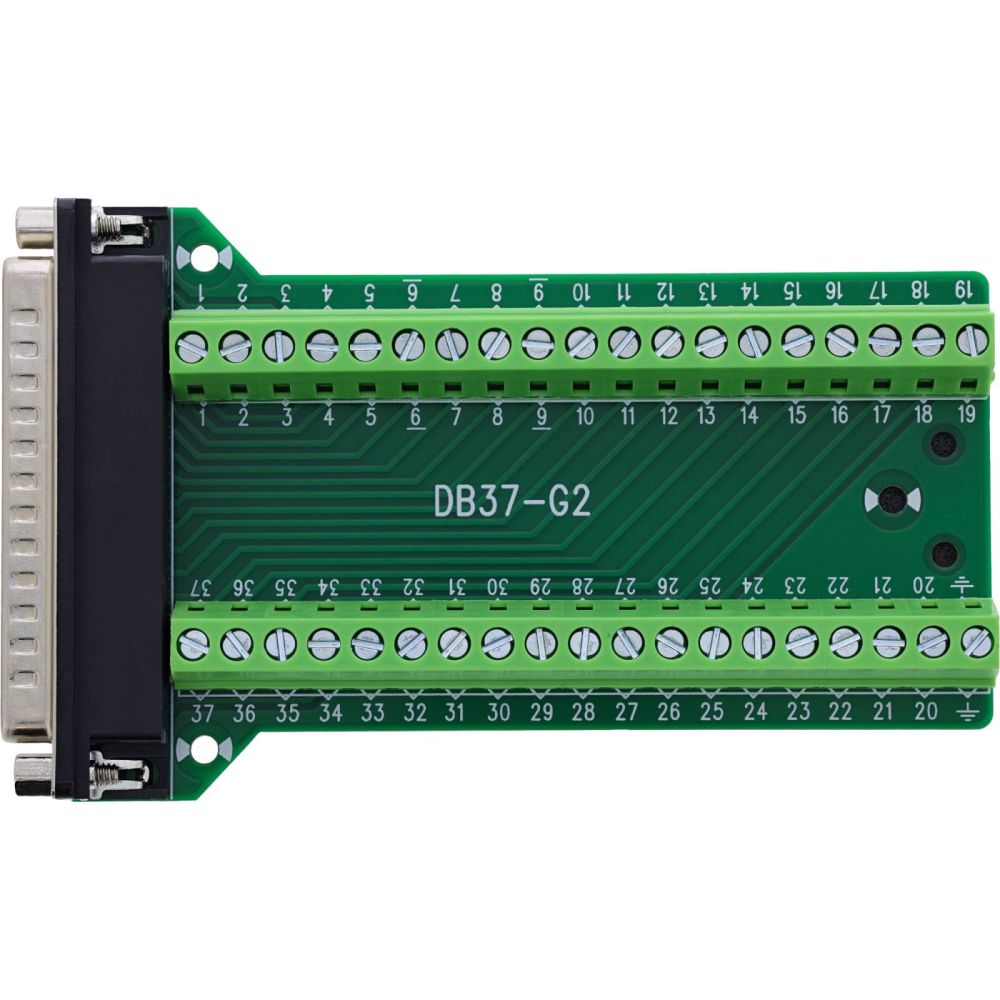

The InLine® D-Sub 37 terminal block with connector is designed for professional signal wiring in laboratory, service, or machine environments. The side-mounted screw terminals with pressure plate enable quick connection of single wires in the 18–26 AWG range without soldering. Operation is performed with a flat-blade screwdriver ≤ 2.5 mm.
The robust screw lock (UNC #4-40) ensures a secure connection to the opposite end. The wide 2-row layout is ideal for applications with many individual signals in a confined space – e.g., signal distributors, adapters, or measuring devices in control cabinets or test areas.
D-Sub 37 connector: 2-row, with mounting thread for connector locking (UNC #4-40)
Connection technology: Screw terminal with pressure plate (side-mounted)
Connection range: 18–26 AWG
Actuation: With flat-blade screwdriver ≤ 2.5 mm
Rated current: 0.8 A per pin
Max. operating voltage: 70 V between two signals
Insulation resistance: ≥ 10 MΩ @ 300 V DC
Operating temperature: –20 °C to +70 °C
Insulation layer: EVA insulation on underside
Dimensions: approx. 115.2 × 70 × 43 mm (L × H × D)

Certificates
Compliance certificates	RoHS, TÜV mark
Features
Connector(s)	Terminal block / D-Sub 37
Connector gender	Male/Female
Product colour	Black, Green
AWG wire size	26/18
Dielectric strength	300 V
Contact resistance	10 mΩ
Voltage	70 V
Current	0.8 A
Logistics data
Country of origin	Taiwan
Operational conditions
Operating temperature (T-T)	-20 - 70 °C
Packaging data
Quantity per pack	1 pc(s)
Package width	100 mm
Package depth	165 mm
Package height	18 mm
Package weight	86 g
Package volume	100 cm³
Package type	Polybag
Technical data
Weight	0.086kg
Height packaging	0.018m
Packaging volume	0.0001m³
Side A	D-Sub 37 plug
Article length	11.50cm
Net weight	0.083kg
Length packaging	0.165m
Article width	7.00cm
Width packaging	0.100m
Article height	1.80cm
Weight & dimensions
Dimensions (WxDxH)	70 x 115 x 18 mm
Weight	83 g
Width	70 mm
Depth	115 mm
Height	18 mm

---
