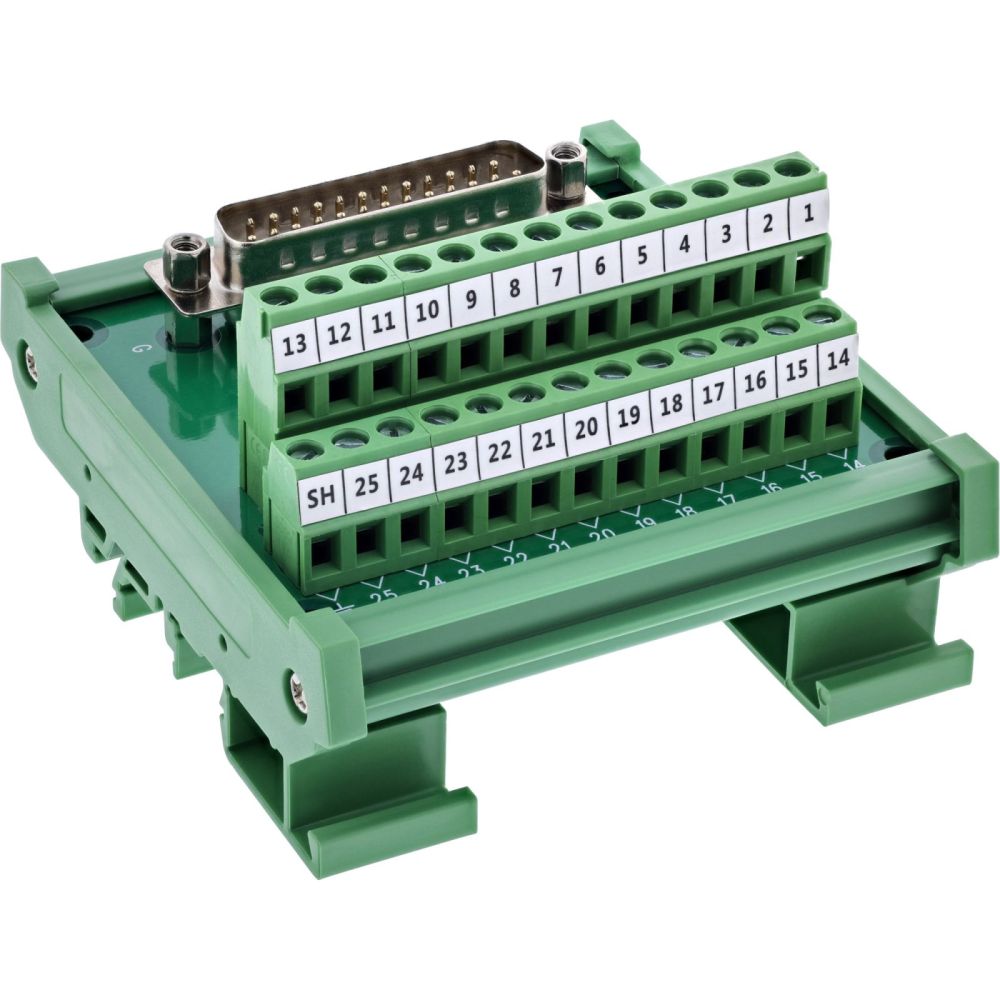

InLine® D-Sub 25 terminal block, plug, screw terminal, top-hat rail, numbered content_copy

Time savings during installation: Quick wiring via screw terminals for 18–26 AWG – tool-assisted with flat-head screwdriver ≤ 2.5 mm.
Stable connection thanks to screw lock: The 2-row D-Sub-25 connector is equipped with a mounting thread (UNC #4-40) and enables secure mechanical fixation with matching sockets.
Standard-compliant DIN rail mounting: The robust DIN rail housing allows direct mounting on mounting rails – saving time, ensuring safety, and saving space in the control cabinet.

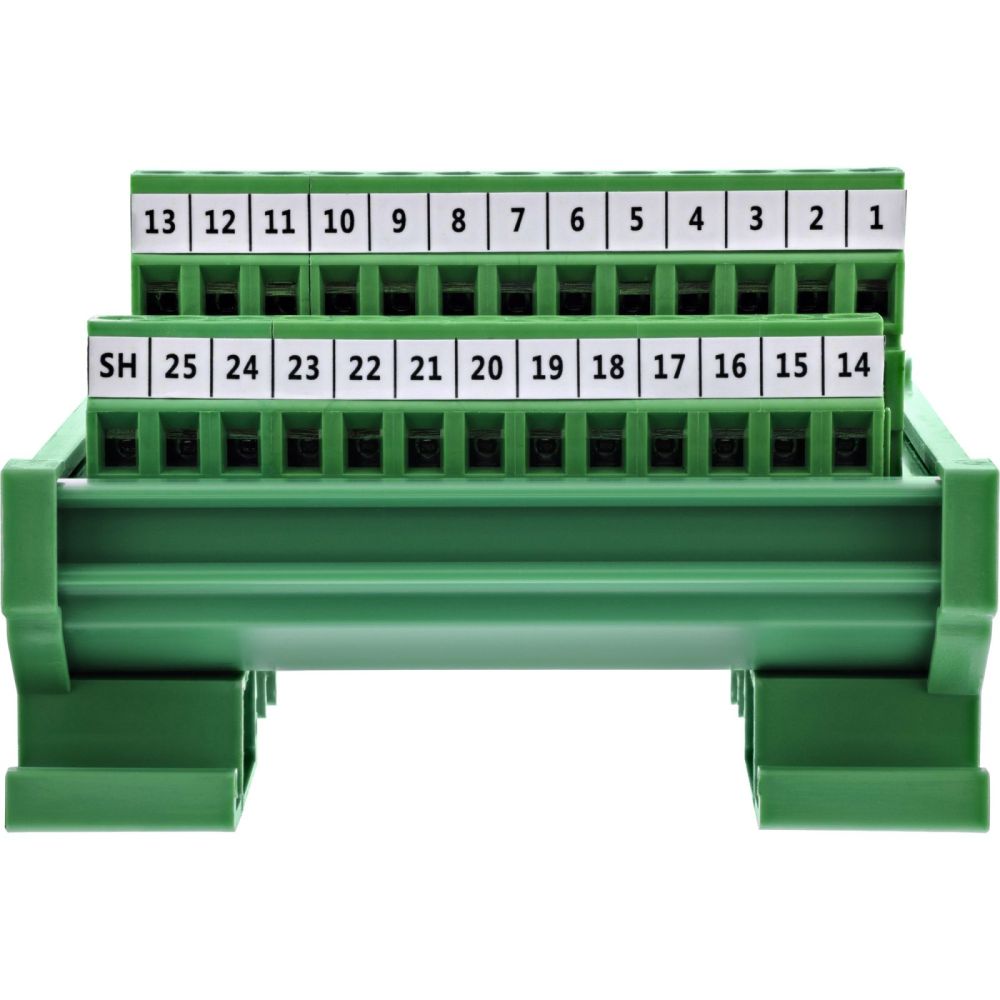

Clear terminal strip thanks to numbering: Each of the 25 terminal connections is clearly numbered – ideal for structured wiring, troubleshooting, or temporary test setups.
High signal quality: An insulation resistance of ≥ 10 MΩ at 300 V DC and a rated current of 0.7 A per pin ensure reliable signal transmission – even under continuous load.
The InLine® D‑Sub 25 terminal block with connector in a 2-row design is specially designed for structured installations on DIN rails. The screw terminals with pressure plate enable quick and secure connection of single wires in the 18–26 AWG range – tool-assisted with a flat-head screwdriver ≤ 2.5 mm.
The integrated screw lock (UNC #4-40) ensures a vibration-proof connection to matching sockets. The compact housing with integrated DIN rail clip is ideal for control, test, and distribution applications. The numbered terminal positions greatly facilitate service, documentation, and rewiring.

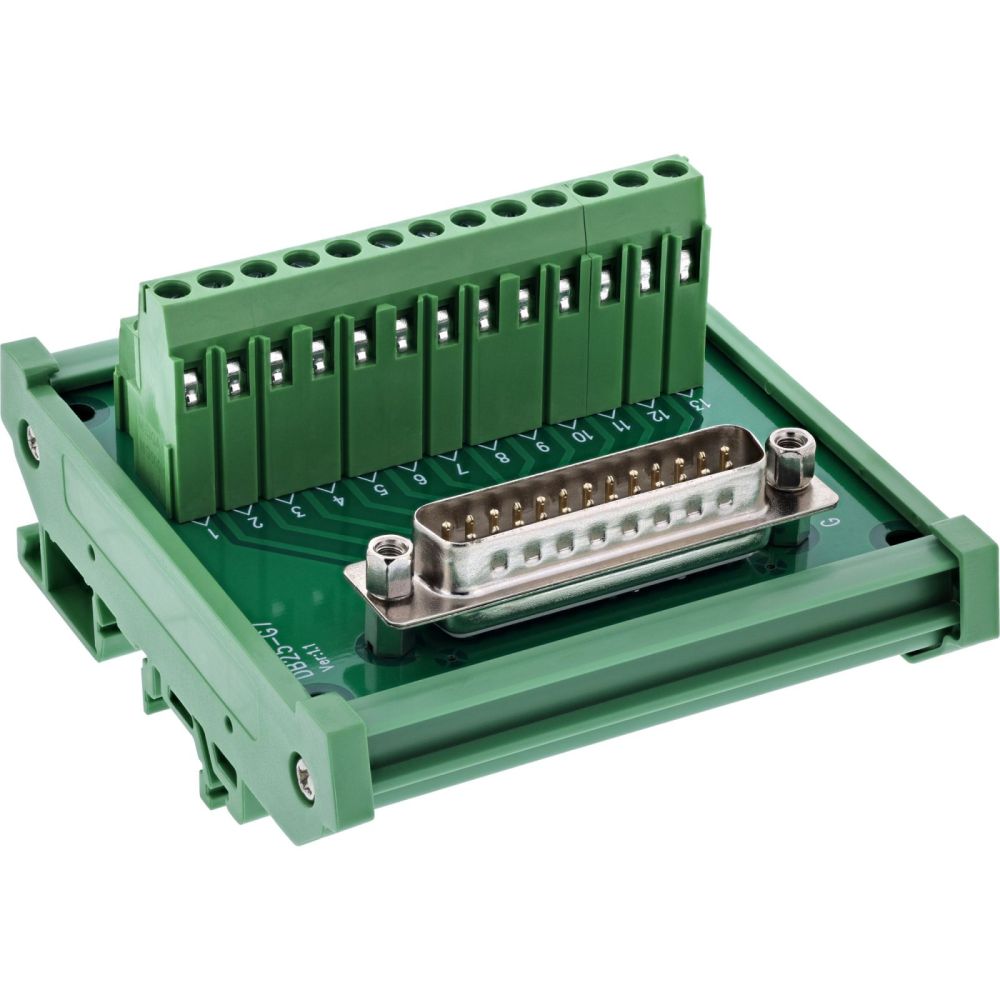

D-Sub 25 connector: 2-row, with mounting thread for connector locking (UNC #4-40)

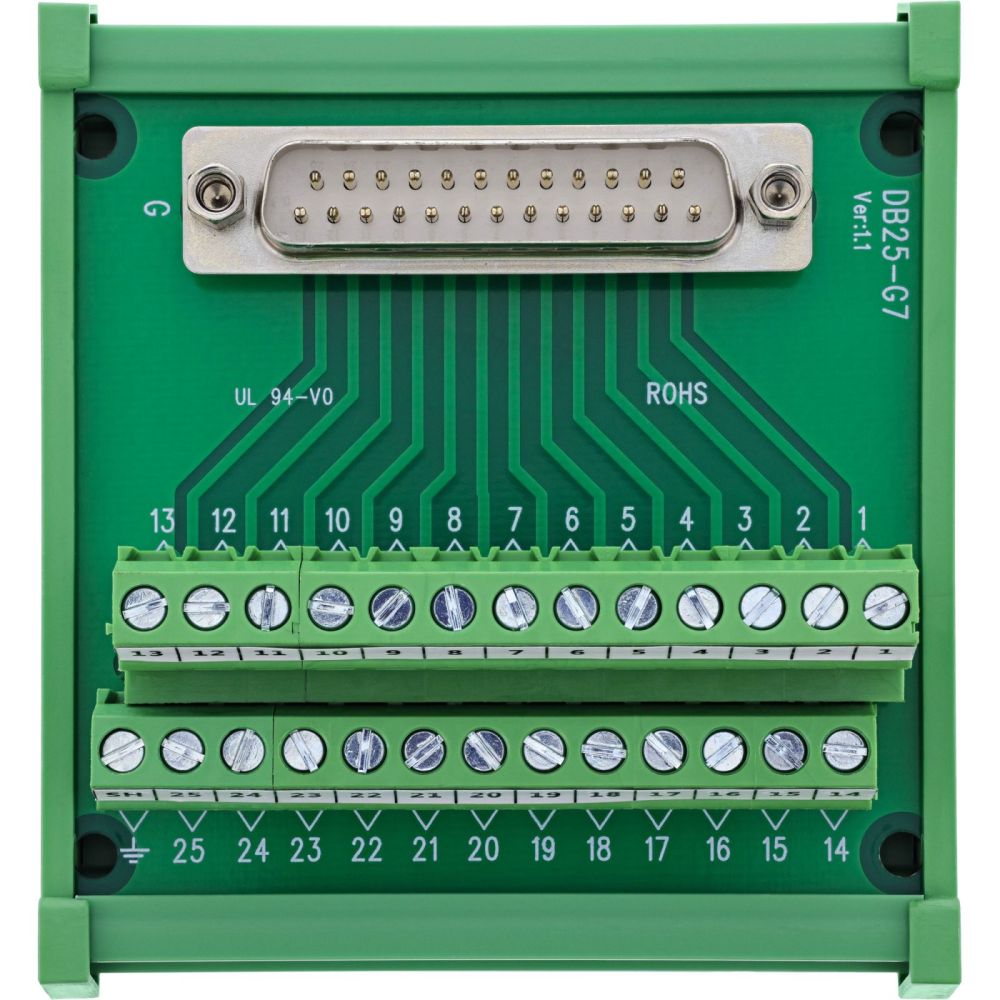

Connection technology: Screw terminal with pressure plate, numbered
Connection range: 18–26 AWG
Actuation: With flat-blade screwdriver ≤ 2.5 mm
Rated current: 0.7 A per pin
Max. operating voltage: 100 V between two signals
Insulation resistance: ≥ 10 MΩ @ 300 V DC
Operating temperature: –20 °C to +105 °C
Insulation layer: EVA insulation on underside

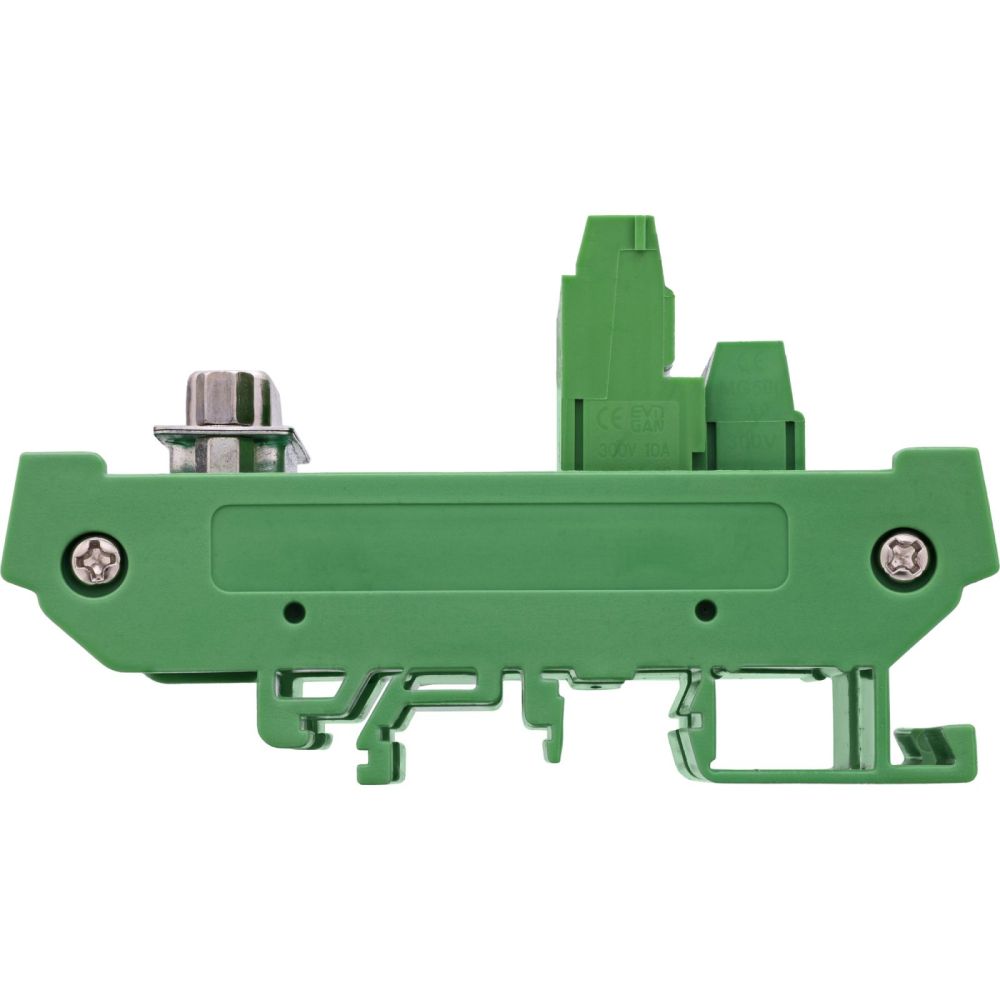

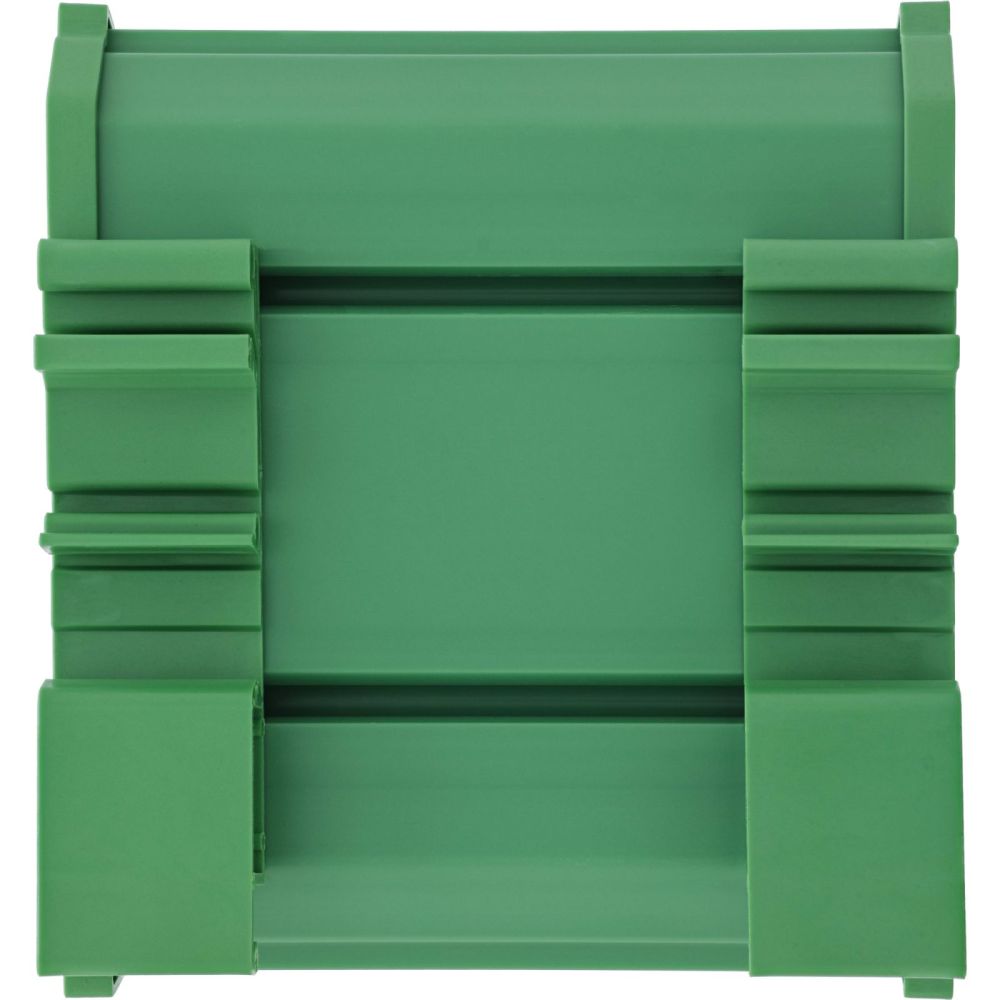

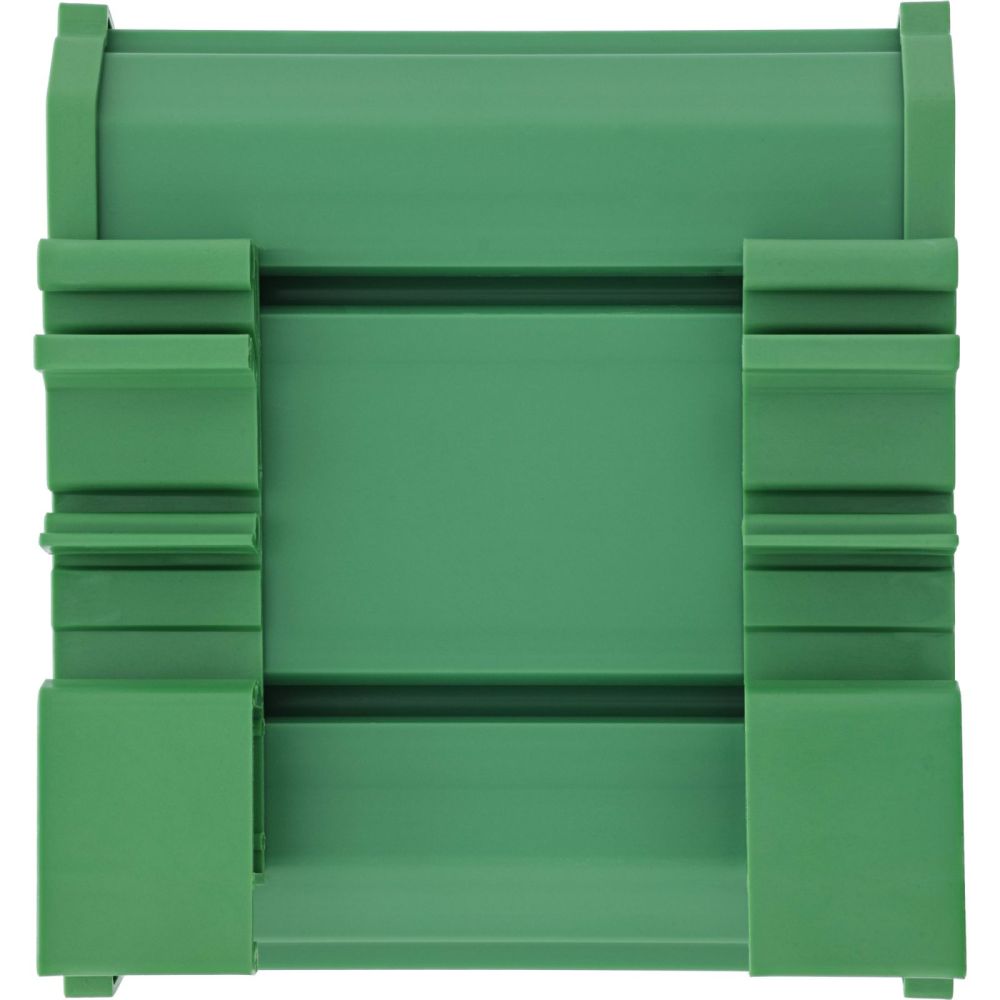

Mounting: Housing for direct mounting on DIN rail
Dimensions: approx. 87 × 79 × 51 mm (H × W × D)

Certificates
Compliance certificates	RoHS, TÜV mark
Features
Connector(s)	Terminal block / D-Sub 25
Connector gender	Female/Female
Product colour	Green
AWG wire size	26/18
Dielectric strength	300 V
Contact resistance	10 mΩ
Voltage	100 V
Current	0.7 A
Logistics data
Country of origin	Taiwan
Operational conditions
Operating temperature (T-T)	-20 - 105 °C
Packaging data
Quantity per pack	1 pc(s)
Package width	95 mm
Package depth	125 mm
Package height	55 mm
Package weight	180 g
Package volume	100 cm³
Package type	Polybag
Technical data
Length packaging	0.125m
Side A	D-Sub 25 plug
Article height	5.10cm
Article length	8.70cm
Height packaging	0.055m
Net weight	0.134kg
Weight	0.180kg
Width packaging	0.095m
Article width	7.90cm
Packaging volume	0.0001m³
Type	For top-hat rail
Weight & dimensions
Dimensions (WxDxH)	79 x 87 x 51 mm
Weight	134 g
Width	79 mm
Depth	87 mm
Height	51 mm

---
