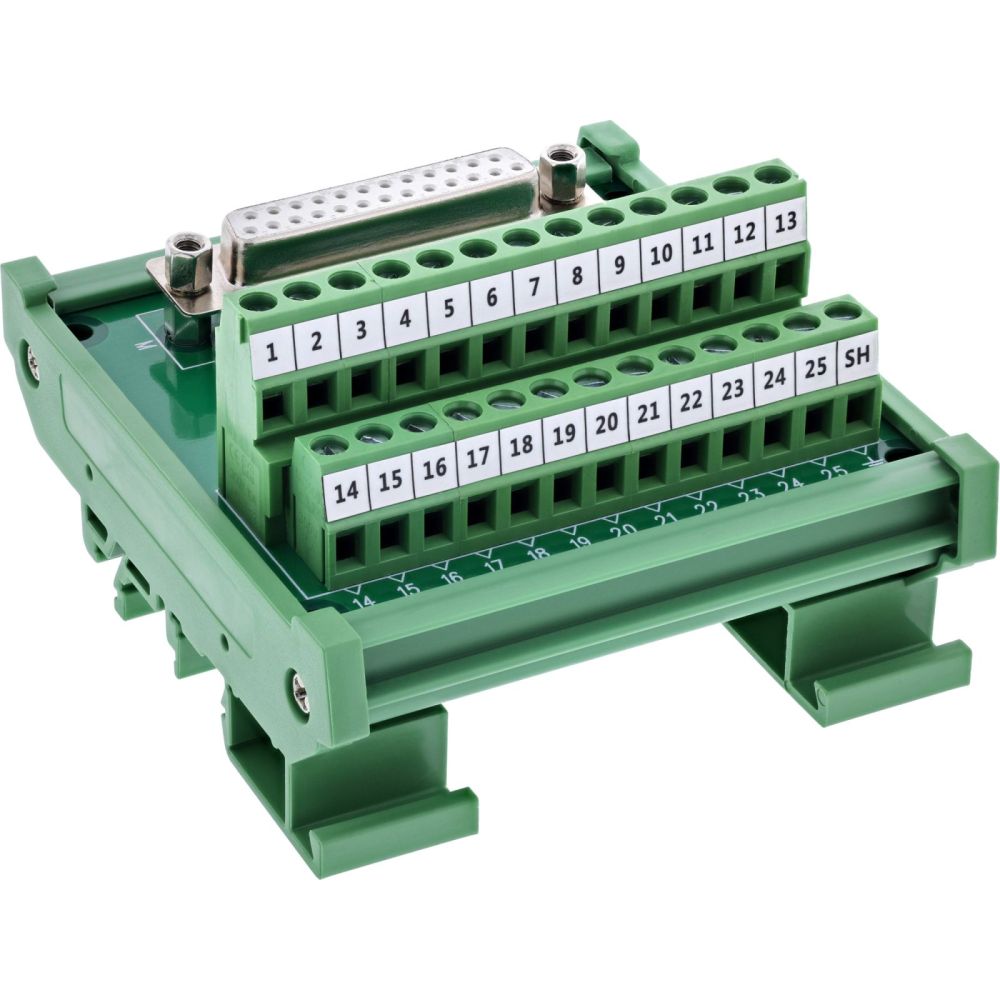

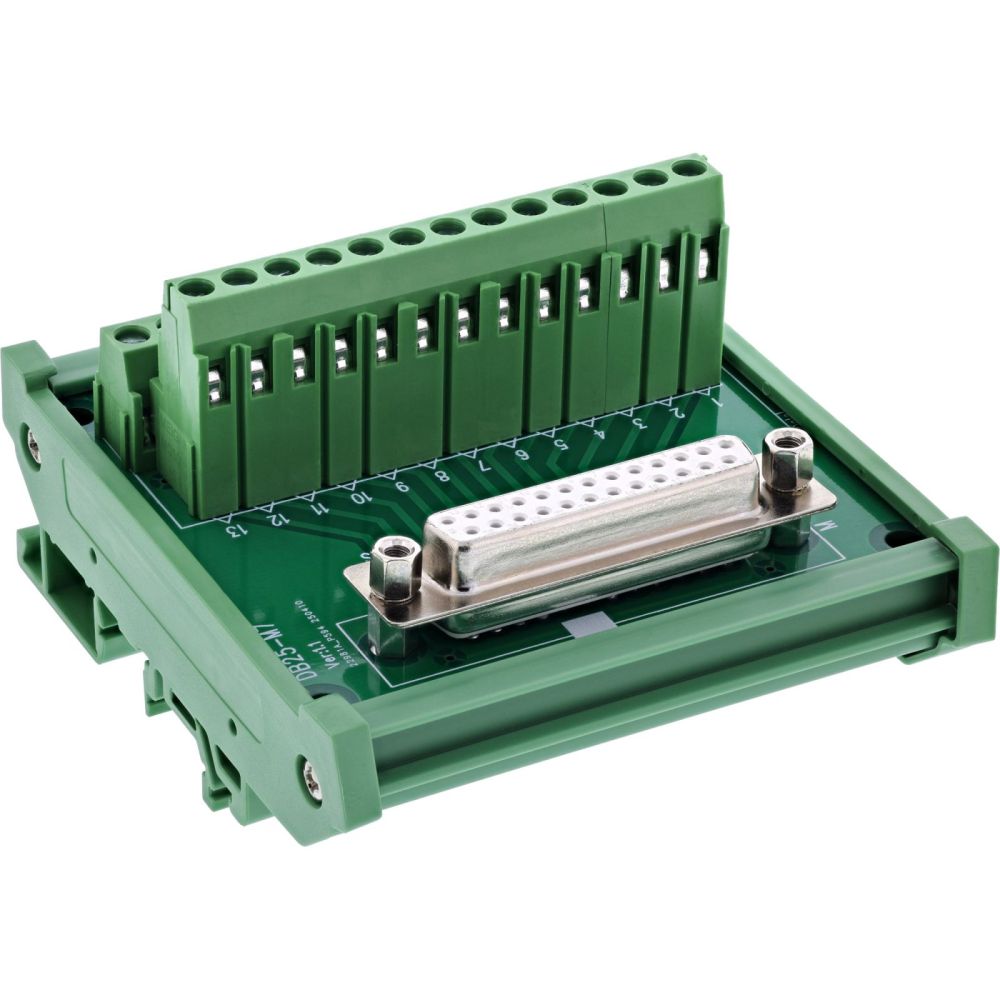

InLine® D-Sub 25 terminal block, socket, screw terminal, for top-hat rail content_copy

Time savings during installation: Quick wiring via screw terminals for 18–26 AWG – tool-assisted with flat-head screwdriver ≤ 2.5 mm.
Stable connection thanks to screw lock: The 2-row D-Sub-25 female connector is equipped with a mounting thread (UNC #4-40) and enables secure mechanical fastening with matching plugs.
Versatile use in industry: Ideal for structured wiring in control cabinets, control and automation systems, or signal distribution.
DIN rail mounting for standard-compliant installation: The integrated DIN rail housing enables direct mounting on mounting rails – quickly, securely, and in a space-saving manner.
High signal quality: An insulation resistance of ≥ 10 MΩ at 300 V DC and a rated current of 0.7 A per pin ensure reliable signal transmission – even under continuous load.
The InLine® D-Sub 25 terminal block with female connector in a 2-row design was specially developed for structured installations on DIN rails. The screw terminals with pressure plate enable tool-assisted connection of single wires in the 18–26 AWG range – quickly and securely with a flat-head screwdriver ≤ 2.5 mm.
The socket has an integrated screw lock (UNC #4-40) for secure connection with matching D-Sub plugs. The pre-assembled DIN rail housing facilitates installation in control cabinets and on mounting rails. The compact design and robust construction make the connection block the ideal choice for industrial applications with high signal density.

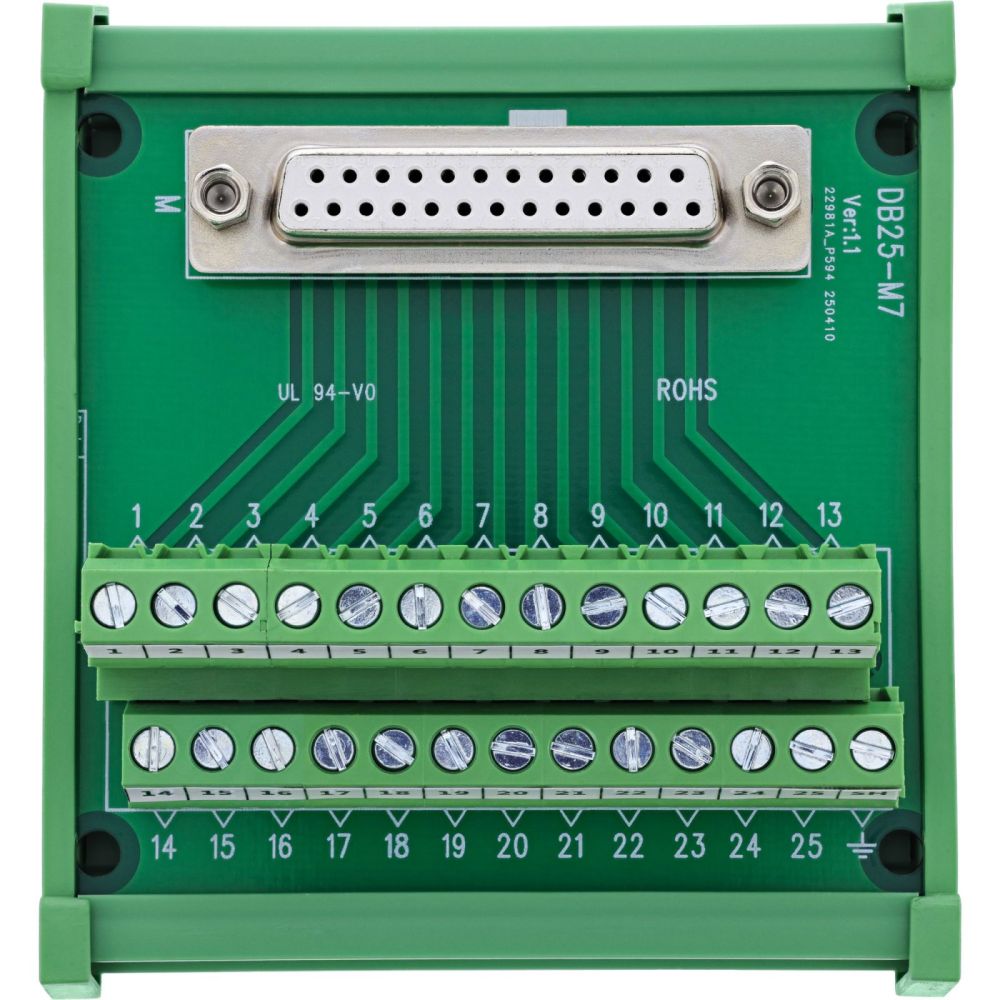

D-Sub 25 female connector: 2-row, with mounting thread for plug locking (UNC #4-40)

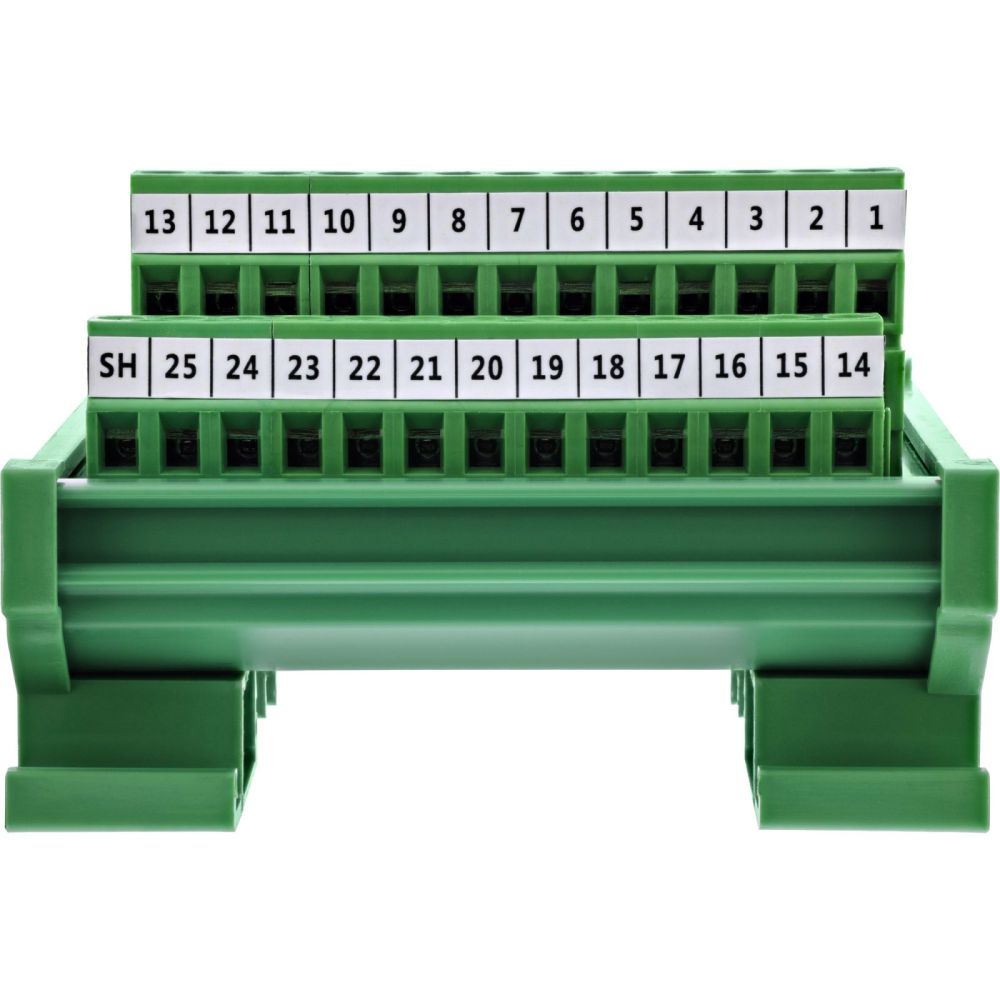

Connection technology: Screw terminal with pressure plate
Connection range: 18–26 AWG
Actuation: With flat-blade screwdriver ≤ 2.5 mm
Rated current: 0.7 A per pin
Max. operating voltage: 100 V between two signals
Insulation resistance: ≥ 10 MΩ @ 300 V DC
Operating temperature: –20 °C to +105 °C
Insulation layer: EVA insulation on underside

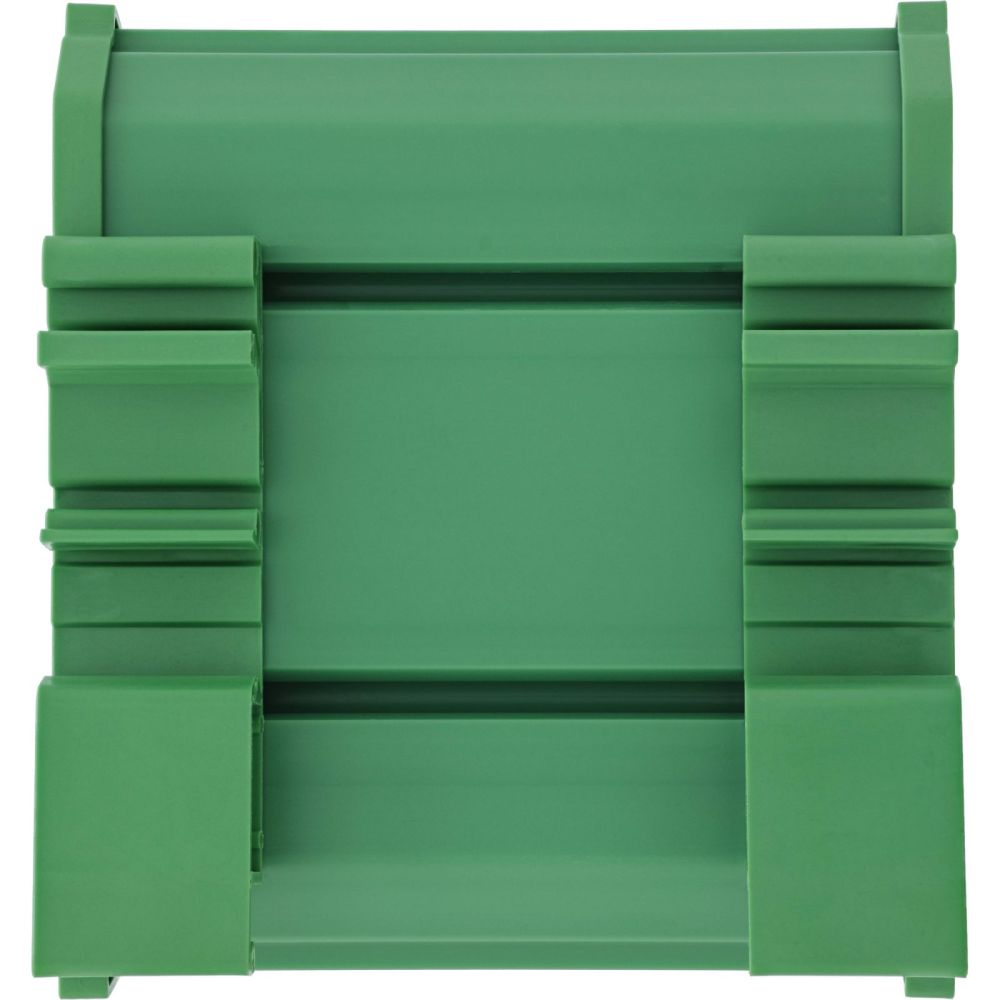

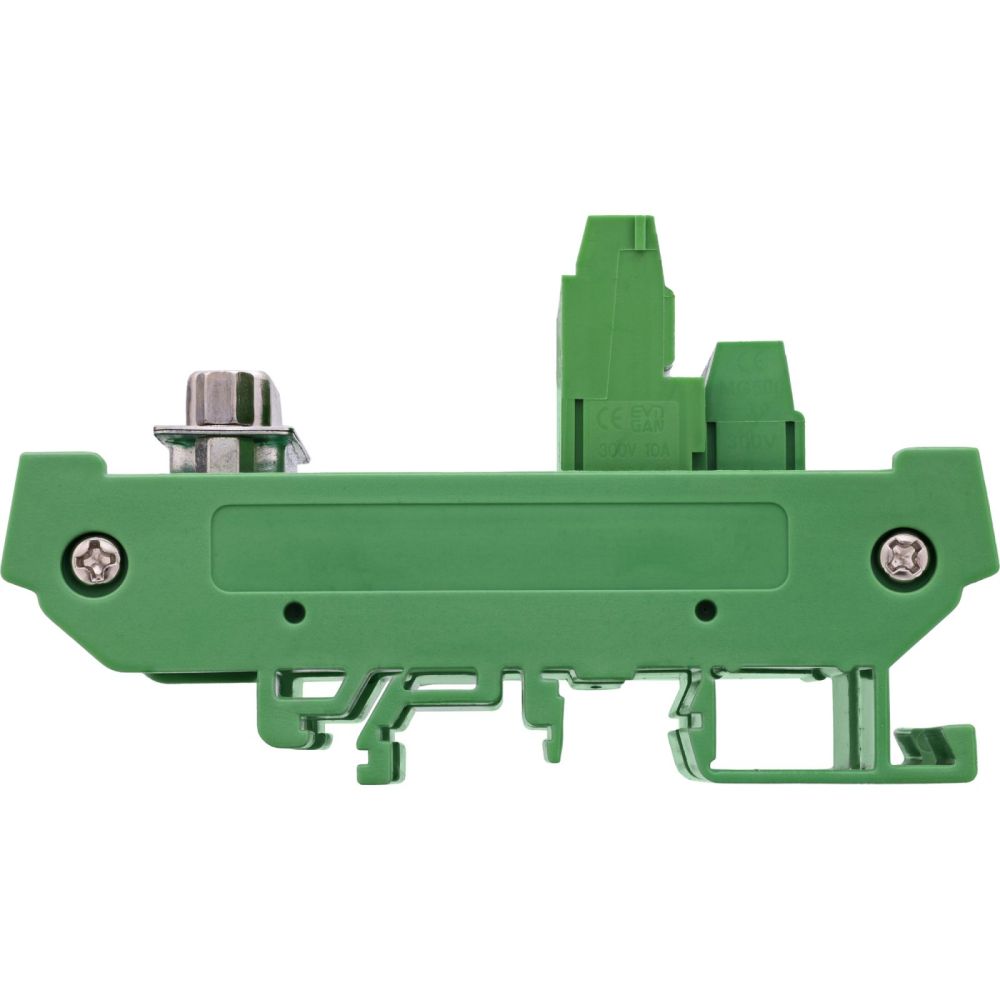

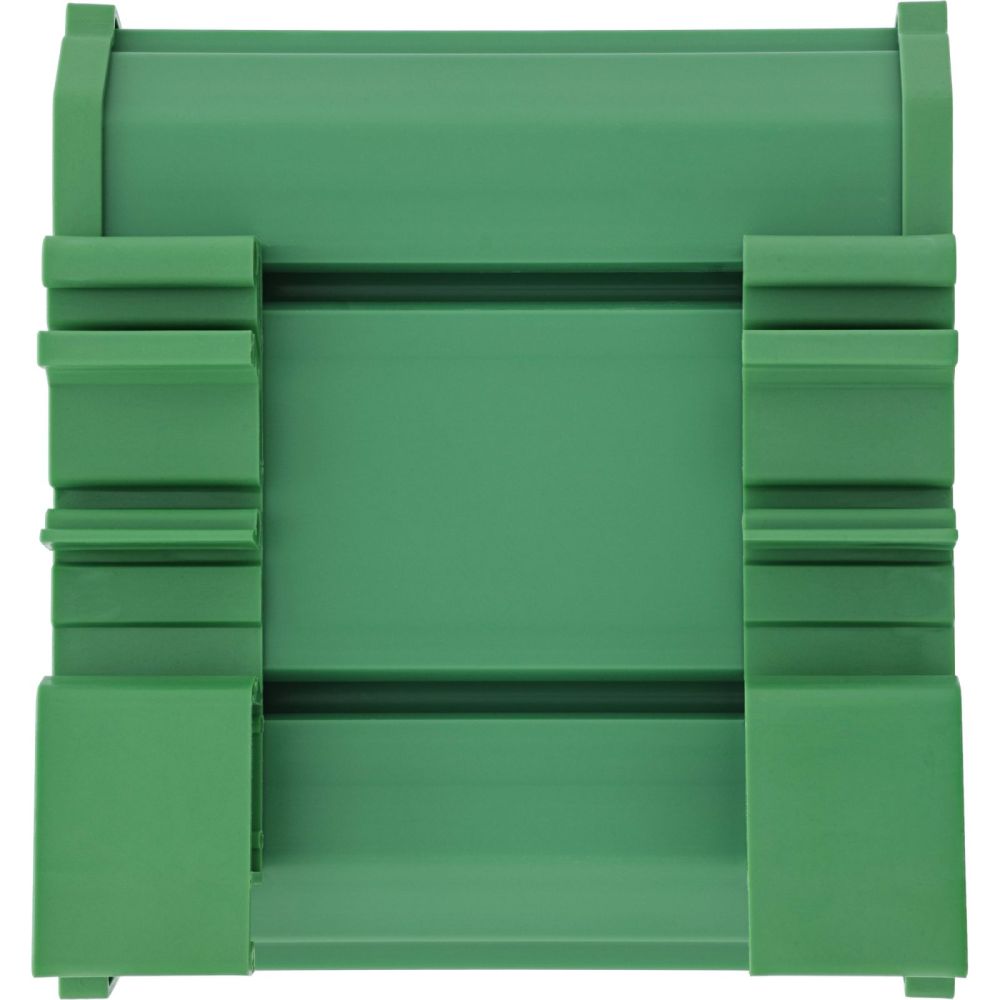

Mounting: Housing for direct mounting on DIN rail
Dimensions: approx. 87 × 79 × 51 mm (H × W × D)

Certificates
Compliance certificates	RoHS, TÜV mark
Features
Connector(s)	Terminal block / D-Sub 25
Connector gender	Male/Female
Product colour	Green
AWG wire size	26/18
Dielectric strength	300 V
Contact resistance	10 mΩ
Voltage	100 V
Current	0.7 A
Logistics data
Country of origin	Taiwan
Operational conditions
Operating temperature (T-T)	-20 - 105 °C
Packaging data
Quantity per pack	1 pc(s)
Package width	95 mm
Package depth	125 mm
Package height	55 mm
Package weight	180 g
Package volume	100 cm³
Package type	Polybag
Technical data
Packaging volume	0.0001m³
Type	For top-hat rail
Height packaging	0.055m
Width packaging	0.095m
Article width	7.90cm
Article height	5.10cm
Length packaging	0.125m
Side A	D-Sub 25 socket
Net weight	0.133kg
Weight	0.180kg
Article length	8.70cm
Weight & dimensions
Dimensions (WxDxH)	79 x 87 x 51 mm
Weight	133 g
Width	79 mm
Depth	87 mm
Height	51 mm

---
