InLine® D-Sub 25 terminal block, plug/socket, screw terminal, for top-hat rail content_copy

Time savings during installation: Quick wiring via screw terminals for 18–26 AWG – tool-assisted with flat-head screwdriver ≤ 2.5 mm.
Dual interface for flexible connection: Equipped with a D-Sub-25 plug and a D-Sub-25 socket – ideal as a compact feed-through or branch point for serial signals.
Versatile industrial use: Suitable for structured wiring in control cabinets, machine control, signal distribution, or test setups.
DIN rail mounting for standard-compliant installation: The integrated DIN rail clip enables direct mounting on mounting rails – quick, workshop-ready, and space-saving.
High signal quality: An insulation resistance of ≥ 10 MΩ at 300 V DC and a rated current of 0.7 A per pin ensure reliable signal transmission – even under continuous load.

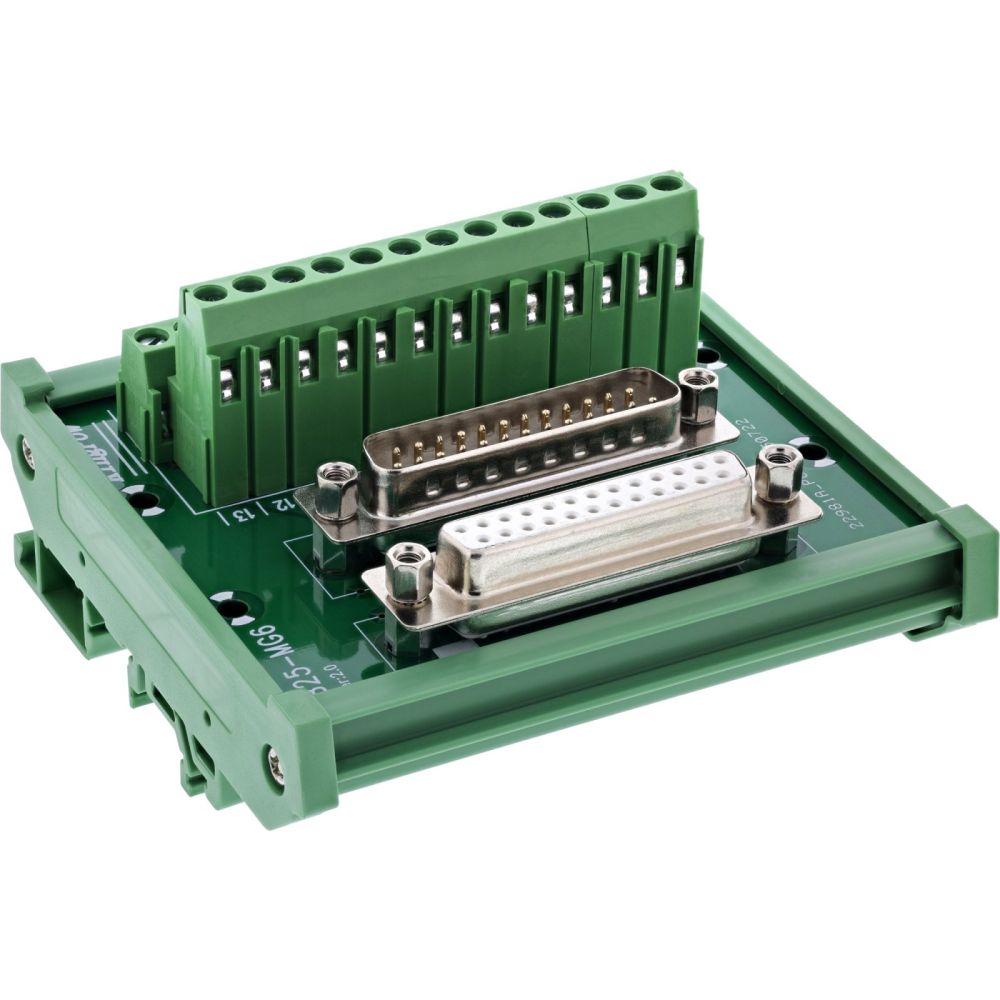

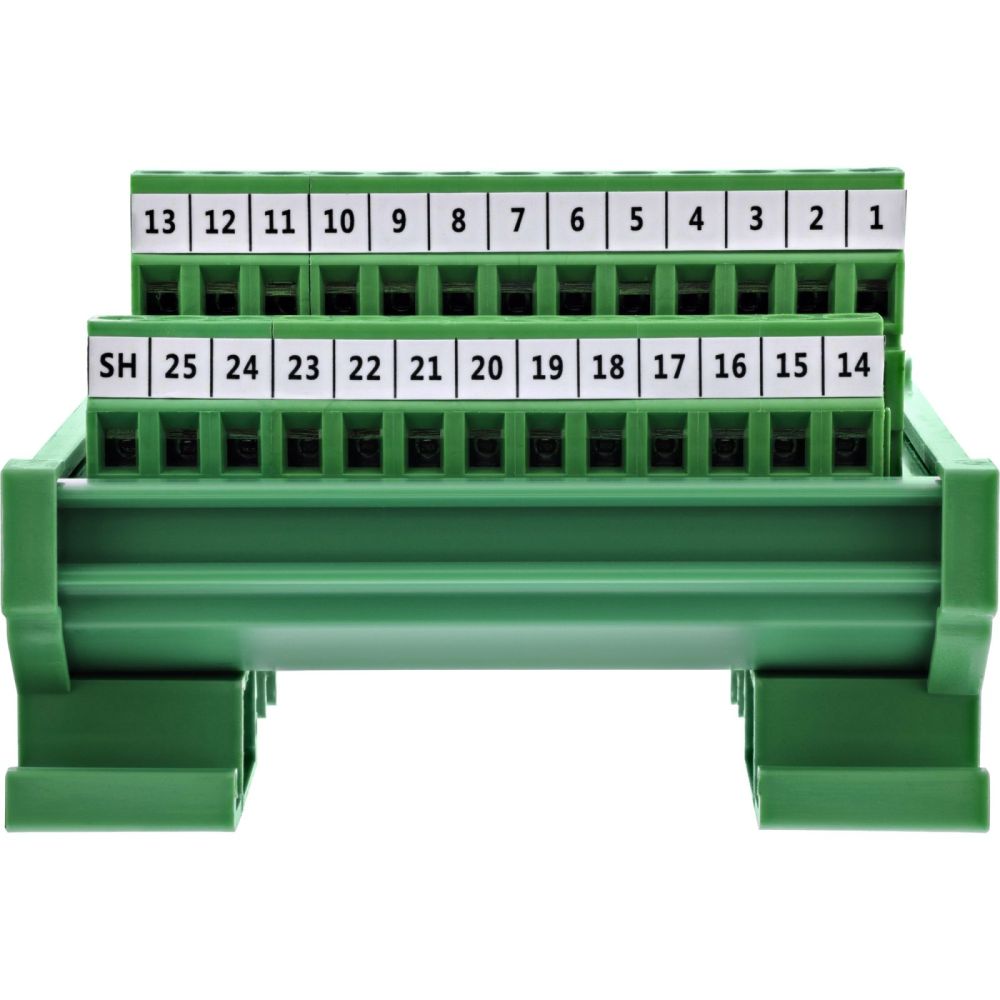

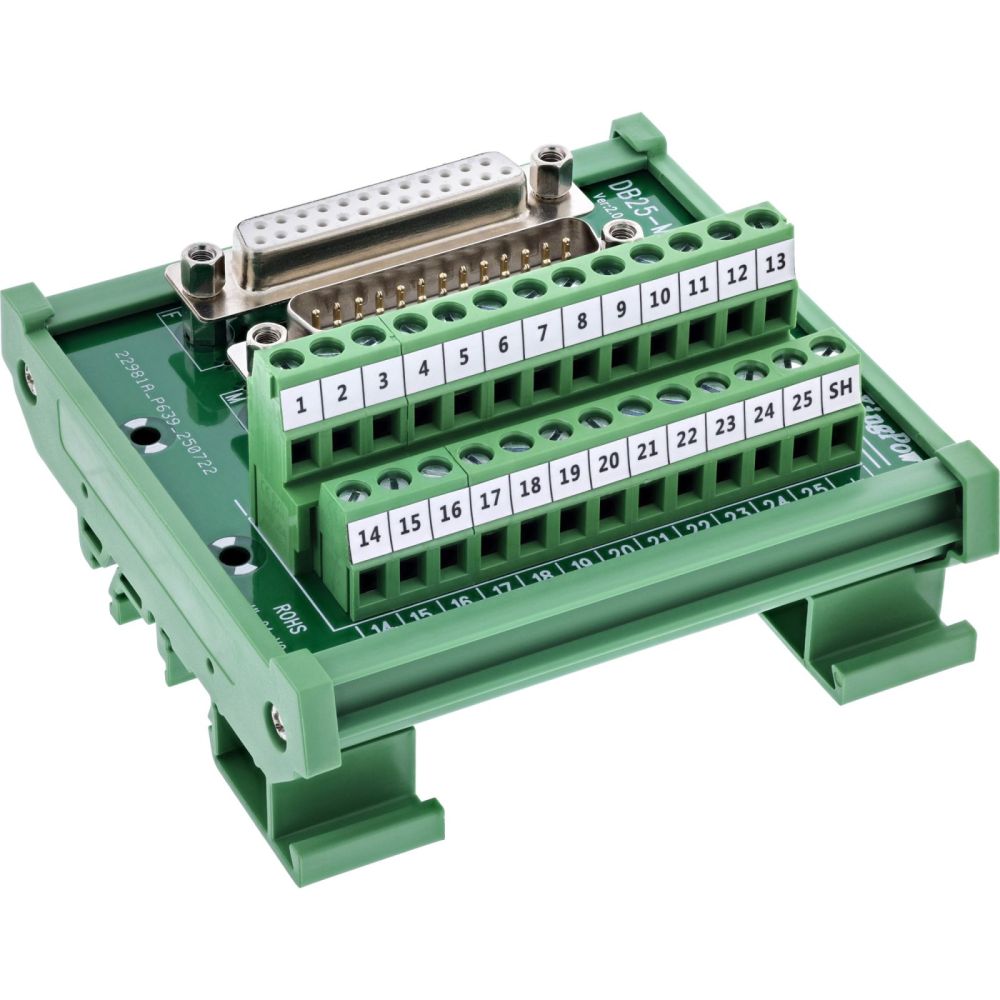

The InLine® D-Sub 25 terminal block with combined socket and plug design is designed for structured signal wiring in industrial applications. It combines two serial D-Sub interfaces (male & female) in a compact module. The side-accessible screw terminals with pressure plate allow the connection of wires in the range of 18–26 AWG – tool-assisted with a flat-head screwdriver ≤ 2.5 mm.

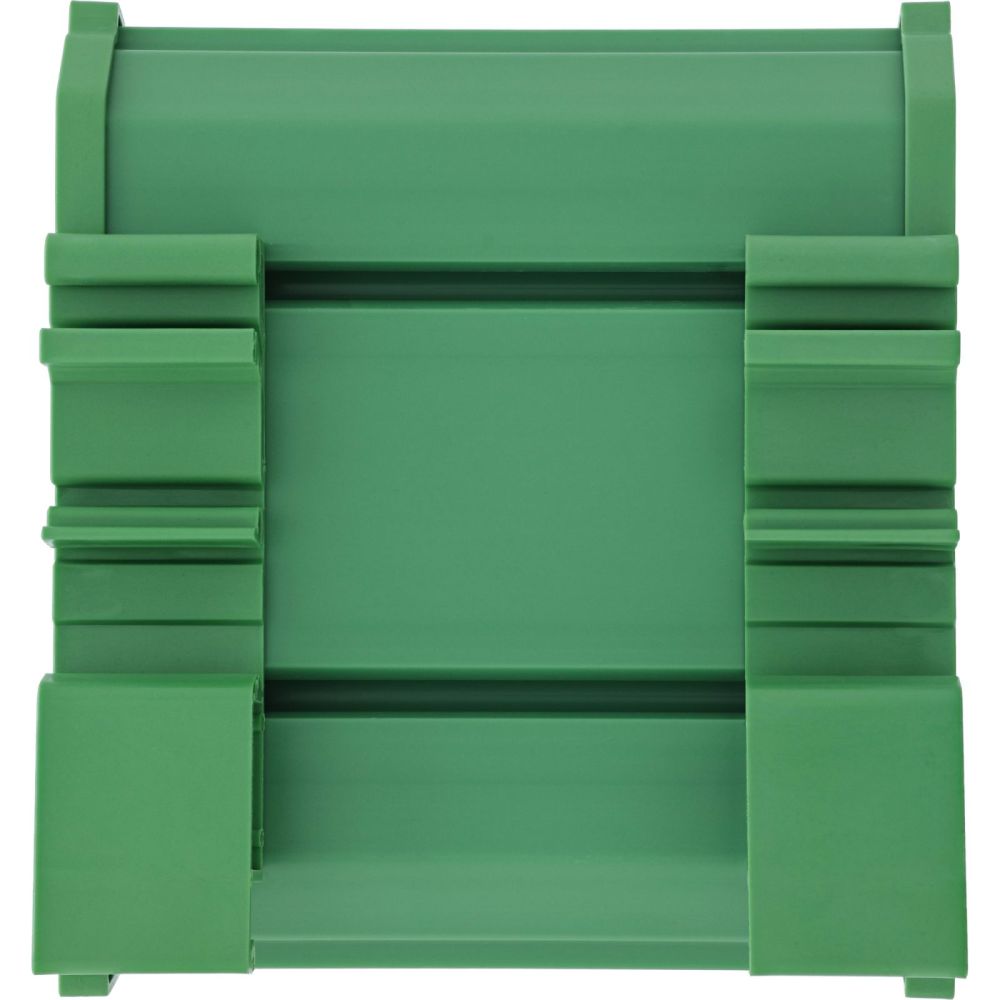

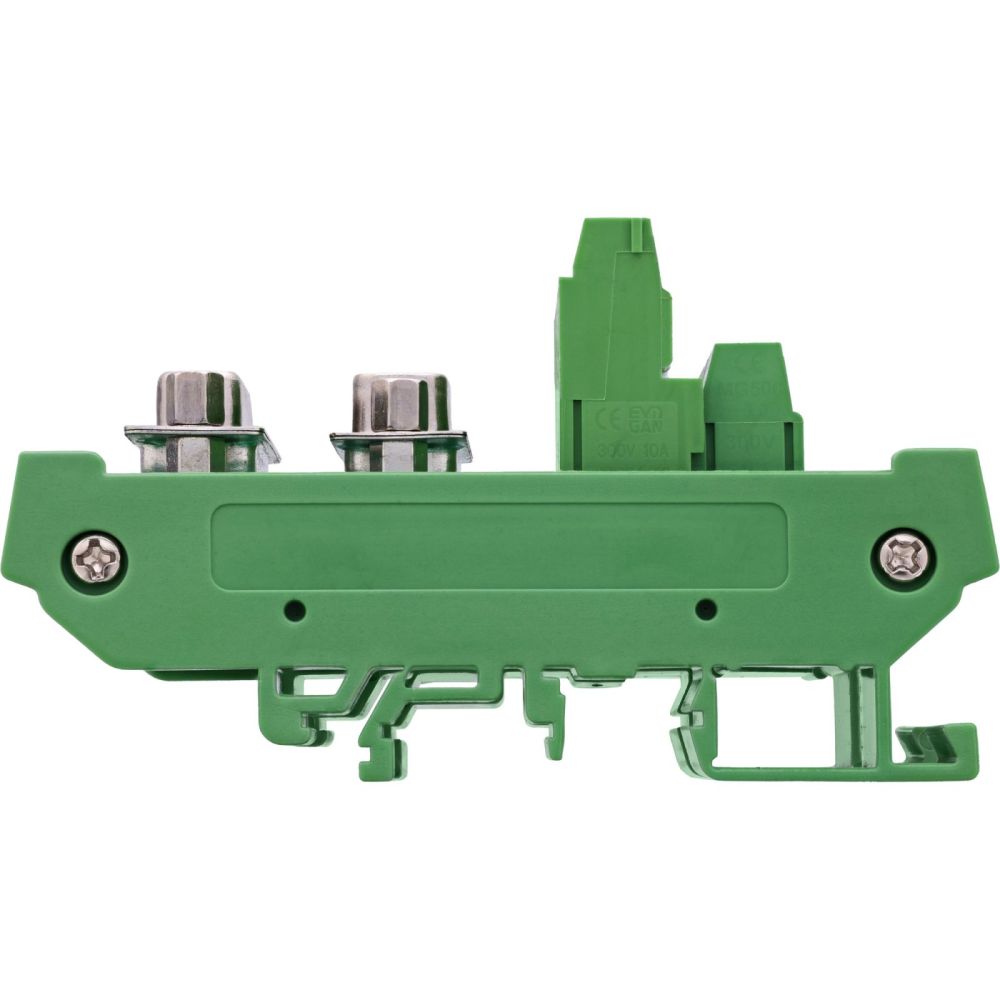

The robust plastic housing with pre-mounted DIN rail clip is suitable for quick mounting on top-hat rails. An EVA insulating layer provides protection when mounting on conductive surfaces. Ideal for control technology, prototyping, test stations, or handover solutions.

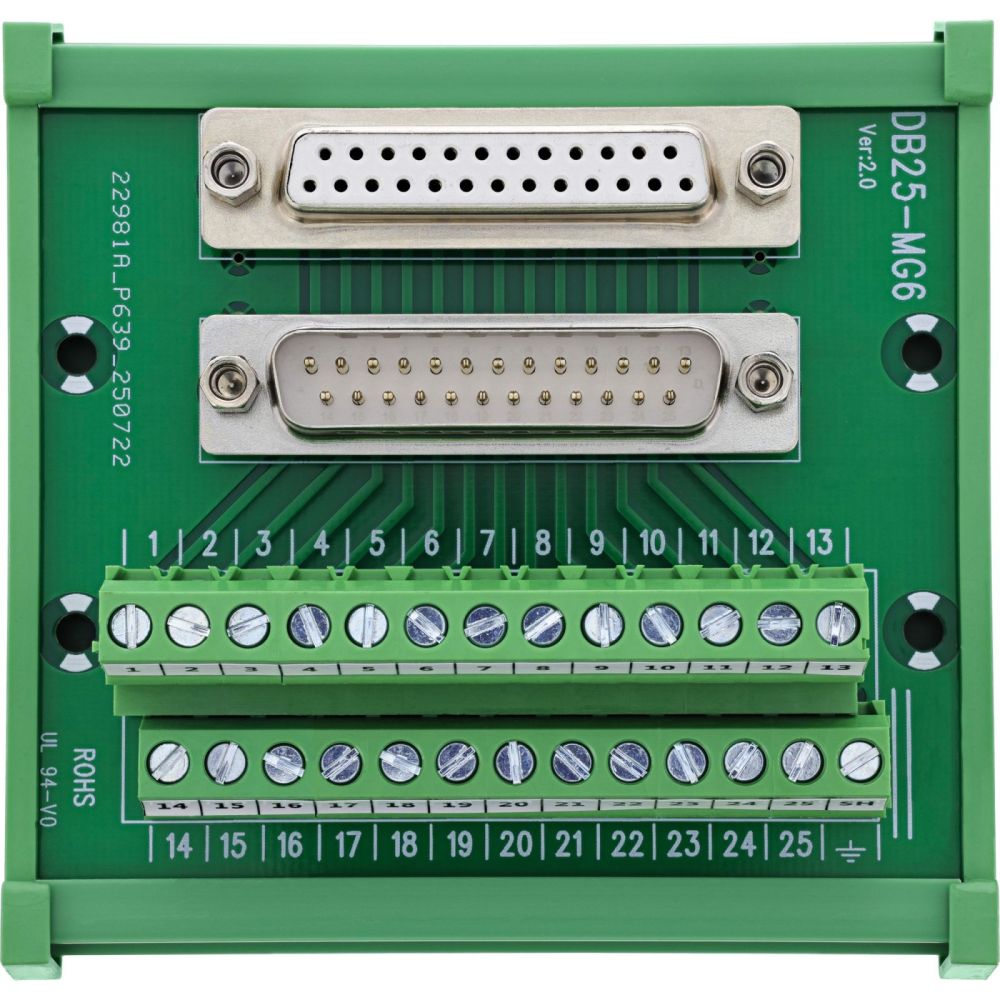

D-Sub 25 interfaces: 1× female connector, 1× male connector, with mounting threads (UNC #4-40)
Connection technology: Screw terminal with pressure plate
Connection range: 18–26 AWG
Actuation: With flat-blade screwdriver ≤ 2.5 mm
Rated current: 0.7 A per pin
Max. operating voltage: 100 V between two signals
Insulation resistance: ≥ 10 MΩ @ 300 V DC
Operating temperature: –20 °C to +105 °C
Insulation layer: EVA insulation on underside
Mounting: Housing for direct mounting on DIN rail
Dimensions: approx. 88 × 87 × 51 mm (W × H × D)

Certificates
Compliance certificates	RoHS, TÜV mark
Features
Connector(s)	Terminal block / D-Sub 25
Connector gender	Female/Female
Product colour	Green
AWG wire size	26/18
Dielectric strength	300 V
Contact resistance	10 mΩ
Voltage	100 V
Current	0.7 A
Logistics data
Country of origin	Taiwan
Operational conditions
Operating temperature (T-T)	-20 - 105 °C
Packaging data
Quantity per pack	1 pc(s)
Package width	95 mm
Package depth	125 mm
Package height	55 mm
Package weight	203 g
Package volume	100 cm³
Package type	Polybag
Technical data
Article length	8.70cm
Article height	5.10cm
Packaging volume	0.0001m³
Type	For top-hat rail
Net weight	0.155kg
Weight	0.203kg
Width packaging	0.095m
Article width	8.80cm
Length packaging	0.125m
Side A	D-Sub 25 plug/socket
Height packaging	0.055m
Weight & dimensions
Dimensions (WxDxH)	88 x 87 x 51 mm
Weight	155 g
Width	88 mm
Depth	87 mm
Height	51 mm

---
