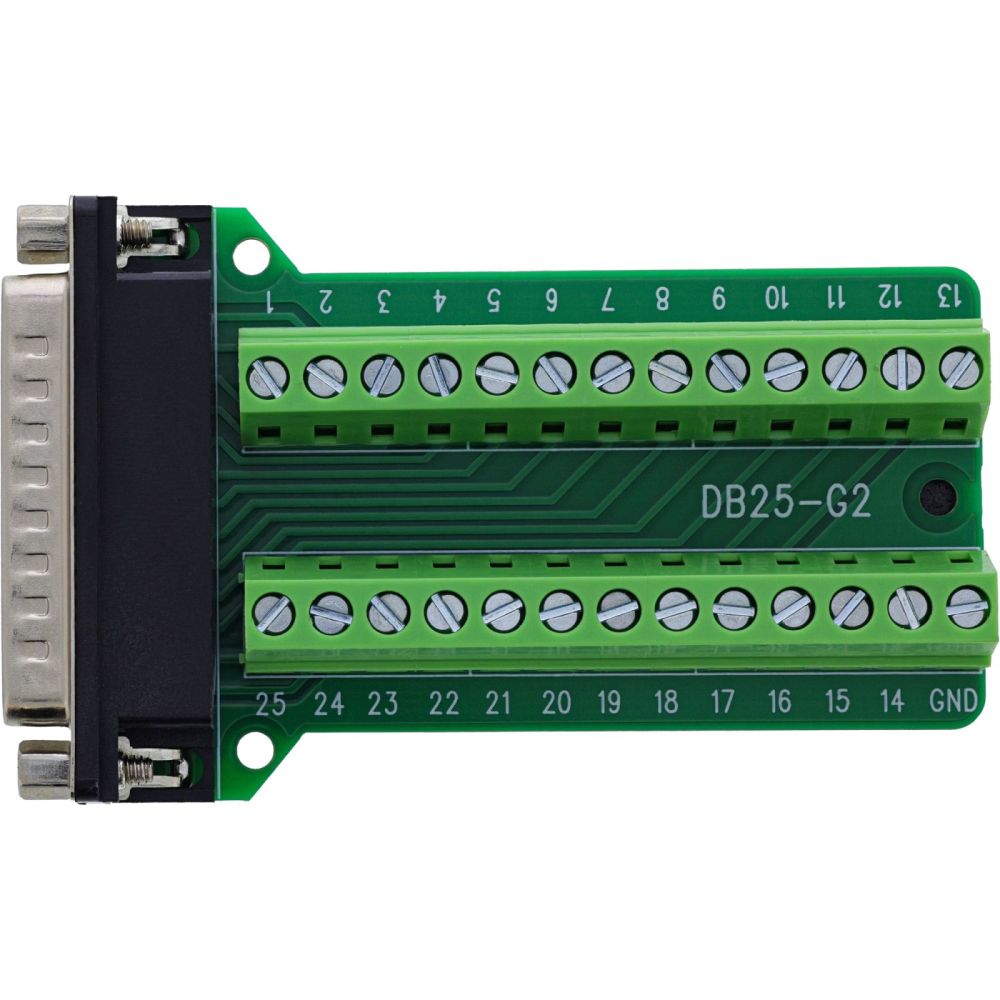

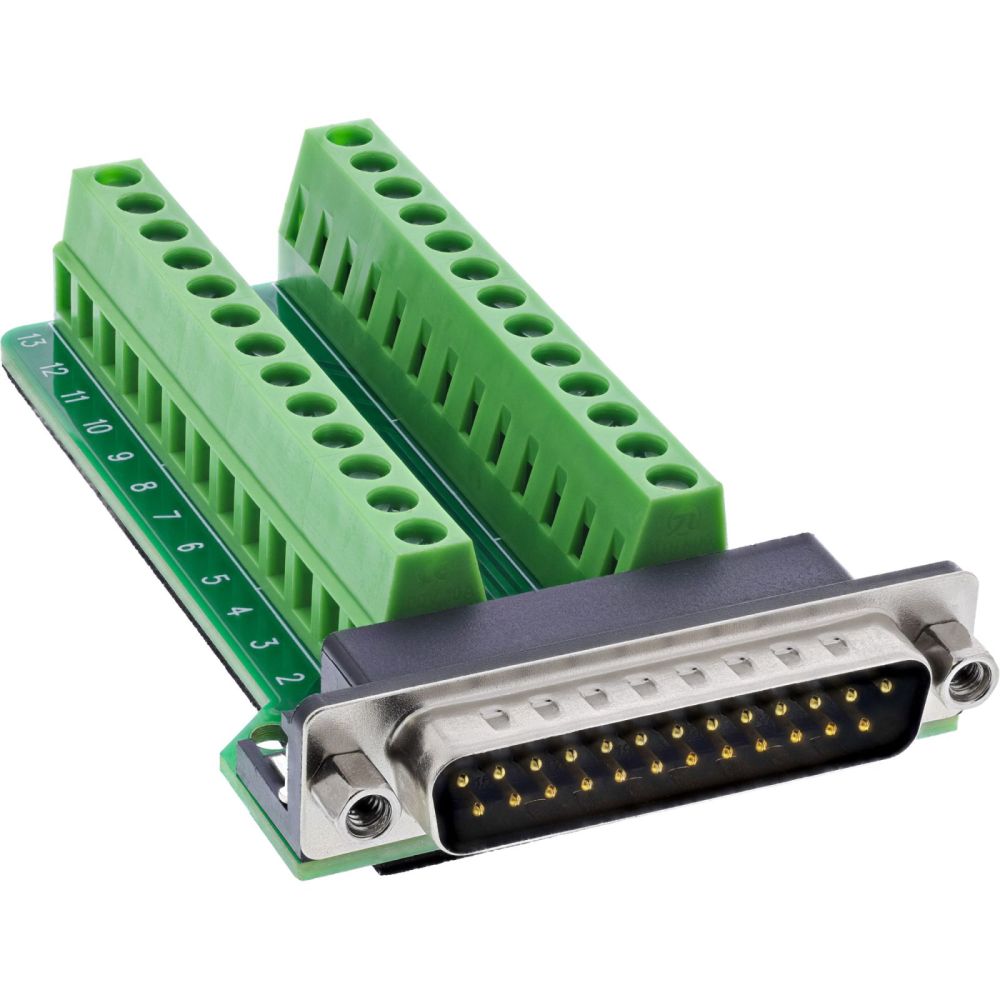

InLine® D-Sub 25 terminal block, plug, 2-row, screw terminal content_copy

Time savings during installation: Quick wiring via screw terminals for 18–26 AWG – tool-assisted with flat-head screwdriver ≤ 2.5 mm.
Stable connection thanks to screw lock: The 2-row D-Sub-25 plug is equipped with a mounting thread (UNC #4-40) and enables secure mechanical fastening with matching sockets.
Versatile use in industry: Ideal for serial control lines in mechanical engineering, automation, test benches, or signal distribution.
Compact design: Measuring approx. 86.5 × 53.3 × 18 mm, the terminal block can be integrated into existing installations in a space-saving manner, even with a high number of pins.
High signal quality: An insulation resistance of ≥ 10 MΩ at 300 V DC and a rated current of 0.7 A per pin ensure reliable signal transmission – even under continuous load.
The InLine® D-Sub 25 terminal block with connector in a 2-row design is the ideal solution for serial point-to-point connections with up to 25 wires. The screw terminals with pressure plate enable quick and secure connection of single wires in the 18–26 AWG range – without any soldering. Tool-assisted wiring is carried out with a flat-head screwdriver ≤ 2.5 mm.
The integrated screw lock (UNC #4-40) ensures a stable connection to the matching socket – vibration-proof and repeatably detachable. Thanks to its compact design, the terminal block is particularly suitable for industrial applications with high signal density and limited space.
D-Sub 25 connector: 2-row, with mounting thread for connector locking (UNC #4-40)
Connection technology: Screw terminal with pressure plate
Connection range: 18–26 AWG
Actuation: With flat-blade screwdriver ≤ 2.5 mm
Rated current: 0.7 A per pin
Max. operating voltage: 100 V between two signals
Insulation resistance: ≥ 10 MΩ @ 300 V DC
Operating temperature: –20 °C to +105 °C
Insulation layer: EVA insulation on underside
Dimensions: approx. 86.5 × 53.3 × 18 mm (L × W × H)

Certificates
Compliance certificates	RoHS, TÜV mark
Features
Connector(s)	Terminal block / D-Sub 25
Connector gender	Female/Female
Product colour	Green
AWG wire size	26/18
Dielectric strength	300 V
Contact resistance	10 mΩ
Voltage	100 V
Current	0.7 A
Logistics data
Country of origin	Taiwan
Operational conditions
Operating temperature (T-T)	-20 - 105 °C
Packaging data
Quantity per pack	1 pc(s)
Package width	100 mm
Package depth	165 mm
Package height	18 mm
Package weight	56 g
Package volume	100 cm³
Package type	Polybag
Technical data
Length packaging	0.165m
Article width	5.30cm
Weight	0.056kg
Height packaging	0.018m
Width packaging	0.100m
Article height	1.80cm
Packaging volume	0.0001m³
Side A	D-Sub 25 plug
Net weight	0.053kg
Article length	8.70cm
Weight & dimensions
Dimensions (WxDxH)	53 x 87 x 18 mm
Weight	53 g
Width	53 mm
Depth	87 mm
Height	18 mm

---
