InLine® D-Sub 15 terminal block, plug, top-hat rail, screw terminals content_copy

Time savings during installation: Quick wiring via screw terminals for 16–24 AWG – tool-assisted with flat-head screwdriver ≤ 2.5 mm.
Stable connection thanks to screw lock: The 2-row D-Sub-15 connector is equipped with a mounting thread (UNC #4-40) and enables secure mechanical fixation with matching sockets.
Versatile use in industry: Ideal for serial control lines in control cabinets, test benches, control systems, or building automation.
DIN rail mounting for structured installations: The robust DIN rail housing allows direct mounting on mounting rails – standard-compliant, secure, and space-saving.
High signal quality: An insulation resistance ≥ 10 MΩ at 300 V DC and a rated current of 1.0 A per pin ensure reliable signal transmission – even under continuous load.

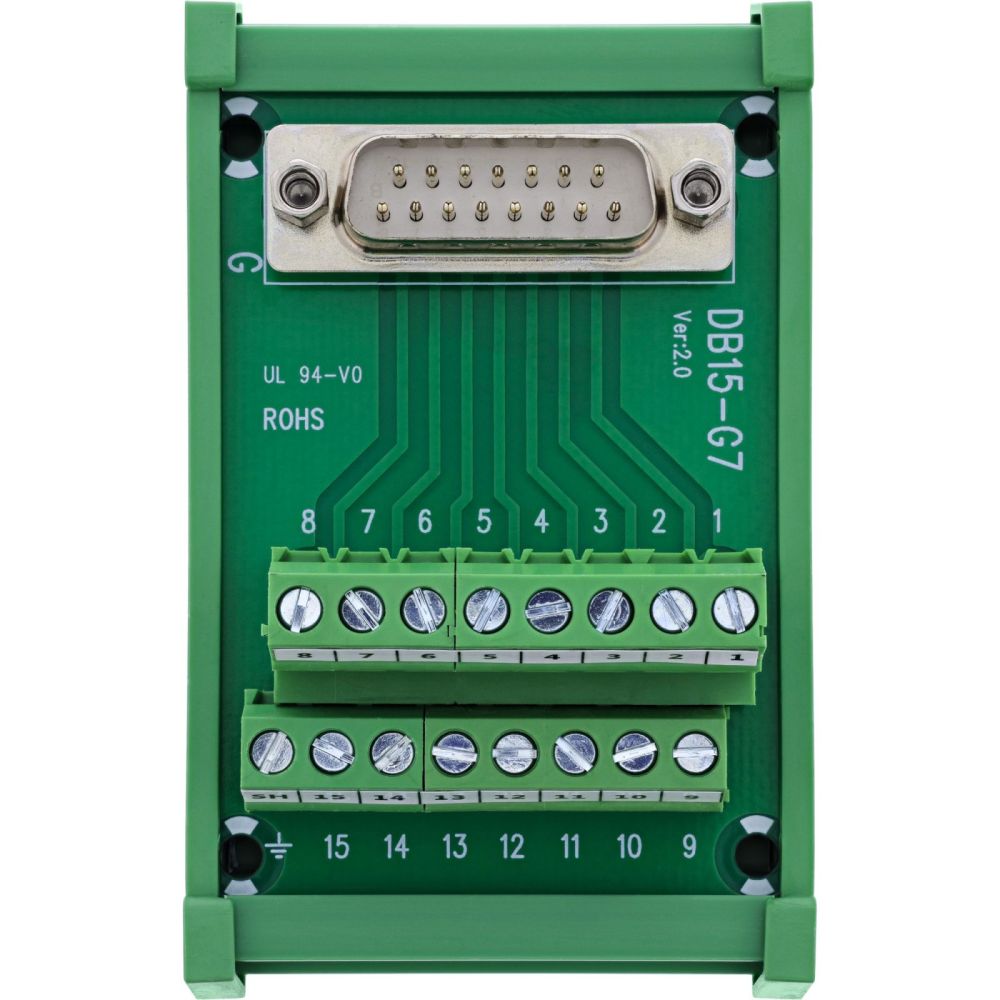

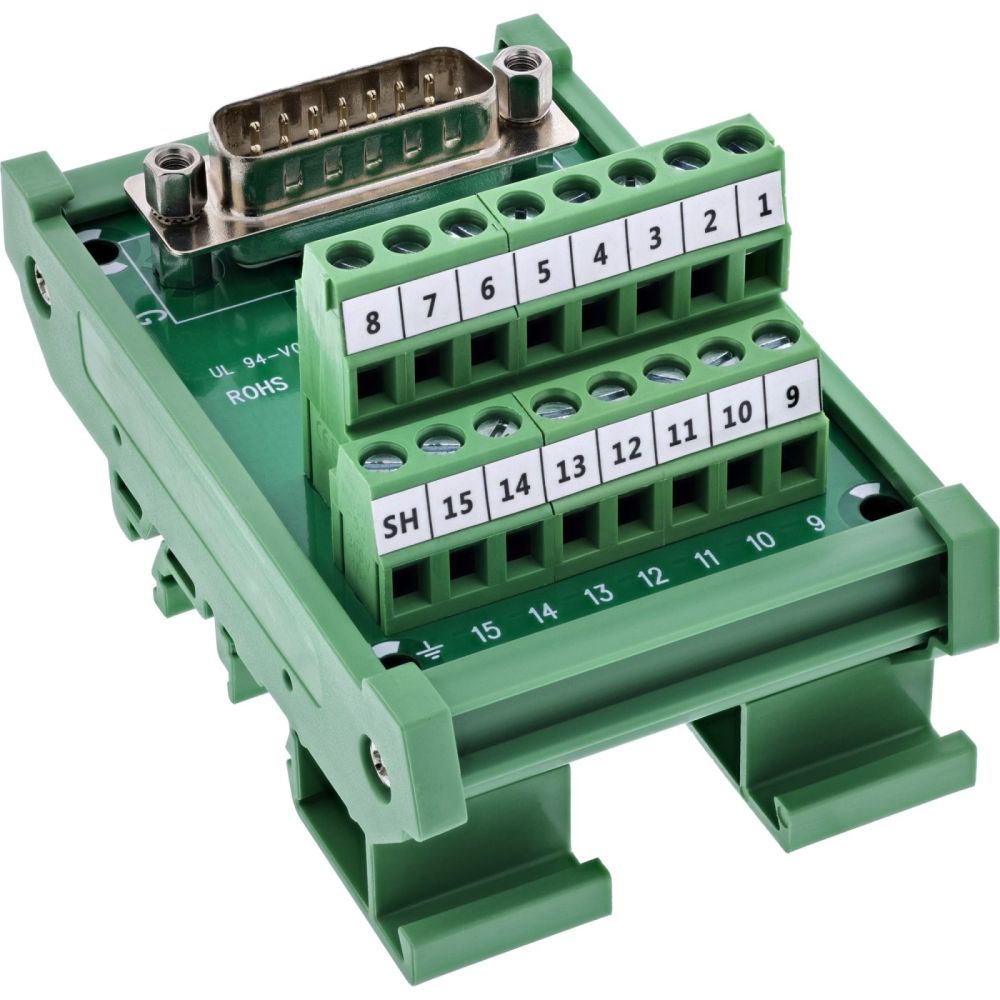

The InLine® D‑Sub 15 terminal block with connector in a 2-row design is ideal for structured wiring in control cabinets. Individual wires in the 16–24 AWG range can be connected quickly and securely via the side-accessible screw terminals with pressure plate. Tool-assisted wiring is carried out with a flat-head screwdriver ≤ 2.5 mm.
The integrated screw lock (UNC #4-40) ensures a secure connection with matching sockets – vibration-proof and durable. The compact design and pre-assembled DIN rail clip enable quick and standard-compliant top-hat rail mounting in industrial environments.

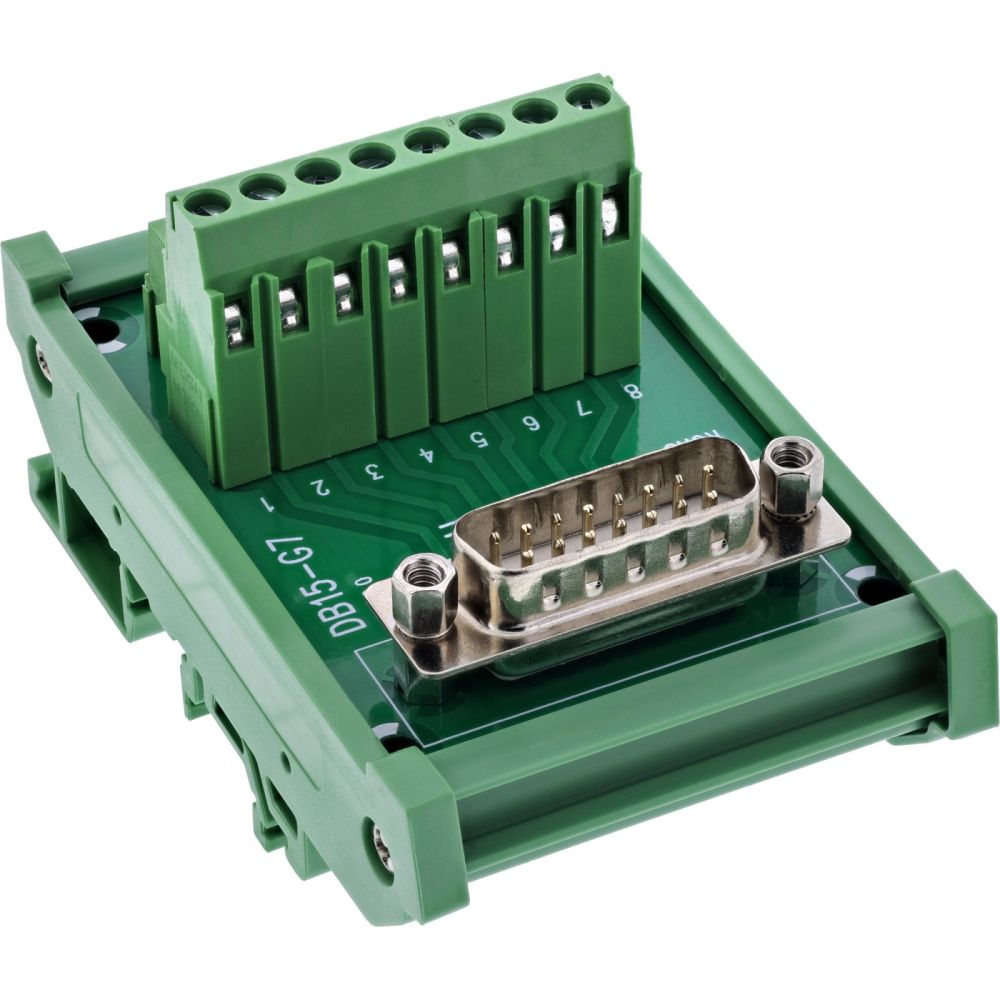

D-Sub 15 connector: 2-row, with mounting thread for connector locking (UNC #4-40)

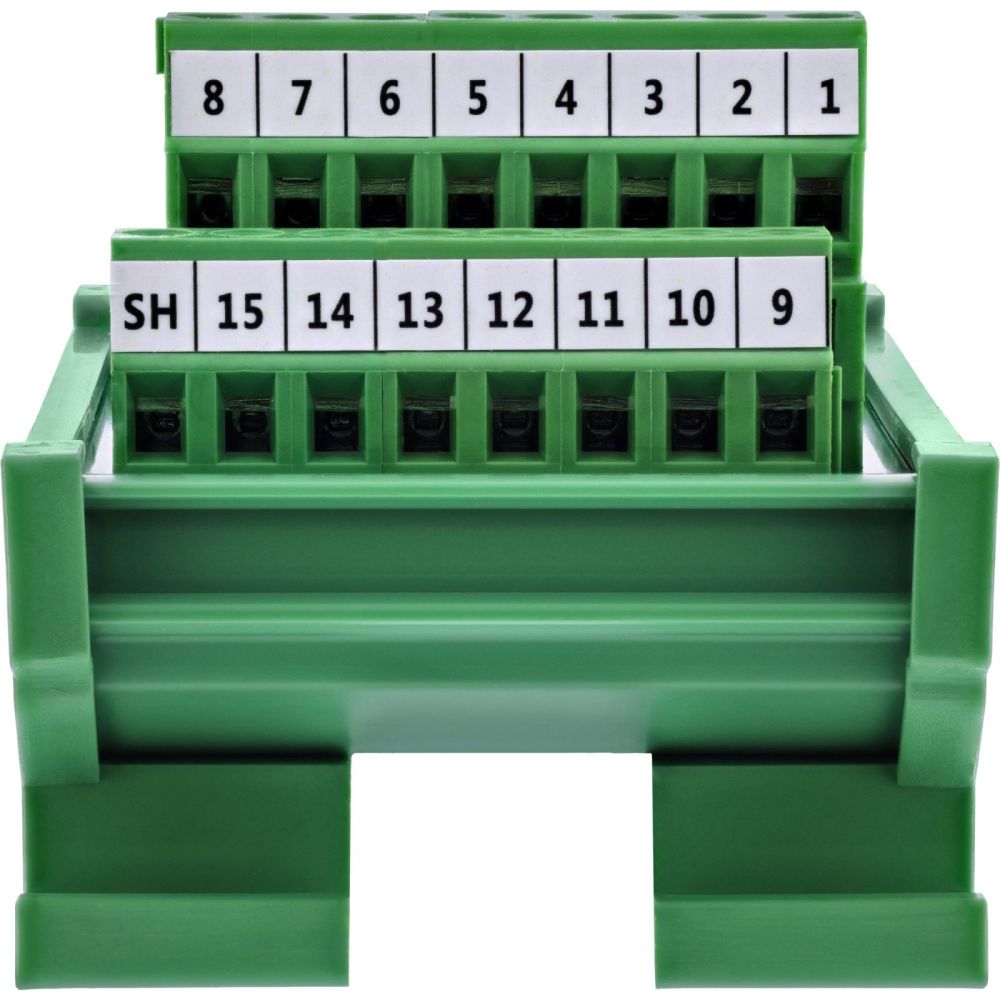

Connection technology: Screw terminal with pressure plate
Connection range: 16–24 AWG
Actuation: With flat-blade screwdriver ≤ 2.5 mm
Rated current: 1 A per pin
Max. operating voltage: 100 V between two signals
Insulation resistance: ≥ 10 MΩ @ 300 V DC
Operating temperature: –10 °C to +70 °C
Insulation layer: EVA insulation on underside

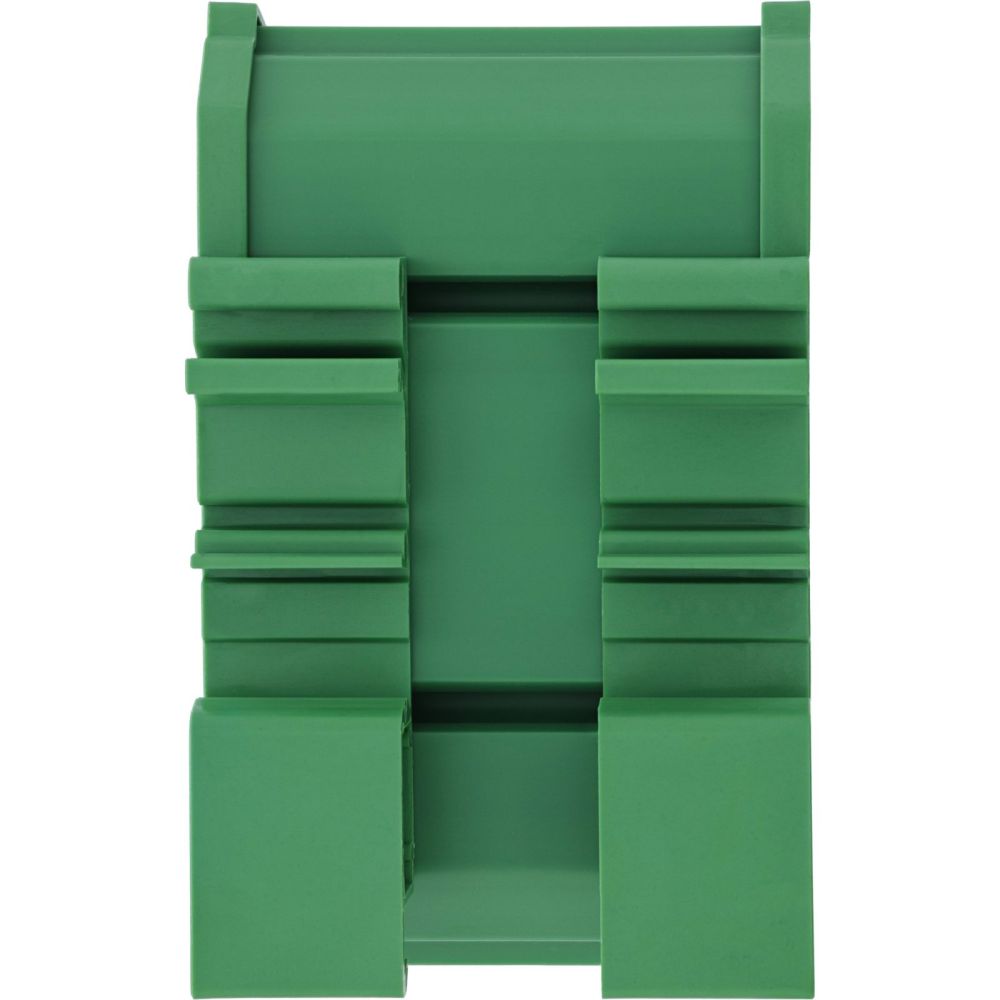

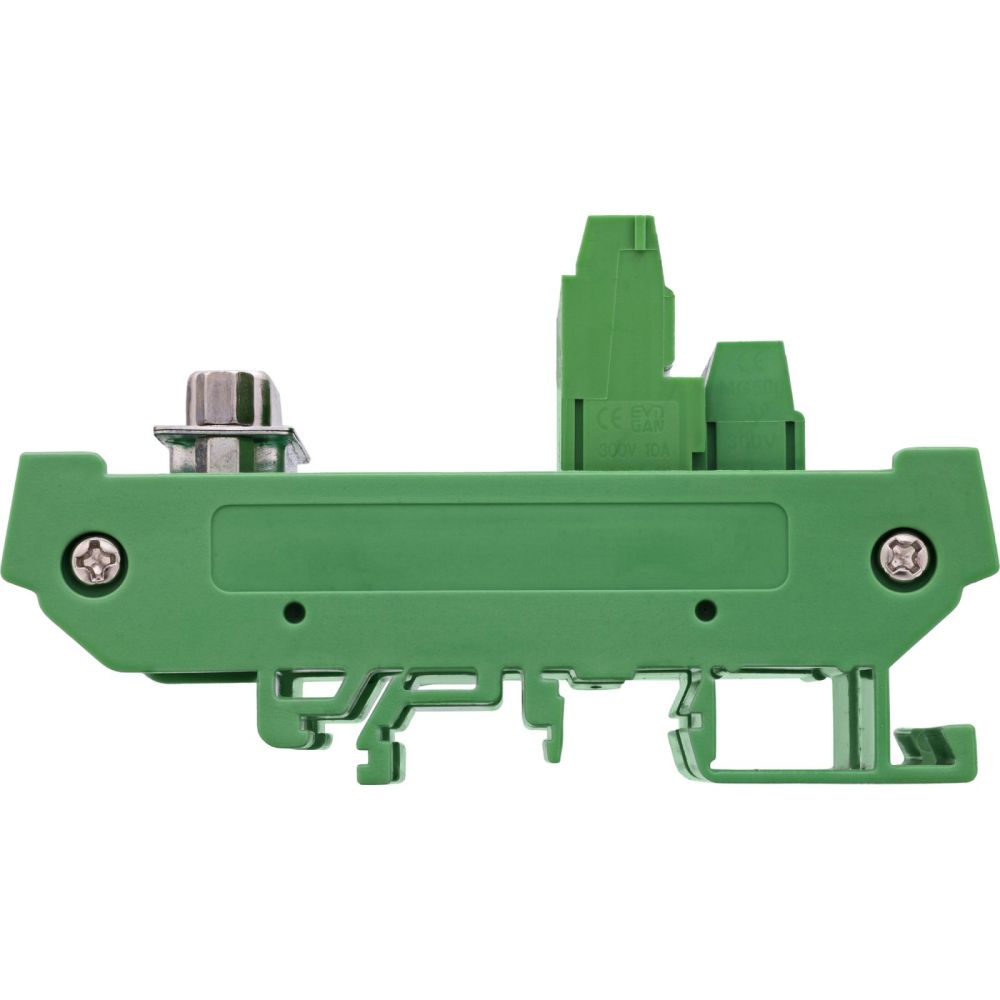

Mounting: Housing for direct mounting on DIN rail
Dimensions: approx. 87 × 53 × 34.8 mm (L × W × H)

Certificates
Compliance certificates	RoHS, TÜV mark
Features
Connector(s)	Terminal block / D-Sub 15
Connector gender	Male/Female
Product colour	Green
AWG wire size	24/16
Dielectric strength	300 V
Contact resistance	10 mΩ
Voltage	100 V
Current	1 A
Logistics data
Country of origin	Taiwan
Operational conditions
Operating temperature (T-T)	-10 - 70 °C
Packaging data
Quantity per pack	1 pc(s)
Package width	95 mm
Package depth	125 mm
Package height	55 mm
Package weight	138 g
Package volume	100 cm³
Package type	Polybag
Technical data
Packaging volume	0.0001m³
Type	For top-hat rail
Width packaging	0.095m
Article width	5.30cm
Net weight	0.093kg
Article height	5.10cm
Length packaging	0.125m
Side A	D-Sub 15 plug
Article length	8.70cm
Height packaging	0.055m
Weight	0.138kg
Weight & dimensions
Dimensions (WxDxH)	53 x 87 x 51 mm
Weight	93 g
Width	53 mm
Depth	87 mm
Height	51 mm

---
