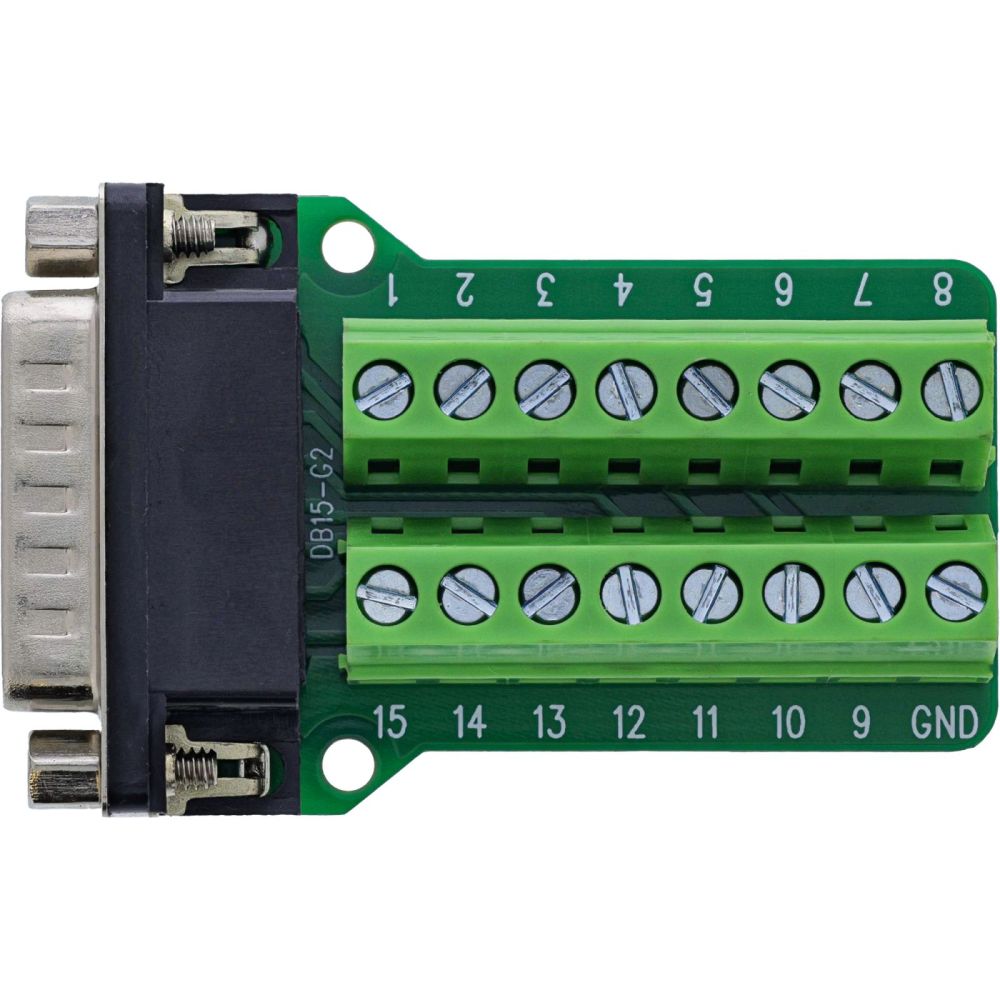

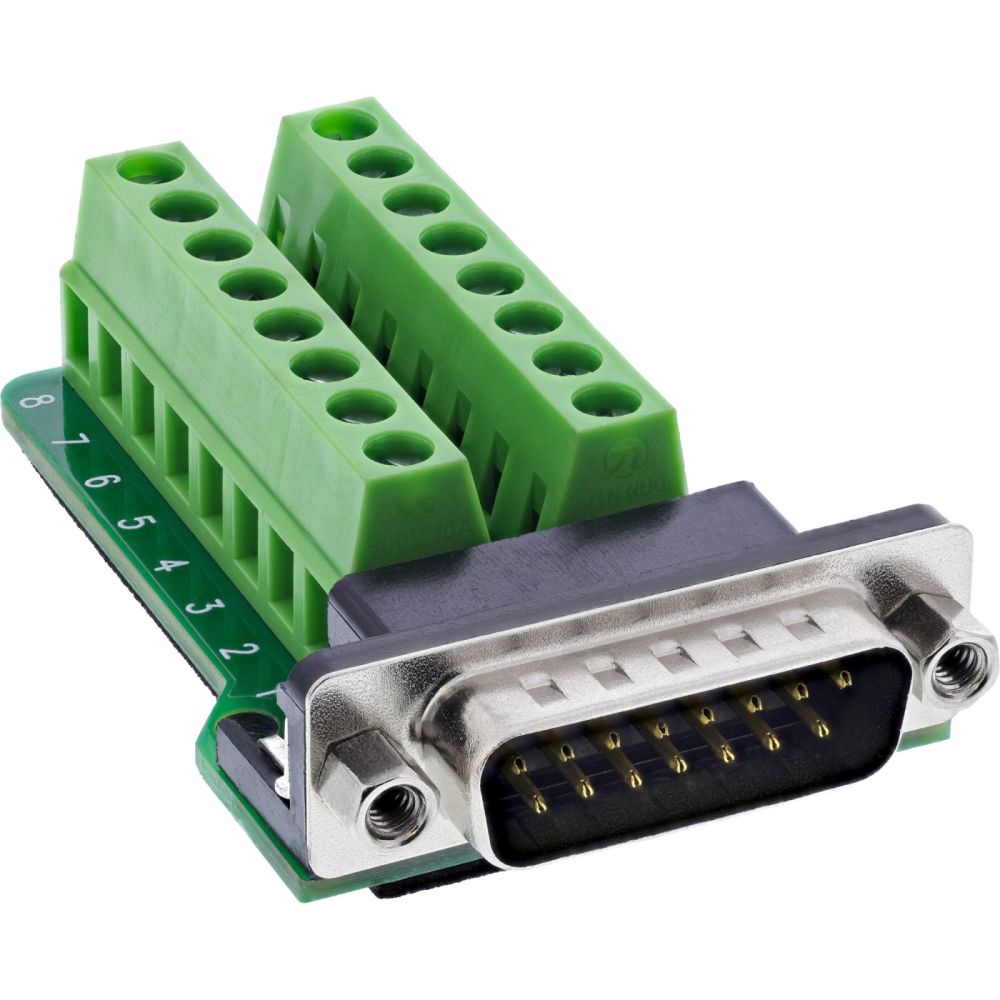

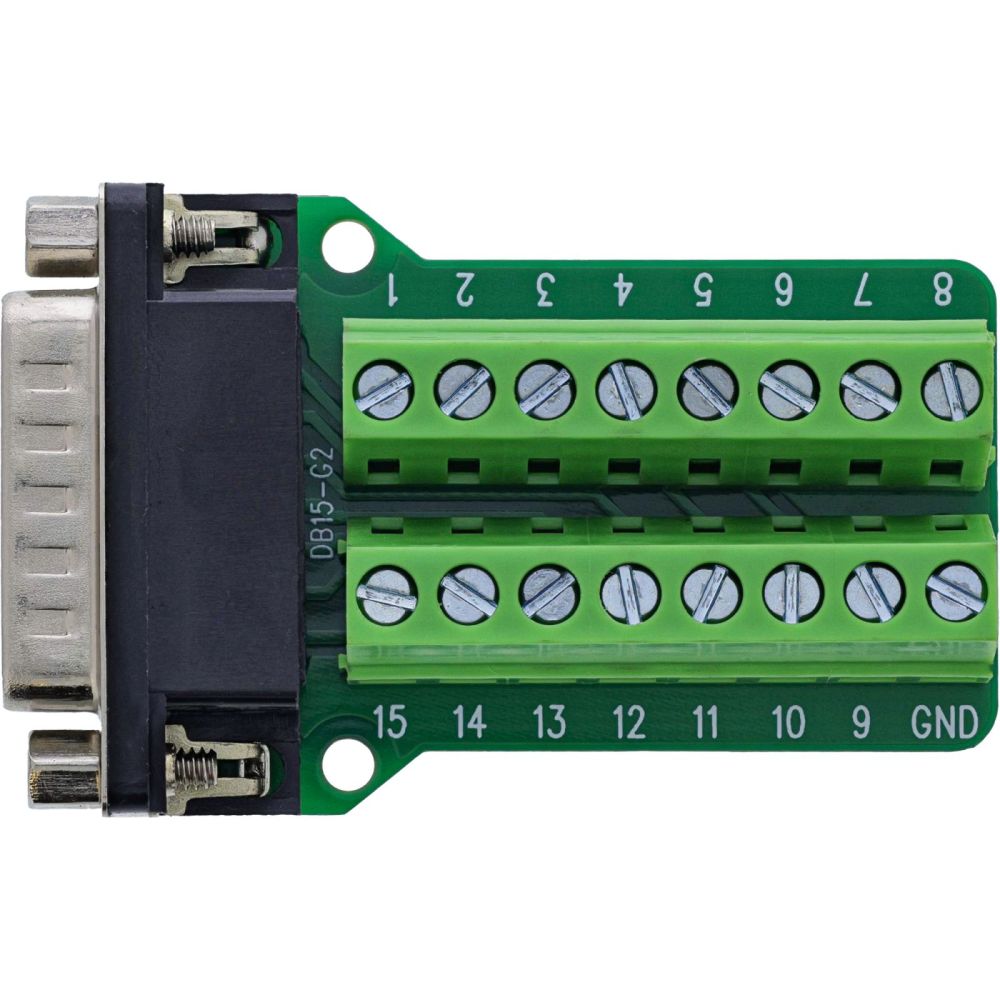

InLine® D-Sub 15 terminal block, plug, 2-row, screw terminal content_copy

Time savings during installation: Quick wiring via screw terminals for 18–26 AWG – tool-assisted with flat-head screwdriver ≤ 2.5 mm.
Stable connection thanks to screw lock: The 2-row D-Sub-15 connector is equipped with a mounting thread (UNC #4-40) and enables secure mechanical fixation with matching sockets.
Versatile use in industry: Ideal for serial control lines in automation, mechanical engineering, test stations, or signal distribution.
Compact design: Measuring approx. 62.5 × 31 × 16 mm, the terminal block can be integrated into existing installations in a space-saving manner – even with high contact density.
High signal quality: An insulation resistance of ≥ 10 MΩ at 300 V DC and a rated current of 0.7 A per pin ensure reliable signal transmission.
The InLine® D-Sub 15 terminal block with connector in a 2-row design is ideal for wiring serial signals between control components or for temporary connections in the control cabinet. The screw terminals with pressure plate allow the connection of single wires in the range of 18–26 AWG – without any soldering. Tool-assisted operation is carried out with a flat-head screwdriver ≤ 2.5 mm.
The integrated screw lock (UNC #4-40) ensures a stable, vibration-proof connection to matching sockets. The compact design makes the module particularly suitable for industrial applications with limited space.
D-Sub 15 plug: 2-row, with mounting thread for plug locking (UNC #4-40)
Connection technology: Screw terminal with pressure plate
Connection range: 18–26 AWG
Actuation: With flat-blade screwdriver ≤ 2.5 mm
Rated current: 0.7 A per pin
Max. operating voltage: 100 V between two signals
Insulation resistance: ≥ 10 MΩ @ 300 V DC
Operating temperature: –20 °C to +105 °C
Insulation layer: EVA insulation on underside
Dimensions: approx. 62.5 × 31 × 16 mm (L × W × H)

Certificates
Compliance certificates	RoHS, TÜV mark
Features
Connector(s)	Terminal block / D-Sub 15
Connector gender	Male/Female
Product colour	Black, Green
AWG wire size	26/18
Dielectric strength	300 V
Contact resistance	10 mΩ
Voltage	100 V
Current	0.7 A
Logistics data
Country of origin	Taiwan
Operational conditions
Operating temperature (T-T)	-10 - 70 °C
Packaging data
Quantity per pack	1 pc(s)
Package width	100 mm
Package depth	165 mm
Package height	16 mm
Package weight	37 g
Package volume	100 cm³
Package type	Polybag
Technical data
Net weight	0.034kg
Height packaging	0.016m
Packaging volume	0.0001m³
Side A	D-Sub 15 plug
Weight	0.037kg
Article length	6.30cm
Length packaging	0.165m
Article width	3.90cm
Width packaging	0.100m
Article height	1.80cm
Weight & dimensions
Dimensions (WxDxH)	39 x 63 x 18 mm
Weight	34 g
Width	39 mm
Depth	63 mm
Height	18 mm

---
