InLine® D-Sub 9 terminal block, socket/plug, screw terminal, top-hat rail content_copy

Time savings during installation: Quick wiring via screw terminals for 14–26 AWG – tool-assisted with flat-head screwdriver ≤ 2.5 mm.
Dual interface for flexible connection: Equipped with a D-Sub-9 female connector and a D-Sub-9 male connector – ideal for serial connections in both directions or as an interface switch.
Versatile industrial use: Suitable for structured installations in control cabinets, machine control, test setups, and mobile service applications.

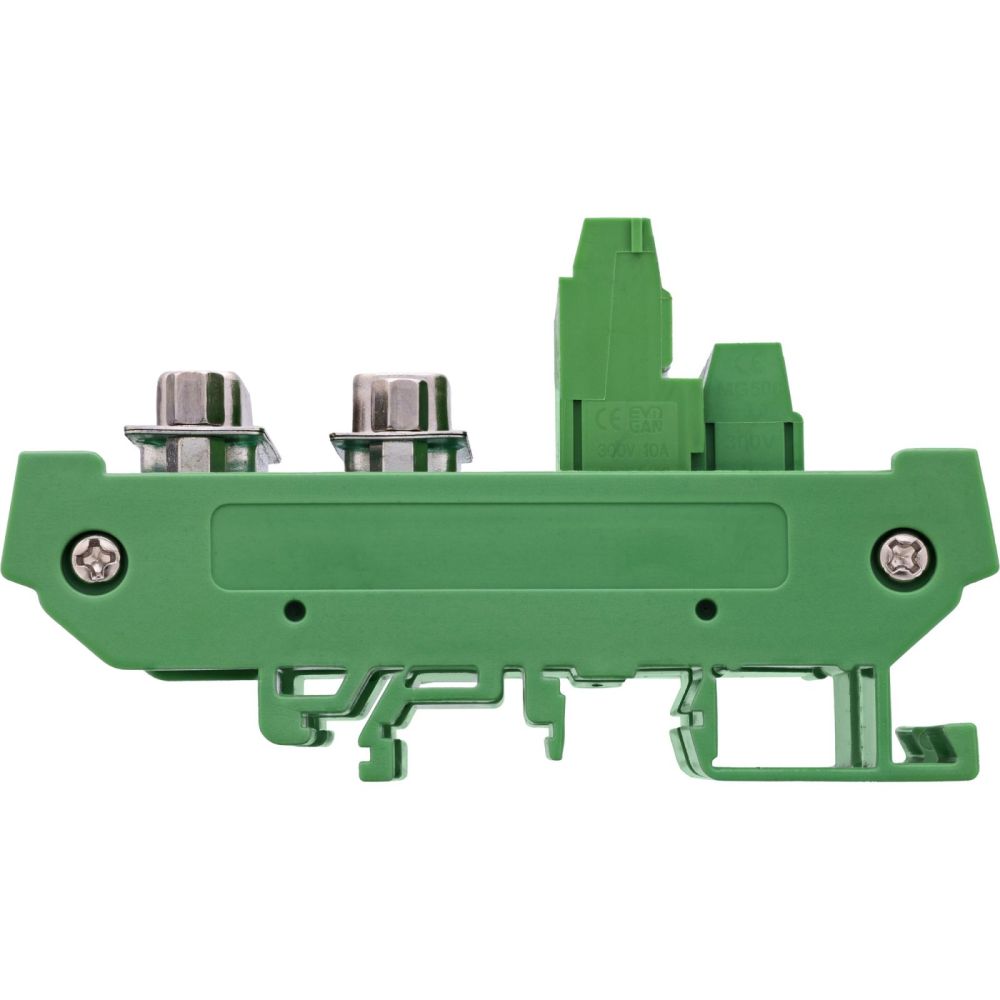

DIN rail mounting for structured installations: The integrated DIN rail housing allows direct mounting on mounting rails – space-saving, robust, and suitable for workshop use.
High signal quality: An insulation resistance ≥ 10 MΩ at 300 V DC and a rated current of 0.8 A per pin ensure reliable signal transmission – even under continuous load.

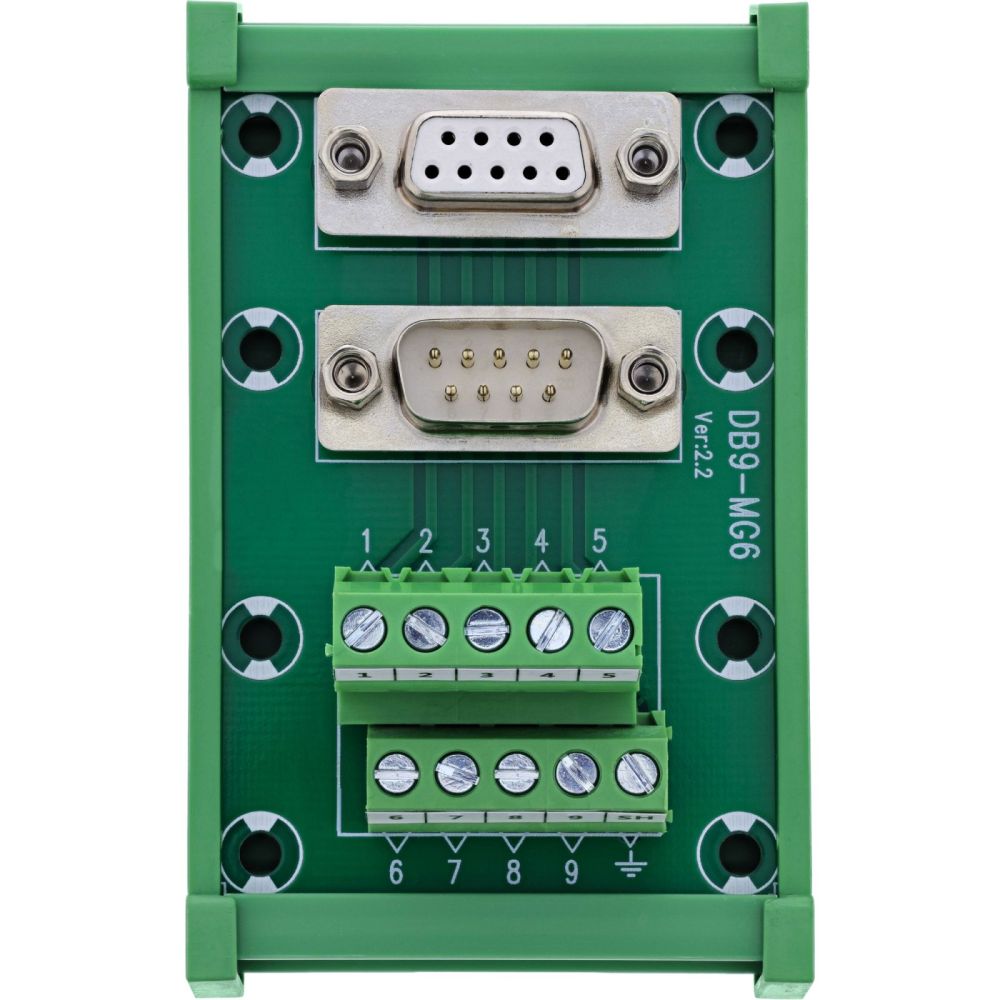

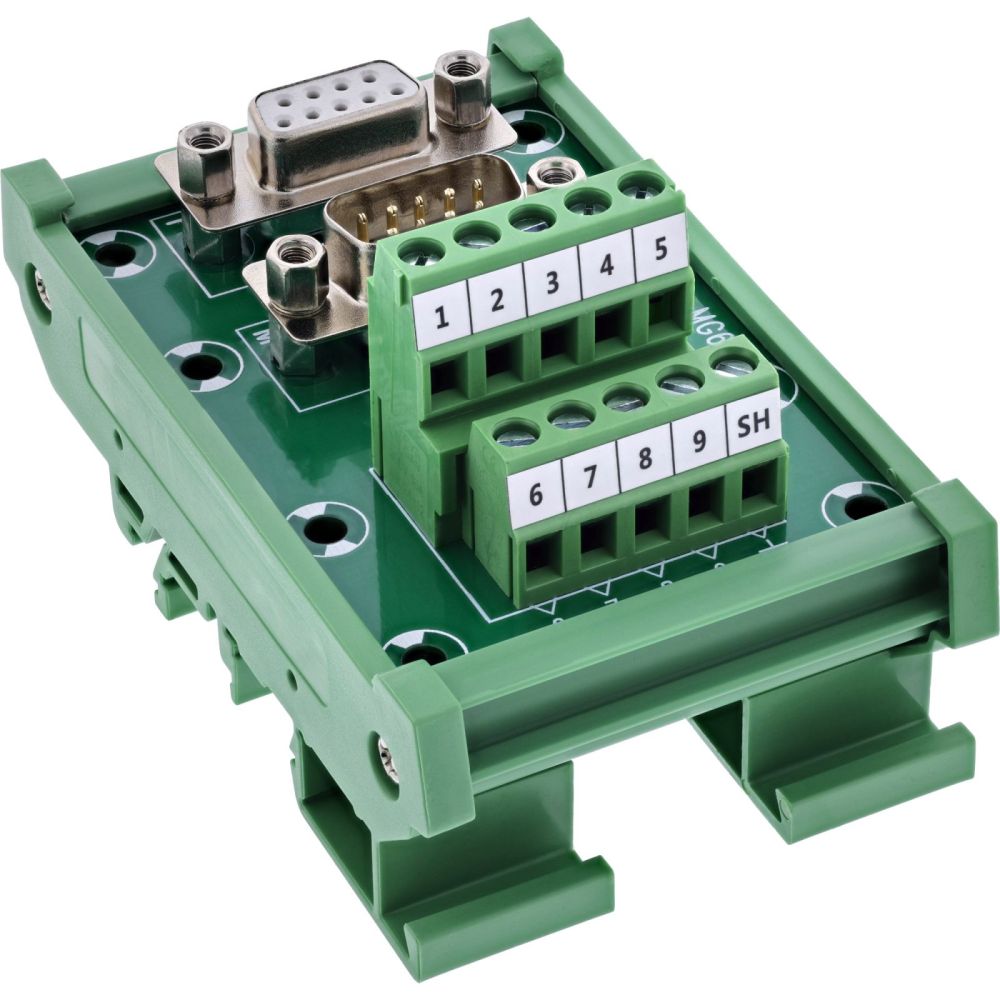

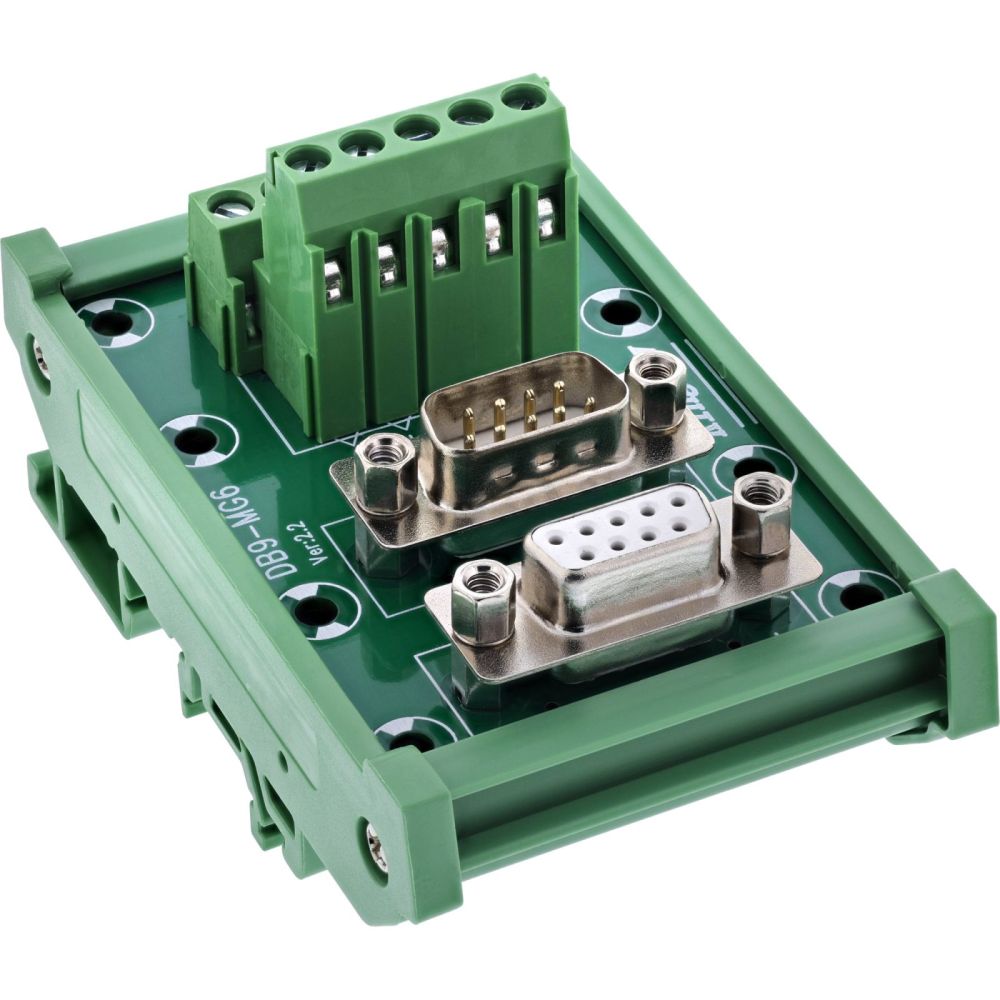

The InLine® D-Sub 9 terminal block with combined female and male connector design enables flexible and structured wiring of serial interfaces within a single module. The dual D-Sub interface (male & female) makes the product ideal as a transfer or connection point between two devices.

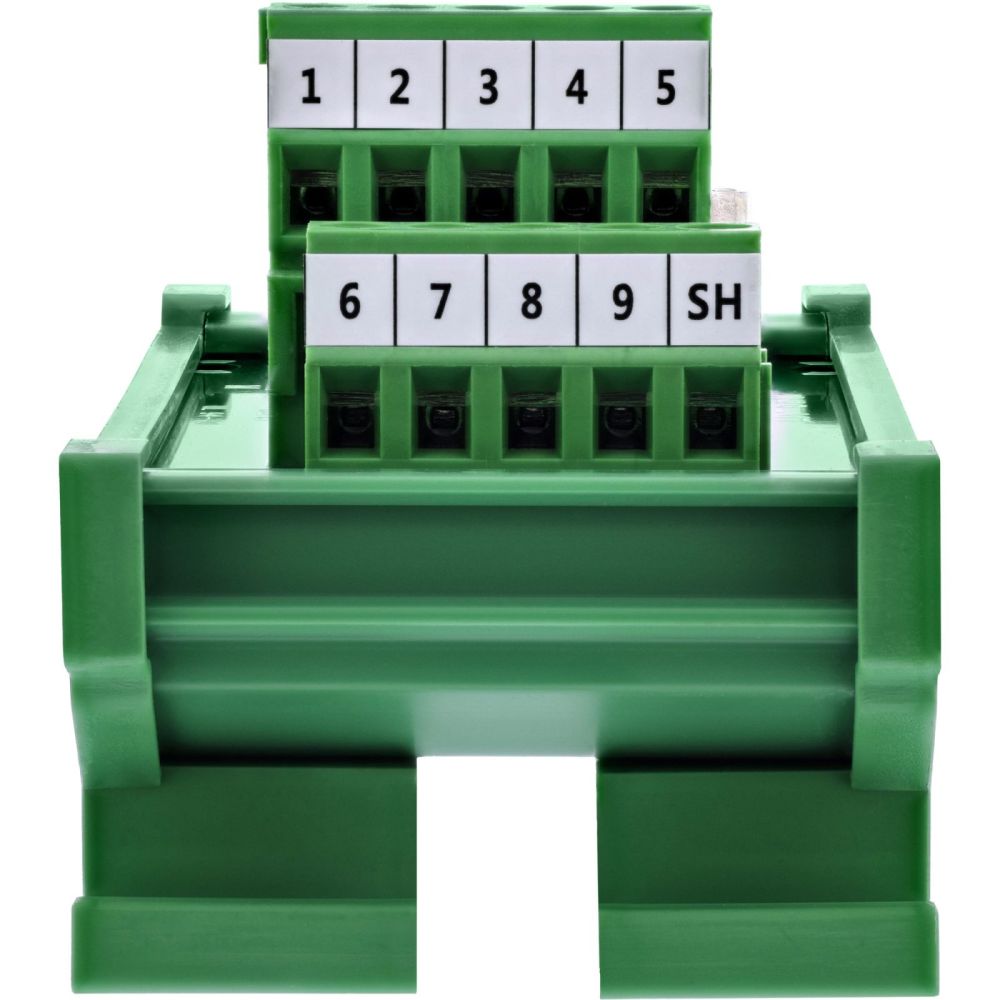

The side-accessible screw terminals with pressure plate support a connection range of 14–26 AWG and enable fast, secure wiring with a flat-blade screwdriver ≤ 2.5 mm. The pre-assembled DIN rail clip allows direct mounting on standard top-hat rails – ideal for professional control and test setups.
D-Sub 9 interfaces: 1× female connector, 1× male connector, with mounting threads (UNC #4-40)
Connection technology: Screw terminal with pressure plate
Connection range: 14–26 AWG
Actuation: With flat-blade screwdriver ≤ 2.5 mm
Rated current: 0.8 A per pin
Max. operating voltage: 100 V between two signals
Insulation resistance: ≥ 10 MΩ @ 300 V DC
Operating temperature: –20 °C to +70 °C
Insulation layer: EVA insulation on underside

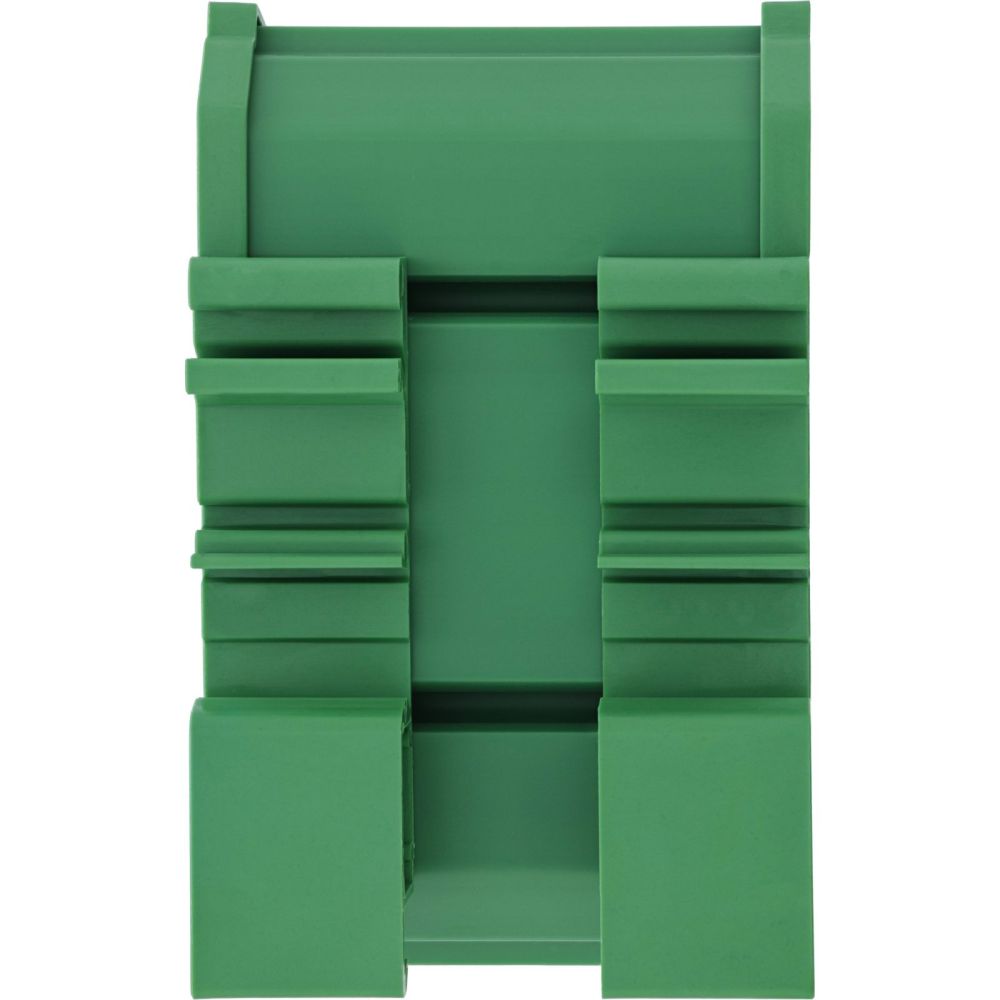

Mounting: Housing for direct mounting on DIN rail
Dimensions: approx. 87 × 53 × 34.8 mm (L x W x H)

Certificates
Compliance certificates	RoHS, TÜV mark
Features
Connector(s)	Terminal block / D-Sub 9
Connector gender	Male/Female
Product colour	Green
Dielectric strength	300 V
Contact resistance	10 mΩ
Voltage	100 V
Current	0.8 A
Logistics data
Country of origin	Taiwan
Operational conditions
Operating temperature (T-T)	-10 - 70 °C
Packaging data
Quantity per pack	1 pc(s)
Package width	95 mm
Package depth	125 mm
Package height	55 mm
Package weight	133 g
Package volume	100 cm³
Package type	Polybag
Technical data
Length packaging	0.125m
Side A	D-Sub 9 plug/socket
Net weight	0.089kg
Weight	0.133kg
Article height	5.10cm
Height packaging	0.055m
Article length	7.00cm
Packaging volume	0.0001m³
Type	For top-hat rail
Width packaging	0.095m
Article width	6.30cm
Weight & dimensions
Dimensions (WxDxH)	63 x 70 x 51 mm
Weight	89 g
Width	63 mm
Depth	70 mm
Height	51 mm

---
